Description

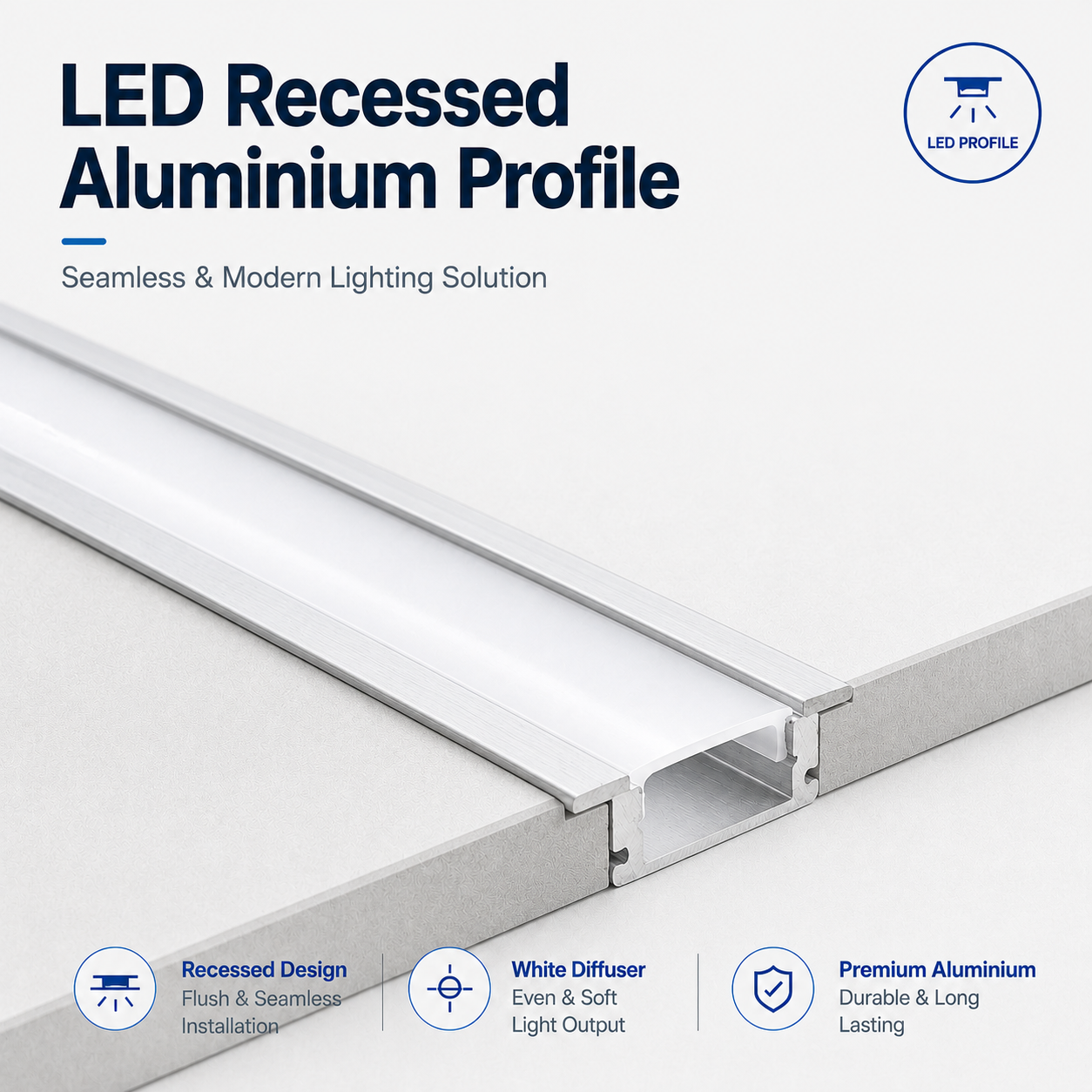

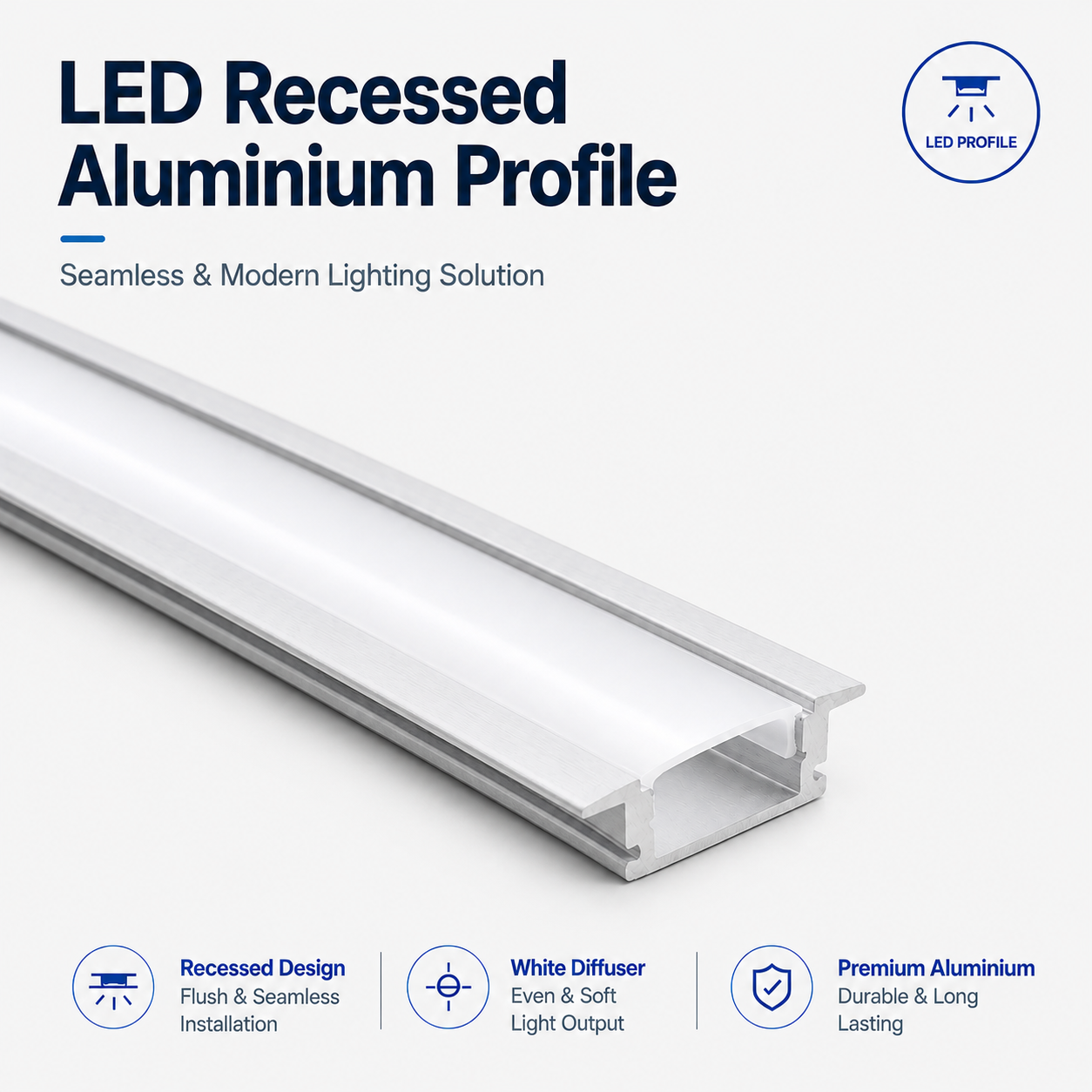

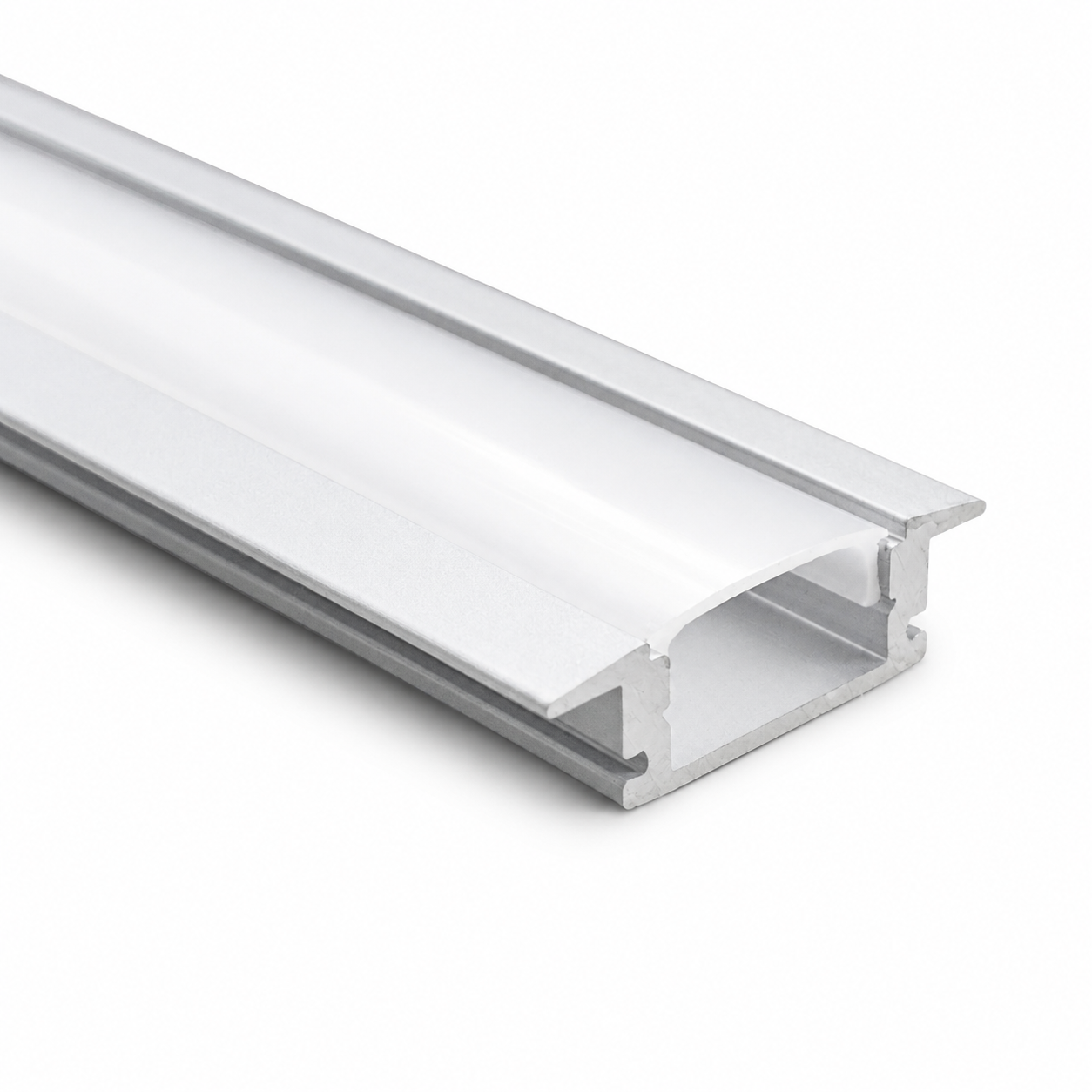

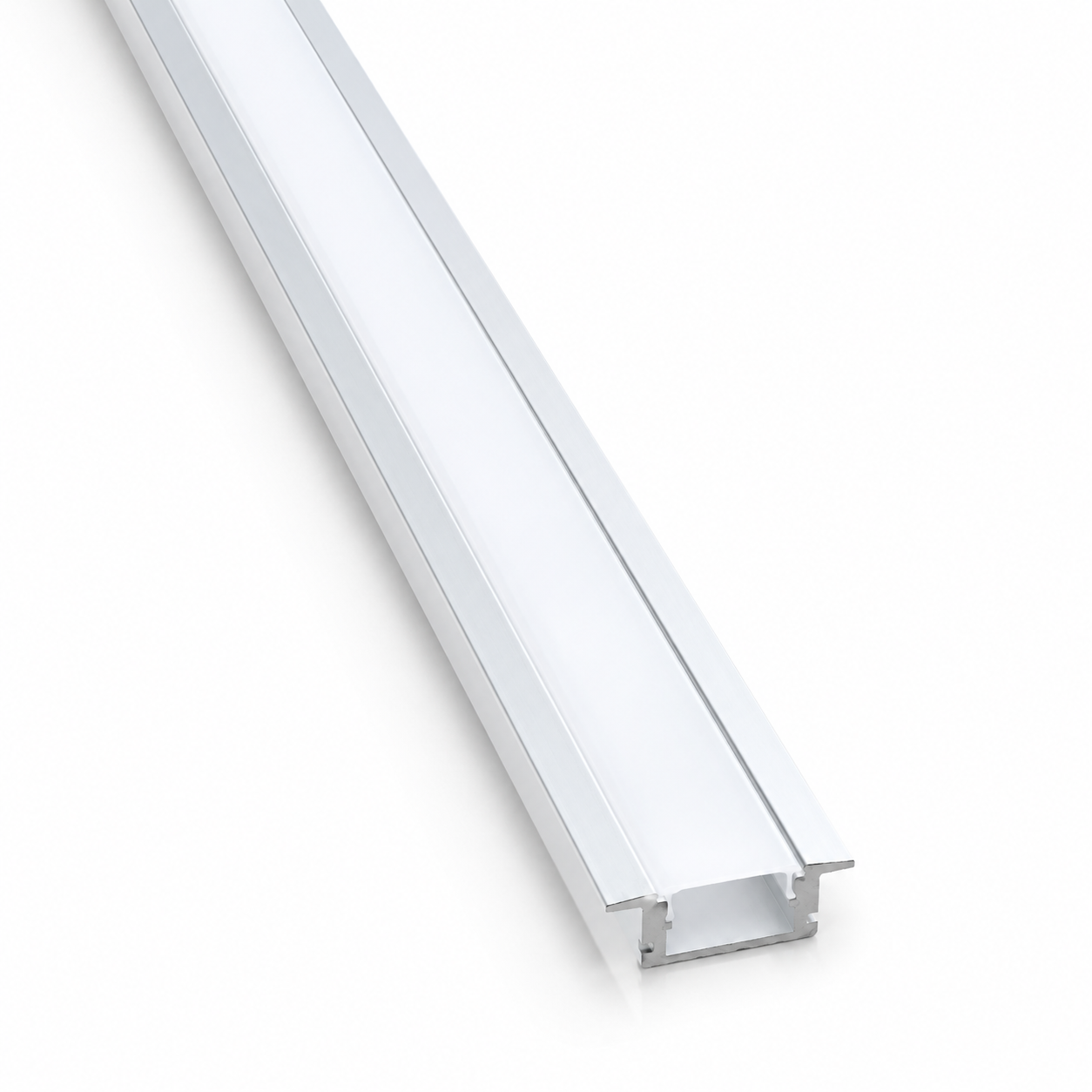

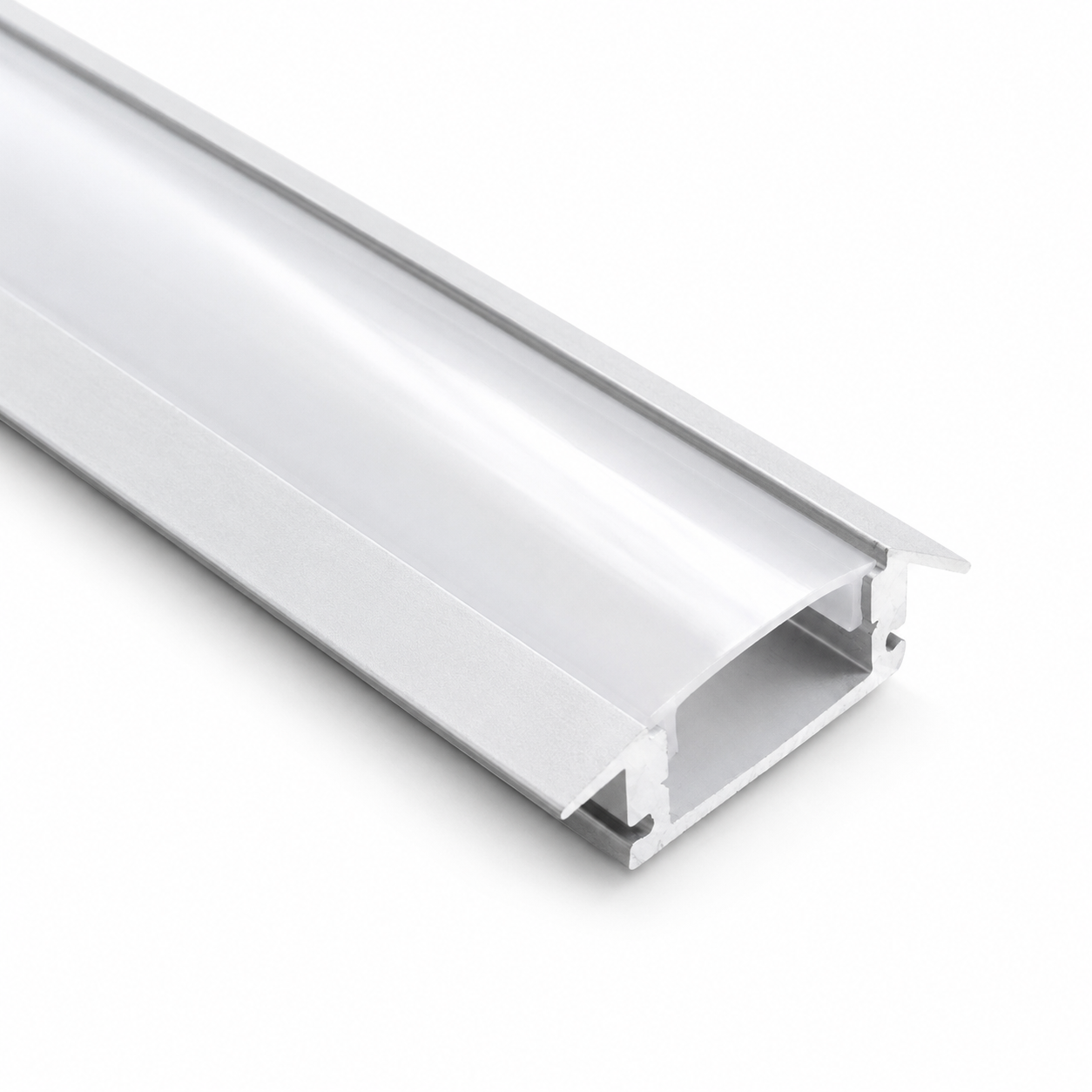

Recessed Aluminium LED Profile with Milky Diffuser – 2 Metre Lengths
Create a clean, professional and flush-fitted LED strip lighting installation with this recessed aluminium LED profile. Designed to be installed into routed channels, furniture, cabinets, shelving and architectural surfaces, the profile securely houses compatible LED tape while producing a neat, integrated finish.
Each profile is supplied in a 2 metre length with a milky diffuser. The diffuser helps soften the visible light from the LED strip, protects the tape from dust and light contact, and gives the completed installation a more refined appearance.
Available as a variation listing in total lengths from 2 metres to 100 metres, making it suitable for individual domestic installations, complete room projects, retail fit-outs and larger commercial lighting schemes.
Why Use an Aluminium Profile with LED Strip Lighting?
Installing LED tape inside an aluminium channel produces a more professional result than attaching exposed strip directly to a surface. The profile provides a straight installation line, supports the LED tape and helps protect it from accidental contact.
Aluminium also helps transfer heat away from the LED strip. Proper heat management can support more stable LED performance, particularly where the tape is operated for extended periods. The recessed design allows the profile to sit flush within the mounting surface, leaving only the diffuser and slim outer flanges visible.
For the best visual result, this profile can be used with our dotless 24V COB LED strip lights. COB tape produces a more continuous line of light than conventional widely spaced LED tape, while the milky diffuser further softens the finished effect.
Compatible 24V COB LED Strip Lights
Complete your installation with a compatible COB LED tape from Manningham Lighting & Electrical. Select the light colour that best suits your room, furniture or commercial display.
Warm White 3000K COB Tape
A warm and comfortable light colour suited to kitchens, bedrooms, living spaces, wardrobes, hospitality interiors and decorative furniture lighting.
View 3000K Warm White COB TapeCool White 6500K COB Tape
A bright, crisp light colour ideal for worktops, utility rooms, workshops, retail shelving, task lighting and commercial display applications.
View 6500K Cool White COB TapeRGB Colour-Changing COB Tape
Create decorative colour-changing lighting for entertainment areas, bedrooms, bars, gaming rooms, retail displays and feature furniture.
View RGB COB LED TapePlease note: LED strip, power supply, controller, cable and installation accessories are not included unless specifically selected or stated elsewhere in the listing. Always check the LED tape width before installation.
Applications for Recessed LED Profile
This slim recessed LED channel can be used in domestic, retail and commercial projects where a discreet, flush-mounted line of light is required.
- Kitchen lighting: under cabinets, inside units, worktops and breakfast bars.
- Wardrobes and fitted furniture: recessed into shelves, side panels or hanging areas.
- Display cabinets: for collectibles, glassware, ornaments and merchandise.
- Retail shelving: integrated product and shelf-edge illumination.
- Office and task lighting: built into desks, shelving and workspace furniture.
- Media units: discreet accent lighting around television and entertainment furniture.
- Stair and corridor features: recessed guidance or decorative lighting.
- Interior joinery: integrated into custom cabinets, wall panels and shopfitting.
- Hospitality interiors: bars, counters, reception desks and feature furniture.
Variation Lengths
All options are supplied as individual 2 metre profile lengths. Select the total quantity required from the variation menu.
| Variation | Quantity Supplied | Total Length |
|---|---|---|
| 2M | 1 × 2M length | 2 metres |
| 6M | 3 × 2M lengths | 6 metres |
| 10M | 5 × 2M lengths | 10 metres |
| 20M | 10 × 2M lengths | 20 metres |
| 30M | 15 × 2M lengths | 30 metres |
| 40M | 20 × 2M lengths | 40 metres |
| 50M | 25 × 2M lengths | 50 metres |
| 100M | 50 × 2M lengths | 100 metres |
The lengths are supplied separately and do not form one continuous 6M, 10M, 20M or longer single piece.
Technical Specification
| Model | VT-8106 |
|---|---|
| Product Type | Recessed aluminium LED strip profile |
| Installation Type | Recessed / flush mounted |
| Profile Material | Aluminium |
| Finish | Silver |
| Diffuser | Milky diffuser included |
| Length per Profile | 2000mm / 2 metres |

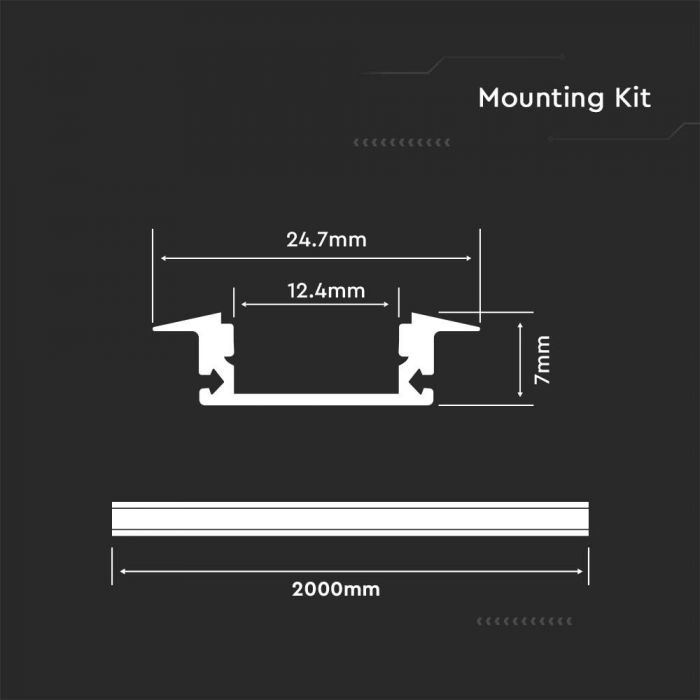

| Overall Width | 24.7mm |
| Internal Channel Width | Approximately 12.4mm |
| Profile Height | 7mm |
| Overall Dimensions | 2000 × 24.7 × 7mm |
| IP Rating | IP20 |
| Operating Temperature | -20°C to +45°C |
| Recommended Location | Dry indoor areas |
Installation Guidance
- Measure and mark the required mounting position.
- Create a straight recessed channel suitable for the profile dimensions.
- Cut the aluminium profile and diffuser to the required length using suitable tools.
- Clean the internal surface before applying the self-adhesive LED tape.
- Install and electrically connect the LED strip to a compatible power supply and controller where required.
- Secure the profile into the routed recess.
- Fit the milky diffuser after the LED strip has been tested.
Important: Verify the recess, LED tape width, cable route and all measurements before cutting or installing. Electrical connections should be completed by a suitably competent person in accordance with applicable installation requirements.
Frequently Asked Questions
Is the LED strip included?
No. This listing is for the recessed aluminium profile and milky diffuser unless the selected product option specifically states otherwise. Compatible COB LED strip lights can be purchased separately from Manningham Lighting & Electrical.
Does the profile come in one continuous length?
Each profile is 2 metres long. For example, the 10M variation contains five separate 2M lengths, while the 100M variation contains fifty separate 2M lengths.
What width of LED strip will fit inside the channel?
The internal channel is approximately 12.4mm wide. Always check the actual width of your LED tape, connectors and soldered joints before ordering and installation.
Can the aluminium profile be cut?
Yes. The aluminium channel and diffuser can be cut to the required length using appropriate cutting equipment. Measure carefully and remove any sharp edges before fitting.
Is this a surface-mounted or recessed profile?
This is a recessed profile. It is designed to sit inside a routed or prepared channel so that the diffuser is positioned close to flush with the surrounding surface.
Can it be used in a bathroom or outdoors?
The profile is rated IP20 and is intended for dry indoor environments. It should not be treated as a waterproof enclosure. Any bathroom or outdoor installation must use suitably rated equipment selected for the specific location.
Why is COB LED tape recommended?
COB LED tape provides a closely packed, continuous-looking line of light. When combined with the supplied milky diffuser, it can create a smooth and professional lighting effect in cabinets, furniture, shelving and recessed architectural details.
What else is required to complete an LED strip installation?
A typical installation requires compatible LED tape, a correctly sized LED power supply, cable and suitable connection accessories. RGB tape also requires a compatible RGB controller. The exact equipment depends on the voltage, wattage, total tape length and required control method.
Custom LED Lighting Projects and Bulk Orders
Planning a custom lighting installation, commercial fit-out or bulk order? Our team can help you select suitable aluminium profiles, COB LED tape, power supplies, controllers and connection accessories for your project.
Please provide the required total length, preferred light colour, installation type and any available project drawings or measurements when contacting us.
