Description
Ideal for COB LED Strip Lighting
This black aluminium profile works particularly well with COB LED tape. COB strip uses a high density of LEDs to produce a smoother and more continuous line of light than many traditional LED strips.
Combining COB tape with a black aluminium channel and black diffuser creates a refined lighting effect while allowing the profile to remain much less visible when the lighting is switched off.
Please remember that the black diffuser will reduce the visible brightness by approximately 40%. A higher-output LED strip may therefore be required where stronger task lighting is needed.
Popular Uses
Around televisions, black feature panels, shelving and entertainment units.

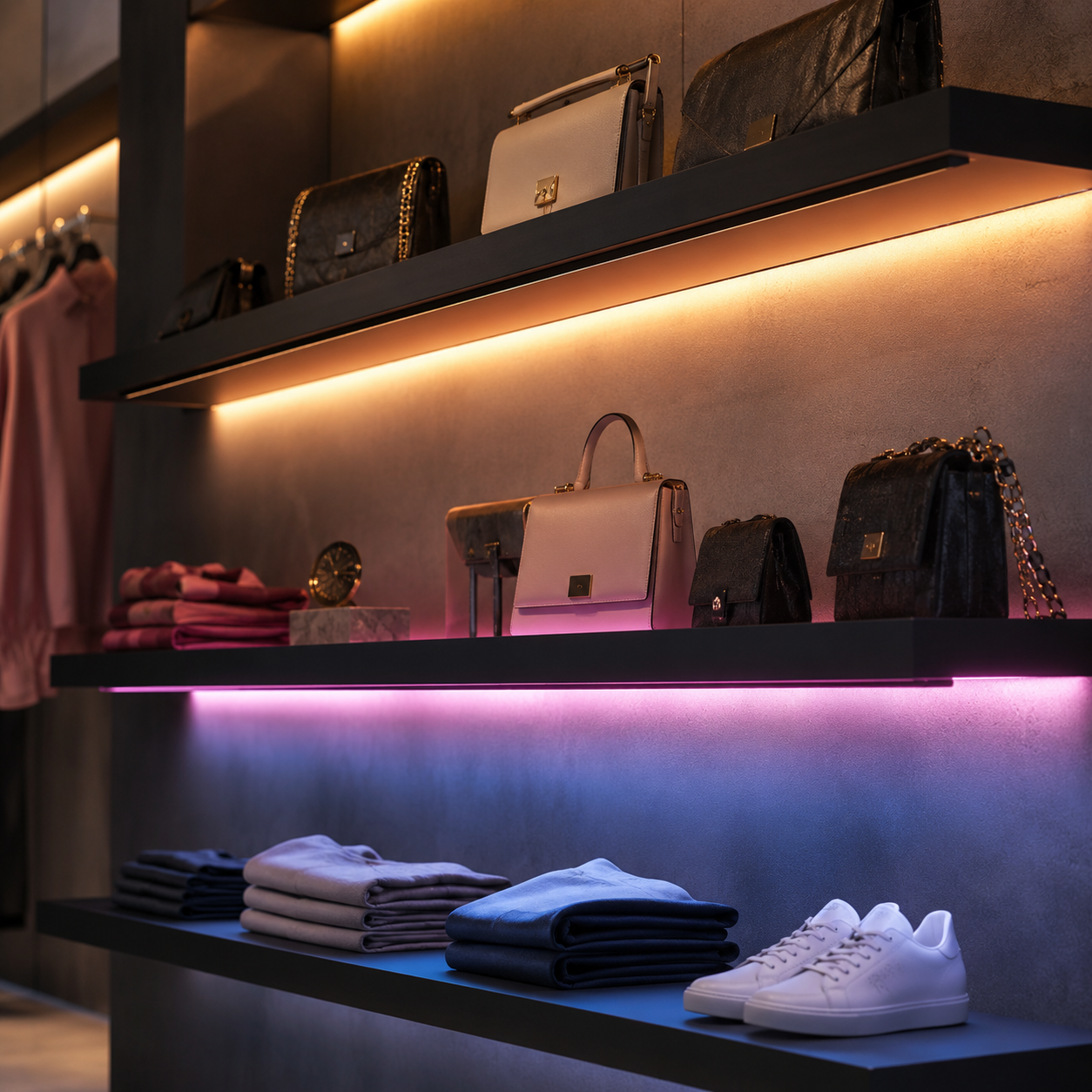

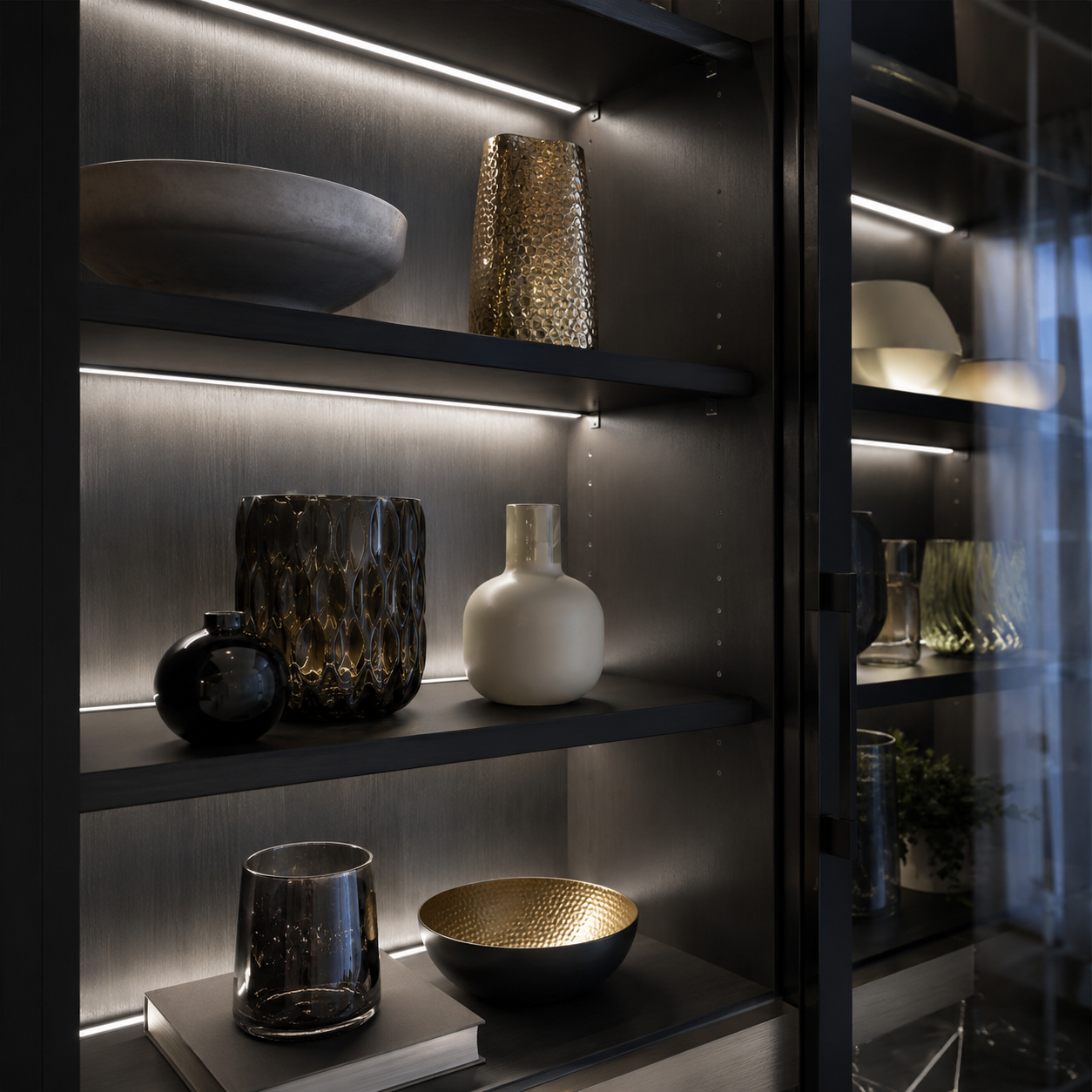

Black shelving, cabinets, shop counters, product stands and display units.

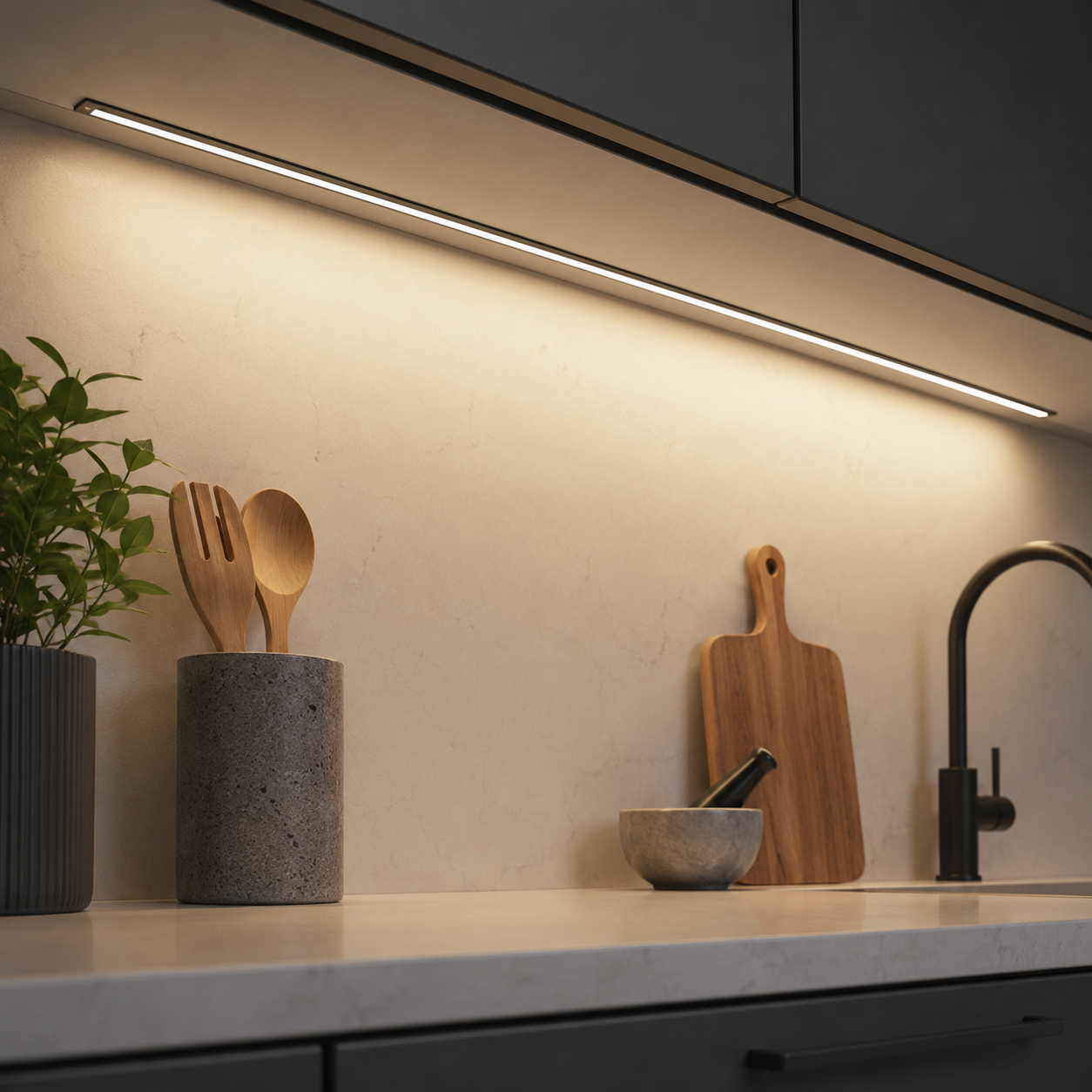

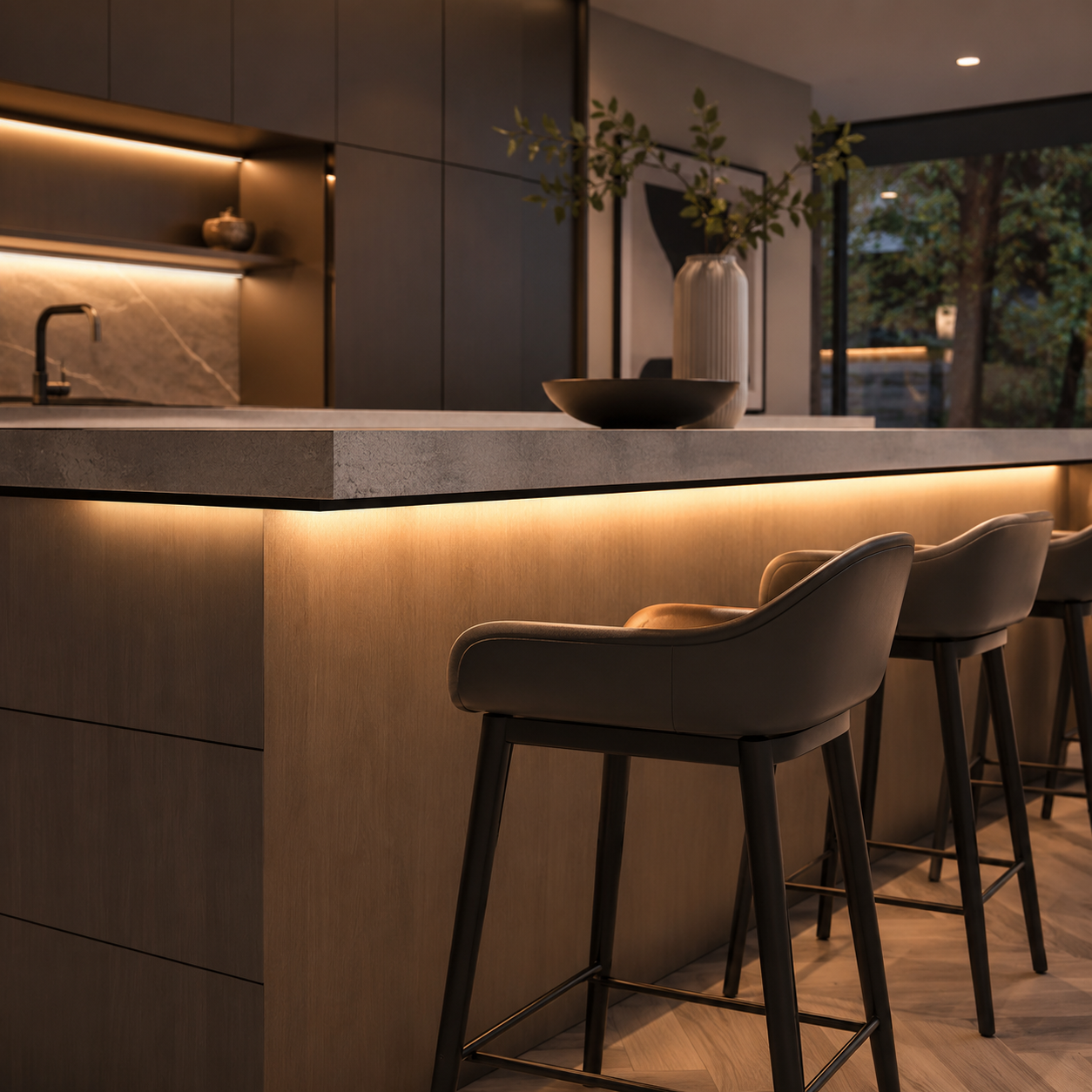

Under dark cabinets, around islands, worktops and modern kitchen furniture.

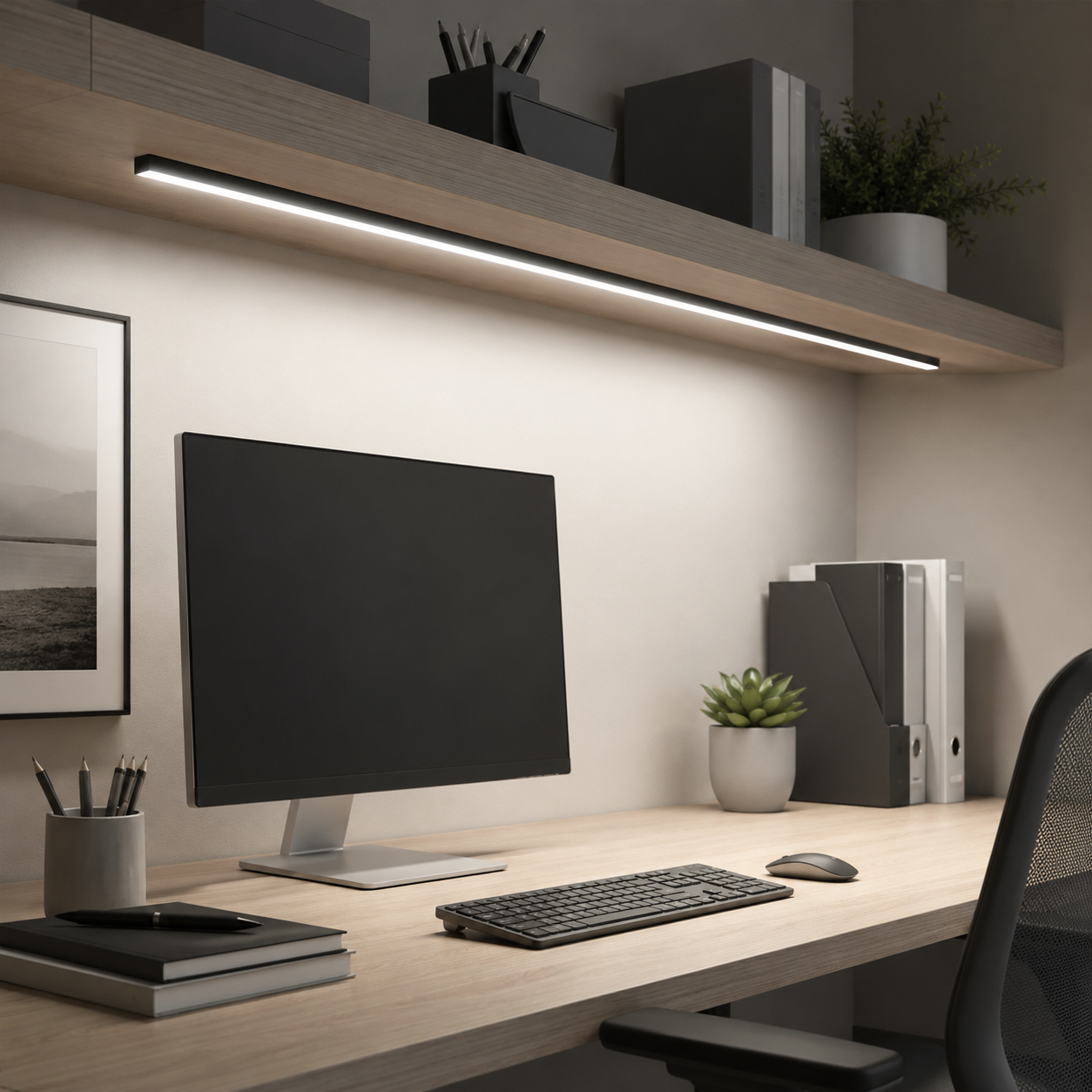

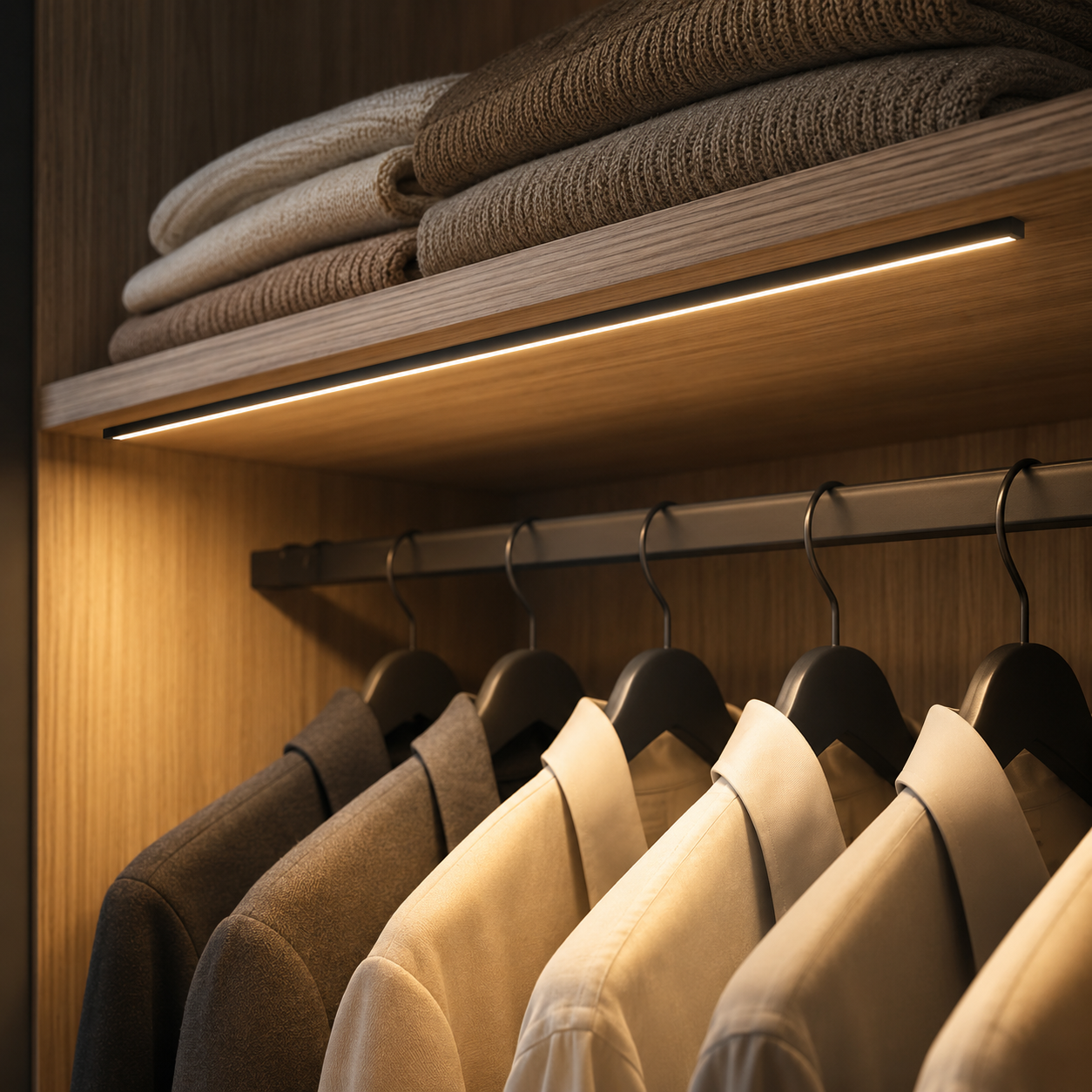

Wardrobes, bookcases, display cabinets, desks and fitted black furniture.
Decorative lighting for counters, shelving, seating areas and feature walls.
Offices, receptions, showrooms, hotels and contemporary retail environments.
Product Information

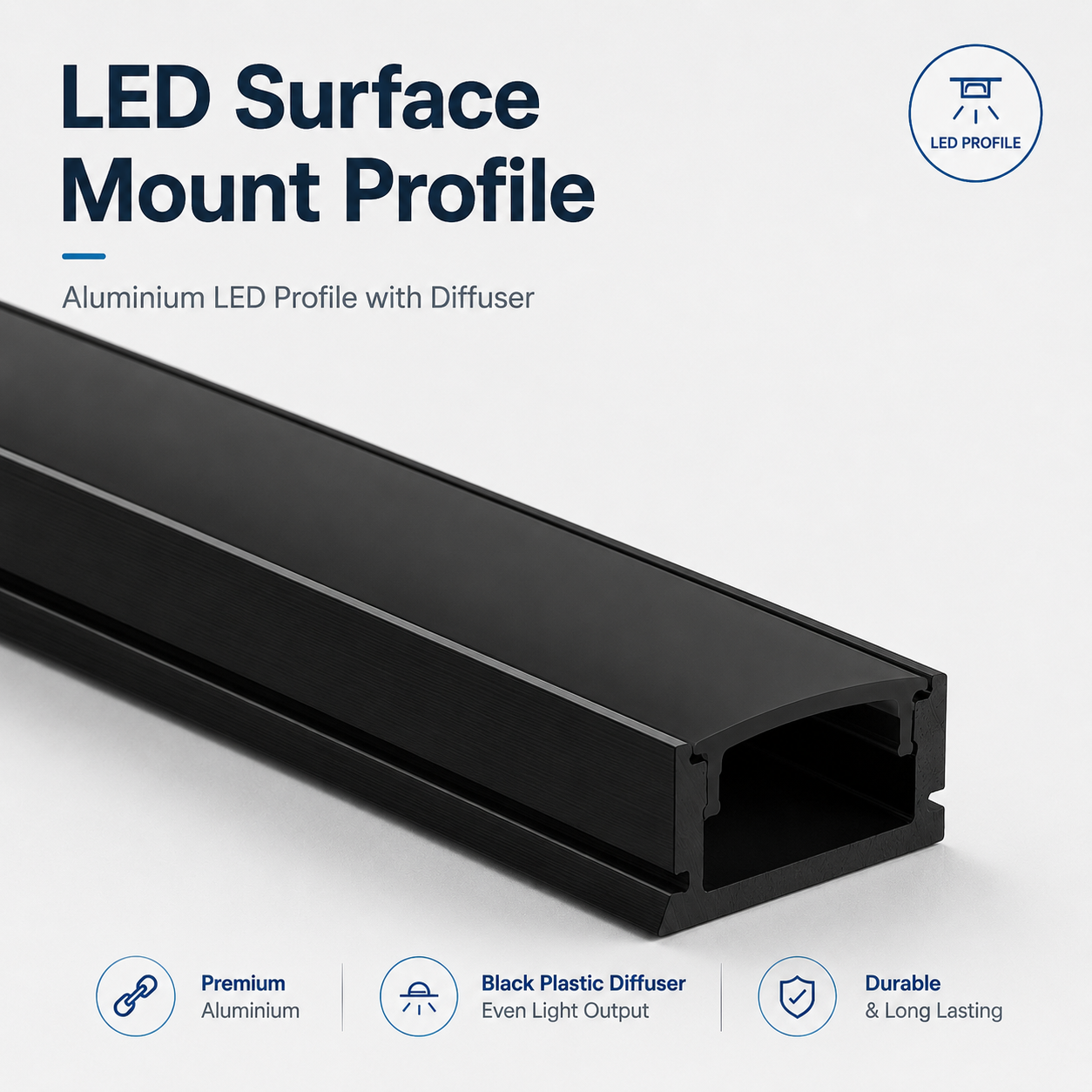

| Product Type | Surface mounted aluminium LED strip profile |
| Profile Material | Aluminium |
| Profile Colour | Black |
| Diffuser Material | Plastic |
| Diffuser Colour | Black |
| Diffuser Included | Yes – supplied complete with a black plastic diffuser |
| Estimated Light Reduction | Approximately 40% compared with a standard white or opal diffuser |
| Installation Type | Surface mounted |

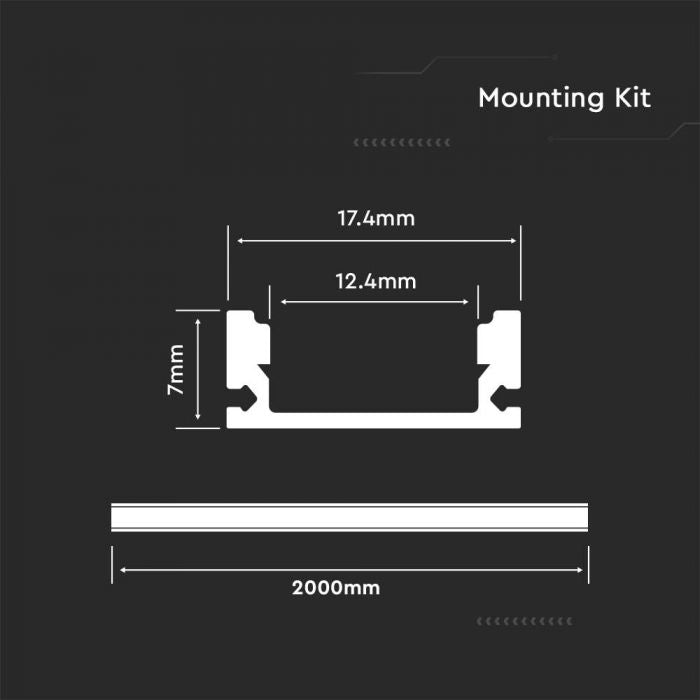

| Overall Width | Approximately 17.4mm |
| Internal Channel Width | Approximately 12.4mm |
| Overall Height | Approximately 7mm |
| Individual Profile Length | 2000mm / 2 metres |
| Recommended Maximum LED Tape Width | Approximately 12mm, subject to the exact tape, connections and manufacturing tolerances |
| Available Variations | 2m, 6m, 10m, 20m, 30m, 40m, 50m and 100m |
| Compatible Lighting | Compatible LED strip and COB LED tape, subject to tape width and installation dimensions |
| LED Strip Included | No |
| Power Supply Included | No |
| Recommended Use | Indoor residential, retail and commercial LED lighting installations |
Variation Quantities
All options are supplied as separate 2 metre lengths. Please select the total metre quantity required for your project.
| Selected Variation | Quantity Supplied |
|---|---|

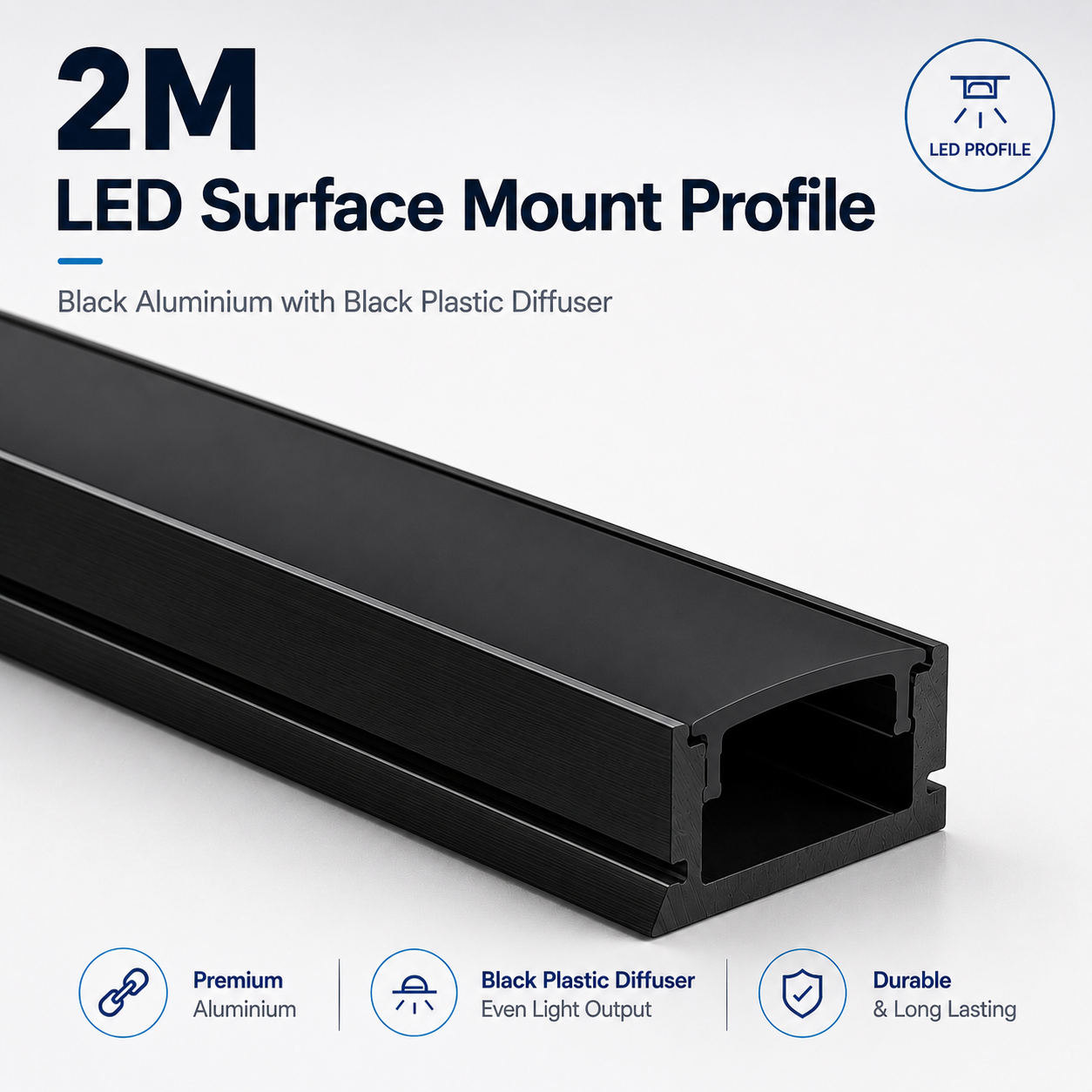

| 2m | 1 × 2m black profile with black diffuser |

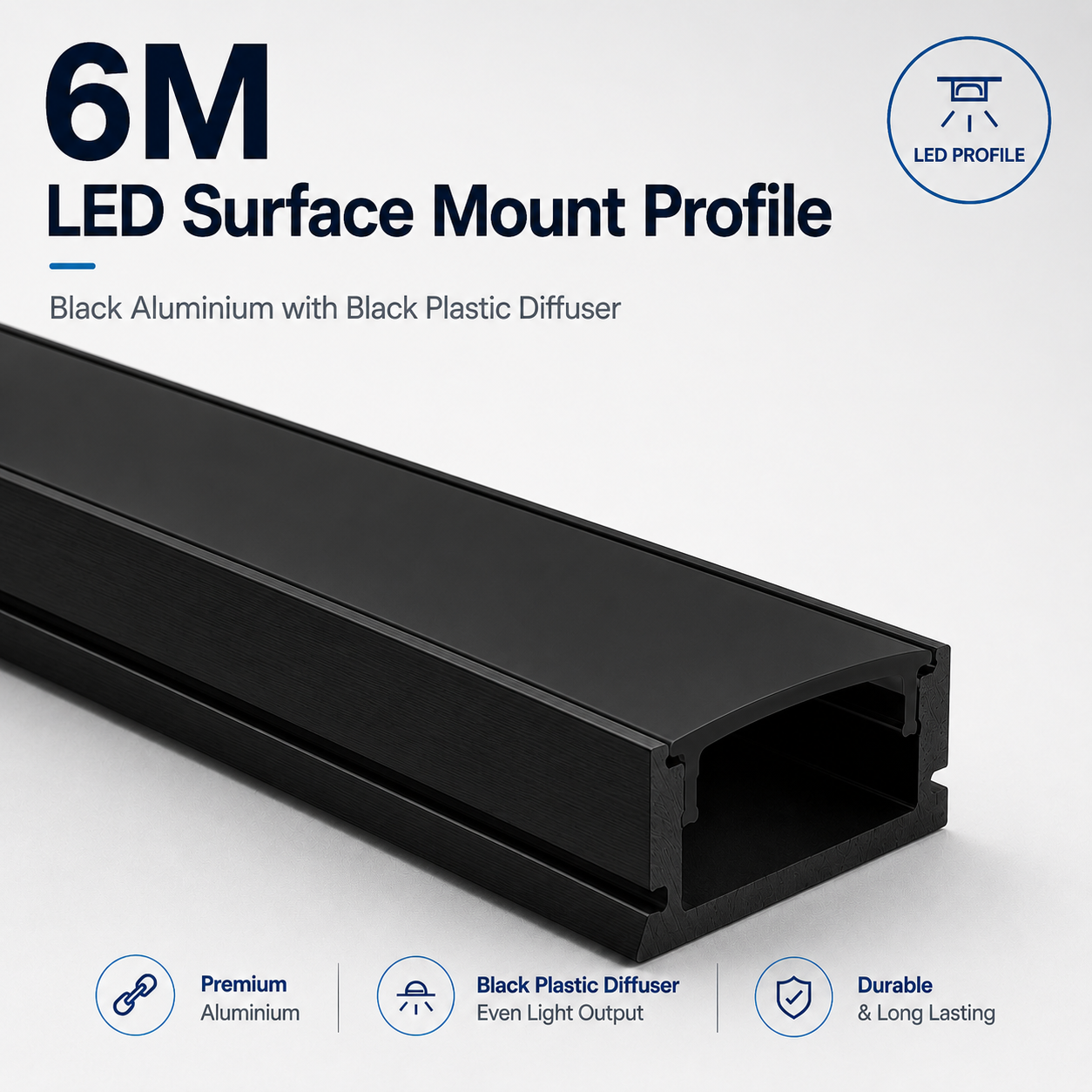

| 6m | 3 × 2m black profiles with black diffusers |

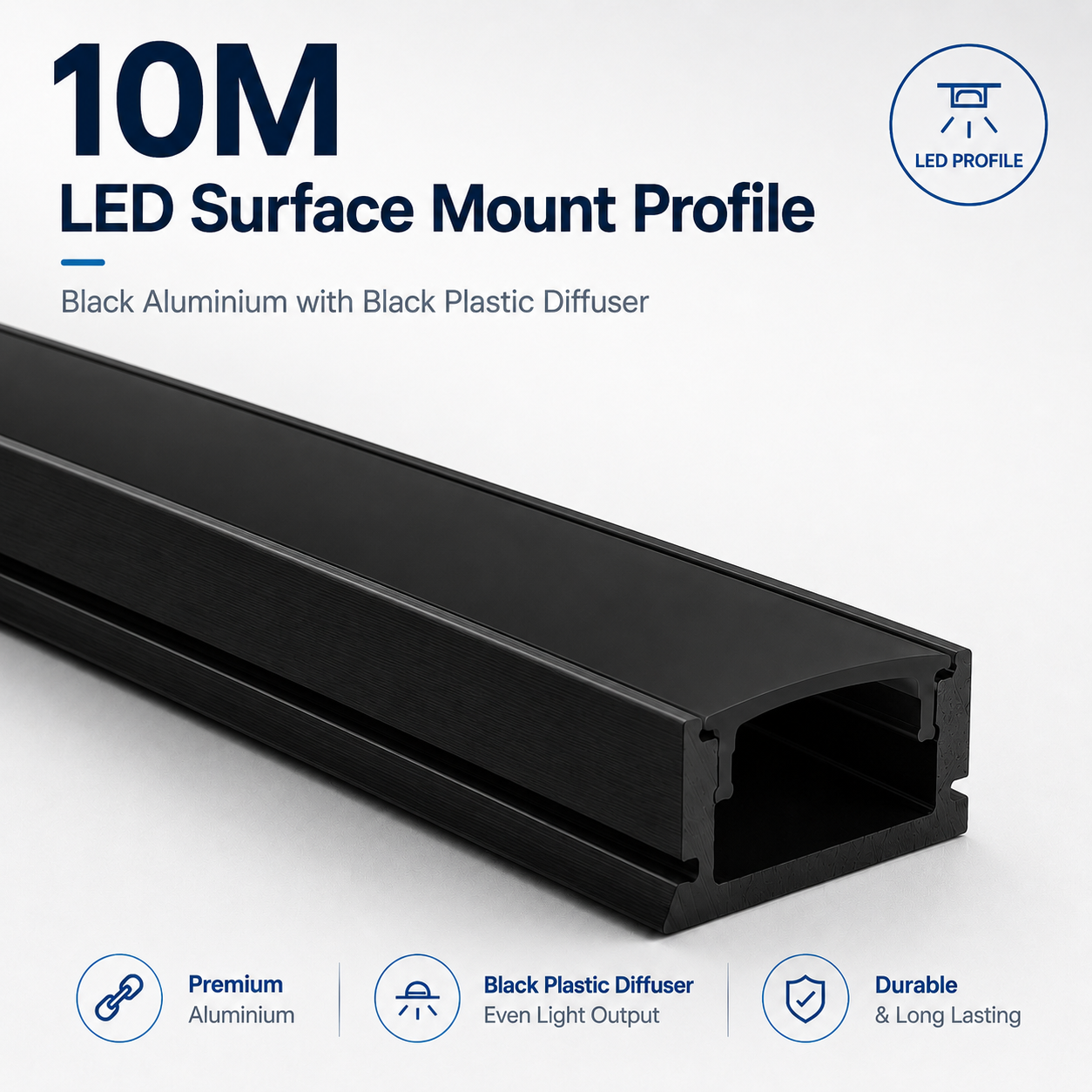

| 10m | 5 × 2m black profiles with black diffusers |

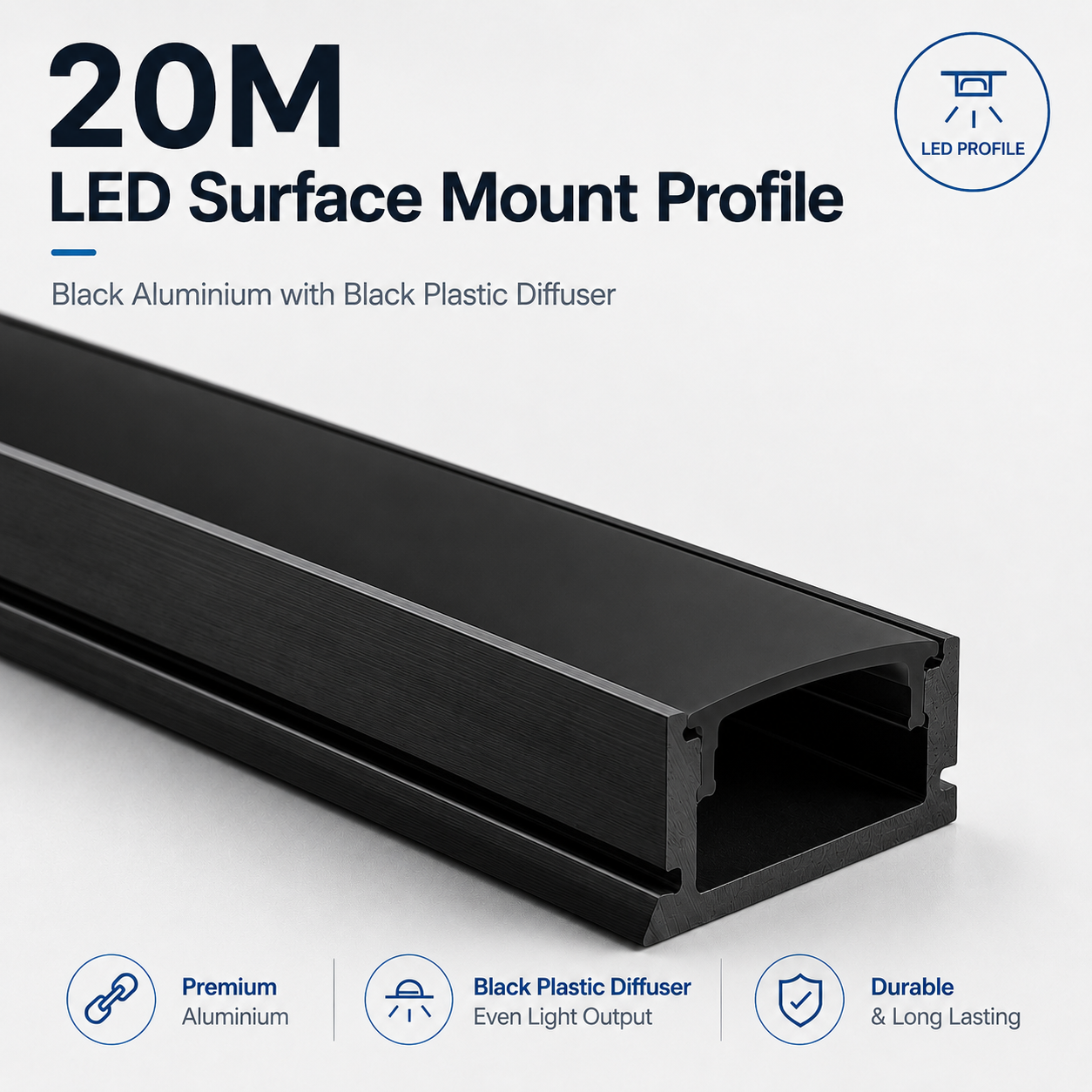

| 20m | 10 × 2m black profiles with black diffusers |

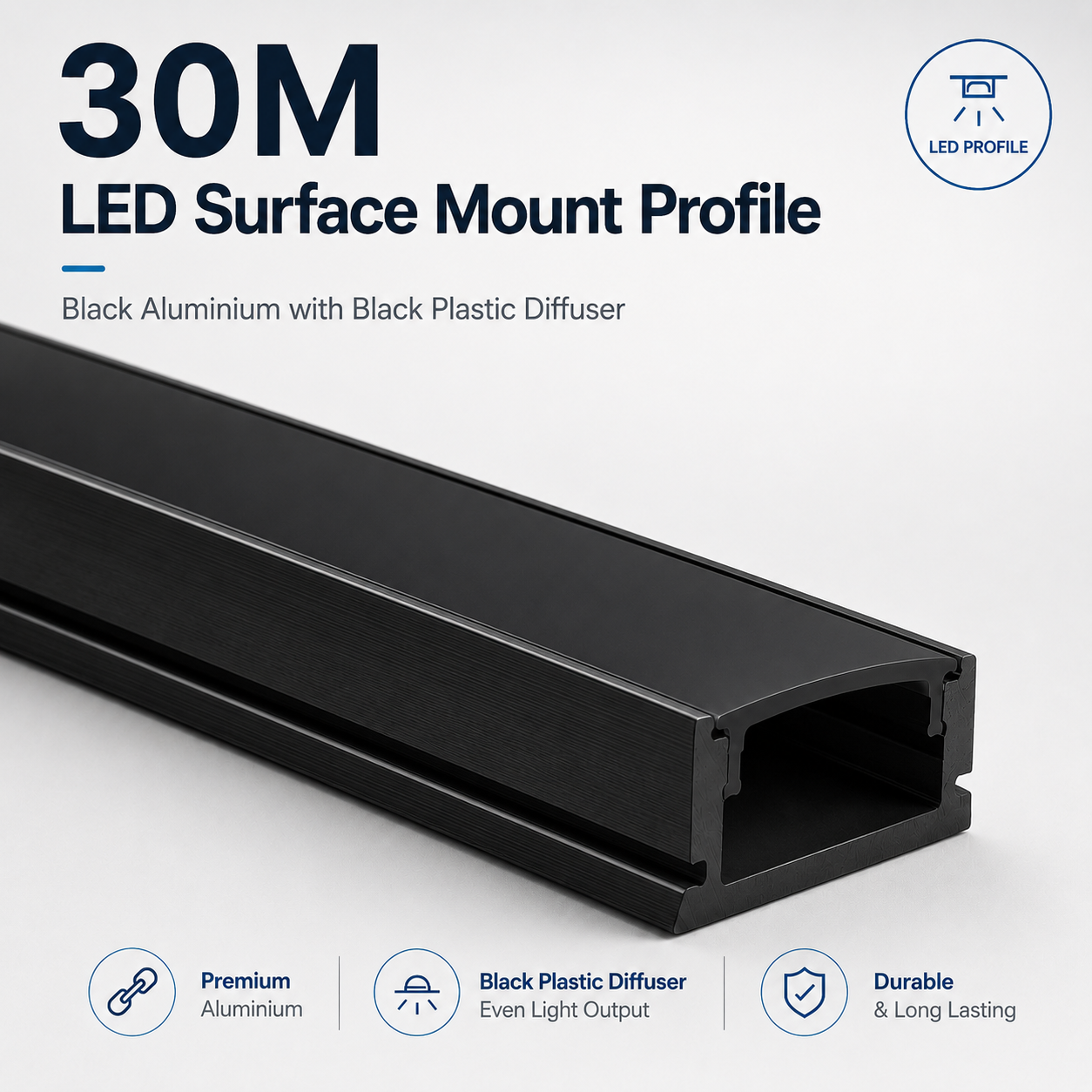

| 30m | 15 × 2m black profiles with black diffusers |

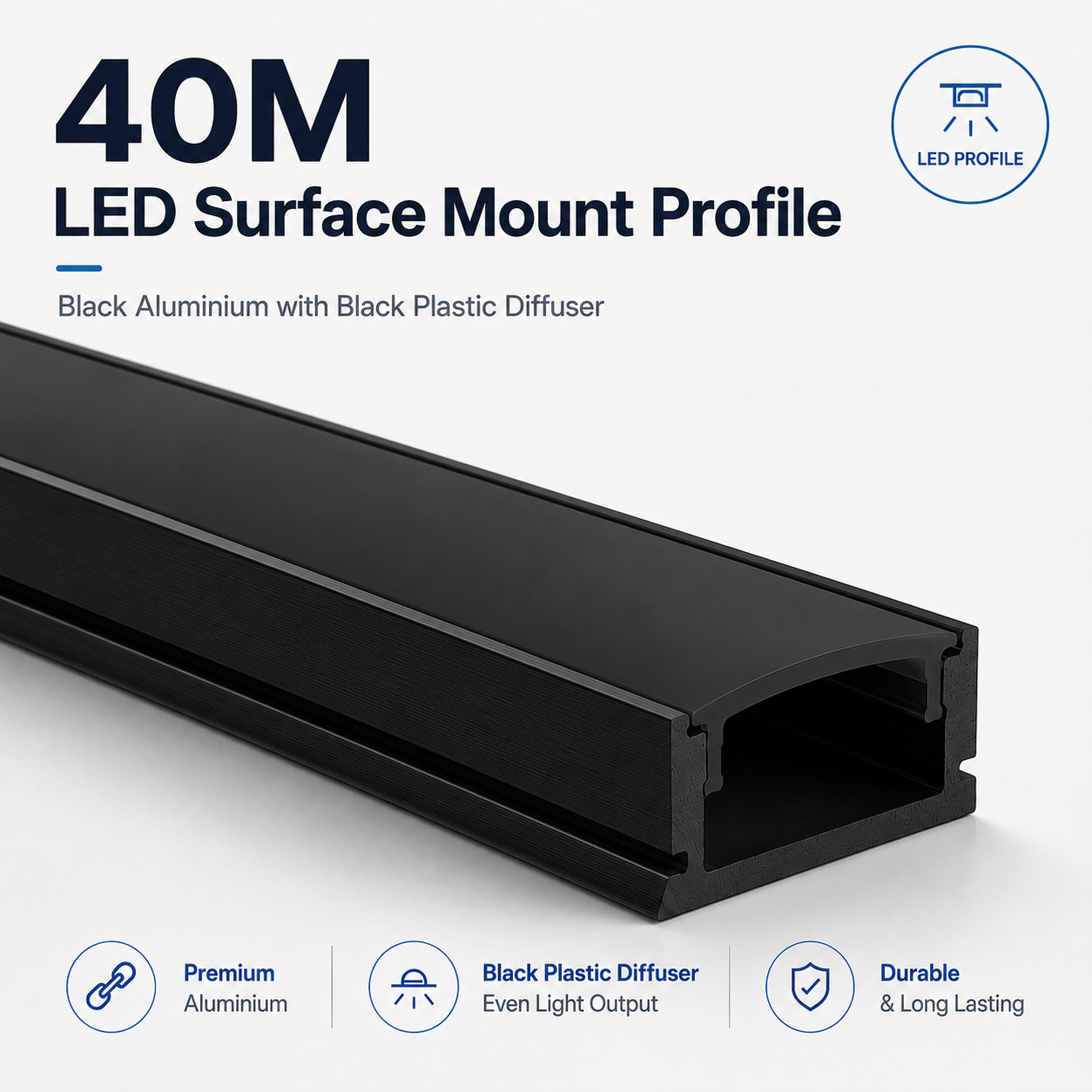

| 40m | 20 × 2m black profiles with black diffusers |

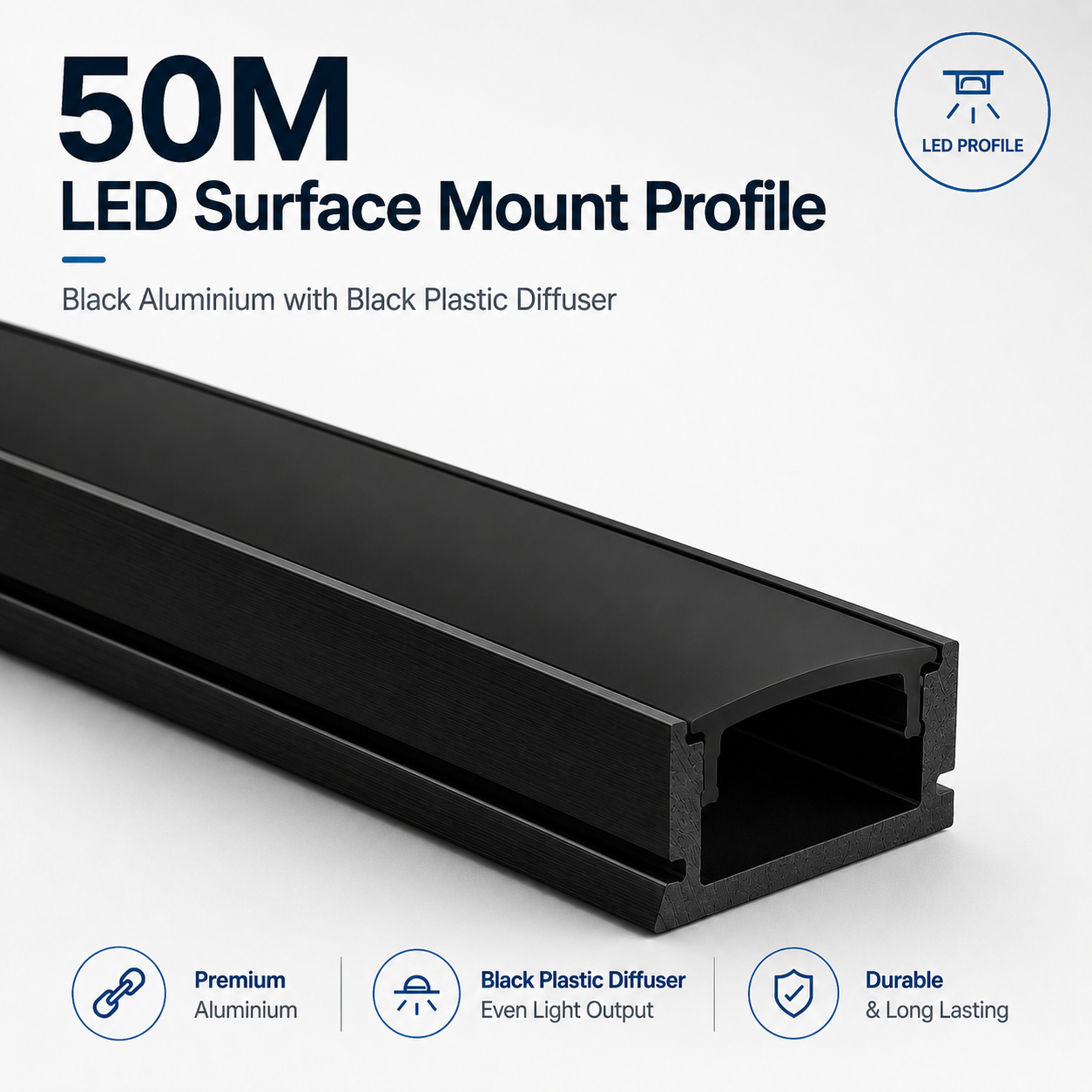

| 50m | 25 × 2m black profiles with black diffusers |

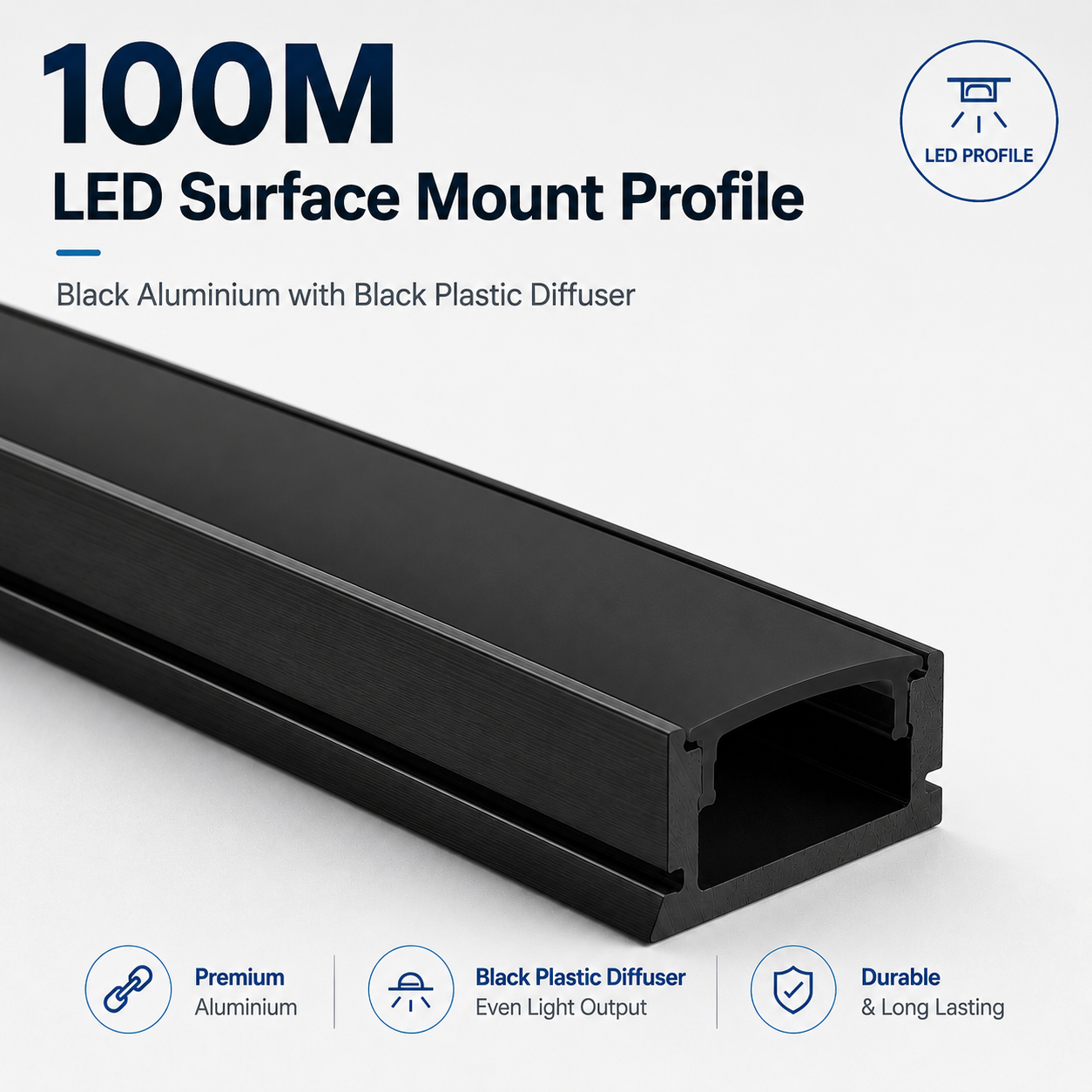

| 100m | 50 × 2m black profiles with black diffusers |
Installation Guidance
- Measure the installation area and calculate the number of 2 metre profile lengths required.
- Confirm that the LED strip and any connectors will fit inside the approximately 12.4mm-wide internal channel.
- Cut the black aluminium profile and black plastic diffuser to the required size using suitable tools.
- Secure the aluminium channel to a clean, flat and structurally suitable surface.
- Clean the inside of the profile before applying the self-adhesive LED strip.
- Install the LED strip evenly without twisting, overlapping or sharply bending the tape.
- Connect the LED strip to a correctly rated compatible power supply and controller where required.
- Test the lighting before fitting the black diffuser and completing the installation.
Complete your lighting installation with our 24V LED drivers and power supplies , LED strip connectors and LED controllers .
Frequently Asked Questions
Are both the aluminium profile and diffuser black?
Yes. The aluminium channel has a black finish and the supplied plastic diffuser is also black.
Does the black diffuser reduce the brightness?
Yes. The black diffuser absorbs more light than a white or opal diffuser and may reduce the visible light output by approximately 40%.
Which version should I choose for maximum brightness?
For maximum brightness and improved light transmission, please see our other aluminium profile products supplied with a silver aluminium channel and white opal diffuser.
What are the profile dimensions?
Each profile is approximately 2000mm long, 17.4mm wide and 7mm high. The internal channel width is approximately 12.4mm.
What width LED tape will fit inside the profile?
The internal channel is approximately 12.4mm wide. LED tape up to approximately 12mm wide should generally fit, but the precise tape, solder joints and connectors must be checked before ordering.
What is included with each aluminium profile?
Each 2 metre black aluminium profile is supplied complete with a black plastic diffuser. LED strip, power supplies, controllers, wiring and connectors are not included unless expressly stated.
Are longer variations supplied as one continuous length?
No. All variations are supplied as separate 2 metre lengths. For example, the 10 metre option contains five individual 2 metre profiles.
Can the aluminium profile and black diffuser be cut?
Yes. Both the aluminium channel and plastic diffuser can be cut to the required length using suitable tools.
Is this suitable for COB LED strip?
Yes, provided the COB LED tape and any attached components are compatible with the approximately 12.4mm internal channel width.
Can the profiles be installed end-to-end?
Yes. Multiple 2 metre profiles can be carefully aligned end-to-end for longer lighting runs and larger projects.
Can Manningham help with a complete LED lighting project?
Yes. We can assist with aluminium profiles, COB LED tape, power supplies, controllers, connectors and accessories for domestic, retail and commercial projects.
Custom Projects, Trade Enquiries and Bulk Orders
Planning a custom LED lighting installation, commercial project or bulk order? Contact Manningham Lighting & Electrical for product guidance, compatible components and trade pricing.
