Description

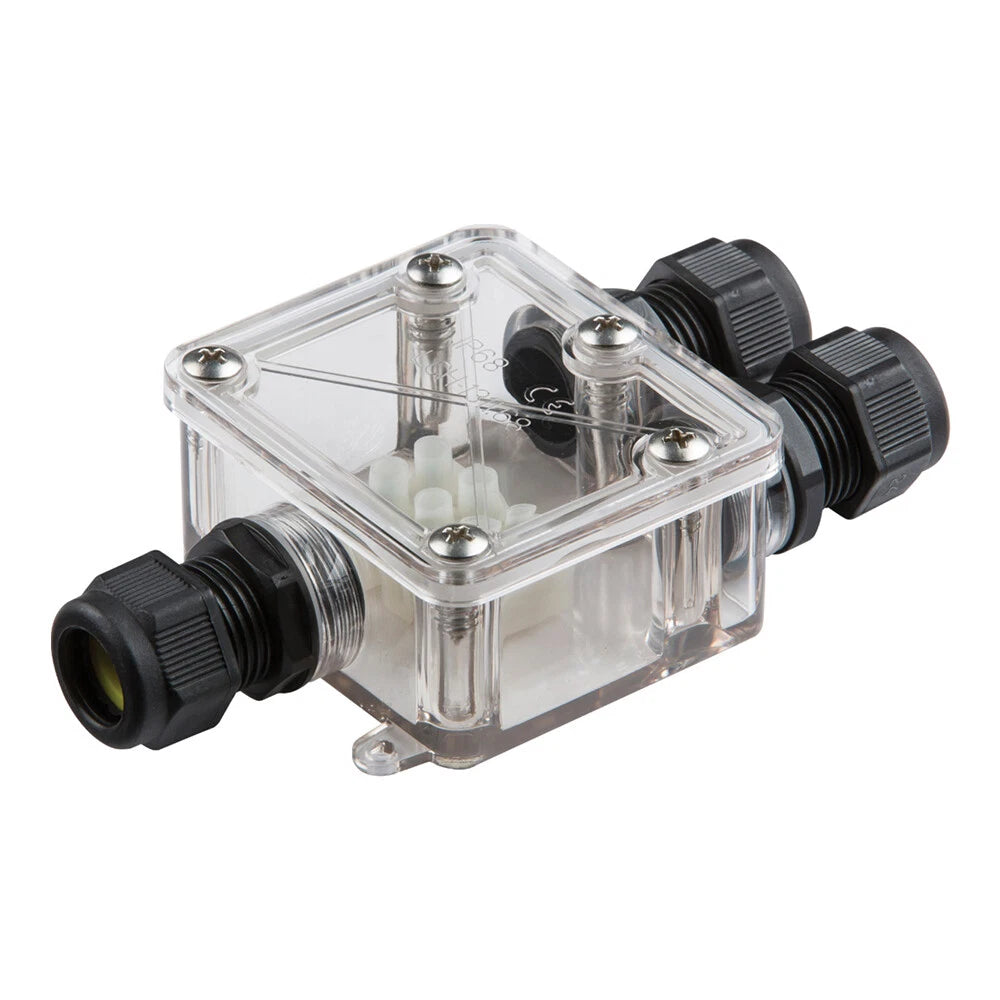

The JB004 IP68 Waterproof Junction Box is a compact and highly durable electrical enclosure designed for reliable cable connections in harsh or wet environments. Rated at IP68, it ensures full protection against dust and prolonged water immersion. With a polycarbonate housing and silicone sealing gasket, the JB004 is ideal for use in outdoor, underground, or industrial settings.
Equipped with a 16A 3-terminal strip connector, it supports cable sizes from 0.75mm² to 4.0mm², making it versatile for a wide range of applications including power distribution, lighting, and outdoor systems. It is certified to EN 62444 and EN 50262 standards for safety and performance compliance.
🛠️ Applications:
Underground or outdoor lighting connections
Garden and landscape power systems
Outdoor CCTV camera and sensor connections
Marine or water-feature electrical wiring
Solar and renewable energy wiring
Industrial and commercial external installations
✅ Key Features:
IP68 rated – fully dust-tight and submersible
16A current rated, 450V capacity
Accepts cable sizes: H07RN-F 3G from 0.75mm² to 4.0mm²
Integrated 3-terminal strip connector
Strong polycarbonate enclosure with silicone gasket
Certified to EN 62444 and EN 50262 safety standards
Cable diameter compatibility: 5mm – 10mm
Compact size for easy installation in confined spaces
Specifications
| SKU | JB004AZ |
|---|---|
| Brand | Knightsbridge |
| Model | JB004 |
| IP Rating | IP68 (Dustproof and Submersible) |
| Current Rating | 16A |
| Voltage Rating | 450V |
| Terminal Strip | H07RN-F 3G 0.75mm² – 4.0mm² |
| Min. Cable Diameter | 5 mm |
| Max. Cable Diameter | 10 mm |
| Housing Material | High-strength Polycarbonate |
| Sealing Gasket | Silicone rubber |
| Standards Compliance | EN 62444, EN 50262 |
| Temperature Rating | T85 (Max 85°C) |
| Protection Class | Class II (Double insulated, if applicable) |
| Dimensions (L x W x H) | 121 mm × 72 mm × 35 mm |
