Knightsbridge Screwless Small Multimedia Combination Plate with FASTCHARGE


Price:
Sale price£53.95

VAT Included Shipping calculated at checkout

Stock:
In stock

Product Insights

30 people currently viewing this product.

40 units sold in the last hour. 🔥

Description

Essential for any major upgrade, renovation or new build. The Screwless Small Multimedia Combination Plate allows for a power and bespoke signal distribution solution to be combined in one area. Compatible with our extensive range of modular inserts this plate can be configured to suit your requirements, be it Satellite TV, DAB, Telecoms, or Networking. Knightsbridge FASTCHARGE USB sockets can deliver a 0-50% charge in under 30 minutes with compatible devices. FASTCHARGE is achieved by the intelligent switching of voltages between 5V to up to 12V to optimize and deliver the maximum input your device can handle. Your device decides how much power its going to draw down. Devices that support QC3.0 (many Android based devices) can use the USB-A port to achieve up to 18W. Devices that support USB-PD (many Android based devices and iPhone 8 or above) can use the USB-C port to achieve up to 18W. If a legacy device does not support these then up to 10W can be achieved from the USB-A port, or up to 15W from the USB-C port Features
- Double pole switches provide additional safety
- Twin earthing points for high integrity earthing requirements
- Space for up to 4 x Euro module inserts (25x50mm)
- Constructed from high quality components and materials to ensure the longevity of the install
- Fully certified to the latest British Safety Standards Benefits
- Over Voltage Category III €“ suitable for domestic and commercial installations
- Built in overheat and overload protection
- ErP Ready (0.1W in stand-by mode)
WE RECOMMEND ONLY USING CERTIFIED USB CABLES FOR SAFETY, OPTIMUM PERFORMANCE AND TO ENSURE COMPATIBILITY IMPORTANT
THE DEVICE CONTROLS THE POWER BEING DRAWN, NOT THE SOCKET MOST COMPATIBLE DEVICES WILL ONLY ACTIVATE FASTCHARGE BETWEEN 0-70% BATTERY POWER. AFTER THIS IT WILL REVERT TO STANDARD CHARGING PARAMETERS TO PROTECT BATTERY
Download
Datasheet

Specifications

Brand Knightsbridge
SKU SFR994

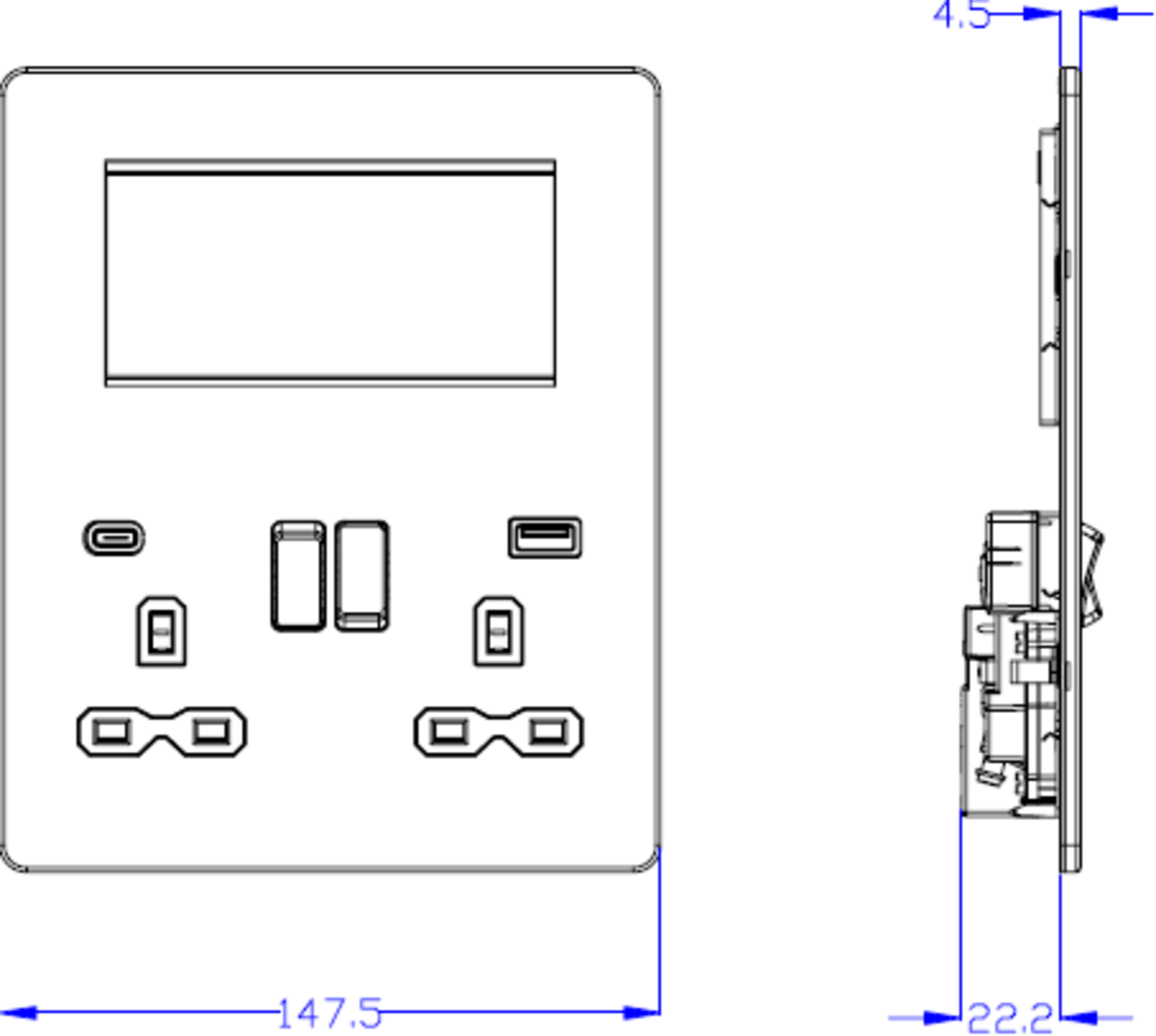

Height (mm) 180
Width (mm) 147.5
Projection (mm) 4.5
Recessed Depth (mm) 22.2
Min. Mounting Box Depth (mm) 35
Material Premium grade steel
Finish Anthracite, Brushed Chrome, Matt Black, Matt White, Smoked Bronze
Class I
IP Rating IP20
Voltage (V) 230V 50Hz
Fastcharge Yes
Earth Terminal Yes
Warranty (Years) 2
Commodity Code 8536 6990 85
