Description
Ideal for standard TV/Coax connections (non-isolated). Flawless Screwless design
- Coaxial TV outlet
- Non-isolated
- Screwless low profile design with built in gasket
- Certified to BS5733
- Minimum mounting box depth: 25mm
- Coaxial TV outlet
- Non-isolated
- Screwless low profile design with built in gasket
- Certified to BS5733
- Minimum mounting box depth: 25mm
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | SF0100 |

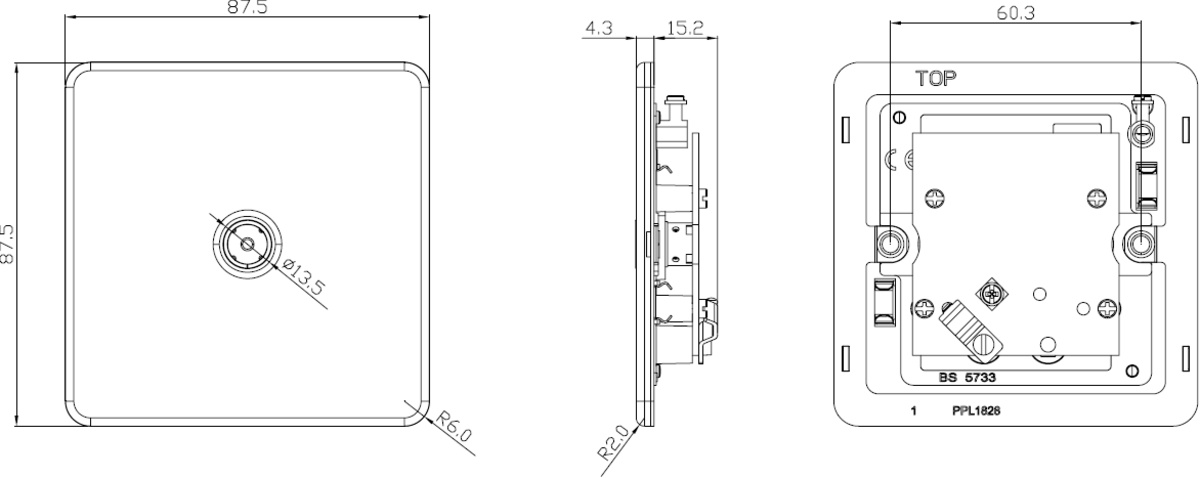

| Height (mm) | 87.5 |
| Width (mm) | 87.5 |
| Projection (mm) | 4.3 |
| Min. Mounting Box Depth (mm) | 25 |
| Material | Premium grade steel |
| Finish | Anthracite, Brushed Chrome, Matt Black, Matt White, Smoked Bronze |
| IP Rating | IP20 |
| Earth Terminal | Yes |
| TV Connection Type | Female |
| Terminal | Clamp & Screw Terminal |
| Warranty (Years) | 15 |
| Commodity Code | 8536 6910 00 |
