An intermediate switch is used when you have three switches controlling one light. A typical example of this is on a landing. There is a switch at the bottom of the stairs, one at top of the stairs and one at the end of the landing. On this circuit you would need the middle switch to be intermediate (i.e. the one at the top of the stairs) in order for all the switches to function properly.

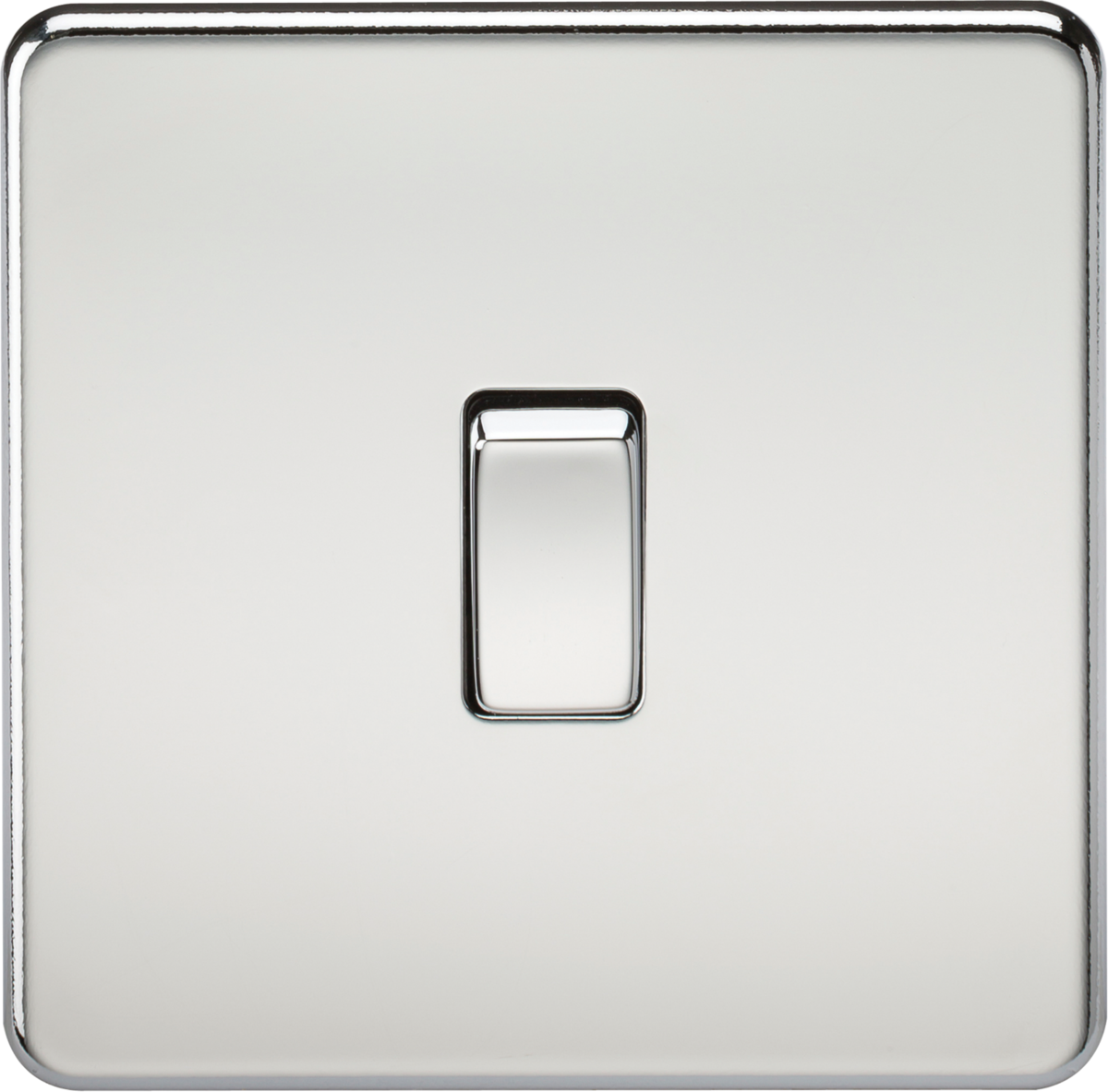

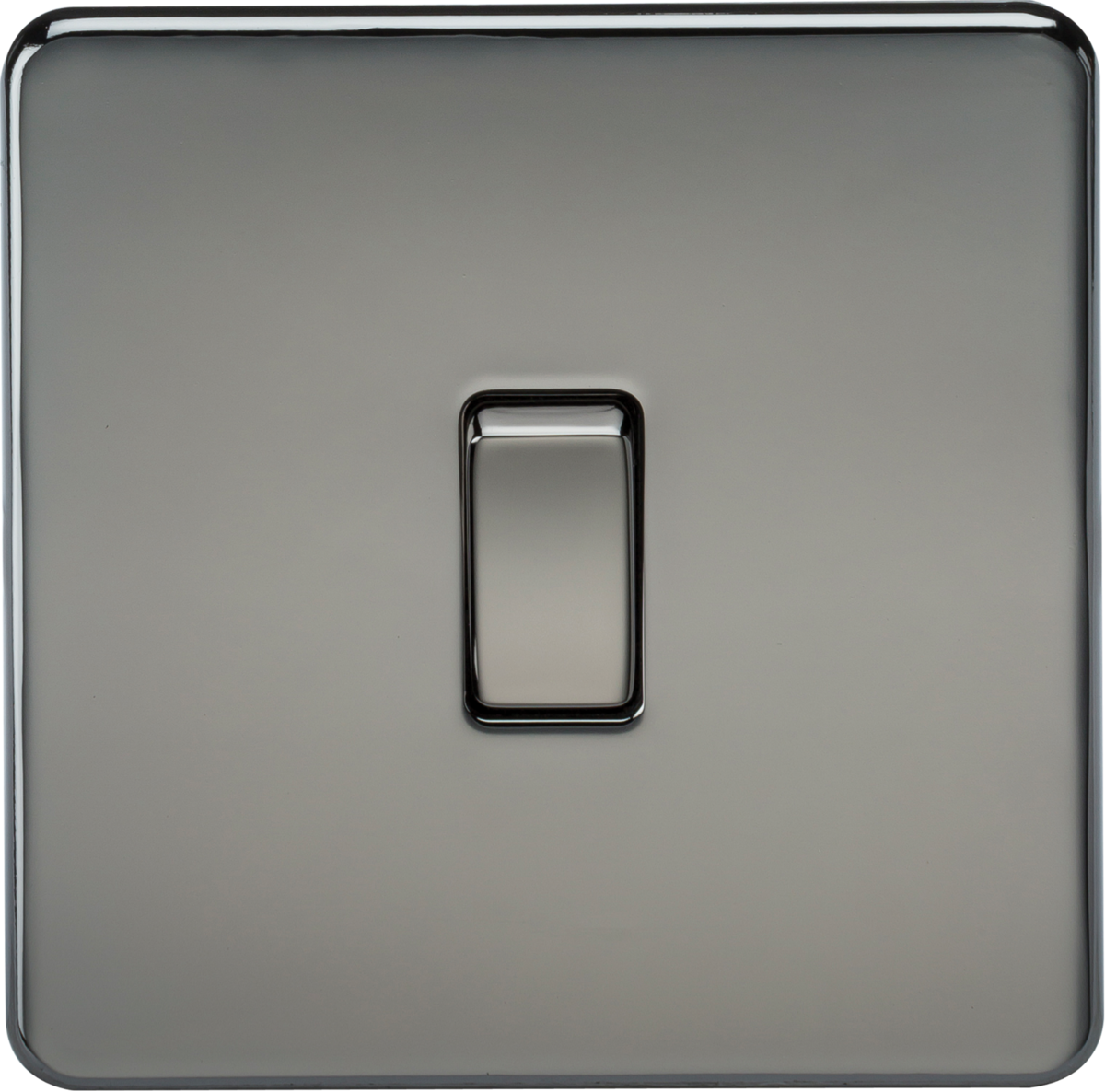

Flawless Screwless low profile metal design with matching metal rocker.
- 10AX rated
- Screwless low profile design with built in gasket
- Certified to EN 60669-1
- Minimum mounting box 16mm

Download

Datasheet

Specifications

Brand	Knightsbridge
SKU	SF1200

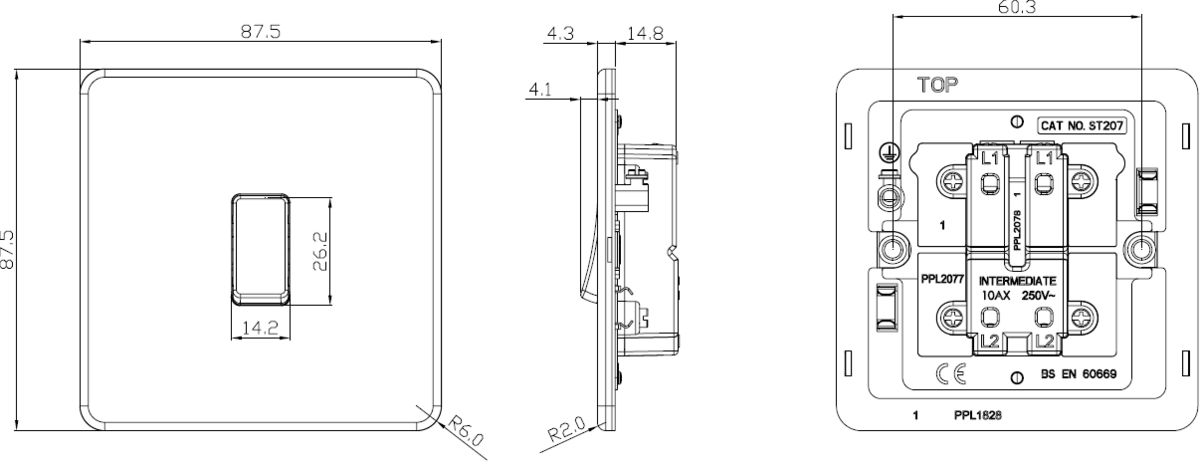

Height (mm)	87.5
Width (mm)	87.5
Projection (mm)	4.3
Min. Mounting Box Depth (mm)	16
Material	Premium grade steel

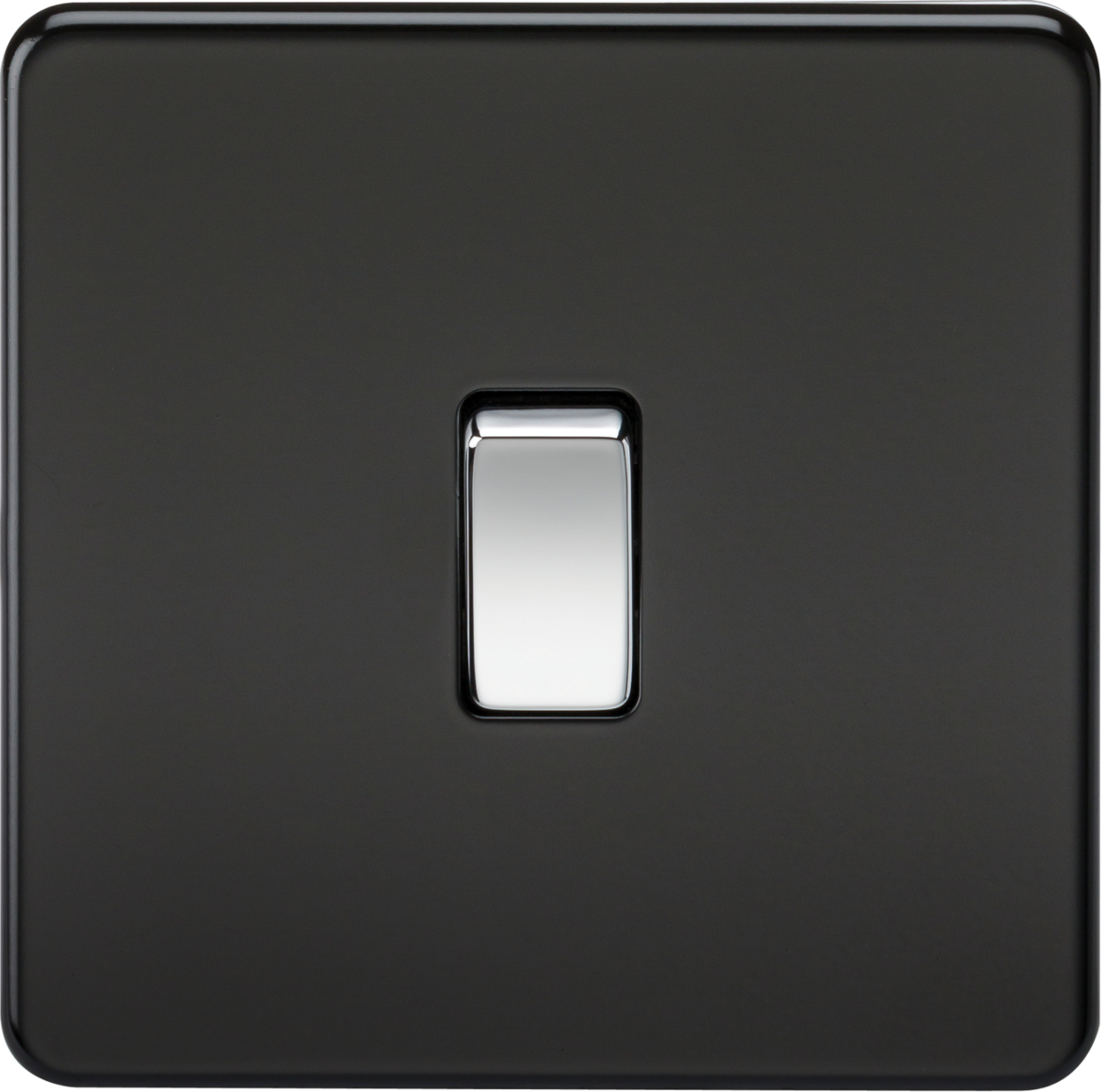

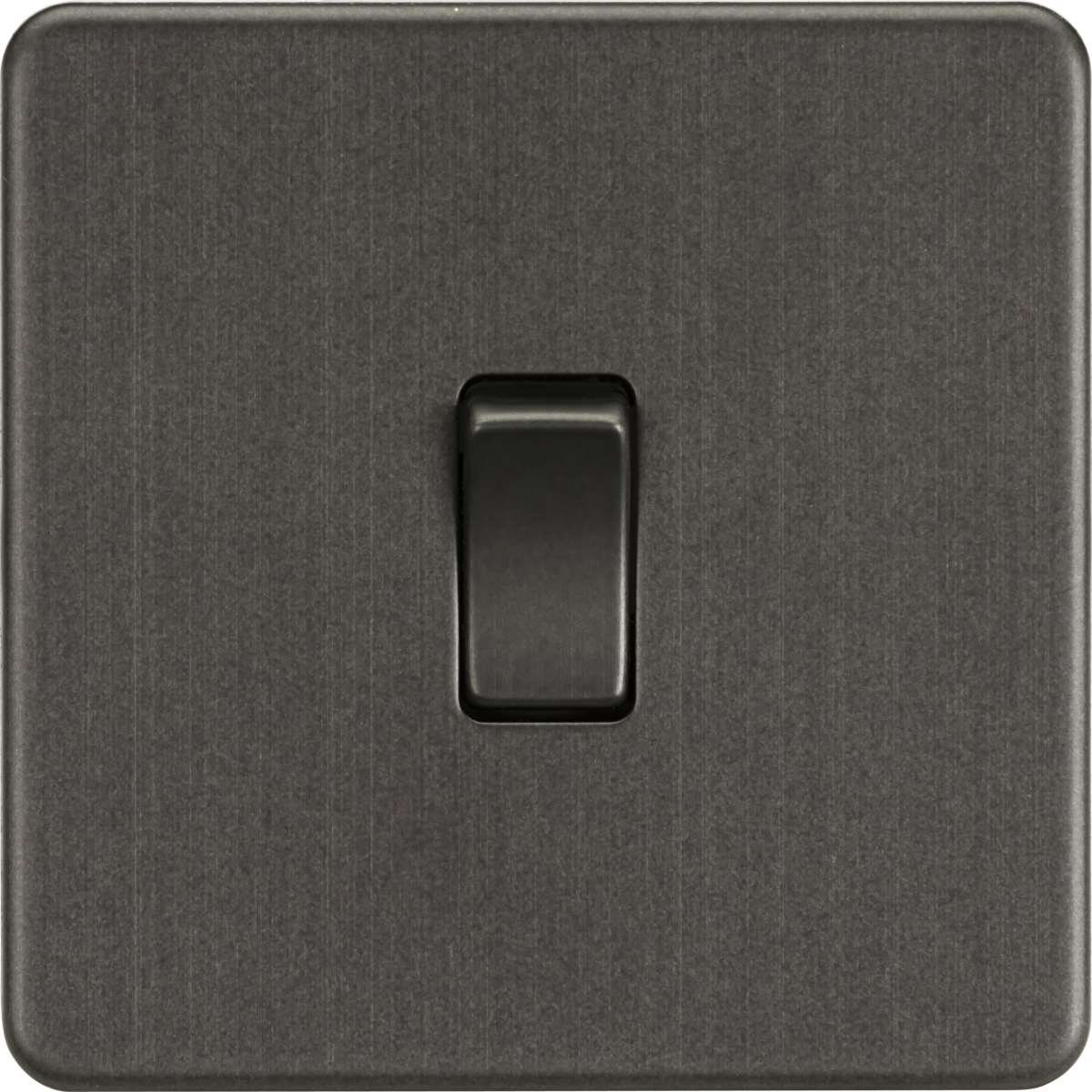

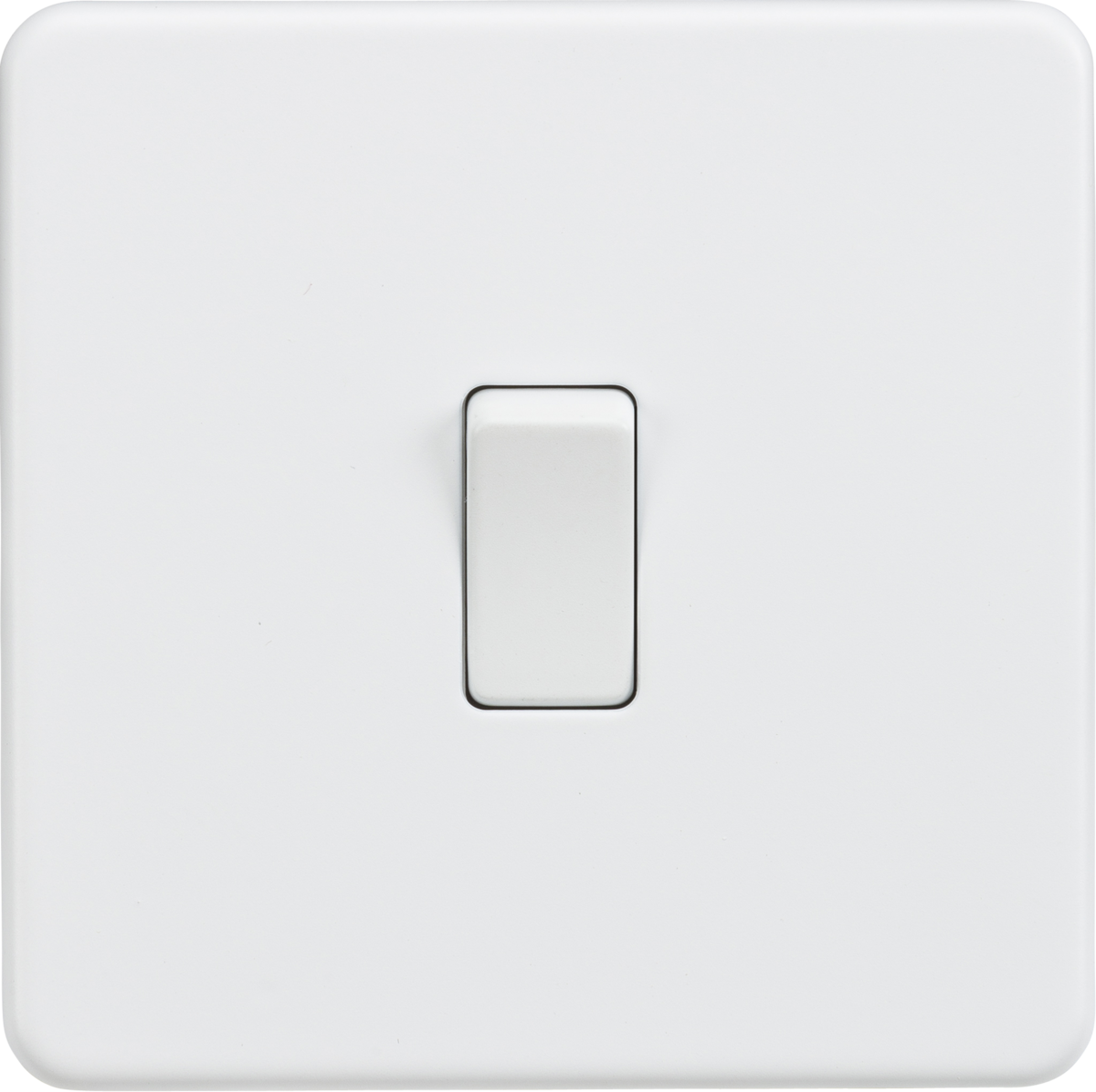

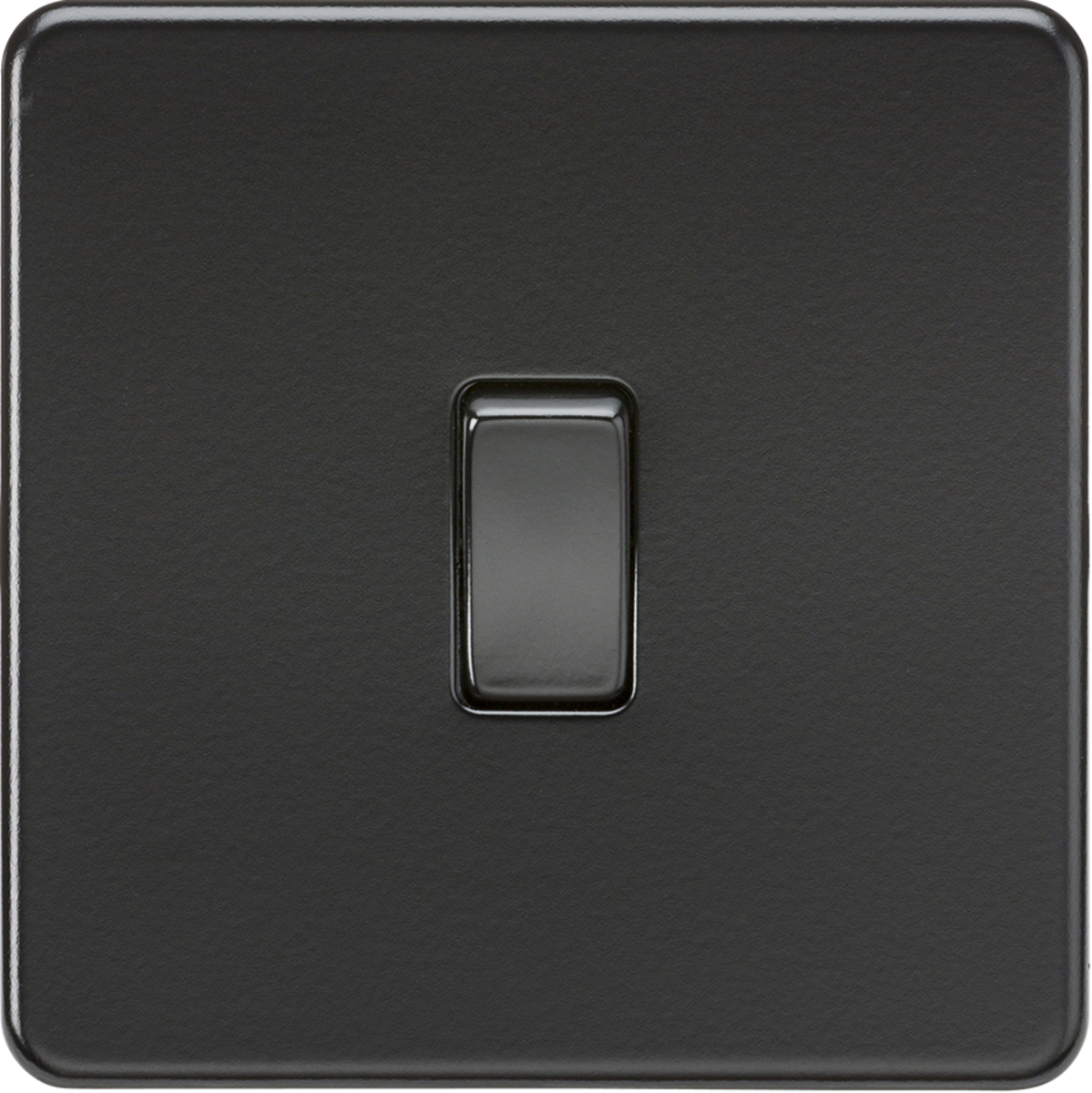

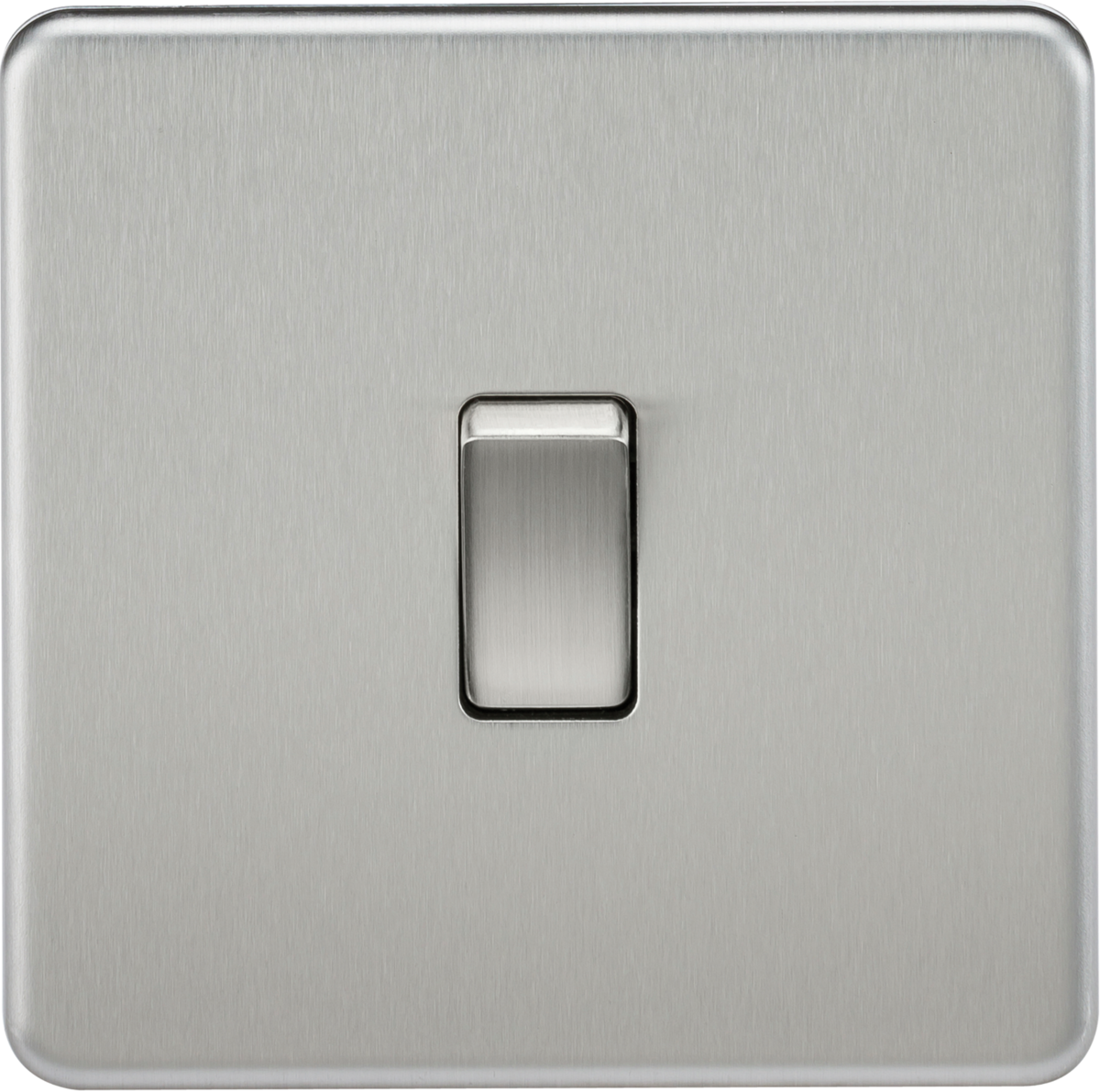

Finish	Anthracite, Brushed Chrome, Matt Black, Matt White, Smoked Bronze
Class	I
IP Rating	IP20
Voltage (V)	230V 50Hz
Earth Terminal	Yes
Warranty (Years)	15
Commodity Code	8536 5080 90
