RGB LED Strip Wall Mounted Wireless RF Touch Controller & Dimmer – 5V-24V DC

Take complete control of your colour-changing LED strip lighting with the Manningham Lighting Wireless RF RGB Wall Mounted Touch Controller. Designed for compatible 5V-24V DC RGB LED strip lights, this stylish wall-mounted control system allows you to select colours, adjust brightness and activate dynamic lighting effects using a responsive touch panel.

Ideal for modern homes, kitchens, bedrooms, media walls, commercial interiors and decorative lighting installations, this wireless RGB controller combines convenient operation with a clean, professional wall-mounted appearance.

The controller uses radio frequency (RF) wireless technology, allowing the wall-mounted touch panel to communicate with the separate RGB receiver without requiring a control cable between them. The RGB receiver connects directly to the low-voltage LED power supply and compatible RGB LED tape.

This makes the system particularly suitable for installations where a wall-mounted colour controller is required without running additional signal wiring through finished walls.

Recommended companion product: Pair this controller with our 24V RGB COB LED Strip Light – Dotless Colour Changing LED Tape to create smooth, continuous RGB feature lighting for residential and commercial applications.

Important: This product is an RGB LED controller system. LED strip lighting and the appropriate DC power supply are purchased separately unless specifically stated otherwise.

Key Features

• Wireless RF technology allows convenient control without a signal cable between the wall panel and receiver

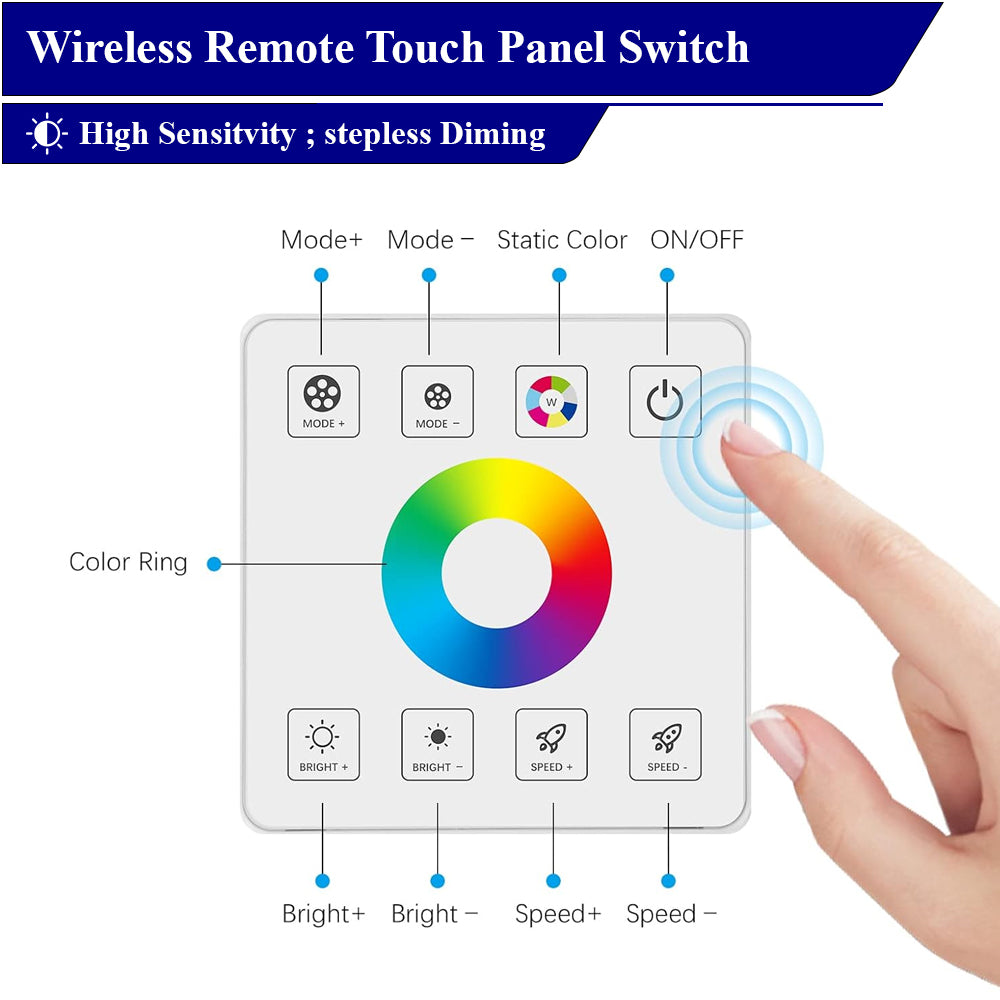

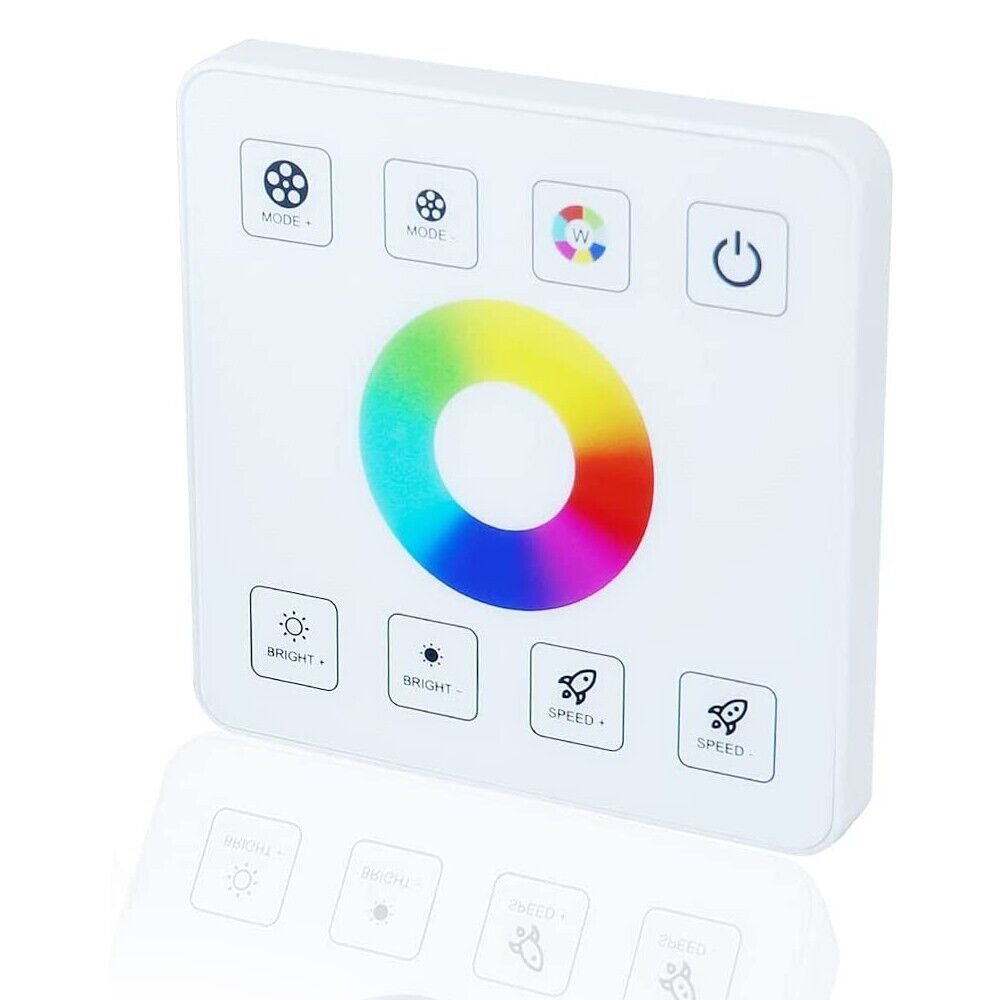

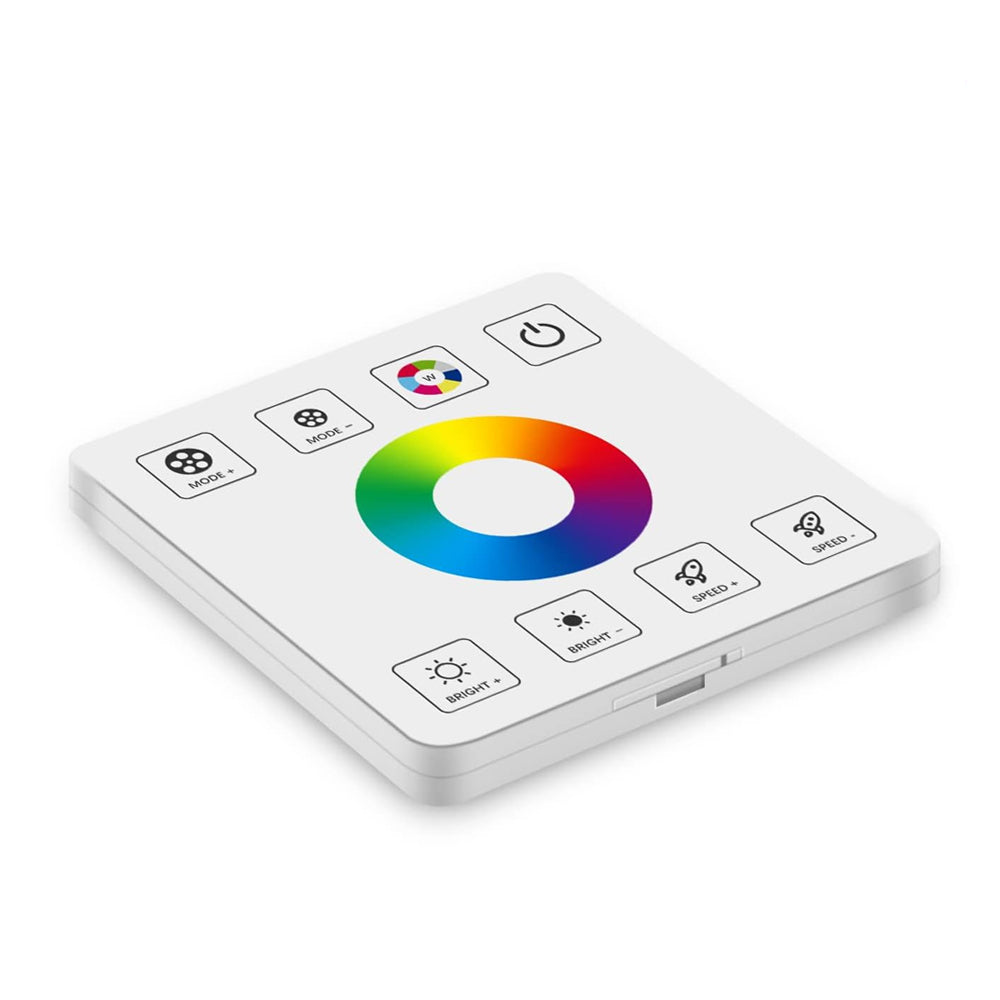

• Wall-mounted touch panel with a stylish, modern appearance
• RGB colour changing for red, green, blue and mixed-colour lighting
• Touch-sensitive colour selection for convenient lighting adjustment
• Adjustable brightness to create different lighting atmospheres
• Dynamic lighting effects including fade, flash and strobe-style modes
• 5V-24V DC compatibility for suitable constant-voltage RGB LED lighting systems
• Three-channel RGB output for red, green and blue control
• Compatible with suitable RGB COB and SMD LED strip lighting
• Suitable for 24V RGB COB LED tape with matching common-positive connections and electrical ratings
• Up to approximately 15m wireless operating distance under suitable conditions
• Memory function designed to retain previous lighting settings following power interruption
• Two mounting methods using suitable adhesive or mechanical fixings
• IP20 rated for dry indoor environments
• Separate receiver module connects to the DC power supply and RGB lighting
• Professional lighting control for domestic, retail and commercial installations

What Is a Wireless RGB LED Wall Controller?

An RGB LED wall controller is a lighting control device used to change the colour, brightness and effects of compatible RGB LED strip lights. RGB stands for red, green and blue, the three colour channels used to create a wide range of lighting colours.

Unlike a basic single-colour LED dimmer, an RGB controller can independently regulate the red, green and blue channels. By adjusting the output of these channels, the system can produce different colours and lighting effects.

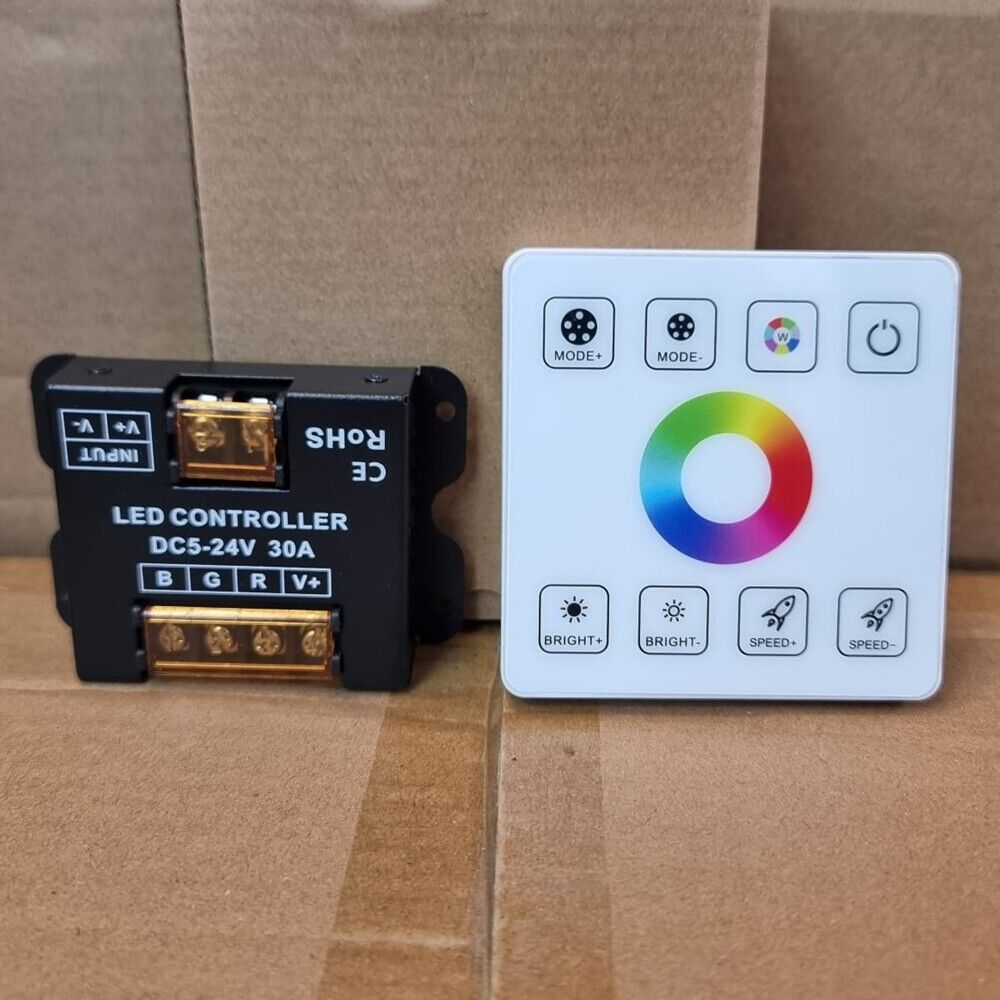

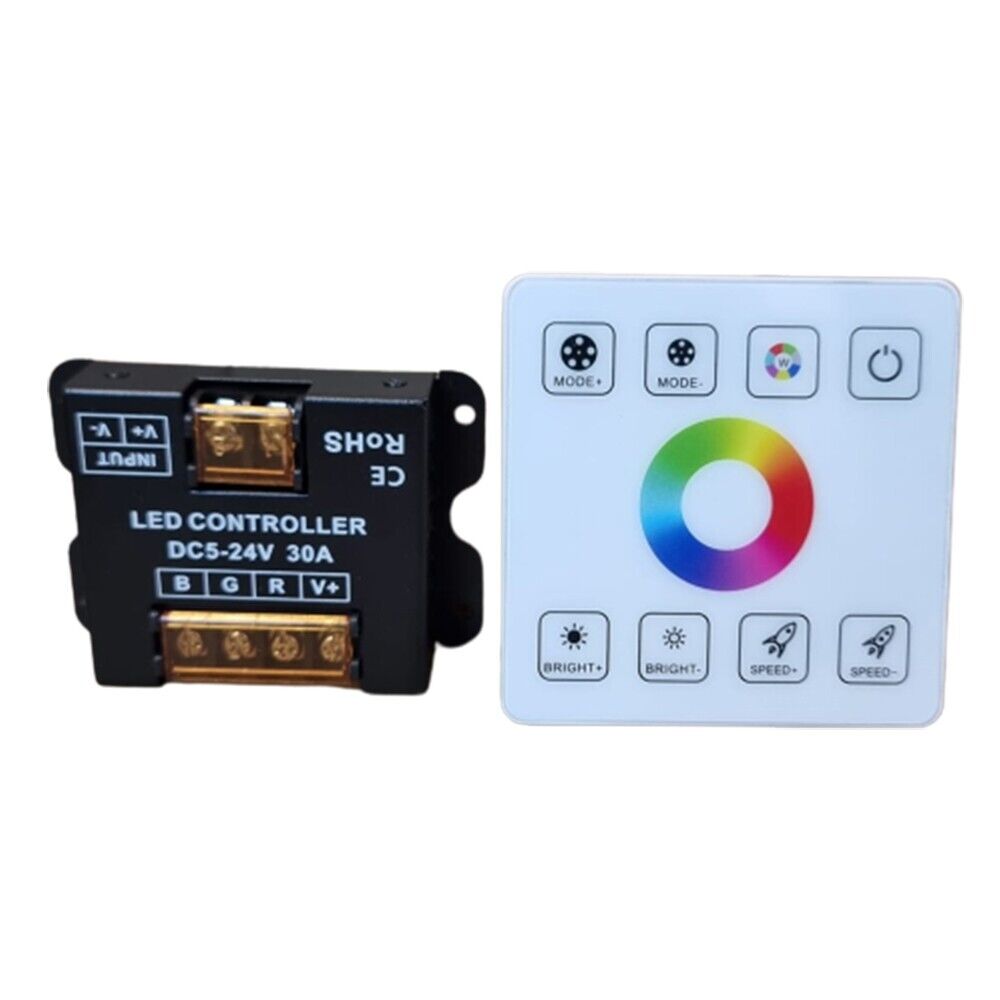

This controller uses a two-part system:

• Wireless wall-mounted touch panel: The user interface for changing colours, brightness and lighting modes.
• RGB receiver/controller module: The wired component that receives RF commands and controls the connected RGB LED strip.

The touch panel communicates wirelessly with the receiver, while the receiver uses physical electrical connections to supply and control the LED tape.

Wireless RF operation does not automatically mean Wi-Fi or smartphone compatibility. This product is designed for RF touch-panel control; app, Bluetooth, Alexa and Google Home functionality should not be assumed.

Compatible With Our 24V RGB COB LED Strip

Looking to create a professional colour-changing LED strip installation? Our 24V RGB COB LED Strip Light is an excellent companion product for this controller when the strip wiring and total electrical load are compatible.

COB stands for Chip on Board. Unlike conventional LED tape where individual LED points are often visible, high-density COB LED tape produces a smoother, more continuous line of illumination.

When combined with an appropriate RGB controller and 24V DC power supply, RGB COB lighting can be used to create colour-changing illumination in kitchens, living rooms, commercial displays, bedrooms and decorative architectural features.

• Smooth, virtually dotless colour-changing LED lighting
• 24V DC low-voltage operation
• RGB colour mixing for decorative lighting
• Ideal for media walls, ceiling coving and cabinets
• Suitable for aluminium LED profiles and diffusers
• Available in a choice of strip lengths
• Combine with this RF wall controller for convenient touch control

Shop Our 24V RGB COB Colour Changing LED Strip Light

Compatibility note: This RGB controller is intended for compatible three-channel RGB lighting using common-positive V+, R, G and B connections. It is not intended for individually addressable digital LED strips or RGBW/RGBCCT systems requiring additional channels.

Where Can This RGB Wall Controller Be Used?

The RGB wireless wall controller is suitable for a wide range of indoor domestic, commercial and decorative LED lighting applications, including:

• Living-room media walls and TV feature lighting
• Kitchen cabinets, plinths and under-cabinet RGB lighting
• Bedroom headboards and wardrobe lighting
• Suspended ceilings and RGB LED ceiling coving
• Home cinema and entertainment-room lighting
• Gaming rooms and RGB gaming setups
• Retail shelving, shop counters and display units
• Restaurants, cafés and indoor bar lighting
• Reception areas, offices and waiting rooms
• Showrooms and commercial feature lighting
• Furniture, joinery and custom interior installations
• Exhibition stands and illuminated displays
• Architectural accent lighting and decorative RGB effects

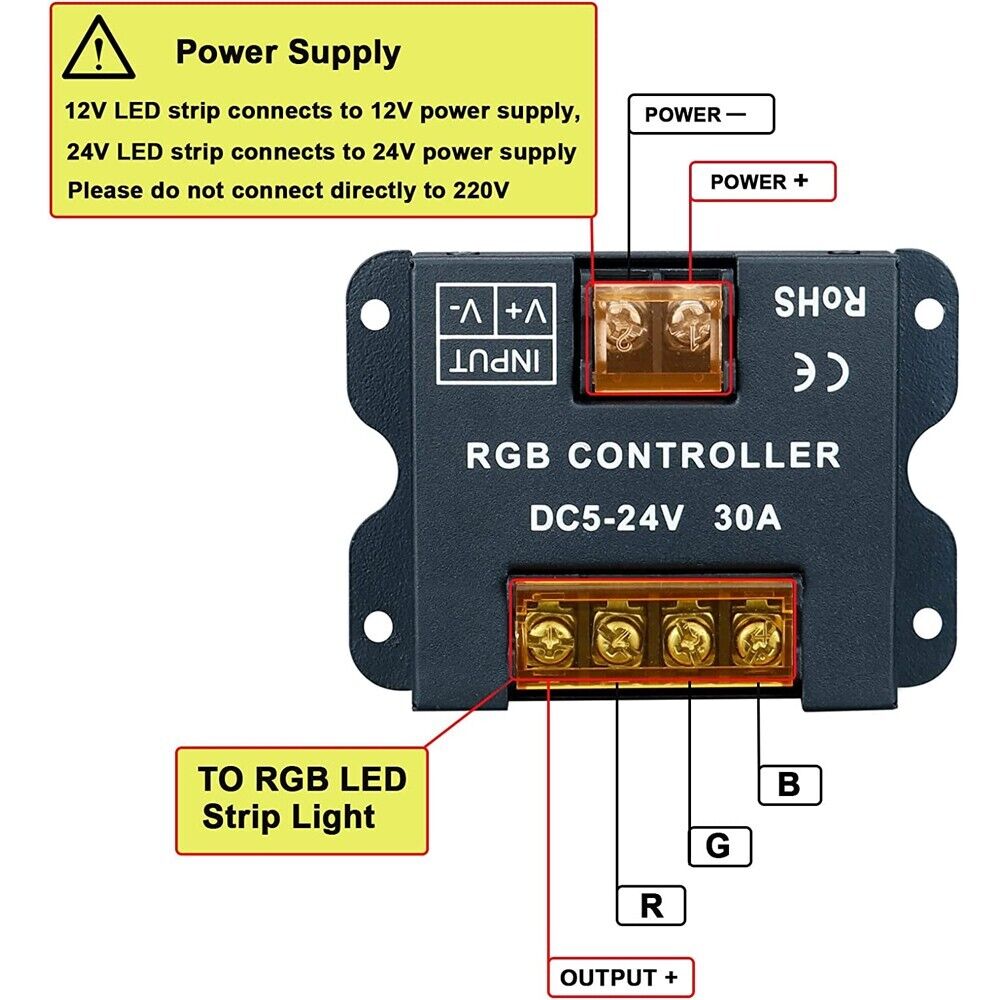

How to Wire the RGB Controller – V+, R, G and B

A standard common-positive RGB LED strip installation normally requires three main components:

• 1. RGB LED Strip: Compatible three-channel RGB COB or SMD LED tape.
• 2. RGB Controller: This wireless wall touch-panel and receiver system.
• 3. DC Power Supply: A correctly rated constant-voltage power supply matching the LED strip voltage.

For a 24V RGB COB LED strip installation, use a suitable 24V DC LED Power Supply . The power supply converts the mains input into the regulated low-voltage DC output required by the LED lighting system.

Step 1 – Connect the DC Power Supply to the RGB Receiver

Locate the DC power input on the RGB receiver module. Connect the positive output from the power supply to the receiver's positive input terminal, usually identified as V+, DC+ or +.

Connect the negative output from the power supply to the receiver's negative input terminal, usually identified as V-, DC- or -.

Always check the markings printed on the actual receiver, as terminal positions and labels can vary between versions. Do not connect the positive supply to a negative input terminal.

Step 2 – Connect the RGB LED Strip to the Controller

Standard common-positive analogue RGB LED tape normally has four electrical connections:

V+	Common positive supply connection for the LED strip
R	Red LED colour channel
G	Green LED colour channel
B	Blue LED colour channel

Connect the RGB LED tape to the matching output terminals on the receiver:

• LED Strip V+ → Controller Output V+
• LED Strip R → Controller Output R
• LED Strip G → Controller Output G
• LED Strip B → Controller Output B

On common-positive RGB systems, V+ provides the shared positive supply, while the R, G and B outputs switch the corresponding LED channels to control colour and brightness.

Important: The V+ output for the LED tape is different from the receiver's power-supply input connection, even where similar terminal markings are used. Follow the markings and wiring diagram supplied with the actual controller.

Step 3 – Check the Complete Wiring Arrangement

This is a simplified wiring explanation for compatible common-positive RGB systems and is not a substitute for the wiring diagram supplied with the actual equipment.

Step 4 – Install and Pair the Wireless Wall Controller

Install the touch panel in a convenient indoor position. The panel may be mounted using the supplied adhesive pads on a suitable smooth surface or by compatible mechanical fixings where appropriate.

Position the receiver in a dry, ventilated and accessible location close to the power supply and RGB LED tape. Avoid placing the receiver where metal enclosures or other obstructions could unnecessarily reduce RF communication range.

Follow the pairing or synchronisation instructions supplied with the actual wall panel and receiver. Pairing procedures may vary between controller versions.

Once connected and paired, test the red, green and blue channels individually, followed by the brightness and colour-changing functions.

Step 5 – Test Before Completing the Installation

Before permanently fixing the LED tape or closing any aluminium profile, check that:

• The LED strip and power supply voltage ratings match
• All positive and negative connections are correct
• Red, green and blue channels operate correctly
• Colours change using the wall touch panel
• The dimming function works correctly
• The power supply and receiver are adequately rated
• All connections are secure and correctly insulated
• The receiver has suitable ventilation and access

Electrical Safety: This controller operates from a low-voltage DC supply and must not be connected directly to 230V mains electricity. Mains-side wiring for the LED power supply should be carried out by a suitably competent person in accordance with applicable UK electrical requirements. Always isolate the supply before installation or maintenance.

Choosing the Correct LED Power Supply

The correct LED power supply is essential for safe and reliable operation of an RGB lighting installation.

For our 24V RGB COB LED strip, select a compatible 24V constant-voltage DC LED driver. Do not use a 12V driver with 24V LED tape.

To calculate the required driver wattage:

LED Strip Wattage Per Metre × Total LED Strip Length = Total Connected Wattage

For example, if a particular RGB LED strip is rated at 12W per metre, a 5m installation would have a nominal connected load of 60W.

A suitable driver should be selected with additional capacity rather than being operated continuously at its maximum rated output.

The 12W/m figure above is an example only. Always use the actual wattage specified for the LED strip being purchased.

Controller capacity: This controller's published specifications list 30A output current and a maximum wattage of 218W. These must not be treated as independent interchangeable ratings. The stated wattage limit should not be exceeded, and any lower applicable voltage, channel or equipment rating must also be respected. Obtain confirmation of the receiver's channel ratings before connecting a high-load installation.

If your LED strip installation exceeds the controller or power-supply capacity, additional suitable RGB amplifiers, receivers or separate correctly designed powered sections may be necessary.

Compatible LED Strip Accessories

Complete your RGB LED strip installation with compatible products from Manningham Lighting & Electrical:

• 24V RGB COB LED Strip Light – Dotless Colour Changing Tape – ideal for media walls, cabinets, ceilings and decorative lighting.
• 60W DC LED Power Supply – select the 24V version where appropriate for smaller compatible loads.
• 200W 24V DC LED Power Supply – suitable for correctly calculated 24V installations within all equipment ratings.
• Knightsbridge 24V 100W Constant Voltage IP67 LED Driver – a 24V power supply option with an IP67-rated enclosure.
• Browse All DC LED Drivers and Power Supplies
• RGB COB LED Strip Connectors – for suitable tape connections and extensions.
• Aluminium LED Profiles and Diffusers – for a neat, professional lighting installation.
• Other RGB LED Strip Controllers – explore additional lighting control options.
• LED Strip Lights and LED Tape – explore our complete LED tape selection.

Need a complete RGB lighting setup? Our team can help with compatible RGB strip lighting, controller selection, DC power supply sizing, RGB connection accessories and aluminium LED profiles.

Why Choose Manningham Lighting & Electrical?

• Established UK lighting and electrical supplier
• Professional LED lighting solutions for domestic and commercial customers
• Wide range of RGB LED strips, COB tape, drivers and accessories
• Products suitable for electricians, installers, joiners and shopfitters
• Technical advice for LED strip lighting installations
• Support with driver sizing and RGB controller compatibility
• Lighting solutions for media walls, kitchens, interiors and commercial projects
• Bulk quantities and project enquiries welcome

Explore the complete product range at www.manningham.co.uk .

Specification

Product Type	Wireless RGB LED Wall Mounted Touch Controller & Receiver
Brand	Manningham Lighting
SKU	CN/RGB/WM/RC
Controller Type	Wireless RF Touch Panel
Control Technology	Radio Frequency (RF)
Lighting Control	RGB Colour, Brightness and Lighting Effects
Output Channels	3 – RGB
Operating Voltage	5V-24V DC
Published Output Current	30A (verify applicable channel ratings)
Published Maximum Wattage	218W maximum, subject to other applicable limits
RGB Output Connections	Common Positive V+, Red, Green, Blue (verify actual terminal markings)
Wireless Control Range	Up to approximately 15m under suitable conditions
Control Functions	Colour Selection, Dimming, Dynamic Effects
Memory Function	Yes – previous settings memory
IP Rating	IP20 – Dry Indoor Use

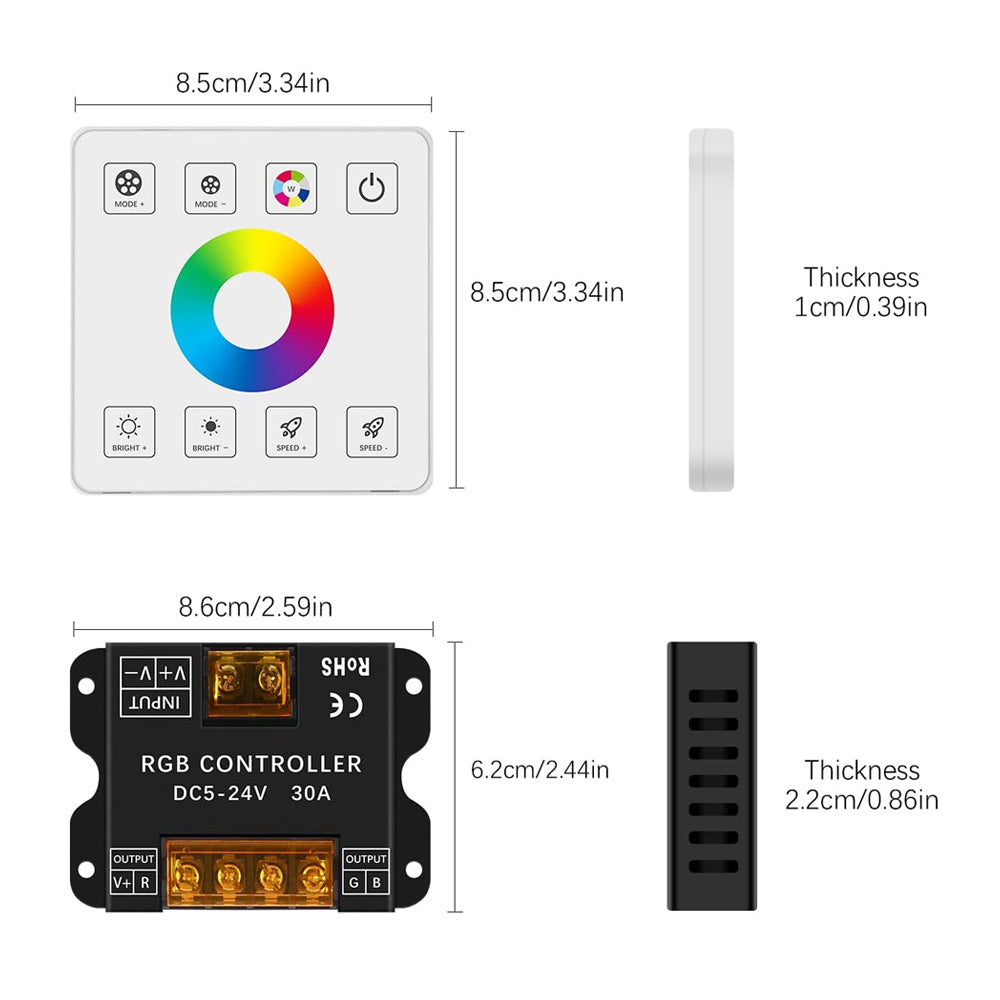

Length	86mm
Width	86mm
Depth	32mm
Mounting Style	Wall Mounted – Adhesive or Suitable Mechanical Fixings
Compatible LED Technology	Compatible RGB COB and SMD LED Strip Tape
Power Supply Required	External Compatible Constant-Voltage DC LED Driver
Included Components	Touch Wall Panel, Metal-Cased RGB Receiver and Two Adhesive Pads
Recommended Application	Indoor RGB LED Strip and Feature Lighting

FAQs

What is an RGB LED wall controller?

An RGB LED wall controller allows you to change the colours, brightness and lighting effects of compatible RGB LED strips. It controls the red, green and blue channels to produce different coloured lighting effects.

Is this RGB controller wireless?

Yes. The wall-mounted touch panel communicates wirelessly with the separate RGB receiver using RF technology. The receiver itself must still be wired to the power supply and RGB LED strip.

Does this controller work with 24V RGB COB LED strip?

Yes, it can be used with compatible 24V common-positive three-channel RGB COB LED tape, provided the connection arrangement and connected electrical load match the receiver specifications. Browse our 24V RGB COB LED strip .

What is the difference between RGB COB LED strip and normal RGB LED strip?

Traditional RGB SMD LED strips have spaced LED packages, which can produce visible points of light. High-density RGB COB LED strip is designed to create a smoother, more continuous lighting appearance.

What does V+ mean on an RGB controller?

V+ is the common positive electrical connection used by compatible common-positive analogue RGB LED tape. The other three connections, R, G and B, control the individual colour channels.

How do I connect the V+, R, G and B wires?

On a compatible common-positive RGB system, connect the LED tape V+ to the controller output V+, red to R, green to G and blue to B. The controller's DC input connects separately to the correctly rated power supply. Always check the actual wiring diagram and terminal markings.

What happens if the red, green and blue wires are connected incorrectly?

If the colour channels are exchanged, the selected colours may not match the output. Incorrect connections can also damage equipment. Always disconnect power before correcting wiring and verify all connections.

Do I need a 24V LED driver for 24V RGB COB tape?

Yes. A 24V RGB COB strip requires a compatible 24V constant-voltage DC power supply. The controller does not convert 230V mains electricity into 24V DC. Browse our LED power supplies .

Can I use this controller with a 12V RGB LED strip?

Yes, the published controller operating range is 5V-24V DC. The power supply voltage must match the LED strip operating voltage, and all current and power limits must be respected.

Can I connect the controller directly to 230V mains?

No. The receiver requires a compatible low-voltage DC supply. Never connect the controller or low-voltage LED tape directly to 230V mains electricity.

Does the wall panel need an electrical cable?

The wall panel communicates using wireless RF, so an RGB signal cable between the wall panel and receiver is not required. The exact panel power arrangement should be checked against the supplied product instructions.

What is the wireless control range?

The advertised operating distance is up to approximately 15 metres under suitable conditions. The actual range may be affected by walls, metal structures, interference and installation location.

Can I dim my RGB LED strip using this controller?

Yes. The touch panel provides brightness adjustment for compatible RGB lighting, allowing you to create brighter or softer lighting effects.

Does the controller change LED strip colours?

Yes. It provides control of the red, green and blue LED channels, allowing colour selection and suitable automatic colour-changing effects.

Can this RGB controller produce white light?

Compatible RGB LED tape can mix red, green and blue light to create a white-style colour. However, this is not the same as using a dedicated white LED channel. For true warm-white or tunable-white control, a compatible RGBW or RGBCCT system would be required.

Does this controller work with RGBW LED strip?

This is a three-channel RGB controller. It is not designed to provide independent control of an additional dedicated white channel on RGBW tape.

Can it control individually addressable LED strip?

No. Standard common-positive RGB controllers are different from digital addressable LED controllers. Addressable tape normally requires a compatible data-signal controller matched to its LED chipset.

Will this controller work with SMD 5050 or 3528 RGB LED strips?

Yes, provided the particular LED strip is a compatible common-positive analogue RGB model and its voltage and electrical requirements fall within the controller's applicable ratings.

Can I use the controller on a 10m or 20m RGB strip installation?

The supported length depends on the strip's wattage per metre, total current, controller capacity, power supply capacity and wiring arrangement. Long installations may require separate power feeds, RGB amplifiers or multiple powered sections. Length alone does not establish compatibility.

Why does the end of my RGB LED strip show different colours?

Long LED runs can experience voltage drop. This can cause reduced brightness or inconsistent colour mixing towards the end of the installation. Appropriate cable sizing, shorter sections and additional correctly designed power-injection points can help reduce the problem.

Can I connect multiple RGB LED strips to one controller?

Multiple compatible RGB strips may be connected to one correctly rated controller where the total combined load and wiring arrangement remain within all equipment ratings. Larger systems may need additional equipment.

Can I use a 200W power supply with this controller?

A 200W 24V supply can power a compatible 24V system where the connected load, controller limits and power supply ratings are all satisfied. A 200W driver does not automatically mean that 200W of LED tape can safely be connected to every controller.

What happens if my LED strip exceeds the controller's capacity?

Overloading a controller can cause overheating, malfunction or permanent damage. If the planned installation exceeds the applicable controller rating, use a suitable higher-capacity system or additional properly specified control equipment.

Is the RGB receiver included?

The published package contents include the wireless wall touch panel, metal-cased RGB receiver module and two adhesive mounting pads.

Is the power supply included?

No separate DC power supply is listed in the published package contents. A compatible power supply should be selected according to the LED strip voltage and connected load.

Is RGB LED strip included with the controller?

No LED strip is listed in the controller package. Compatible RGB LED tape can be purchased separately. We recommend browsing our 24V RGB COB LED tape .

Can the RGB wall controller be installed outdoors?

No. The controller is rated IP20 and intended for suitable dry indoor installations. It must be protected from water, excessive moisture and unsuitable environmental conditions.

Can this controller be installed on a media wall?

Yes. This type of RGB touch controller is particularly suitable for indoor media-wall feature lighting when used with compatible low-voltage RGB LED strip and power supplies.

Does the controller remember the last selected colour?

The published product description includes a memory function designed to retain previous lighting settings following power interruption.

Is this a Wi-Fi or Bluetooth controller?

No Wi-Fi or Bluetooth functionality is specified for this product. The controller uses RF wireless communication between its touch panel and receiver.

Does it work with Alexa or Google Home?

Smart-home voice-assistant functionality is not specified for this RF controller. Customers requiring app-based or voice-controlled lighting should choose a controller specifically supporting their intended smart-home system.

Why is my RGB controller not changing colours correctly?

Check the V+, R, G and B connections, the LED strip voltage, the controller's power input and the pairing between the touch panel and receiver. If individual colour channels do not correspond to the selected colours, check the R, G and B wiring with the power isolated.

Where can I buy compatible RGB COB tape and LED power supplies?

Manningham Lighting & Electrical supplies 24V RGB COB LED strip lighting, DC LED power supplies, RGB COB connectors and aluminium LED profiles.

Project Help

Unsure which RGB controller, COB LED strip, power supply or connectors you need? Speak to our experienced staff, with over 25 years in the lighting and electrical industry.

We can assist with domestic, retail and commercial LED strip lighting projects, including:

• Choosing a compatible RGB LED controller
• Selecting RGB COB or traditional SMD LED tape
• Calculating the required 12V or 24V driver wattage
• Understanding V+, R, G and B wiring connections
• Planning longer RGB LED strip installations
• Choosing suitable RGB connectors and cable
• Determining when additional RGB amplifiers may be required
• Selecting aluminium LED profiles and diffusers
• Planning media-wall and ceiling lighting
• Kitchen, bedroom and furniture LED lighting projects
• Commercial display and shopfitting installations
• Bulk quantities and larger commercial projects

To help us recommend the correct RGB lighting products, please provide the required LED strip length, operating voltage, wattage per metre, installation location and any available project measurements or photographs.

Important: Electrical installation work should be completed by a suitably qualified person where required. Always isolate the electrical supply before installation or maintenance.
