Description

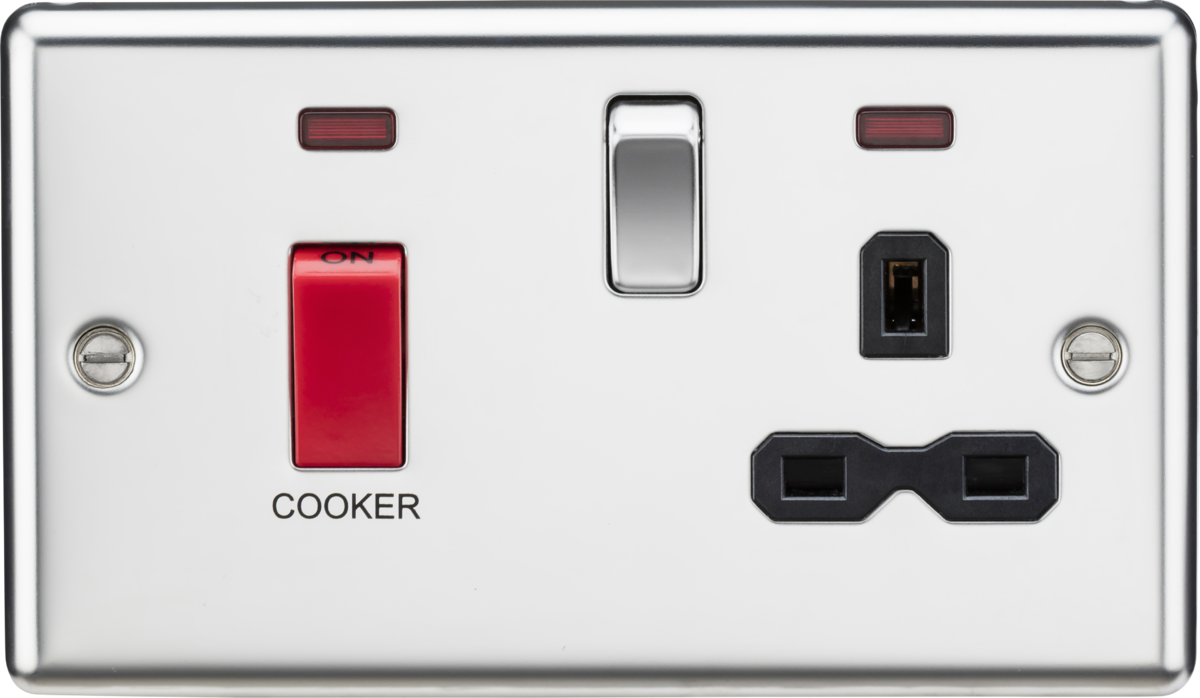

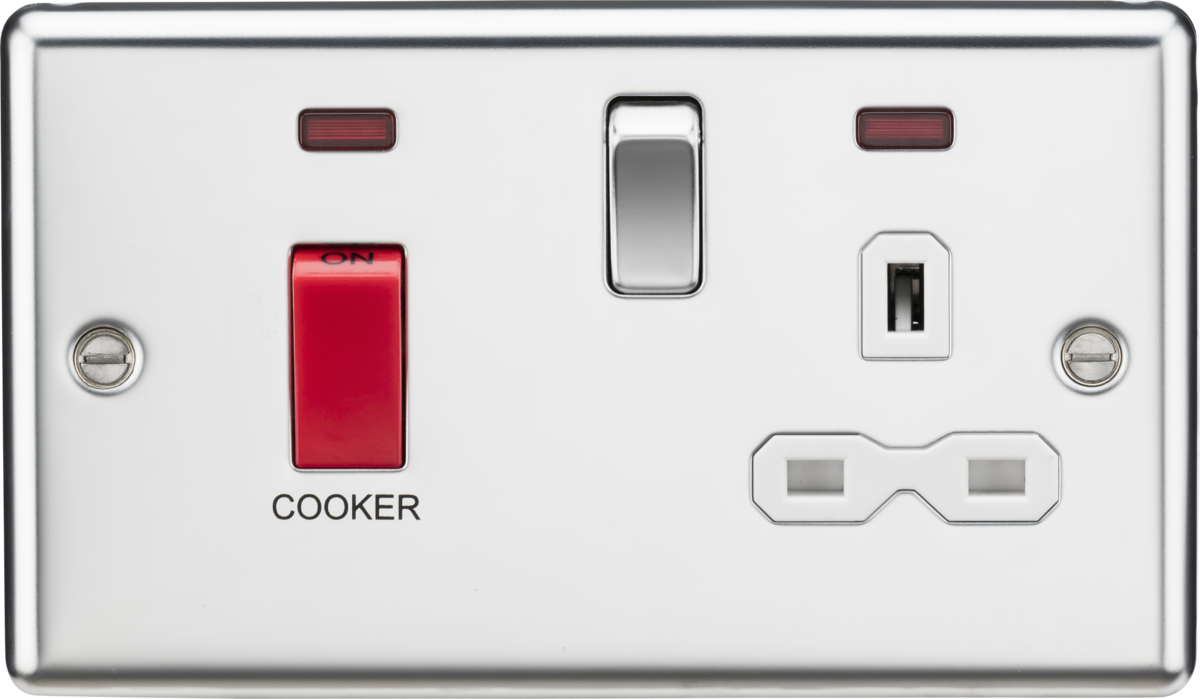

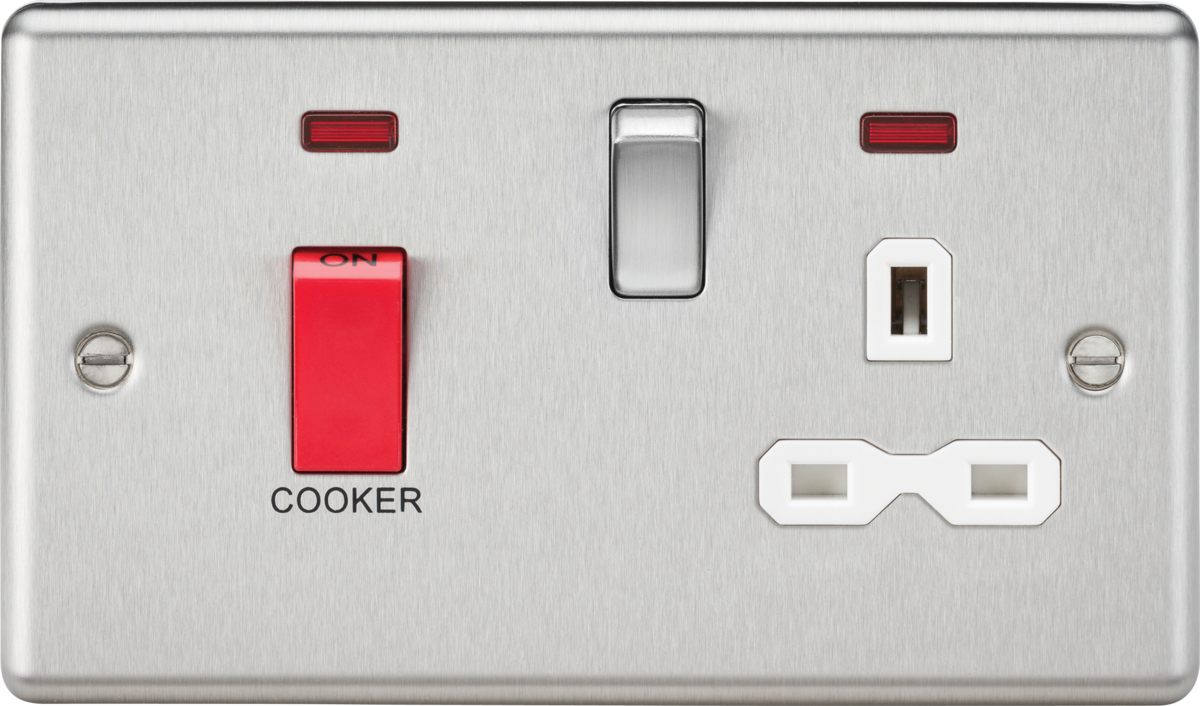

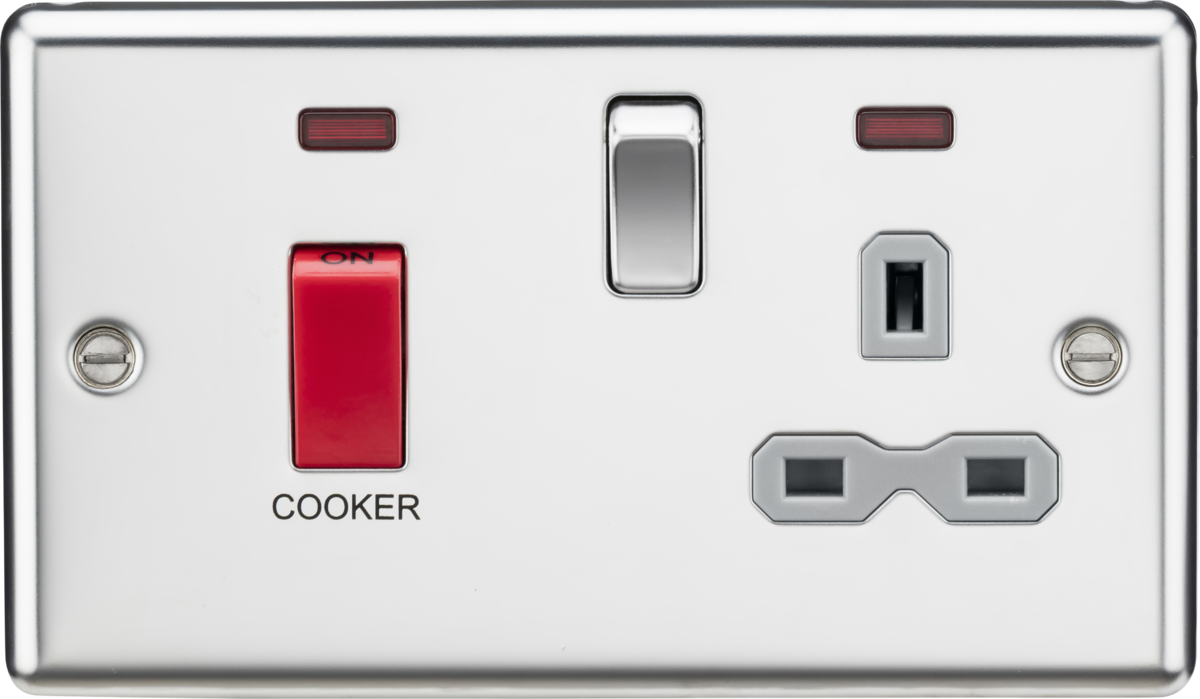

Cooker control units enable isolation of the unit so that maintenance and repairs to be carried out separately. The unit can be switched off, preventing the appliance from being turned on accidentally- for example whilst cleaning. Control two or more cooking appliances in the same room, providing rating is sufficient. This model combines a 45A switch with a 13A socket in rounded edge metal design
- 45A
- Double pole
- With neon indicators
- 13A switched socket - Rounded edge design with built in gasket
- Certified to BS 4177, BS 1363-2
- Minimum mounting box depth: 47mm
- 45A
- Double pole
- With neon indicators
- 13A switched socket - Rounded edge design with built in gasket
- Certified to BS 4177, BS 1363-2
- Minimum mounting box depth: 47mm
Download
DatasheetSpecifications
| Brand | Knightbridge |
|---|---|
| SKU | CL83BC, CL83PC |

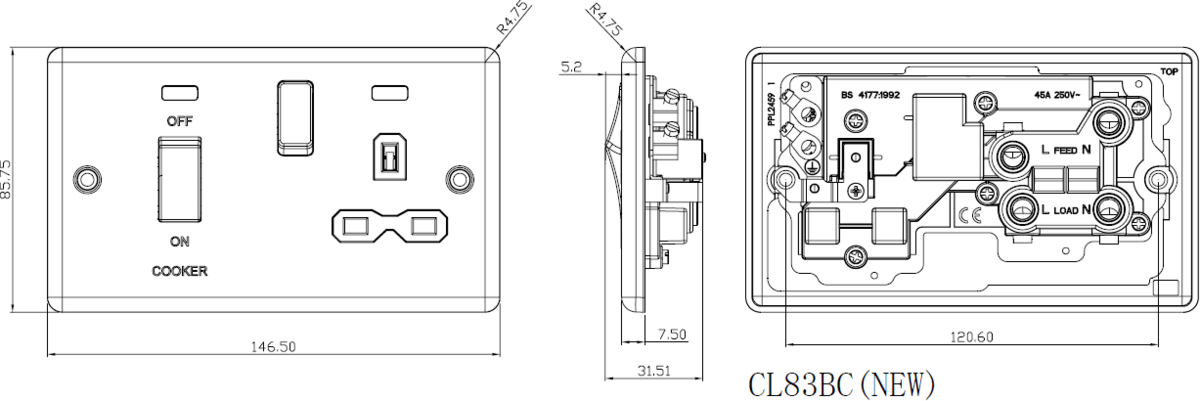

| Height (mm) | 85.75 |
| Width (mm) | 146.5 |
| Projection (mm) | 7.5 |
| Min. Mounting Box Depth (mm) | 47 |
| Material | Premium grade steel |
| Finish | Brushed Chrome, Polished Chrome |
| Class | I |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Earth Terminal | Yes |
| Neon Indicator | Yes |
| Warranty (Years) | 15 |
| Commodity Code | 8536 5080 90 |
