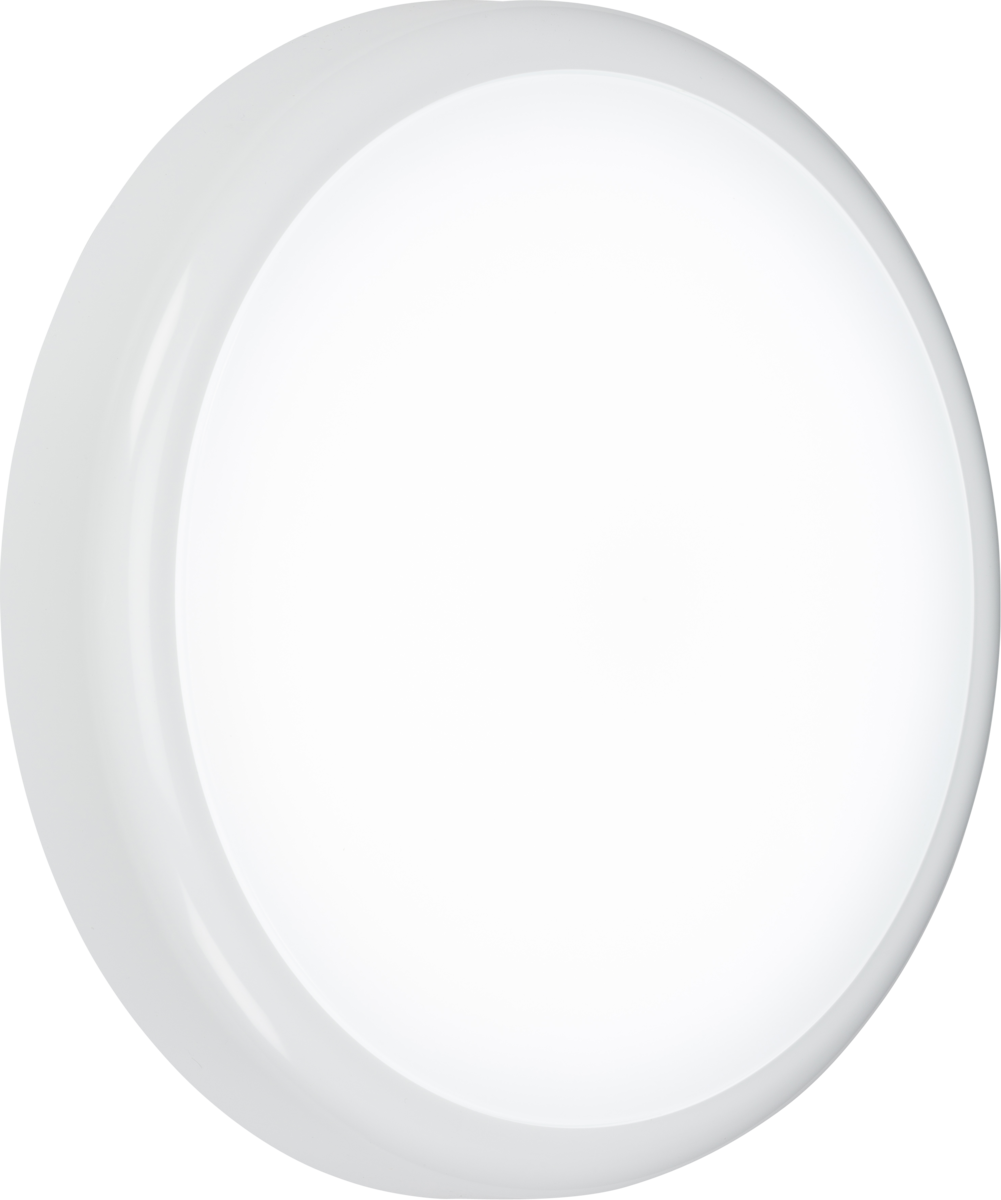

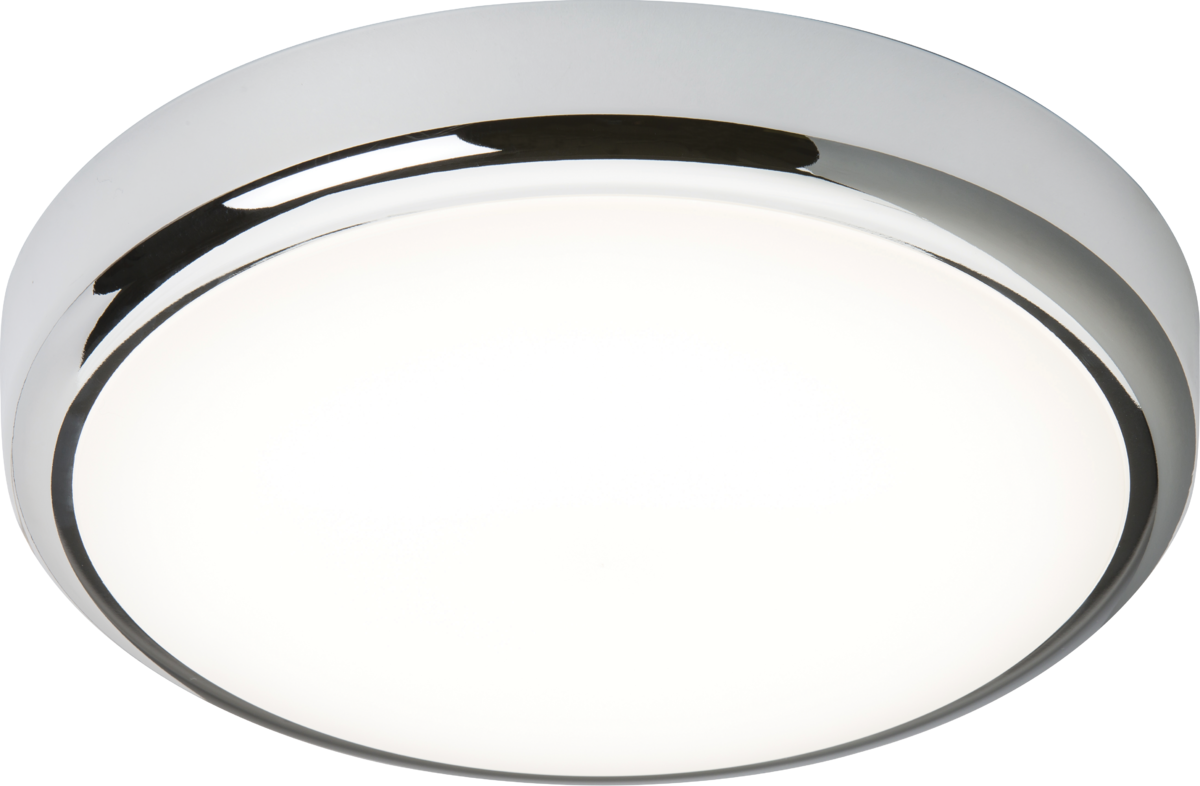

Long life, high lumen wall and ceiling mountable LED luminaire, for internal and external use. Options available that include microwave sensor, corridor function and emergency (Sold Separately. Available in drop down menu). This luminaire is ideal for most domestic and commercial applications. - CCT adjustable - 3000K / 4000K / 5700K - Hinged LED Gear Tray - Push fit fast fix terminal block - Low Profile - Polycarbonate high output diffuser 3000K, 1130lm / 4000K, 1260lm / 5700K, 1210lm

Download

Datasheet

Specifications

Variant SKU	BT14ACT
SKU	BT14ACT, BT14ACTB, BT14ACTCH, BT14ACTEM, BT14ACTEMS, BT14ACTS
Diameter (mm)	315
Projection (mm)	74
Material	Polycarbonate
Finish	White
Class	II
IP Rating	IP65
Voltage (V)	230V 50Hz
Diffuser	Opal
Emergency	Maintained / Non-maintained / Switched
Lamp Technology	SMD LED
Lamp Included	Yes
Dimmable	No
Rated Life (Hours)	50000
Beam Angle (°)	115
Colour Temperature (K)	3000/4000/5700
Light Colour	CCT
Lumens (lm)	1130 / 1260 / 1210
Lumens (Light Source only)	1340
Lumens (Em. mode)	180
Wattage (W)	14
Efficacy	109.9
CRI	80
Driver Type	Constant Current
Warranty (Years)	5
Commodity Code	9405423190
