Description

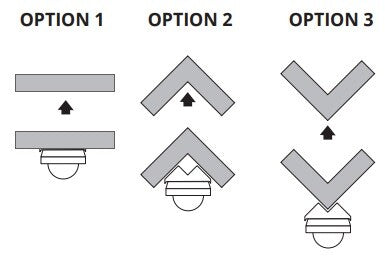

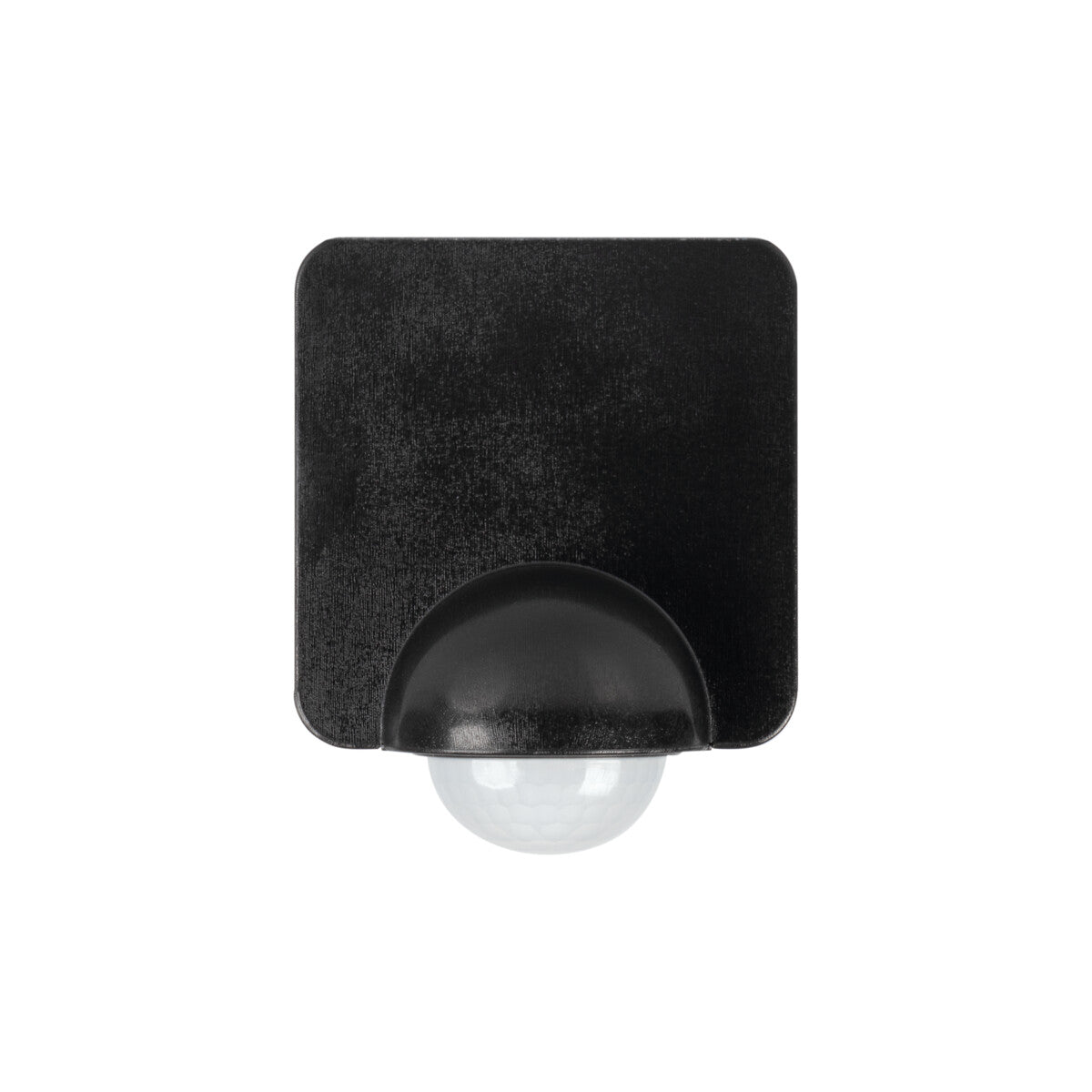

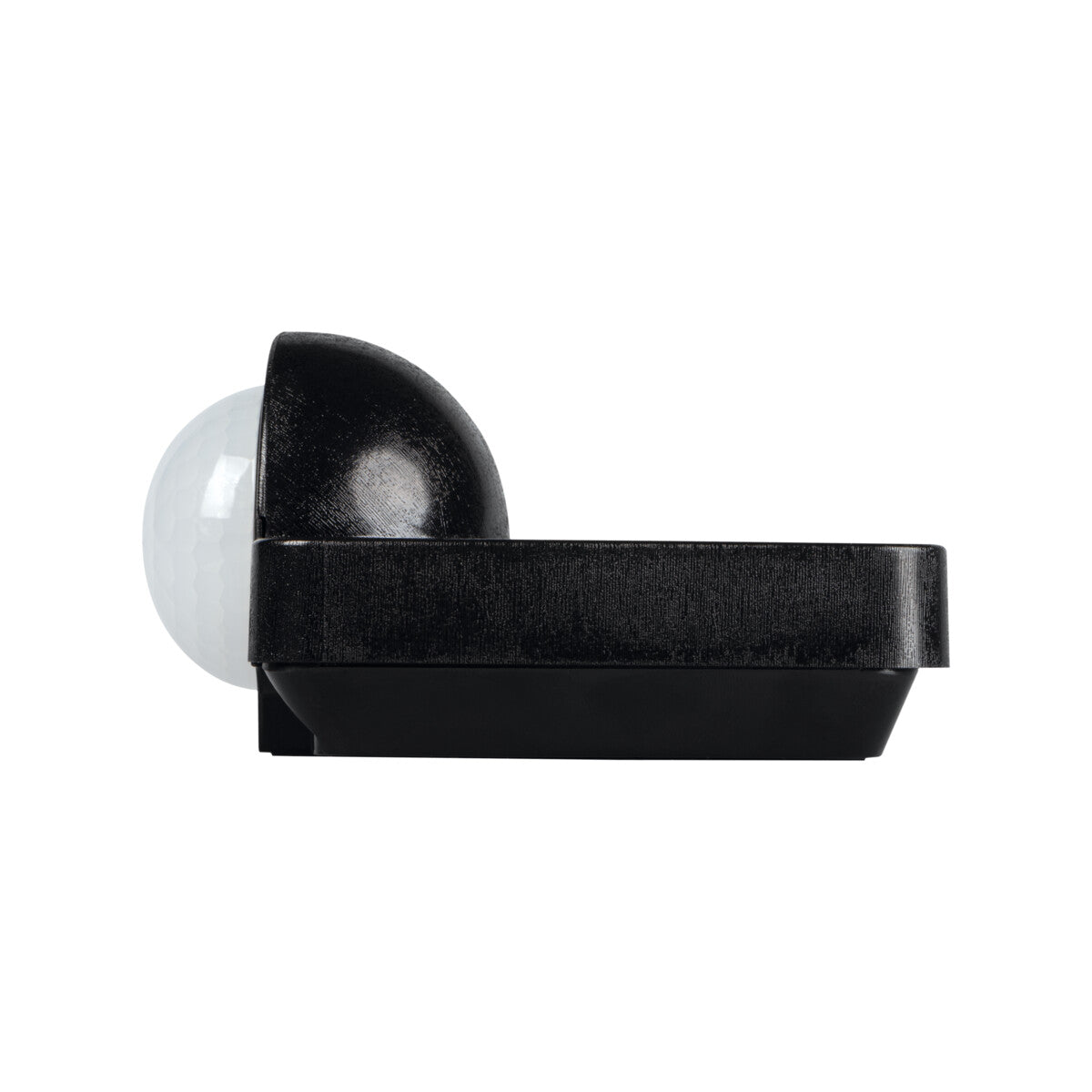

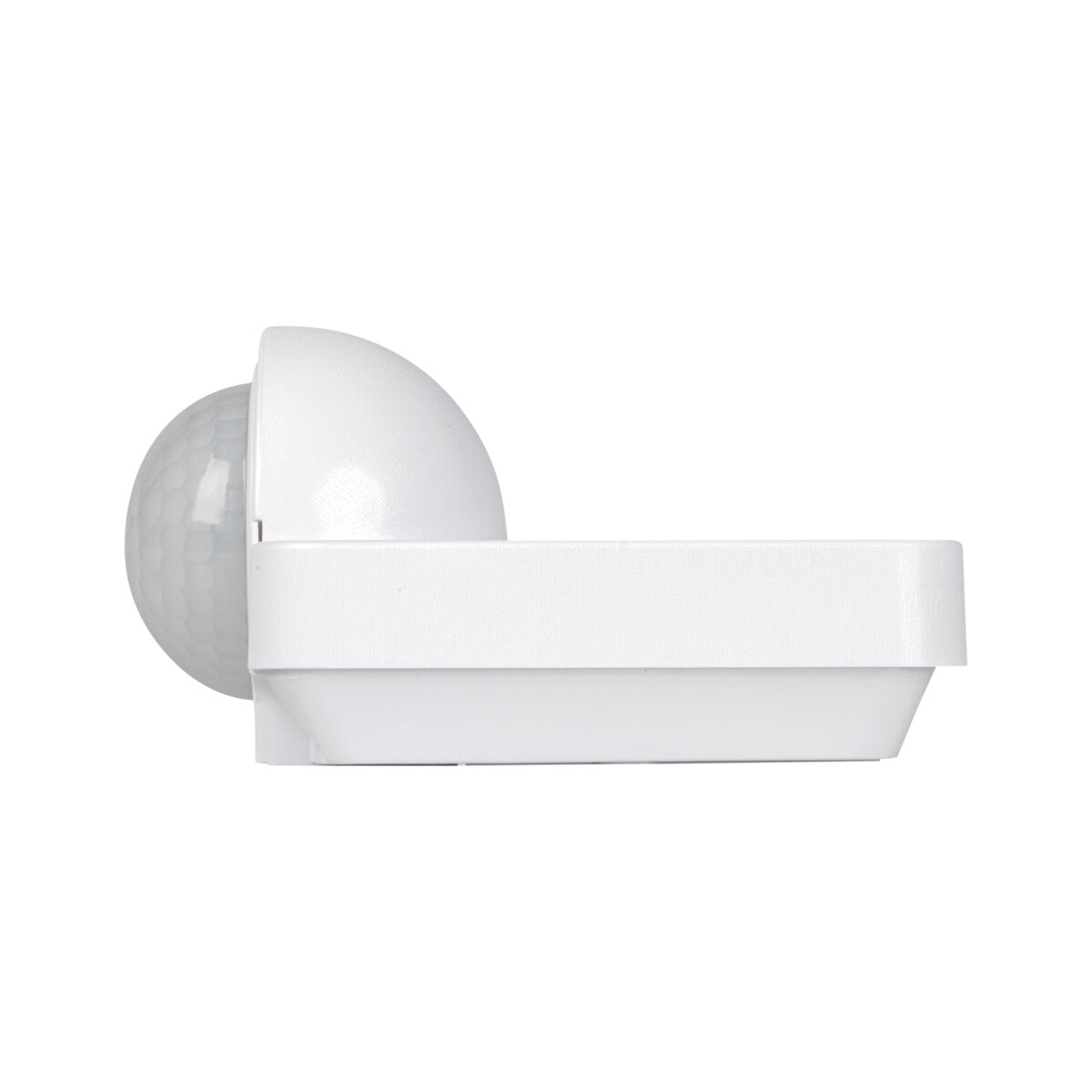

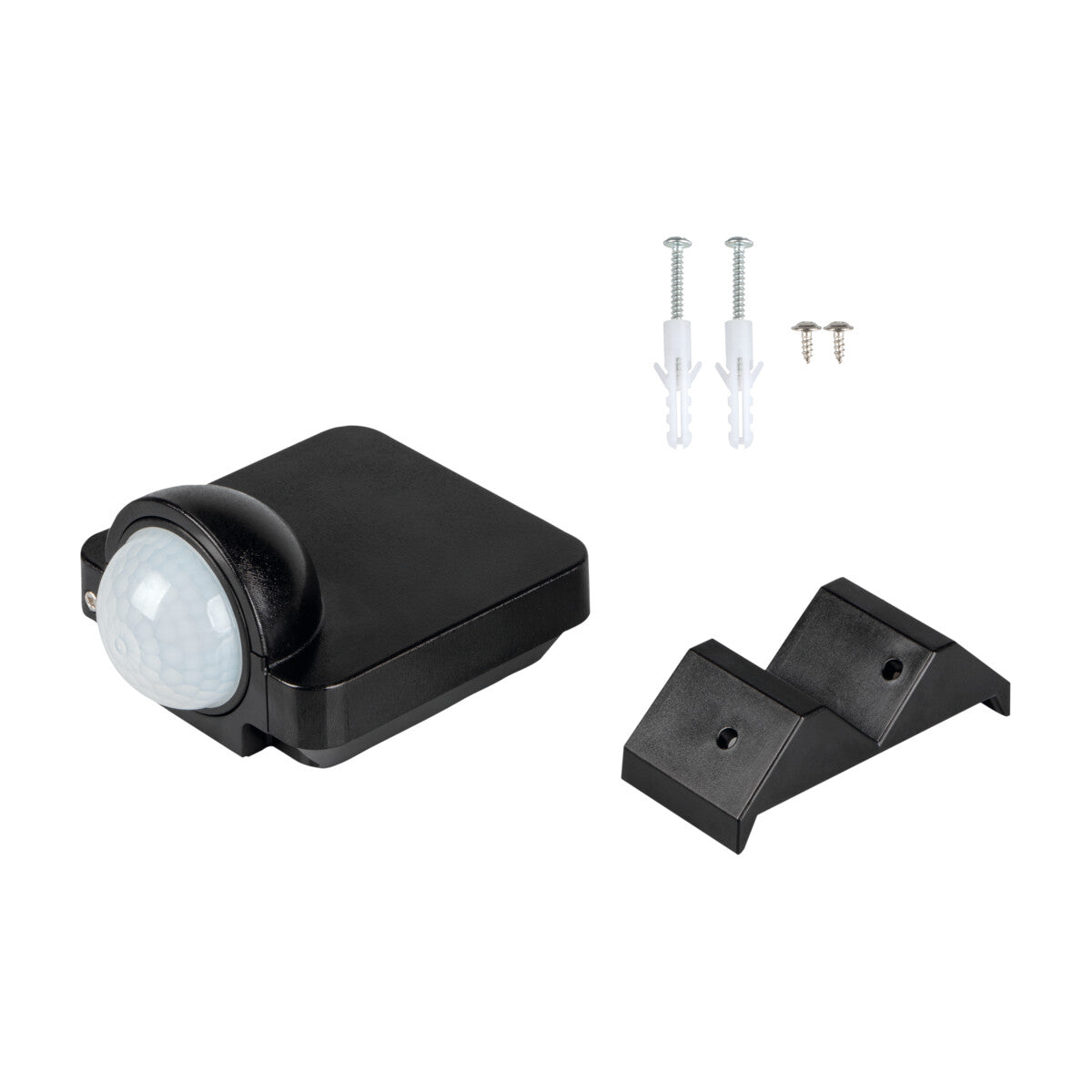

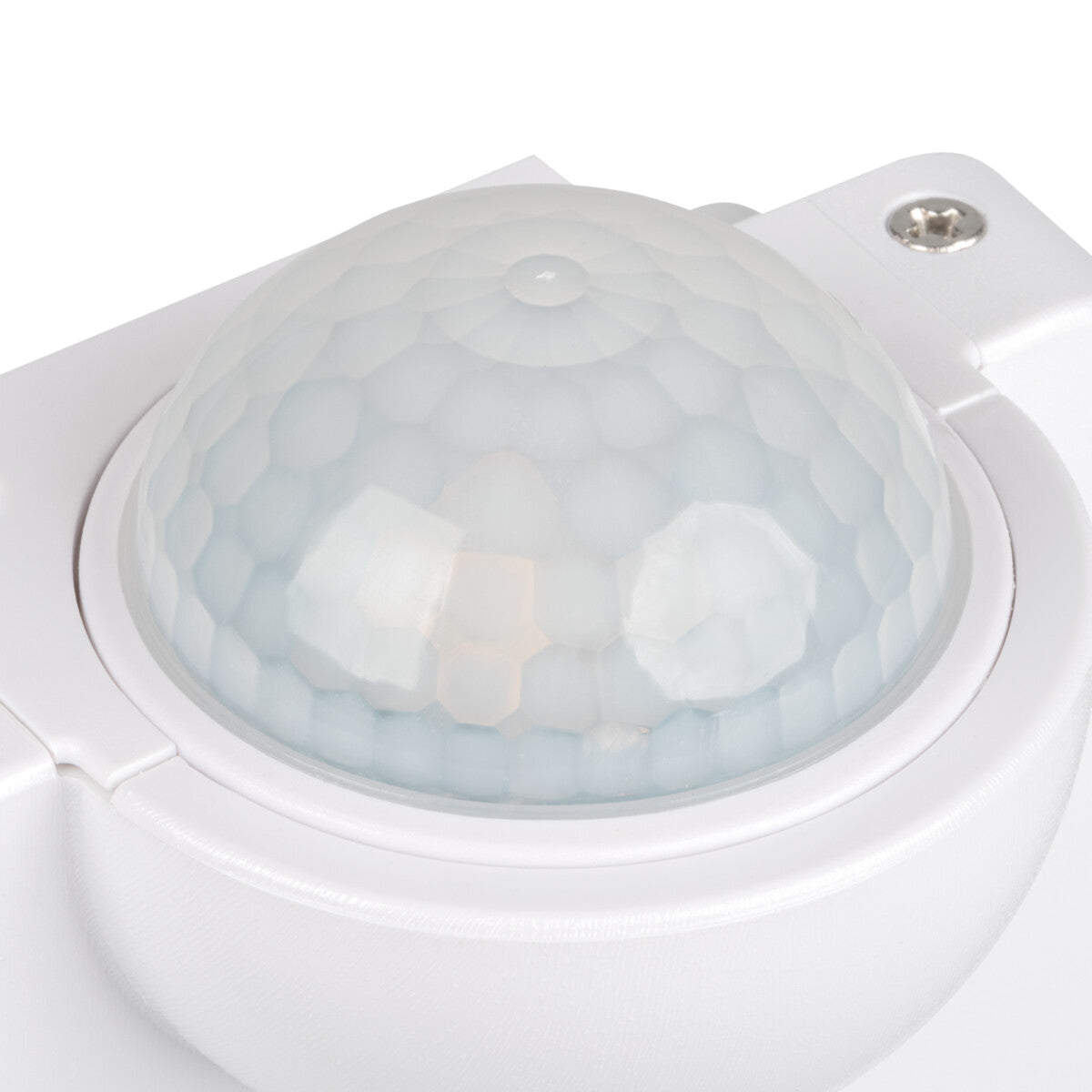

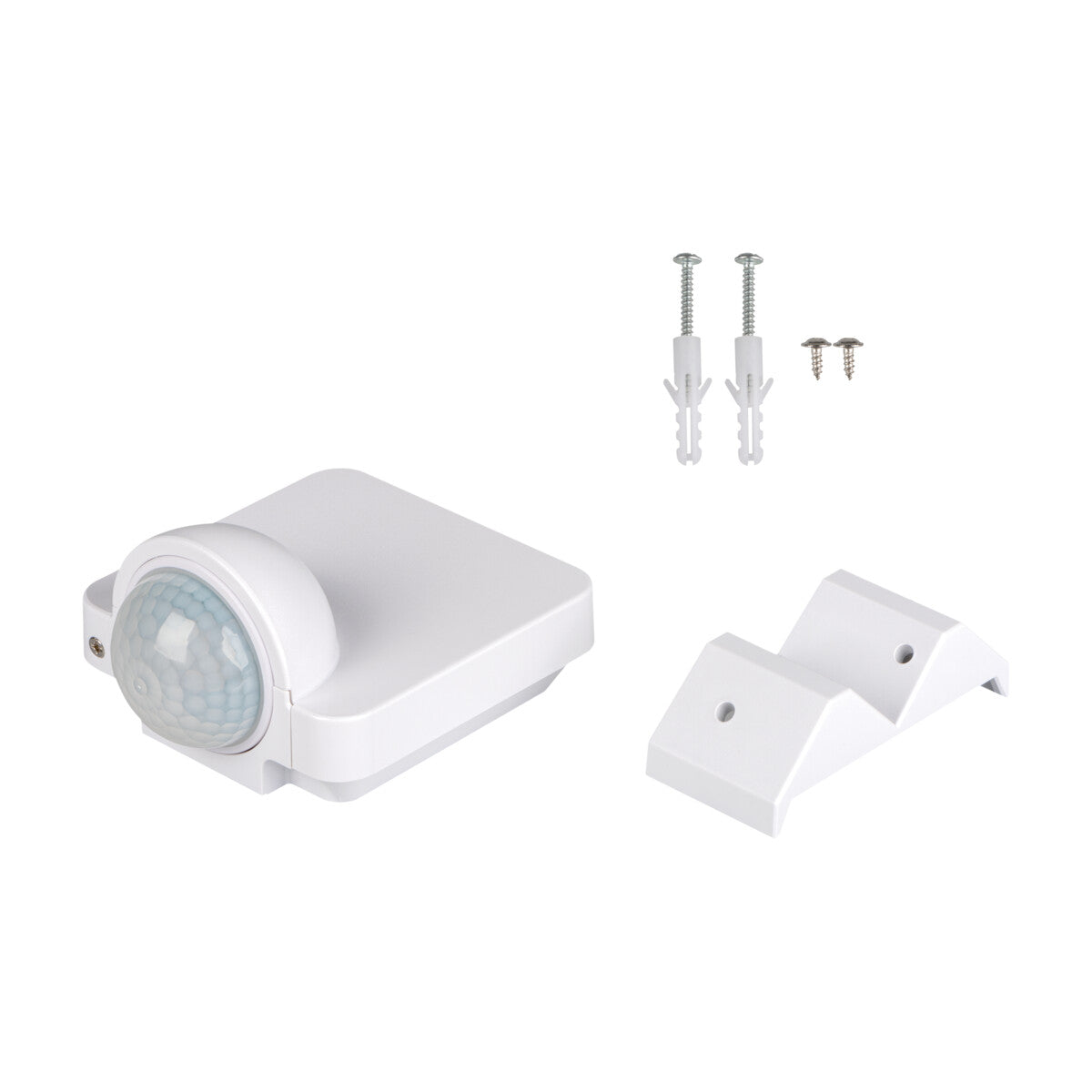

SENSQARE sensors are designed for wall mounting and use infrared technology. The combination of a unique design, a wide detection range, and an IP54 rating allows for the adaptation of the sensor to many applications. An additional advantage of the sensor is the included accessory that allows for mounting the sensor on both internal and external corners. Available in black and white.
Downloads
DatasheetSpecifications
| Brand | Kanlux |
|---|---|
| SKU | 37368, 37369 |
| EAN | 5905339373687, 5905339373694 |

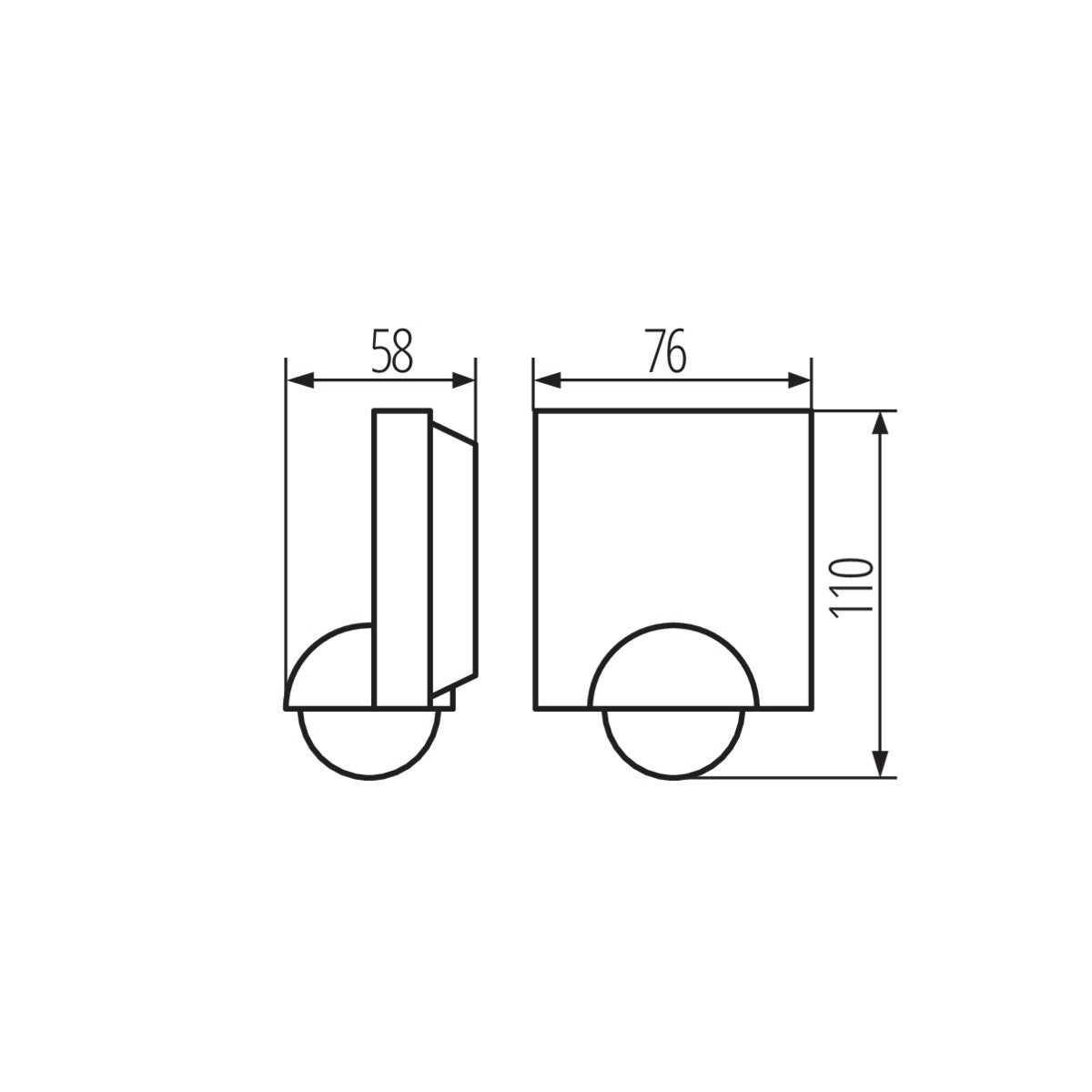

| Height (mm) | 110 |
| Length (mm) | 58 |
| Width (mm) | 76 |
| Material | Plastic |
| Finish | White, Black |
| IP Rating | IP54 |
| Voltage (V) | 220 |
| Range (m) | Max. 8 |
| Max. Operating Time (m) | 15 |
| Min. Operating Time (s) | 10 |
| Sensor Working Angle | 360 |
| Maximum Power (VA) | 1200 |
| Illumination Levels (lx) | 3 - 20000 |
| Connection Type | Terminal Block |
| Sensor Type | PIR |
| Place of assembly | Surface Mounted |
| Place of application | Indoor |
