Description

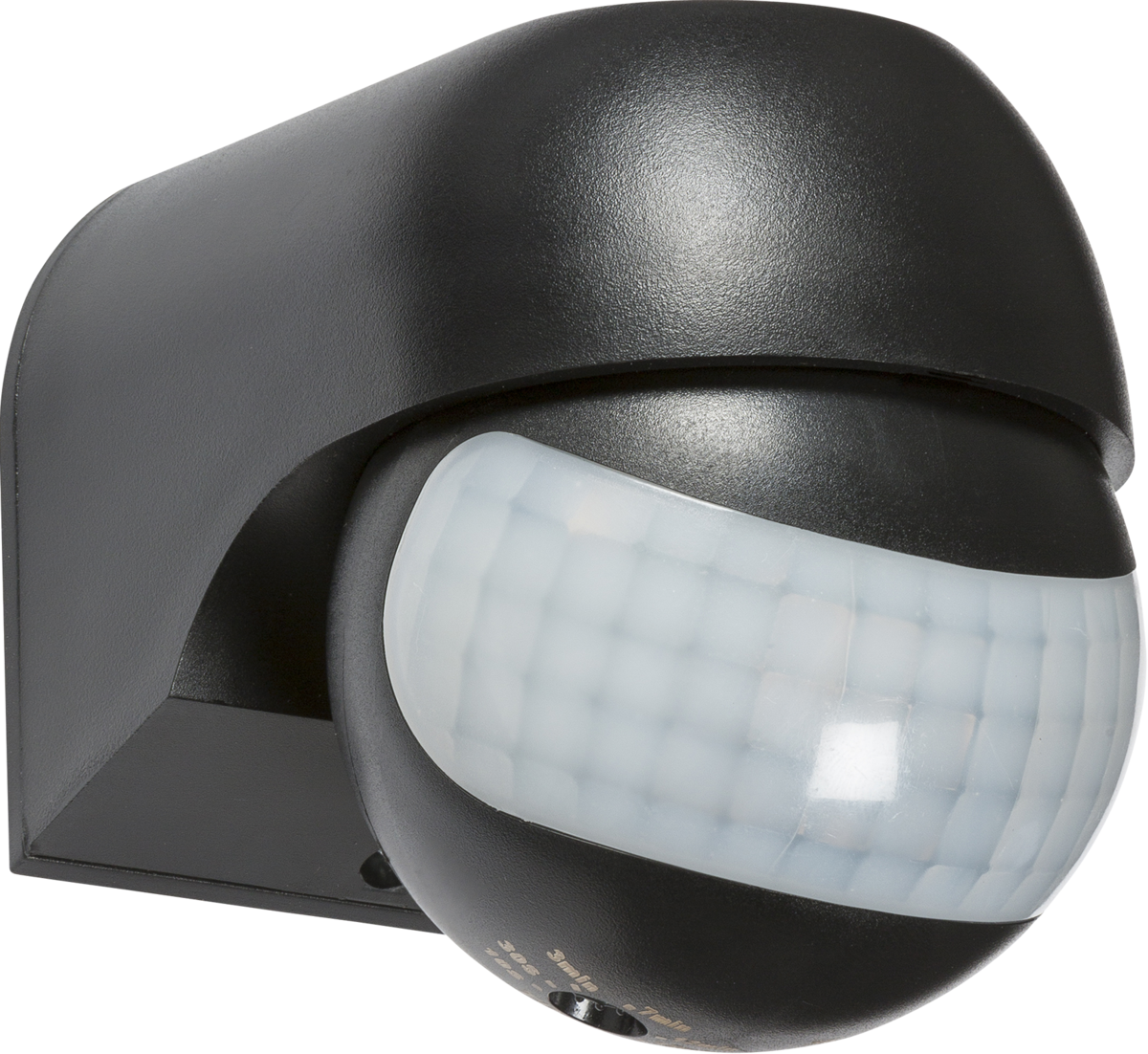

Compact stand-alone PIR unit to suit a variety of installations
- IP44 rated
- 180° field of detection
- 12m range @ 2.4m installation height
- Adjustable head unit for optimum positioning
- Wall or ceiling mountable
- Automatic operation
- Adjustable Lux
- Adjustable time : 10 seconds to 15 minutes
- Can be wired in parrallel
- Switching capacity: Max. 2000W Incandescent / Max. 1000W LED
- Certified to EN 61058-1, EN 55015, EN 61547, EN 61000
- Supplied in Knightsbridge box
- IP44 rated
- 180° field of detection
- 12m range @ 2.4m installation height
- Adjustable head unit for optimum positioning
- Wall or ceiling mountable
- Automatic operation
- Adjustable Lux
- Adjustable time : 10 seconds to 15 minutes
- Can be wired in parrallel
- Switching capacity: Max. 2000W Incandescent / Max. 1000W LED
- Certified to EN 61058-1, EN 55015, EN 61547, EN 61000
- Supplied in Knightsbridge box
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | OS0014, OS0014B |

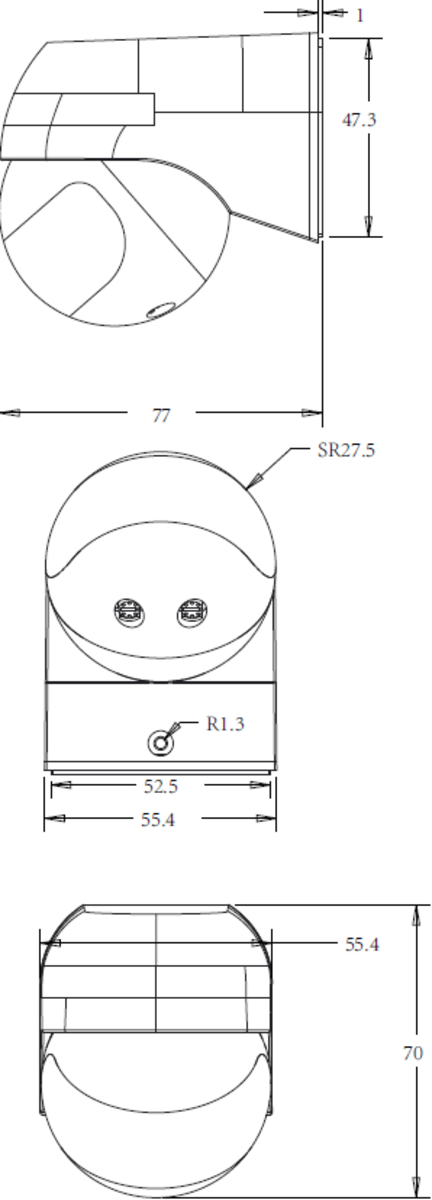

| Height (mm) | 70 |
| Width (mm) | 55.4 |
| Projection (mm) | 77 |
| Material | Polycarbonate |
| Finish | White, Black |
| Class | II |
| IP Rating | IP44 |
| Voltage (V) | 230V 50Hz |
| Warranty (Years) | 1 |
| Commodity Code | 8536500500 |
