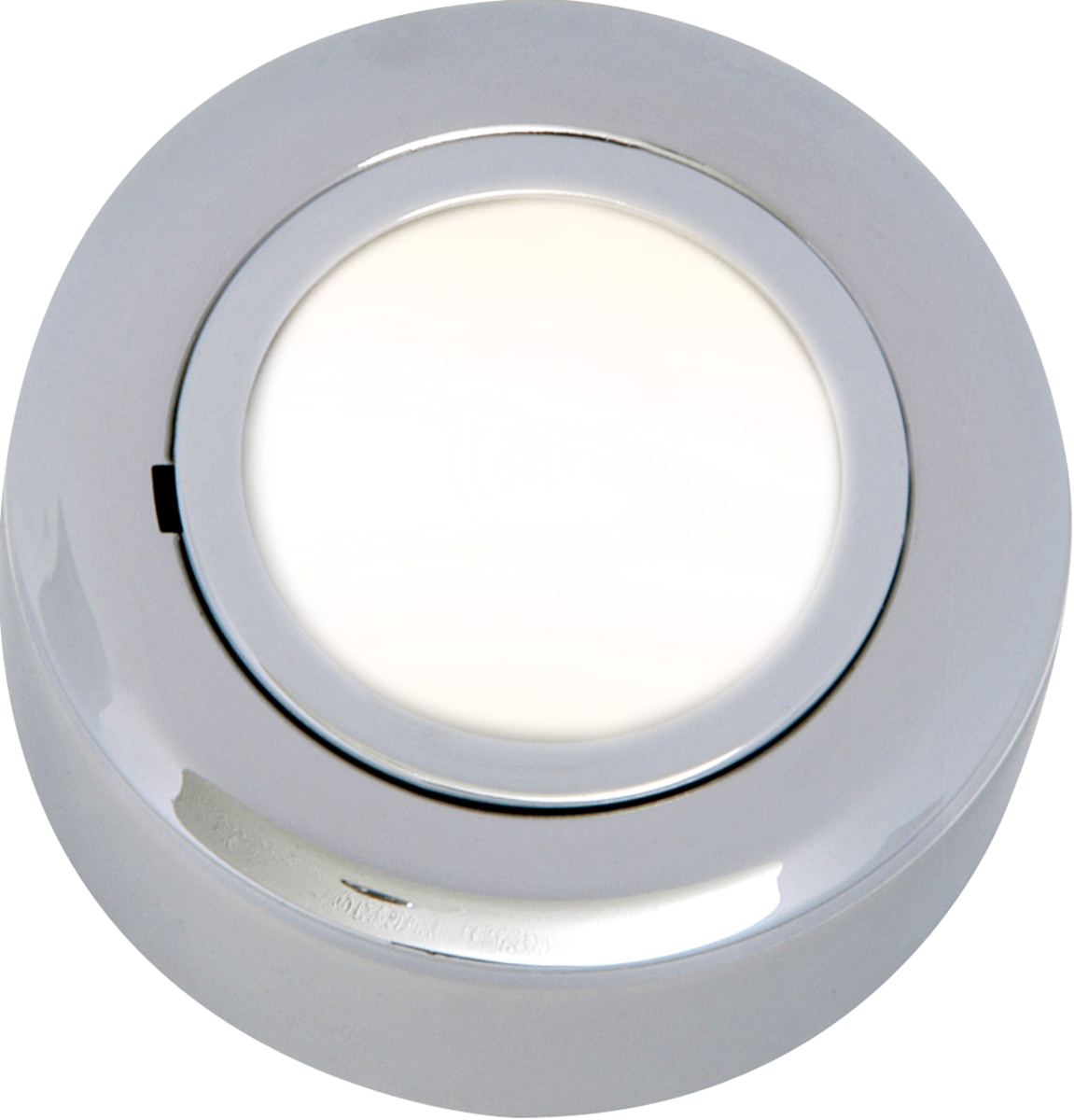

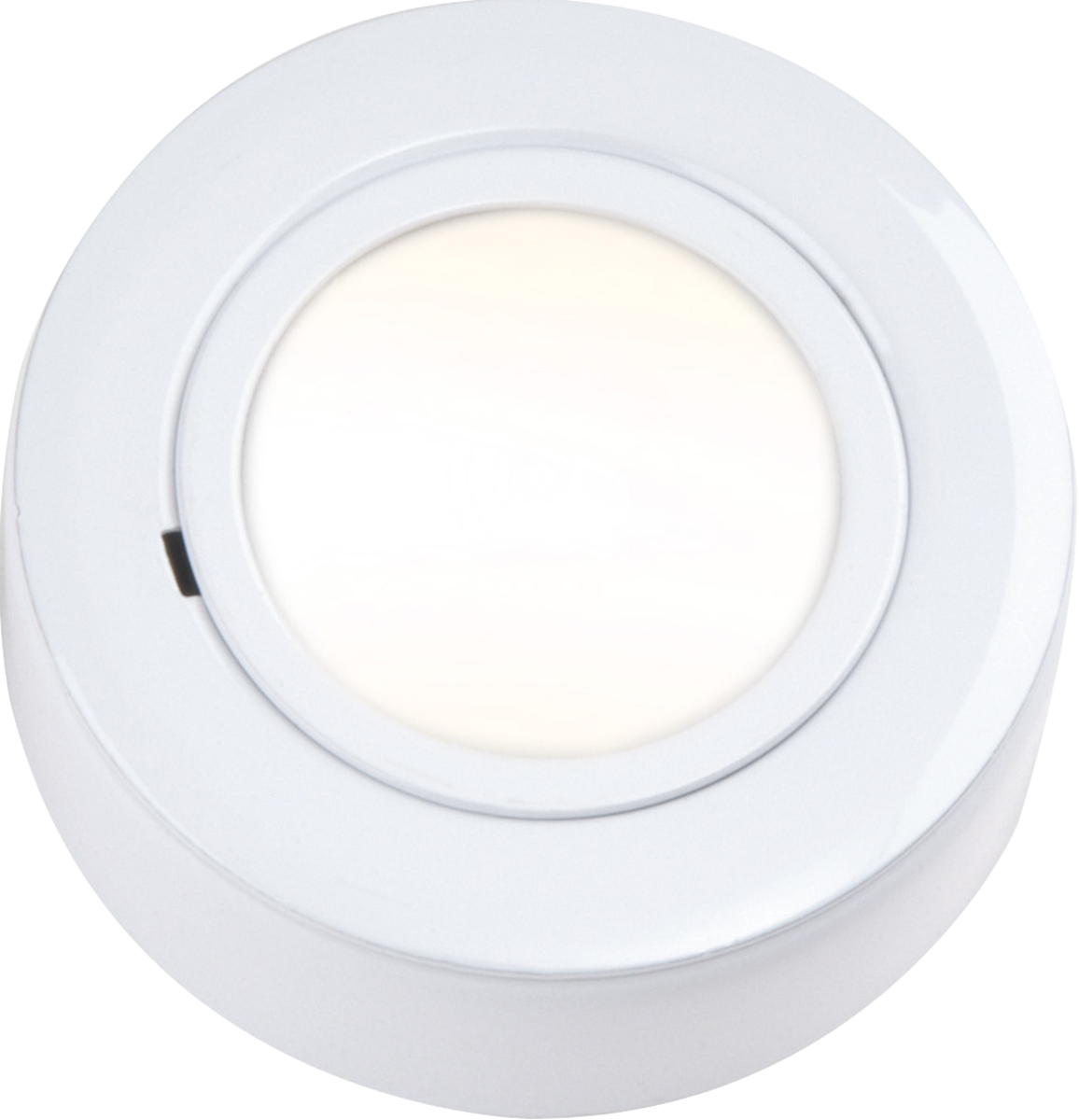

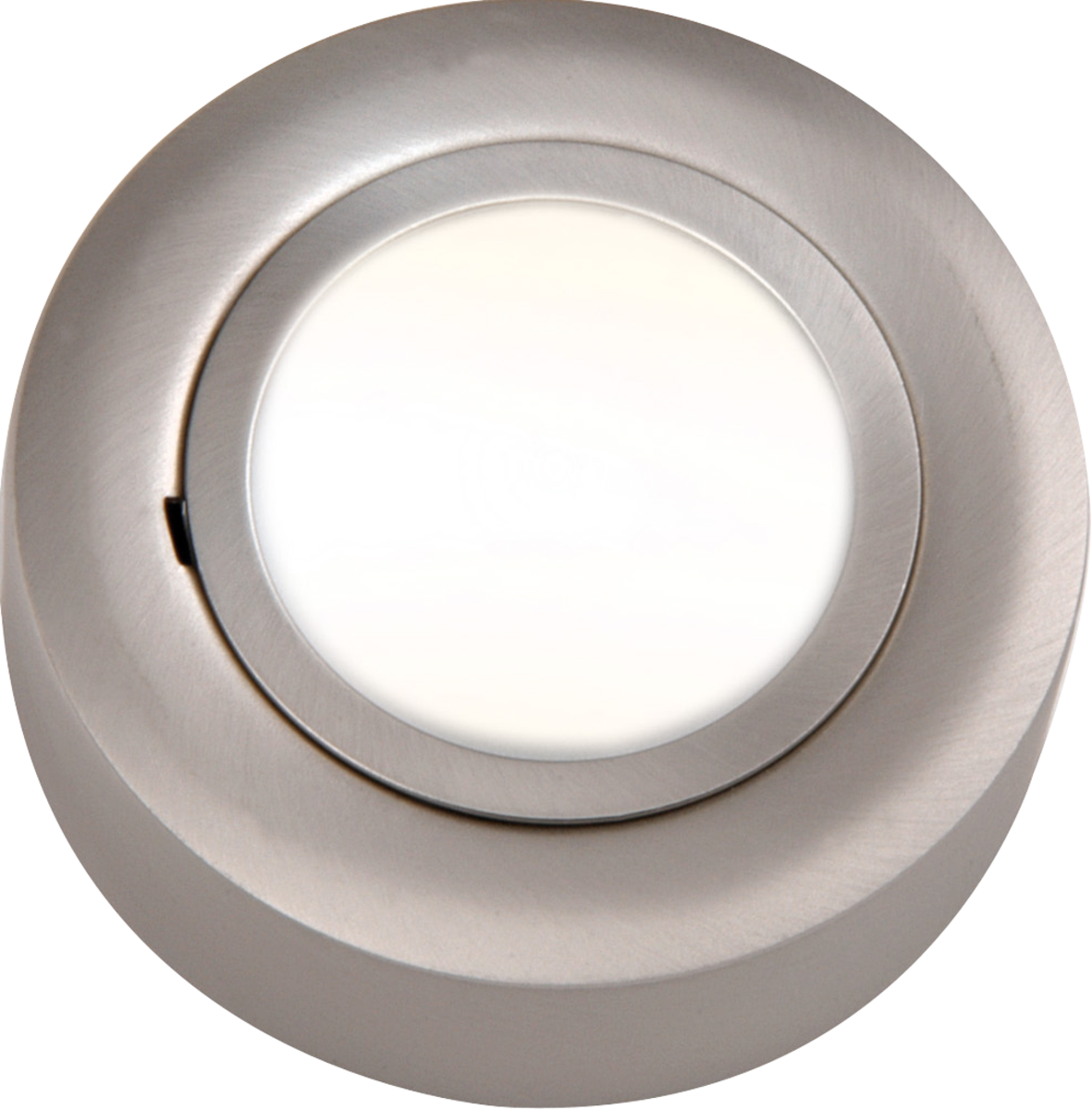

Knightsbridge IP20 12V L/V Brass Cabinet Fitting Surface or Recessed (halogen lamp included)


Price:
Sale price£11.95

VAT Included Shipping calculated at checkout

Stock:
In stock

Product Insights

30 people currently viewing this product.

40 units sold in the last hour. 🔥

Description

IP20 Low Voltage Round Under Cabinet Fitting. GX5.3 12V 20W max lampholder. G4 12V 10W & 20W halogen capsule lamps supplied with fitting. Dimmable with electronic transformer or dimmable driver. Surface or recessed mounted. 40mm void required. Suitable for use with LED lamps G4COB1 / G4COB2. If used with LED lamps, a constant voltage LED driver is required.
Download
Datasheet

Specifications

Brand Knightsbridge
SKU CRF02B, CRF02C, CRF02CBR, CRF02W
Diameter (mm) 72
Projection (mm) 25
Recessed Depth (mm) 20
Minimum Void (mm) 40
Cut-out Diameter (mm) 60
Material Pressed steel
Material2 Glass
Finish Brass, Chrome, Brushed Chrome, White
Class III
IP Rating IP20
Voltage (V) 12V AC/DC
Cable Length (m) 1
Diffuser Frosted
Lamp Technology Halogen / LED Compatible
Lamp Base G4
Lamp Included Yes
Dimmable Yes*
Max. Wattage 20
Beam Angle (°) 60
Colour Temperature (K) 2700
Light Colour Warm White
Lumens (lm) 165
Lumens (Light Source only) 220
Wattage (W) 20
Efficacy 11.1
CRI 90
Warranty (Years) 1
Commodity Code 9405500090
