Description

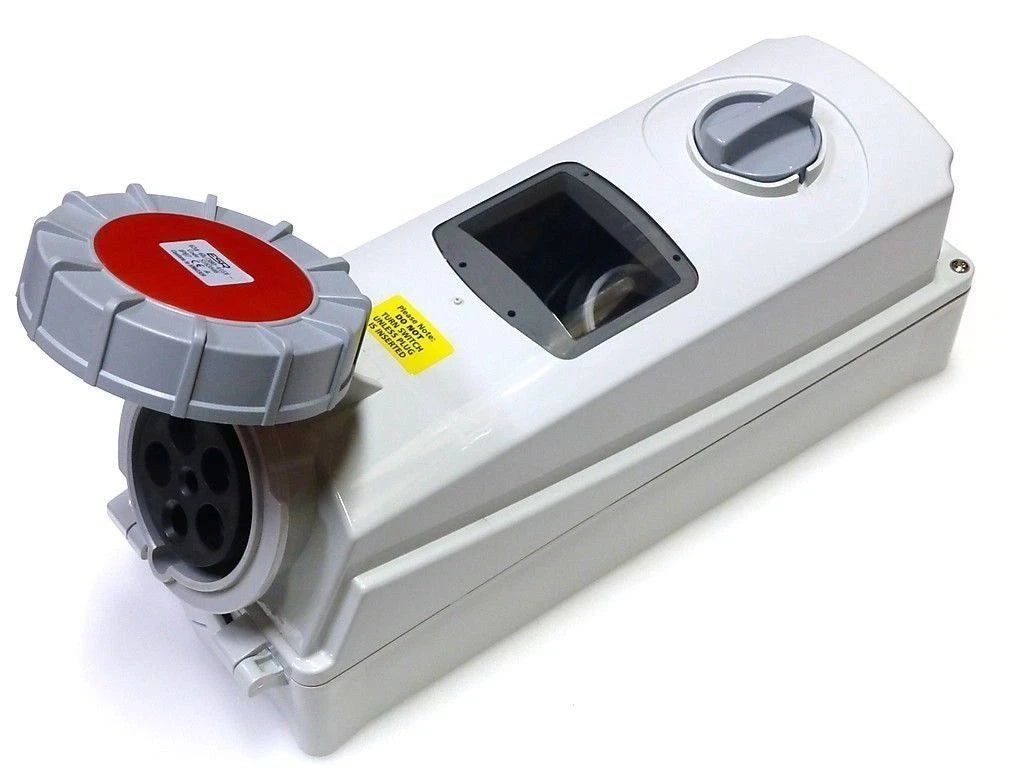

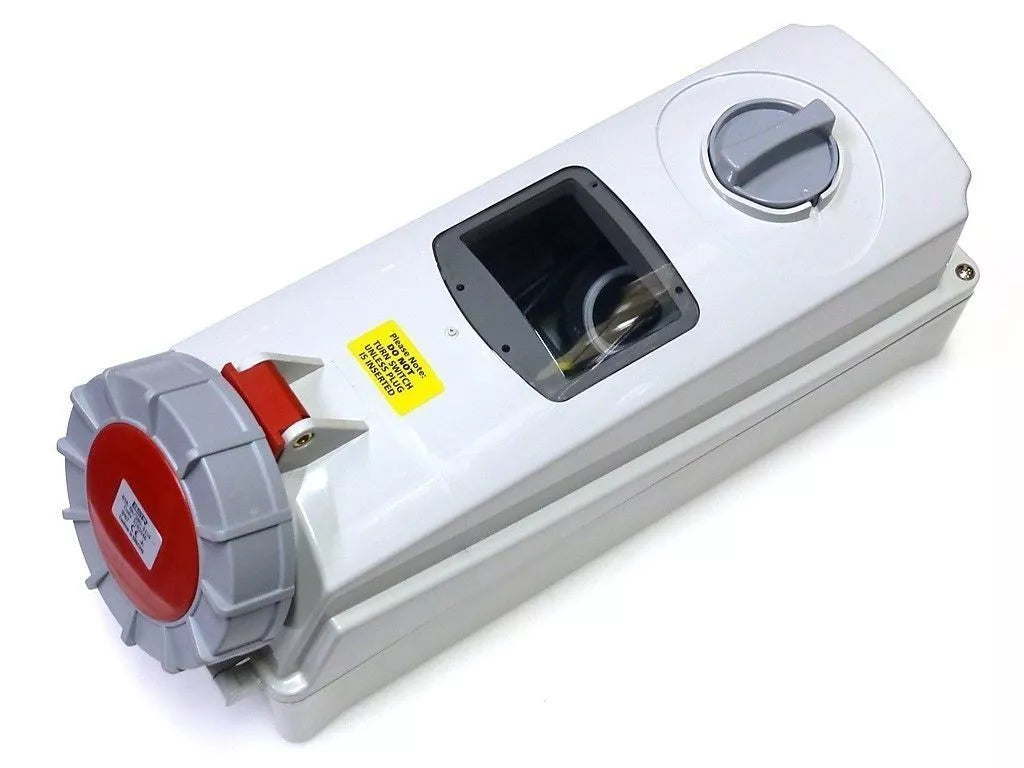

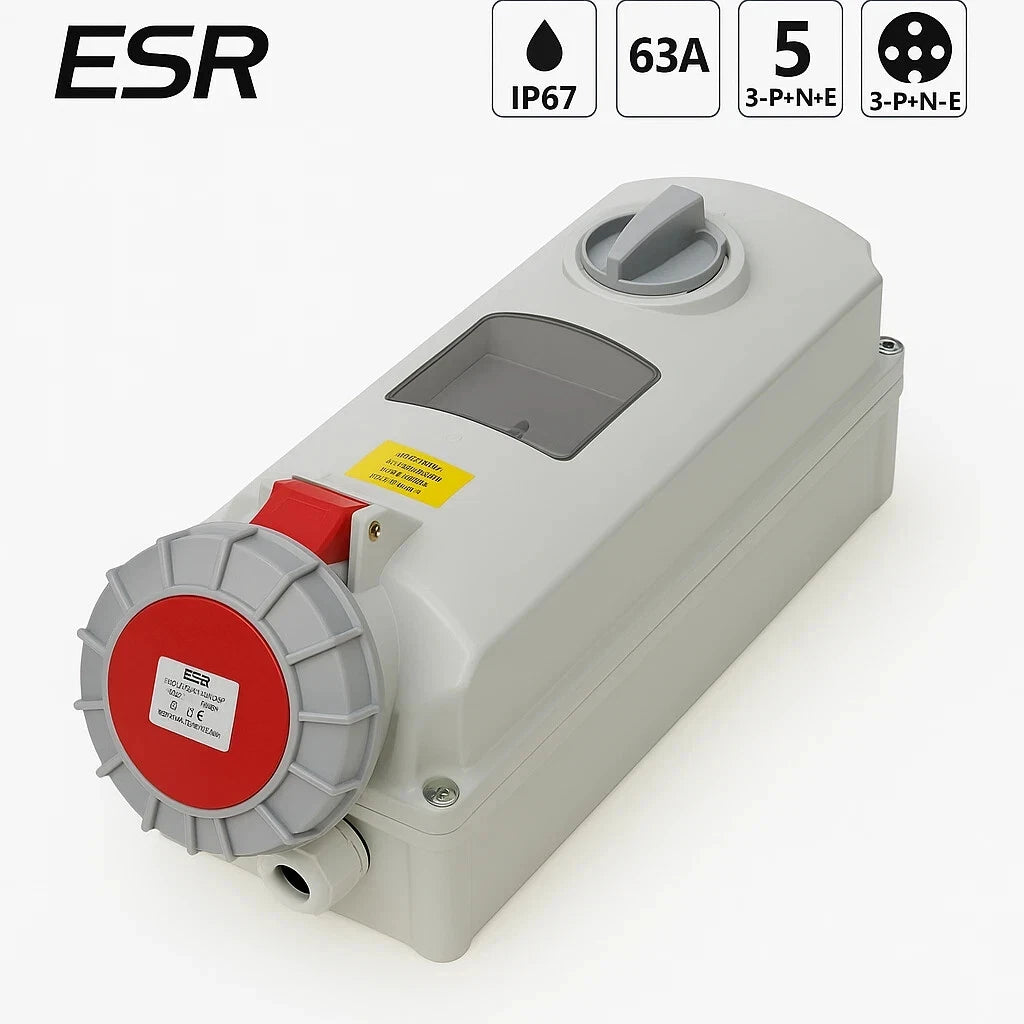

The ESR 63A Industrial Interlocked Socket is built for heavy-duty 3-phase power applications in environments that demand the highest levels of safety and durability. With a mechanical interlock, padlockable rotary isolator, and IP67 waterproof protection, it is ideal for outdoor, industrial, and washdown-critical environments.
✅ Key Features:
High-Capacity 63A Socket – Supports high-load 3-phase equipment
5-Pin Configuration (3P+N+E) – Suitable for balanced 3-phase + neutral connections
Voltage Range: 380–415V AC
Mechanical Interlock – Socket can only be switched on when a plug is fully inserted
Padlockable Rotary Switch – For lockout/tagout safety in OFF position

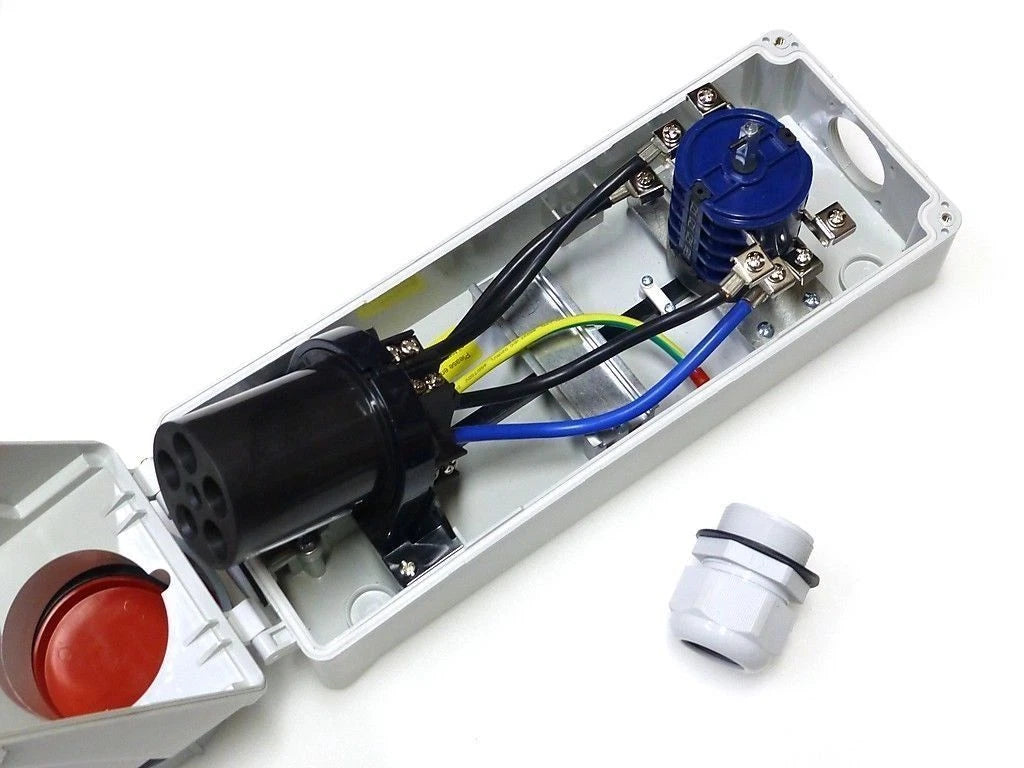

Internal DIN Rail – Space for 4-pole MCB, RCD or combination units
Weatherproof Rating: IP67 – Fully protected from dust and water immersion
Earth Position: 6H (Standard for 415V systems)
Cable Entry Options:
Bottom: 1× 32mm threaded entry with 32mm screw-in blind plug
Top: 1× 40mm threaded entry with M40 compression gland
🛠️ Applications:
Industrial Machinery
Marine & Washdown Zones
Construction Sites
Generator Hookups
Food Processing Plants
Heavy Equipment Distribution Boards
Outdoor Event Infrastructure
Specifications
| SKU | SI63546 |
|---|---|
| Model | 63A 5-Pin Interlock Socket |
| Current Rating | 63 Amps |
| Voltage | 380–415V AC |
| Pin Configuration | 5 Pin (3P+N+E) |
| Current Type | AC |
| Number of Phases | Three Phase + Neutral |
| Switch Type | Rotary Manual ON/OFF |
| Padlockable | Yes (in OFF position) |
| Interlock Mechanism | Yes – plug required to activate |
| Ingress Protection | IP67 (Waterproof & Dust-Tight) |
| Earth Position | 6H |
| DIN Rail | Included – holds up to 4-pole MCB/RCD |
| Mounting Style | Surface |
| Termination Type | Screw Terminal |
| Certifications | BS EN 60309, CE Approved |
| Brand | ESR |

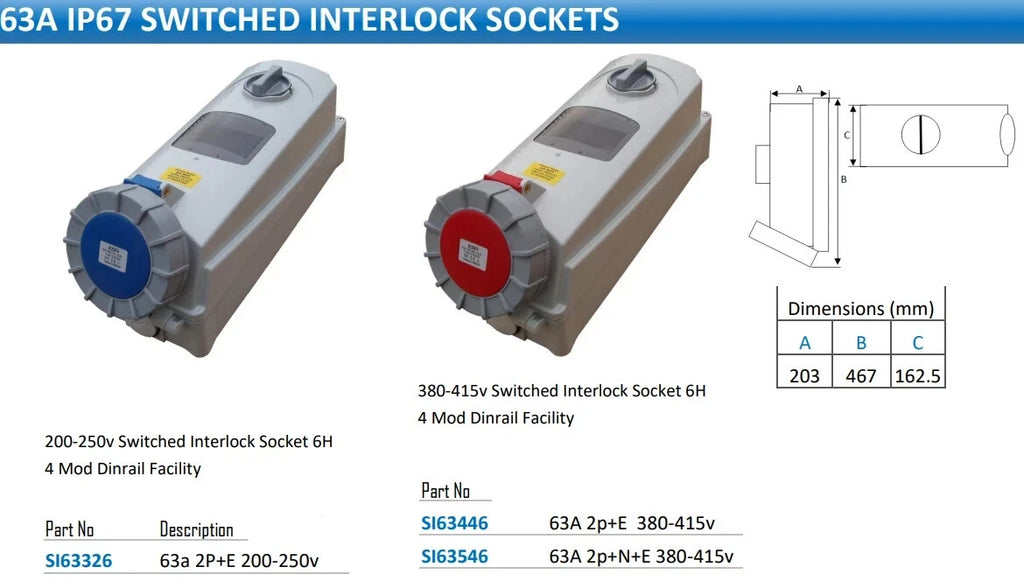

| Length | 38 cm |
| Width | 13.5 cm |
| Height | 16.5 cm |
