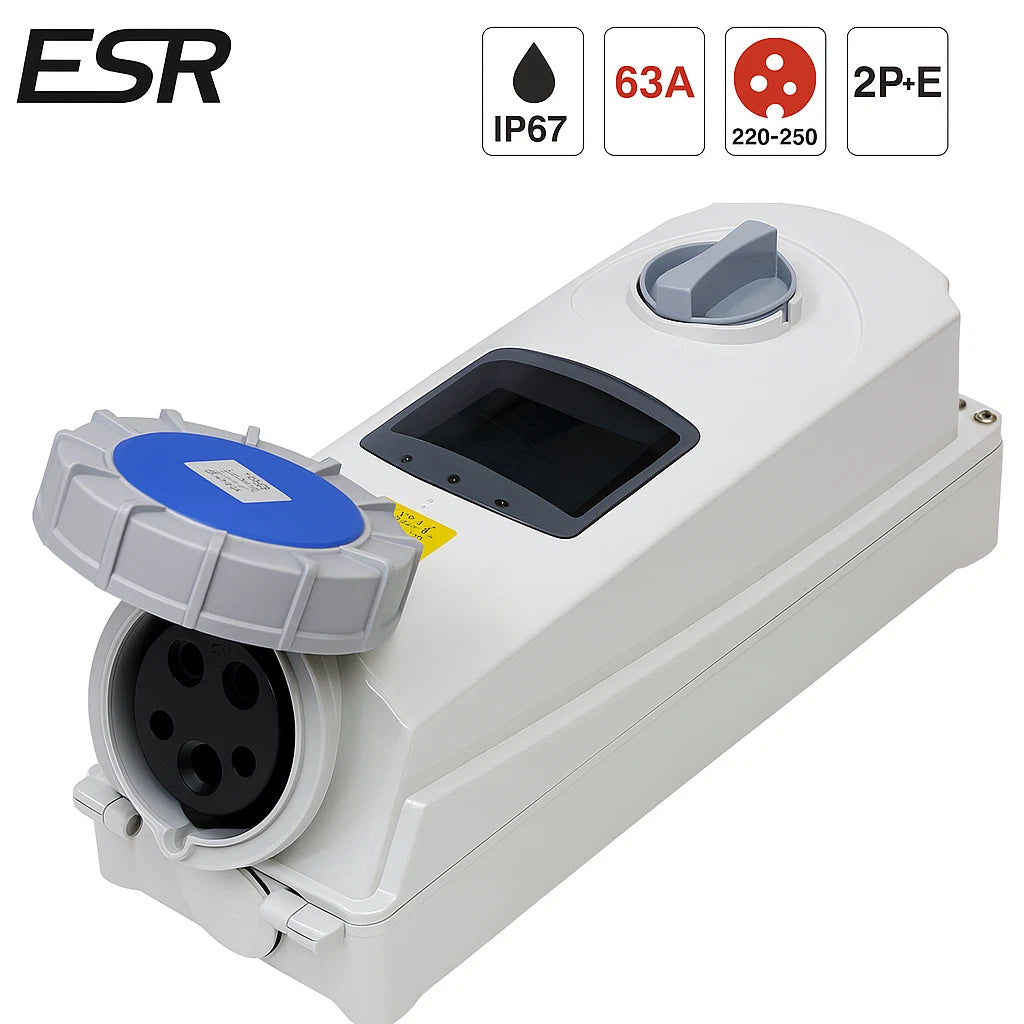

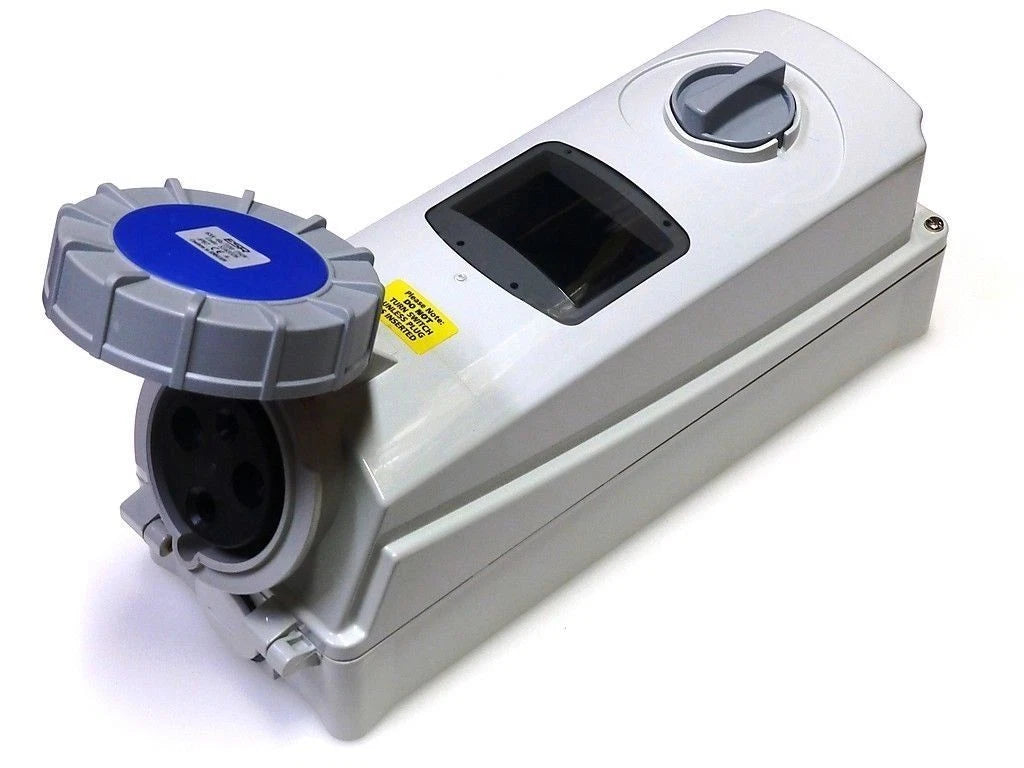

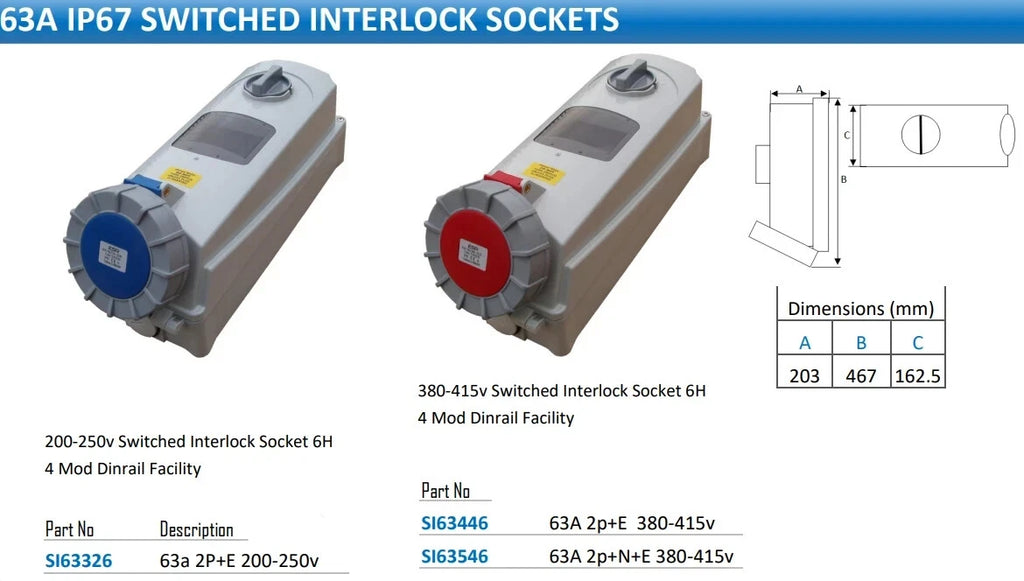

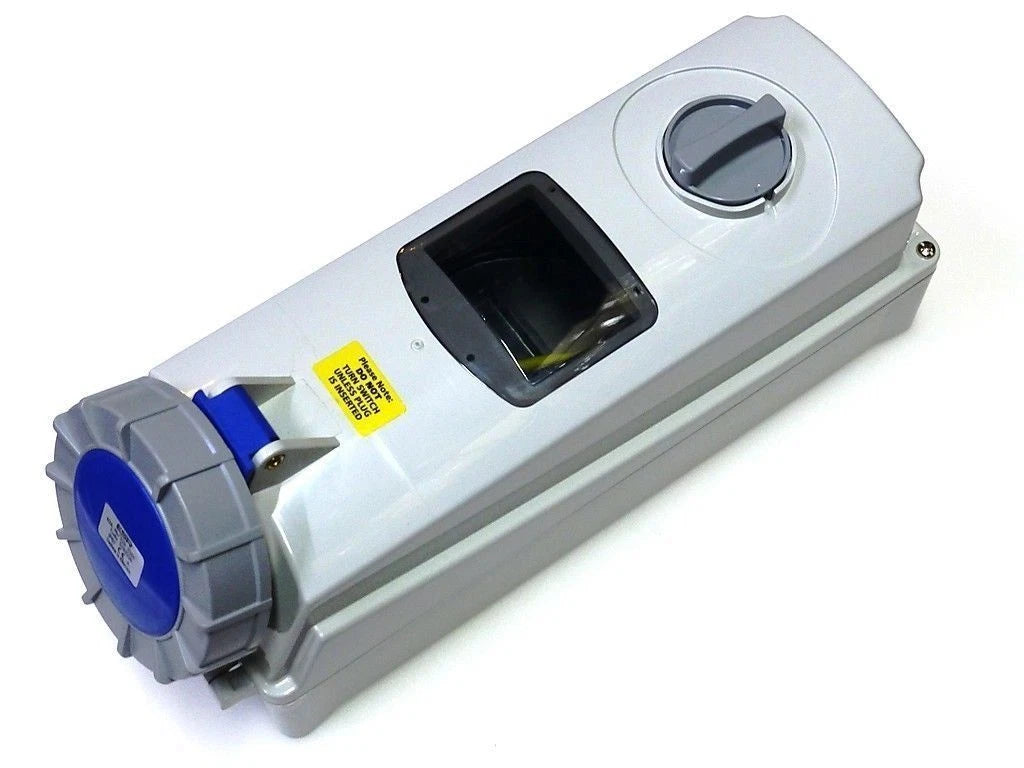

The ESR IP67 63A Switched Interlock Socket is engineered for high-capacity, single-phase industrial applications where safety, durability, and performance are essential. With a mechanical interlock, padlockable rotary switch, and integrated DIN rail, this socket offers a complete solution for secure power distribution — even in challenging environments.

✅ Key Features:
63A Rated Socket – Suitable for high-power single-phase equipment
Voltage Range: 220 – 250V AC
2P+E (3-Pin) Configuration – Standard for single-phase industrial power

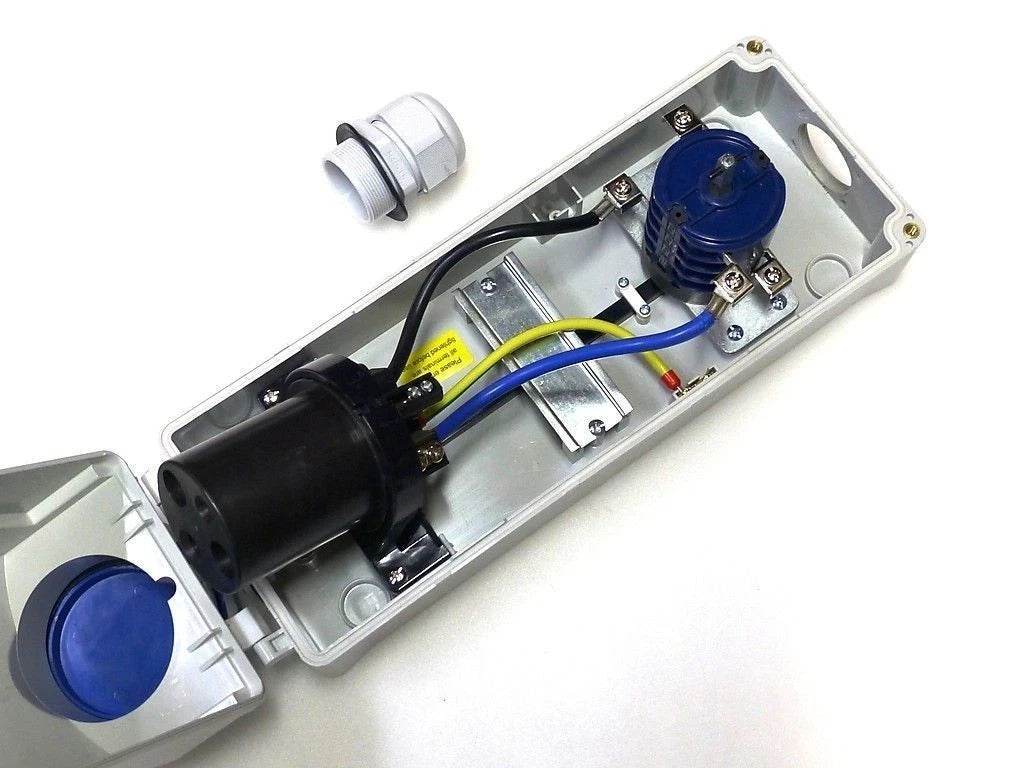

DIN Rail Inside – Fits up to 4-pole MCBs or RCDs (not included)
IP67 Rating – Waterproof and dustproof; safe for outdoor/harsh use
Padlockable Rotary Switch – Secure OFF position for lockout safety
Mechanical Interlock – Socket cannot be energized unless a plug is inserted
Cable Entry Ports:
1× 32mm threaded bottom entry (w/ blind plug)
1× 40mm threaded top entry (w/ M40 compression gland)
Earth Pin at 6H Position – Standard for 230V BS EN 60309 setups
Color-coded Blue – For clear voltage identification

🛠️ Applications:
Heavy-duty industrial tools & equipment
Construction and generator power outlets
Washdown and dust-exposed zones
Workshop or outdoor panel boards
Portable and static site installations
Agriculture & warehouse environments
