Description

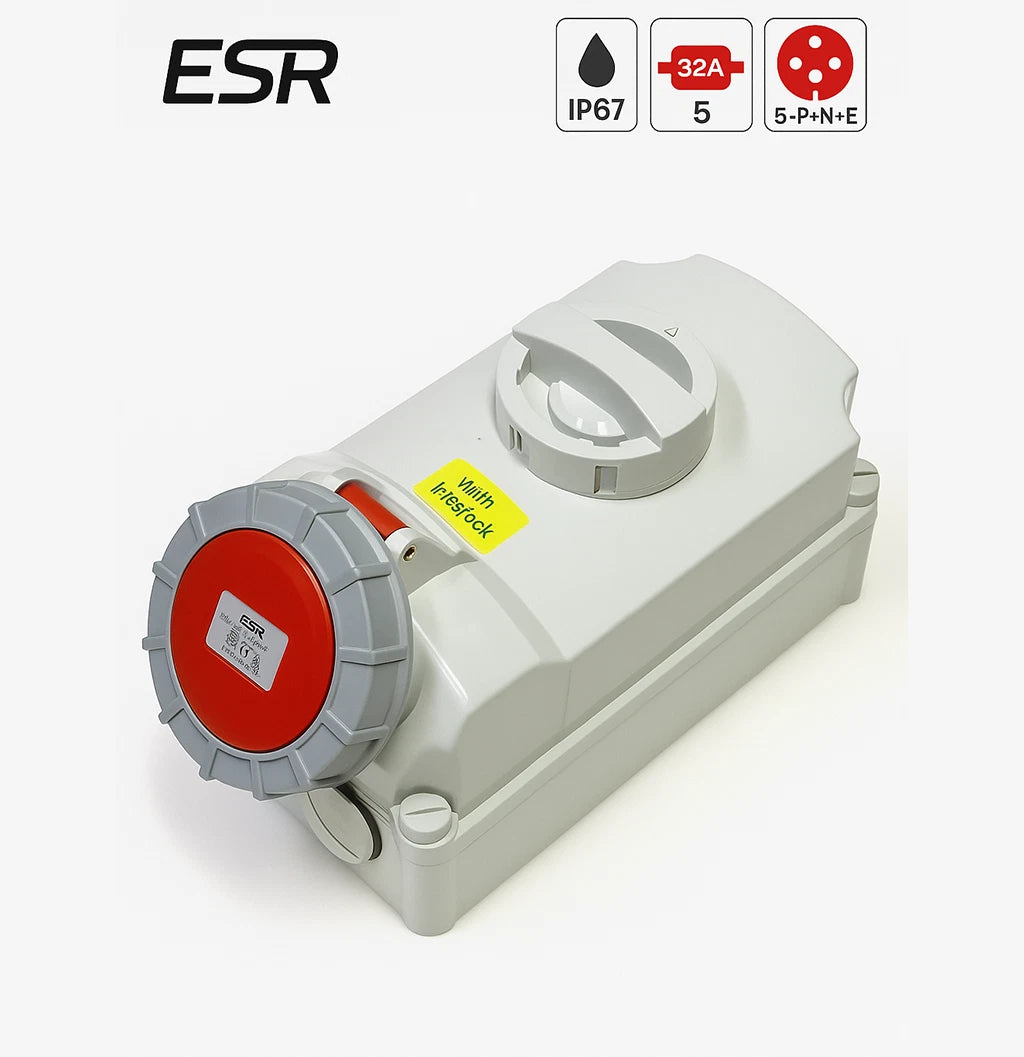

This robust ESR 32A Industrial Interlocked Socket is built for high-demand applications. Designed for 3-phase + Neutral + Earth power systems (5-pin), it features an IP67 waterproof rating, a padlock able rotary switch, and a mechanical interlock that only allows switching when the plug is inserted, ensuring absolute safety and performance in the harshest environments.
✅ Key Features:
5-Pin Configuration (3P+N+E) – Supports full 3-phase with neutral and earth.
32A Current Rating – Suitable for demanding machinery and equipment.
Voltage: 380–415V AC
IP67 Rated – Fully waterproof and dust-tight.
Rotary ON/OFF Switch with Interlock – Cannot be energized without plug insertion.
Padlockable in OFF Position – For lockout/tagout safety procedures.
Top & Bottom Entry Points – Includes 2× 29mm threaded entries with PG21 blanking plugs.
Hour Position: Earth at 6H (standard for 415V)
Triple Phase + Neutral – For balanced 3-phase loads with neutral connection.
🛠️ Applications:
Heavy-duty industrial machinery
Outdoor plant equipment
Construction sites
Washdown areas
Commercial kitchens or workshops
Generators and switchboards
Specifications
| SKU | SI32546 |
|---|---|
| Type | Switched Interlock Socket with Padlockable Isolator |
| Current Rating | 32 Amps |
| Voltage Rating | 380 – 415 Volts |
| Plug Type | 5 Pin (3P+N+E) |
| Phase | 3-Phase + Neutral |
| Earth Position | 6H |
| IP Rating | IP67 (Waterproof) |
| Interlock Function | Yes – only switchable with plug inserted |
| Padlockable | Yes – in OFF position |
| Cable Entry | 2× 29mm (Top & Bottom) with PG21 blind plugs |
| Mounting Type | Surface |
| Number of Outlets | AC |
| Brand | ESR |

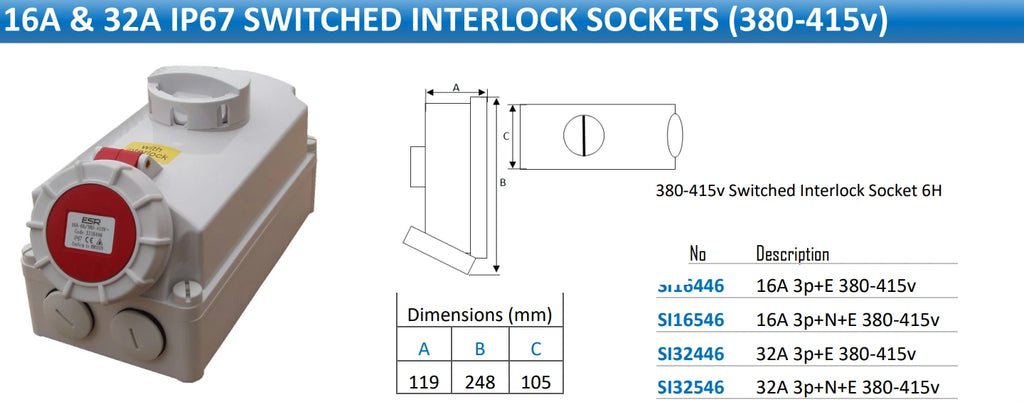

| Length | 25.3 cm |
| Width | 11.9 cm |
| Height | 13.8 cm |
