Description

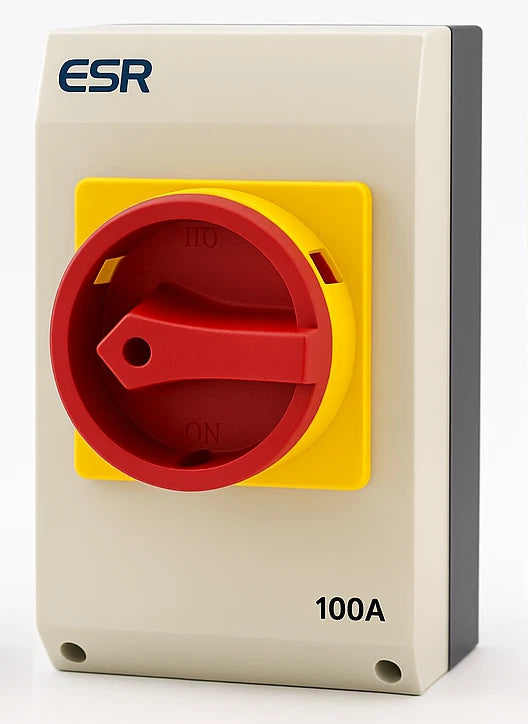

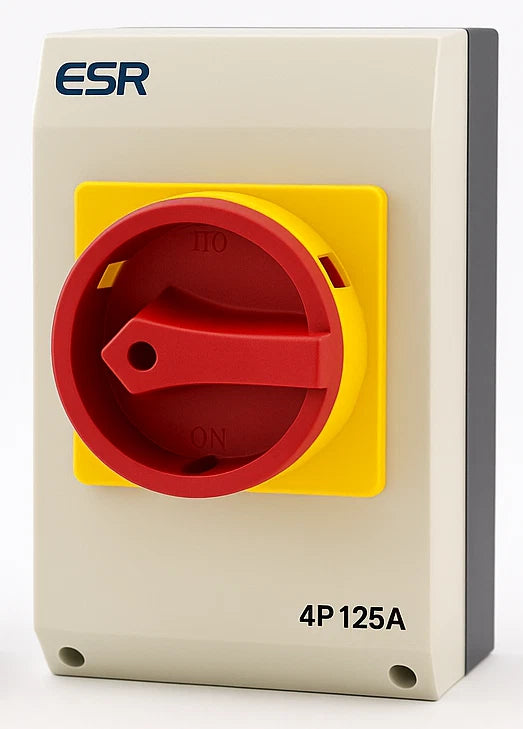

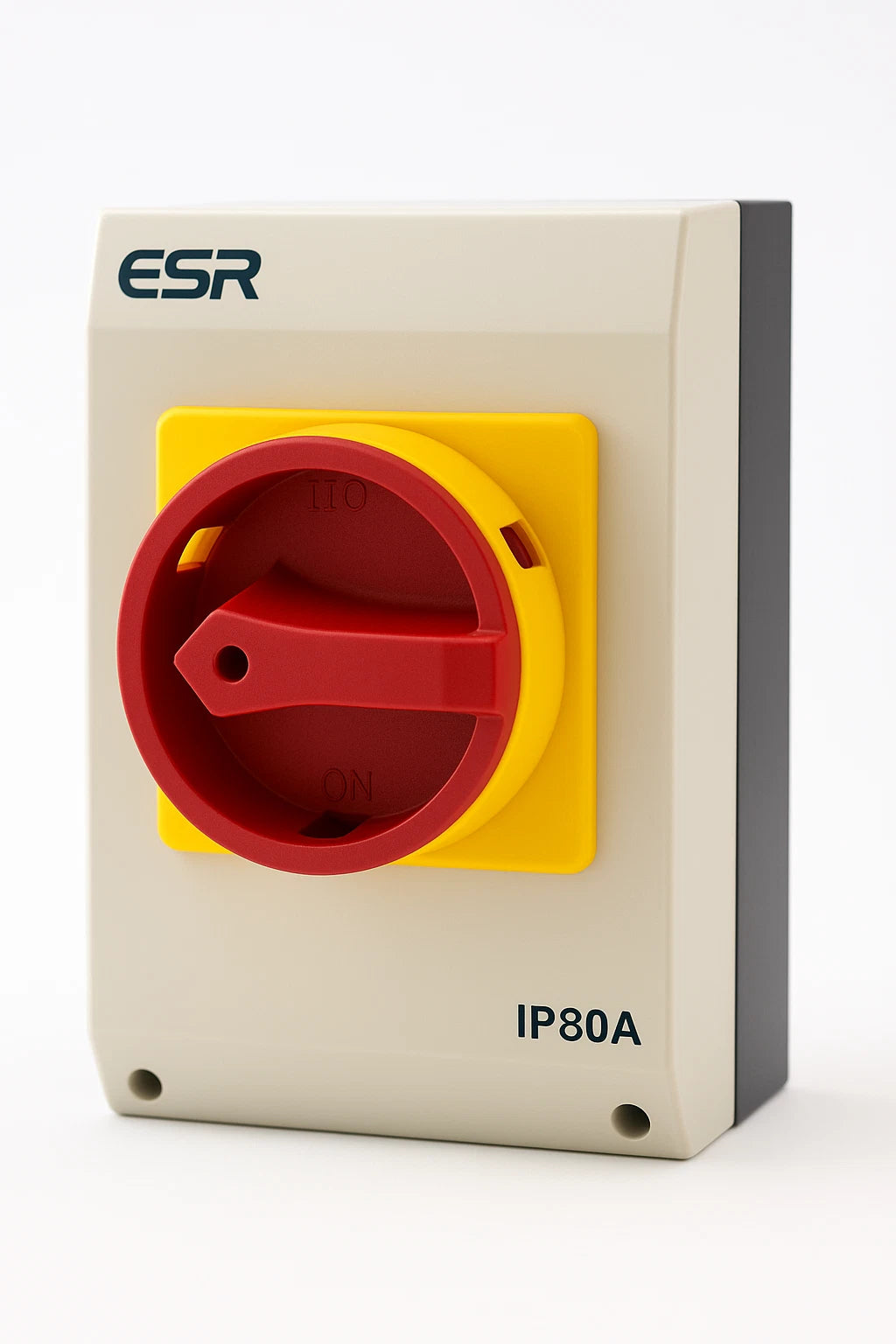

The ESR Large Rotary Isolator Switch is built for safe and effective power isolation in demanding environments such as factories, commercial kitchens, farms, and workshops. Whether disconnecting conveyor belts, industrial fryers, or external equipment, this switch provides reliable, visible, and secure disconnection.
Its IP65-rated enclosure ensures protection against dust and water jets, making it suitable for both indoor and outdoor installations. The high-visibility red/yellow handle, secure locking feature, and interlocked lid (opens only in OFF position) enhance safety during operation and servicing.
⚙️ Applications
Industrial machinery shutdown (e.g., conveyor belts)
Commercial kitchens (cookers, fryers, extractors)
Agricultural installations (grain silos, meal bins)
Workshops and garages
Generator or backup system isolation
Outdoor equipment requires weatherproof protection
🌟 Key Features
✔️ Available in 80A, 100A, and 125A (all 4-pole)
✔️ IP65 Weatherproof Enclosure – Indoor/Outdoor ready
✔️ Padlock-Ready Locking Handle – Prevents unauthorized access
✔️ Cover Interlock – Lid only removable in OFF position
✔️ 25mm Knockouts Top & Bottom – Quick & easy cable access
✔️ 2 Earth Terminals – For complete circuit safety
✔️ Highly Visible Red/Yellow Handle – Quick status identification
✔️ Fast Access – Lid secured with only 2 screws
✔️ Constructed from Durable ABS/Polycarbonate
✔️ BS EN60947 Compliant
Specifications
| SKU | E204PL-E634P |
|---|---|
| Brand | ESR |
| Power Ratings Available | 80A / 100A / 125A (selectable) |
| Number of Poles | 4 |
| Enclosure Dimensions | 173mm (H) x 115mm (W) x 84mm (D) |
| Total Depth with Handle | 119mm |
| Fixing Centres | 90mm x 90mm |
| IP Rating | IP65 (Dustproof & Water Jet Resistant) |
| Construction Material | ABS / Polycarbonate |
| Lockable | Yes (padlock not supplied) |
| Cover Interlock | Yes – Lid can’t be opened in ON position |
| Earth Terminals | 2 |
| Class | Class I |
| Standard Compliance | BS EN60947 |
