Description

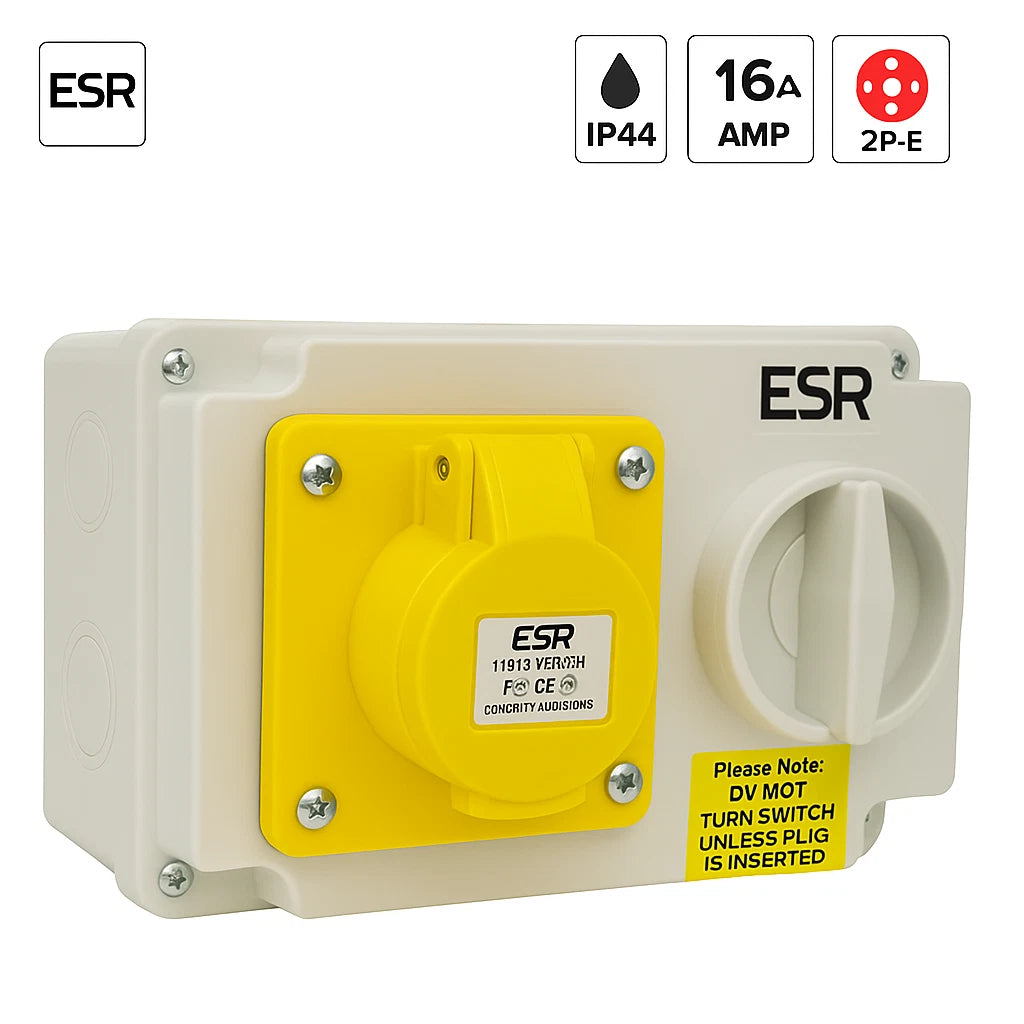

Power your tools and equipment safely with the ESR Yellow 110V Switched Interlocked Socket. Designed for low-voltage industrial and site applications, this 16A socket comes with an integrated rotary switch and mechanical interlock — ensuring enhanced safety, compliance, and durability for demanding environments.
✅ Key Features:
Switched Interlocked Socket – Prevents live disconnection under load.
2P+E Configuration – Ideal for single-phase tools and site lighting.
IP44 Rating – Splash-proof and dust-resistant for rugged environments.
Rotary ON/OFF Switch – Mechanical locking ensures safe operation.
4H Hour Position – Standard for 110V industrial connectors.
BS60309 & CE Approved – Fully compliant with UK and EU standards.
🛠️ Applications:
Site lighting and power tools (110V)
Temporary site distribution boards
Industrial workshops
Outdoor and semi-exposed environments
Events and low-voltage applications

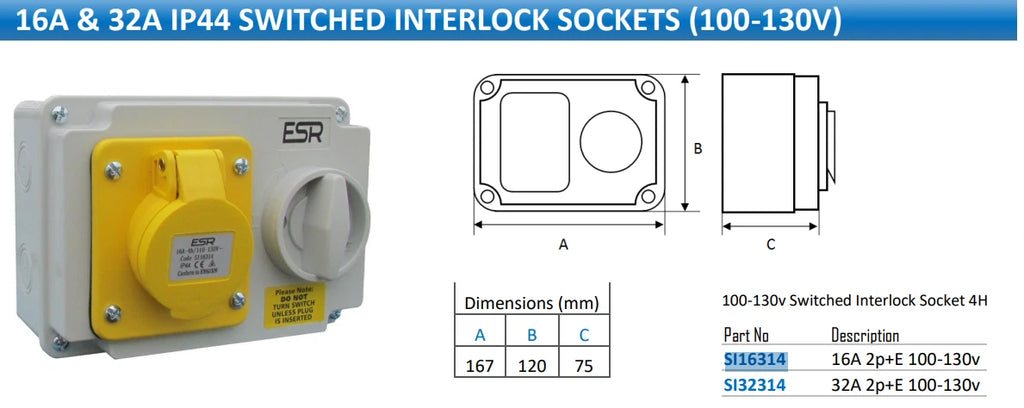

Specifications
| SKU | SI16314 |
|---|---|
| Brand | ESR |
| Type | Switched Interlocked Socket with Rotary Switch |
| Current Rating | 16 Amps |
| Voltage Rating | 100 – 130 Volts |
| Plug Type | 2P+E (2 Pin + Earth) |
| Number of Poles | 3 |
| Hour Position | 4H |
| Frequency | 50/60Hz |
| Ingress Protection | IP44 (Weather-Resistant) |
| Mounting Type | Surface Mounted |
| Material | Heavy-Duty Thermoplastic |
| Number of Outlets | 1 |
| Certifications | BS60309 Compliant, CE Approved |
| Current Type | AC |
| Length | 11.99 cm |
| Width | 16.99 cm |
| Height | 11.99 cm |
