Description

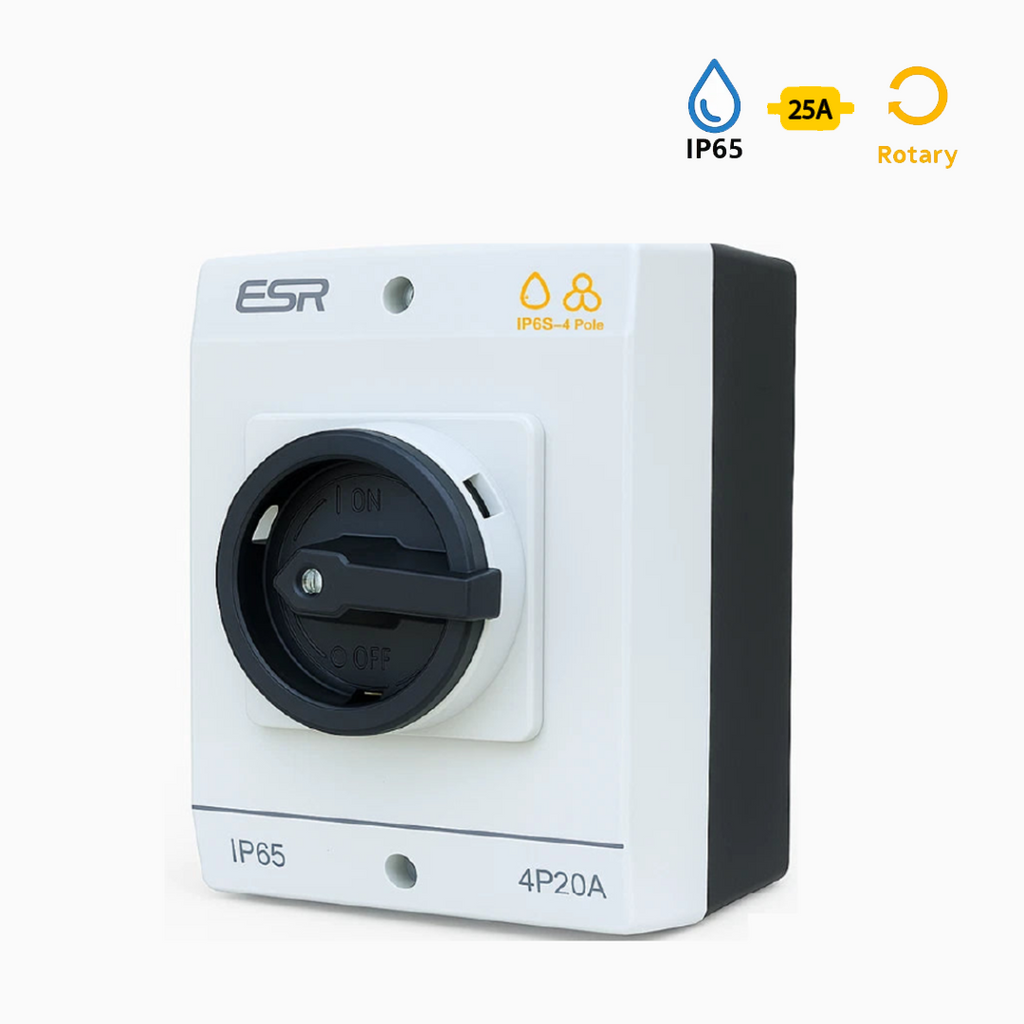

The E204PDC Rotary DC Isolator Switch from ESR is a premium-grade, surface-mount isolator designed to ensure safe and reliable disconnection of DC power in high-demand environments. It is ideal for use in solar power systems, industrial machinery, and commercial applications requiring robust DC power control.
Built with durability, performance, and safety in mind, this isolator features a compact IP65-rated enclosure and supports up to 600V DC (or up to 1000V DC for certain configurations), offering flexibility and protection across a wide range of installations.
The E204PDC Rotary DC Isolator Switch from ESR is a premium-grade, surface-mount isolator designed to ensure safe and reliable disconnection of DC power in high-demand environments. It is ideal for use in solar power systems, industrial machinery, and commercial applications requiring robust DC power control.
Built with durability, performance, and safety in mind, this isolator features a compact IP65-rated enclosure and supports up to 600V DC (or up to 1000V DC for certain configurations), offering flexibility and protection across a wide range of installations.
Key Features
High Current Capacity:
Rated at 25A, suitable for medium to high power installations.
4-Pole Switching:
Allows simultaneous isolation of multiple DC circuits or poles.
High Voltage Support:
Operates safely up to 600V DC,
extendable in specific configurations to 1000V DC,
perfect for photovoltaic and control panel applications.
Weatherproof IP65 Enclosure:
Dust-tight and water jet-resistant, ideal for both indoor and outdoor use.
Compact Design:
Enclosure dimensions of 100mm x 125mm, conserving panel space.
Enhanced Durability:
Constructed from UV-resistant, high-impact thermoplastic for superior longevity in harsh conditions.
Wide Operating Temperature:
Functional from -25°C to +55°C, maintaining performance in diverse climates.
Easy Installation:
Designed for surface mounting, simplifying integration into existing systems.
Applications
Solar PV Systems
Industrial DC Control Panels
Commercial Electrical Installations
Battery Storage Systems
EV Charging Stations (DC side)
Specifications
| SKU | E204PDC |
|---|---|
| Brand | ESR |
| Model | E204PDC |
| Rated Current | 25A |
| Number of Poles | 4 |
| Rated Voltage | 600V DC (1000V max in series setups) |
| Enclosure Rating | IP65 |
| Material | UV-resistant, impact-resistant plastic |
| Enclosure Dimensions | 100mm x 125mm |
| Operating Temp | -25°C to +55°C |
| Material | ABS/Plastic |
| Operation Method | On/Off |
| Mounting Type | Mounting Type |
| Features | Heavy Duty |
| Termination Type | Power |
| Current Type | AC/DC |
