Description

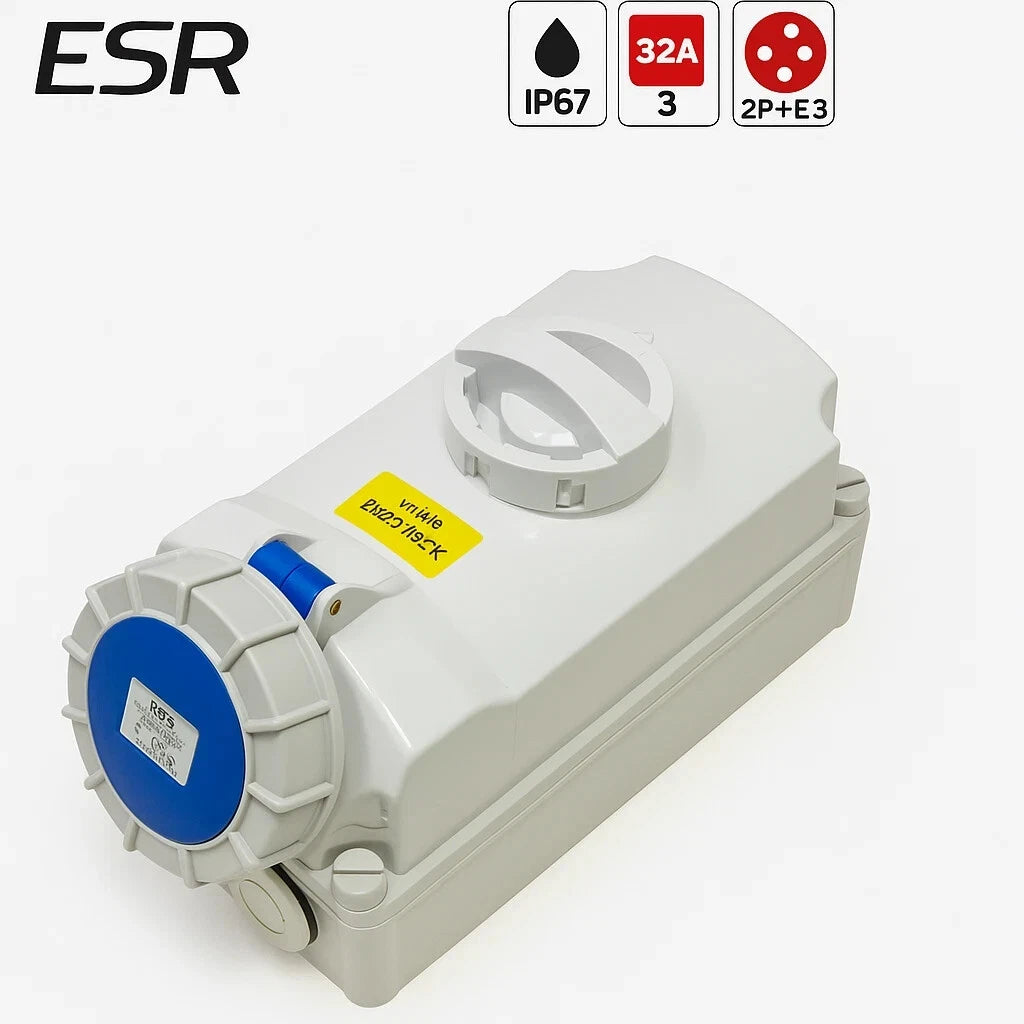

Ensure secure and reliable power delivery in industrial and outdoor environments with the ESR SI32326 32A Interlocked Socket. This IP67-rated unit features a switched interlock design and padlockable rotary isolator switch, making it ideal for high-safety installations where exposure to moisture, dust, and mechanical stress is a concern.
✅ Key Features:
32A Interlocked Socket – Built-in isolator switch ensures load safety
2P+E (3-Pin) Configuration – Designed for single-phase power systems
Padlockable OFF Position – Supports lockout/tagout for safety compliance

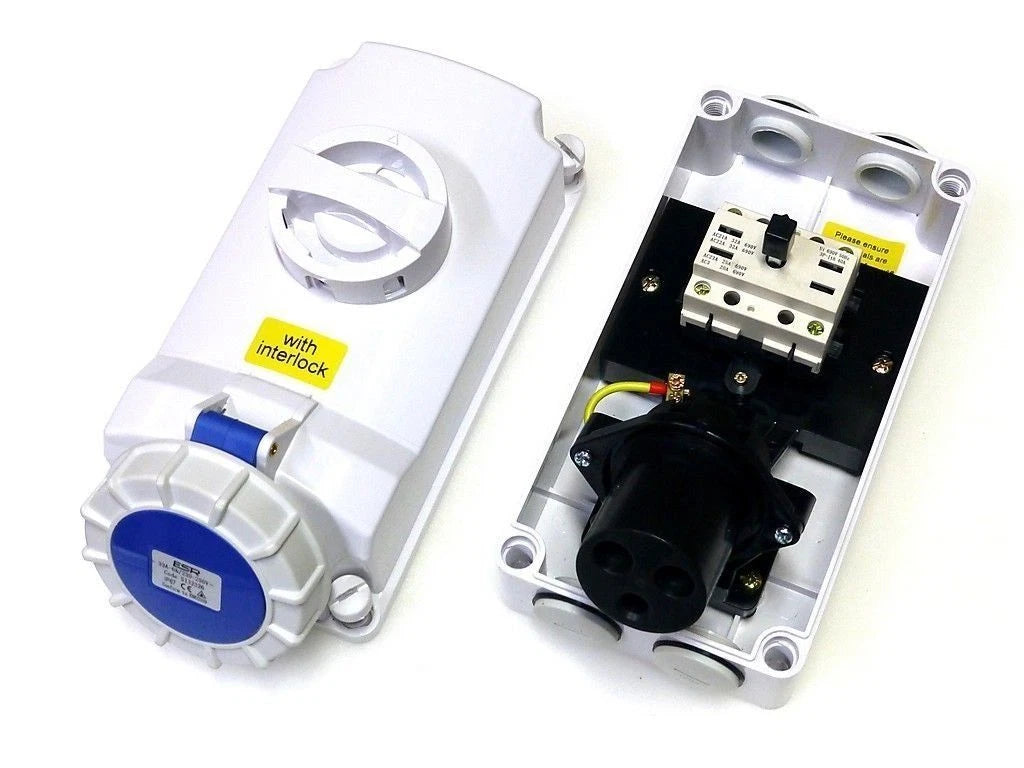

Mechanical Interlock – Switch only operates when plug is inserted
IP67 Rated – Fully waterproof and dustproof for extreme conditions
Dual Cable Entry – Two 29mm threaded entries (top & bottom) with PG21 screw-in blanking plugs
Heavy-Duty Housing – UV-stabilized and impact-resistant material
Earth Position at 6H – Standard orientation for 250V BS EN 60309 connections
Color-Coded Blue – For easy voltage identification (200–250V AC)
🛠️ Applications:
Industrial Worksites
Mobile Plant & Generator Outlets
Outdoor Distribution Boards
Workshops & Service Bays
Washdown Areas & Marine Facilities
Temporary Event Power Systems
Specifications
| SKU | SI32326 |
|---|---|
| Brand | ESR |
| Model | SI32326 |
| Type | Switched Interlock Socket with Isolator |
| Current Rating | 32A |
| Number of Phases | Single Phase |
| Pin Configuration | 2P+E (3-Pin) |
| Current Type | AC |
| Number of Phases | Single Phase |
| Switch Positions | 2 (ON / OFF) |
| Padlockable | Yes (in OFF position) |
| Entry Accessories | Includes PG21 Screw-In Blind Plugs |
| Ingress Protection | IP67 (Waterproof & Dustproof) |
| Earth Position | 6H (Clock Position Standard) |
| Number of Outlets | 1 |
| Mounting Type | Surface Mounted |
| Termination Type | Screw Terminal |
| Material | UV-Stabilized Impact-Resistant Housing |
| Certification | BS EN 60309 Compliant, CE Approved |
