Dipa is designed for residential, commercial, and hospitality applications that require discrete, low glare lighting. The options include fixed and tilt, in a white or black finish with either a single or a twin lamp (supplied separately). These configurable options combined with Dipa's unique design, give the freedom to create cutting edge architectural schemes. The complete range is compatible with Knightsbridge GU10 light sources, with dimmable, non-dimmable, and SmartKnight options, boasting a wide array of colour temperatures and controllable parameters. Installers will find the fast-fix tool-free termination system a breeze, with the intuitive loop-in / loop-out functionality ensuring a rapid second fix. Knightsbridge is committed to brighter future, and as such, Dipa products are packaged in FSC approved packaging.

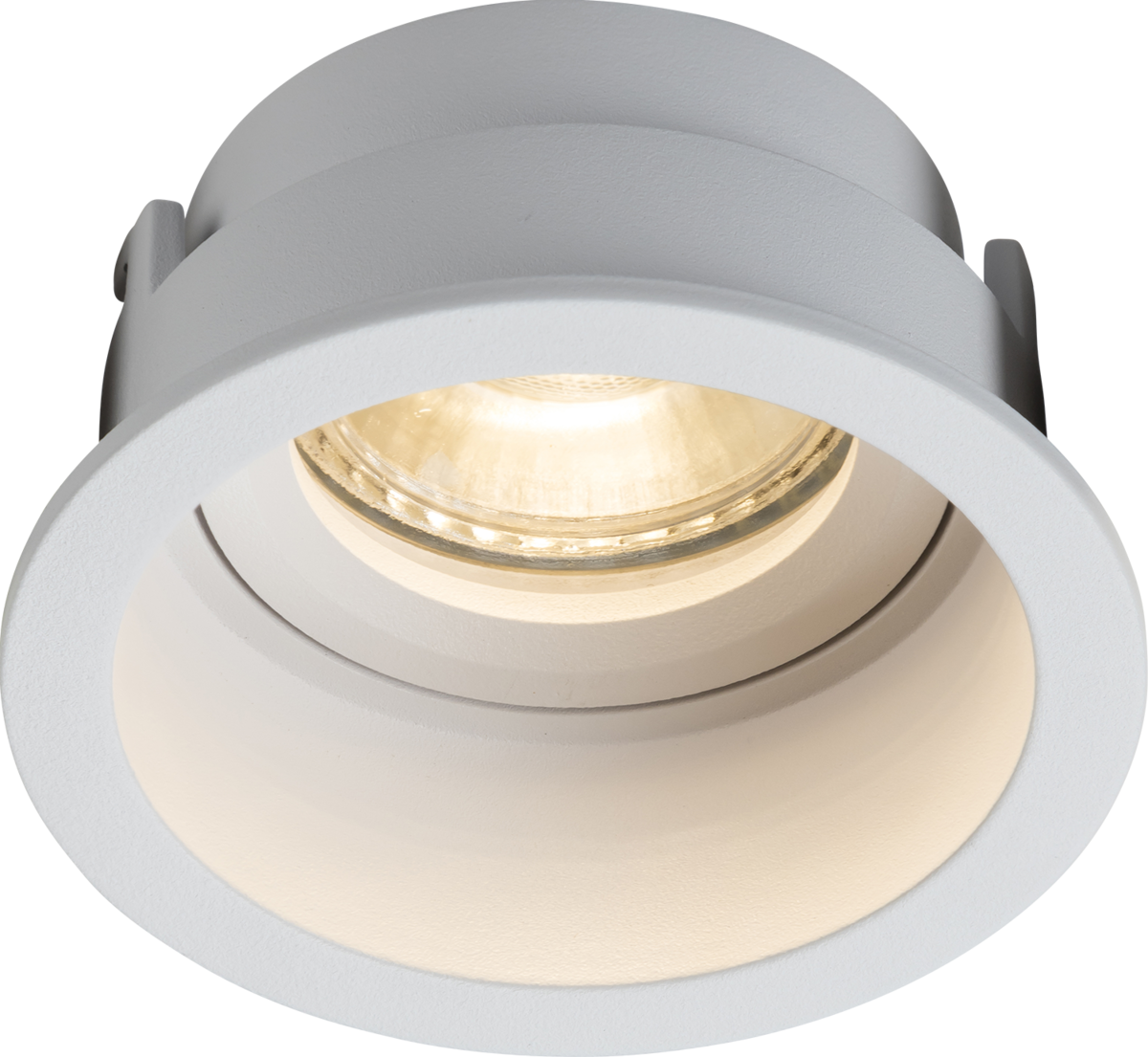

- Choice of white or black finish
- Unique anti-glare design

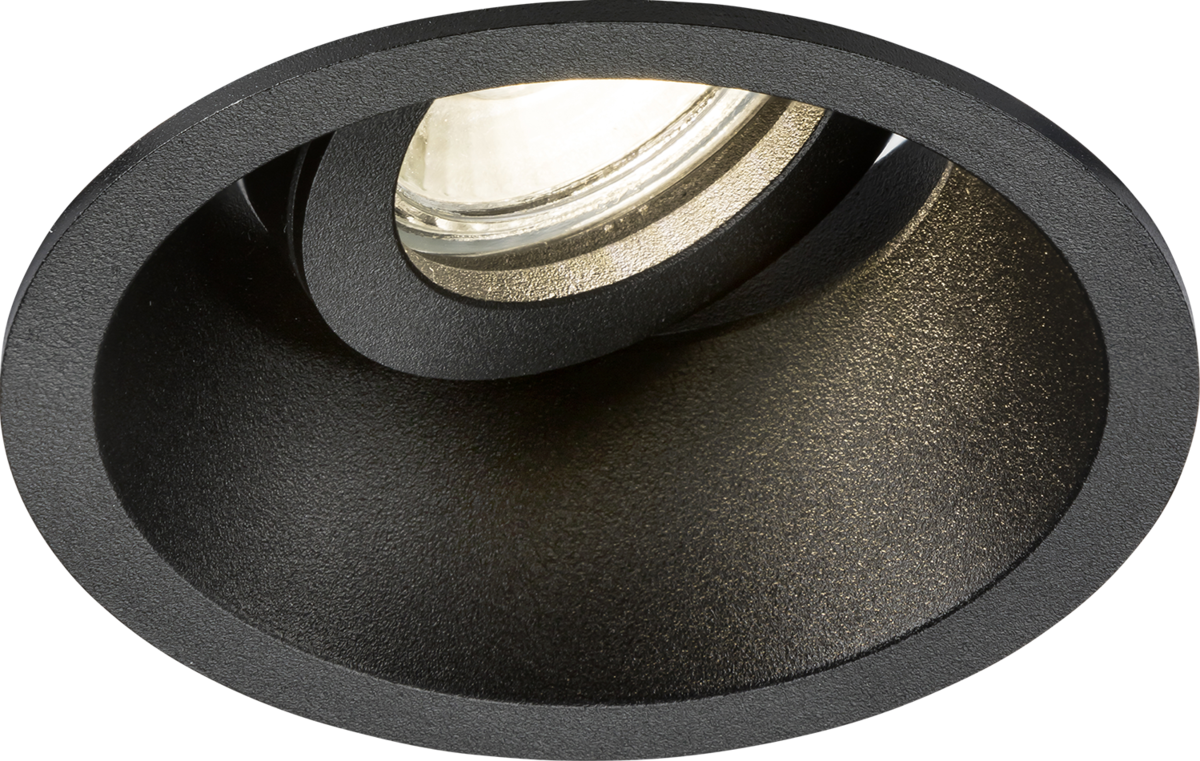

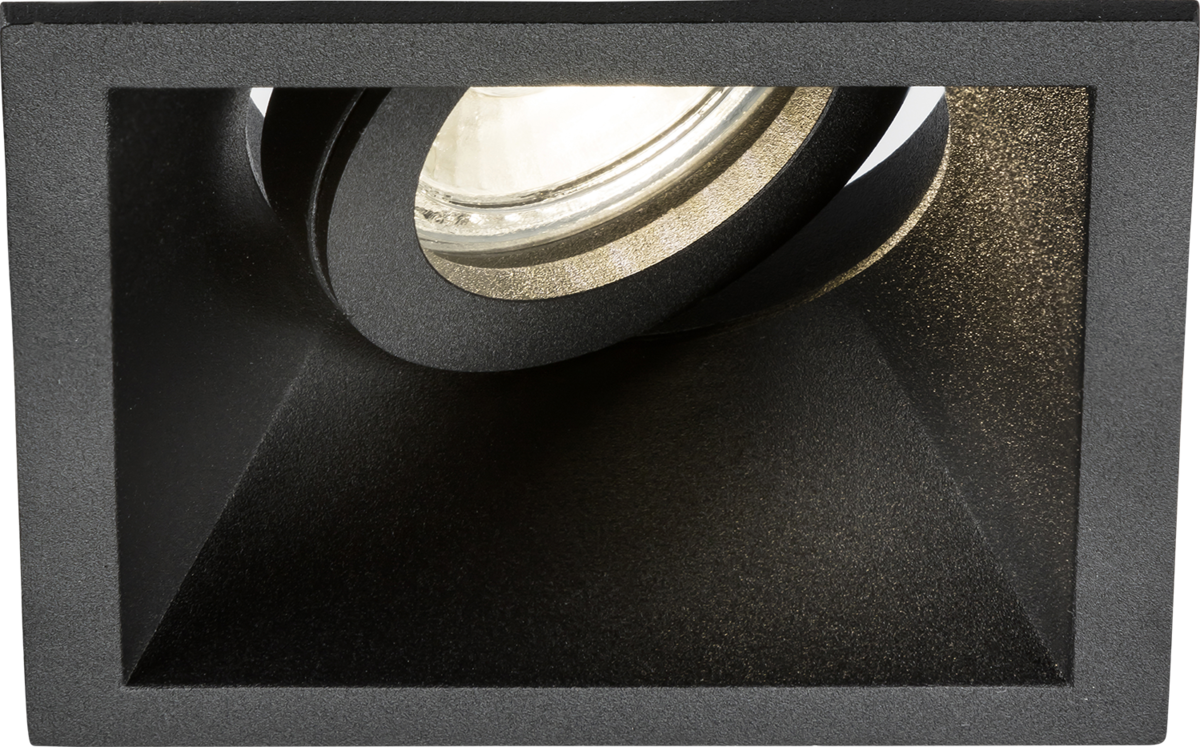

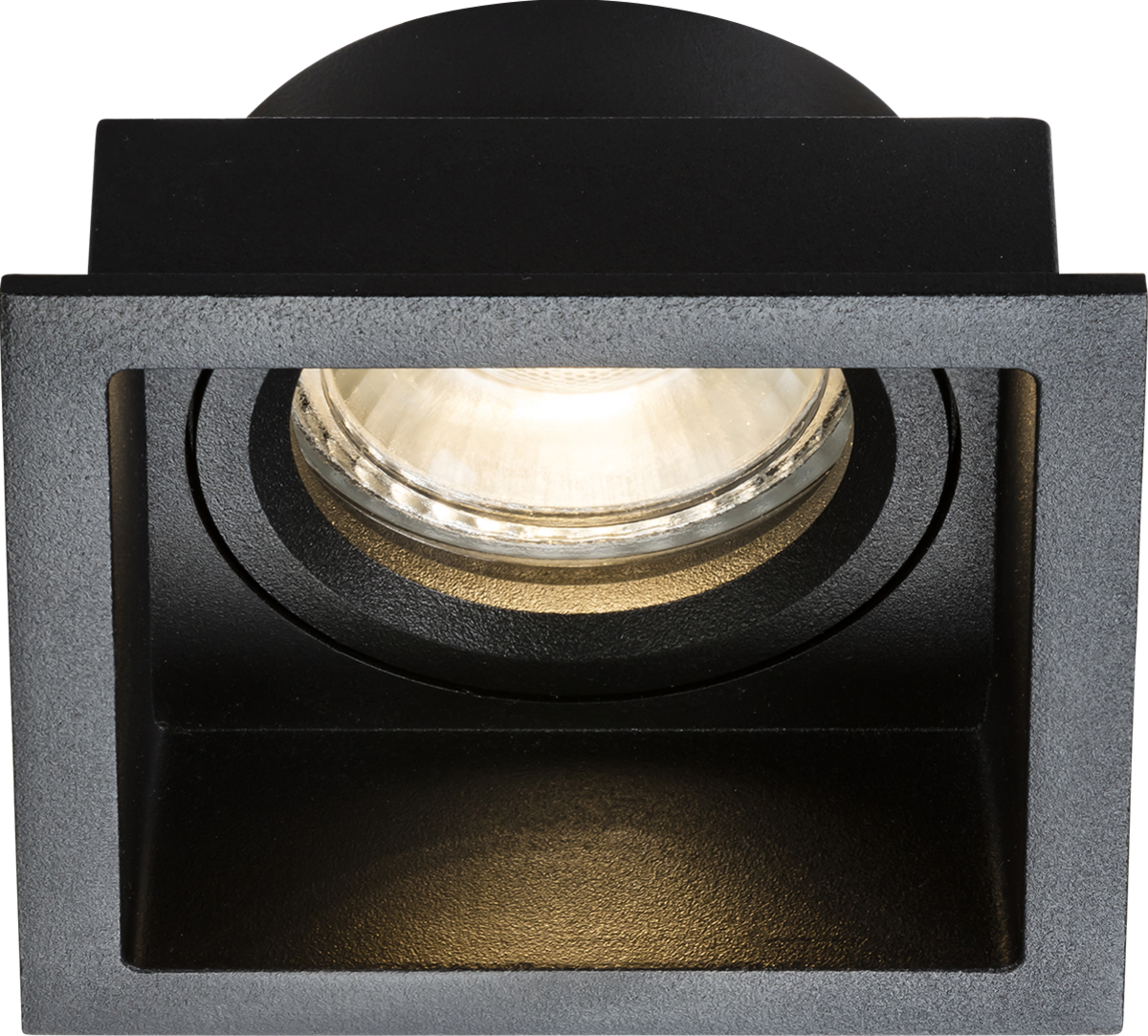

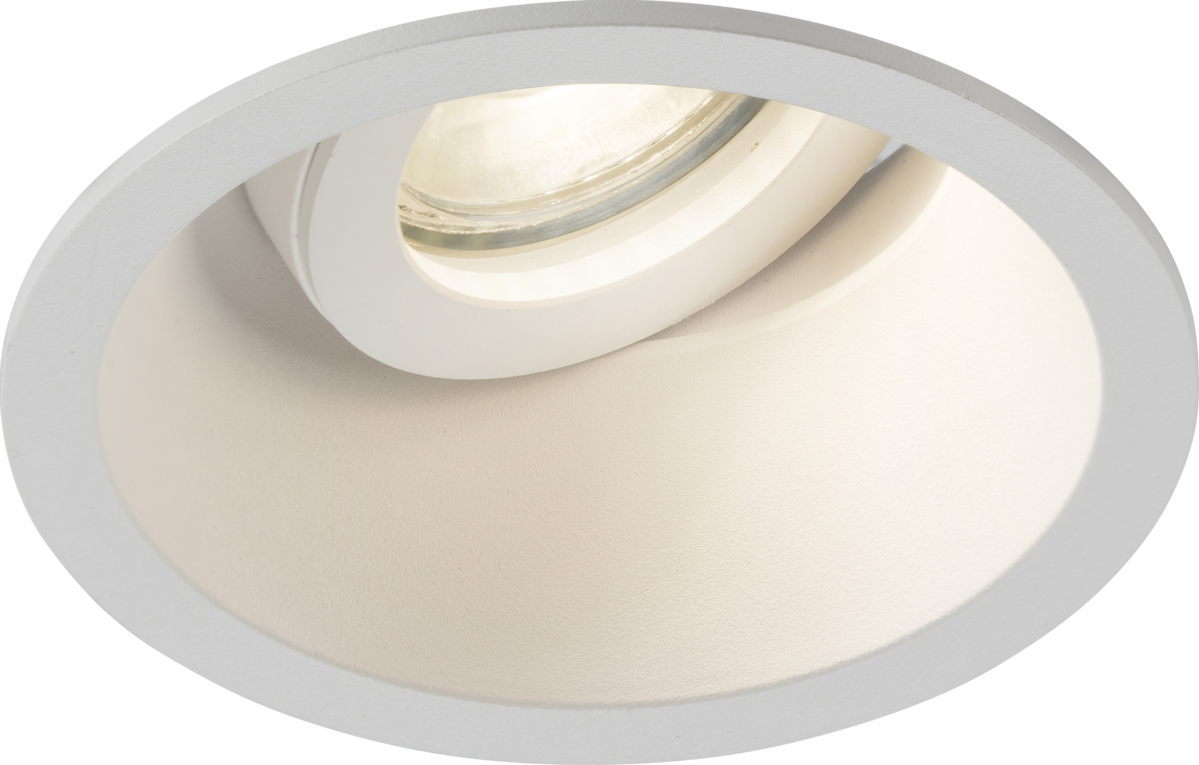

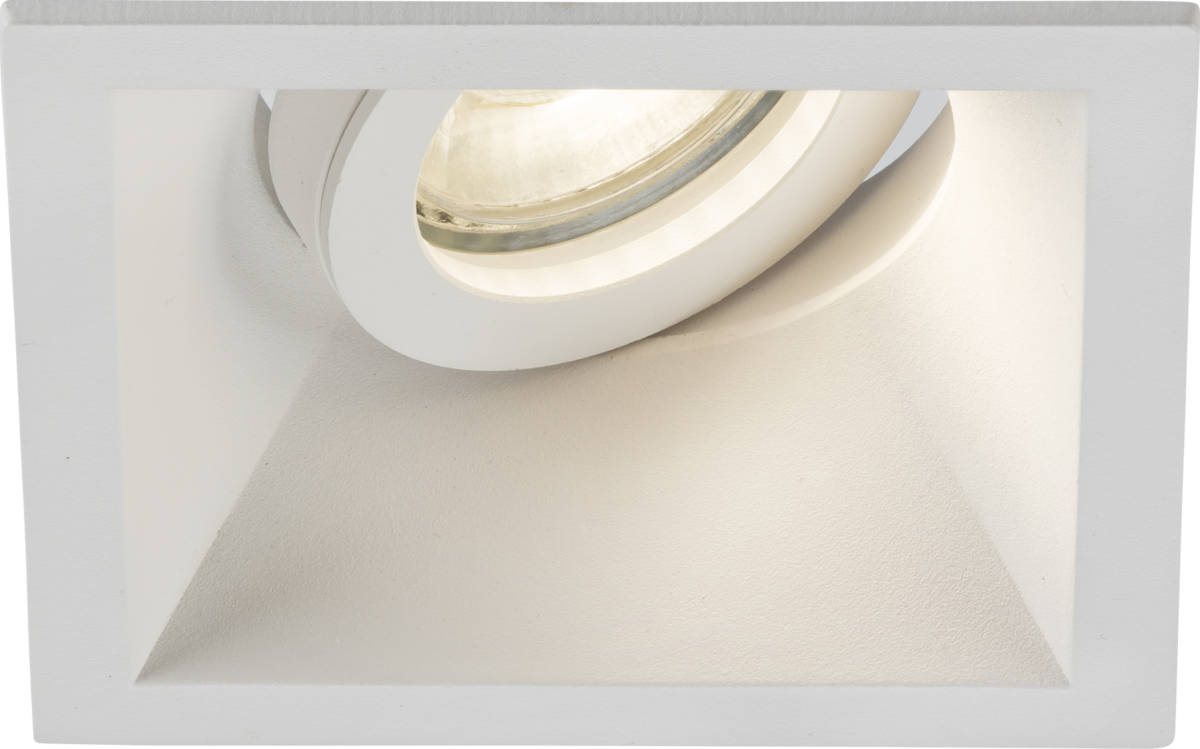

- Fixed and tilt options
- Drop down lamp holder allows for rapid lamp installation and maintenance
- Tool-free cable termination for rapid second fix
- Compatible with Knightsbridge range of fire hoods*
*check size and specific fire rating compliance with the relevant fire hood technical and installation data.
6W Warm and Cool White GU10 Non Dimmable LED Bulbs are available separately. Please select from drop down menu

Download

Datasheet

Specifications

Brand	Knightsbridge
SKU	DIA1FR, DIA1FS, DIB1TR, DIB1TS, DIC2TR, DIC2TS

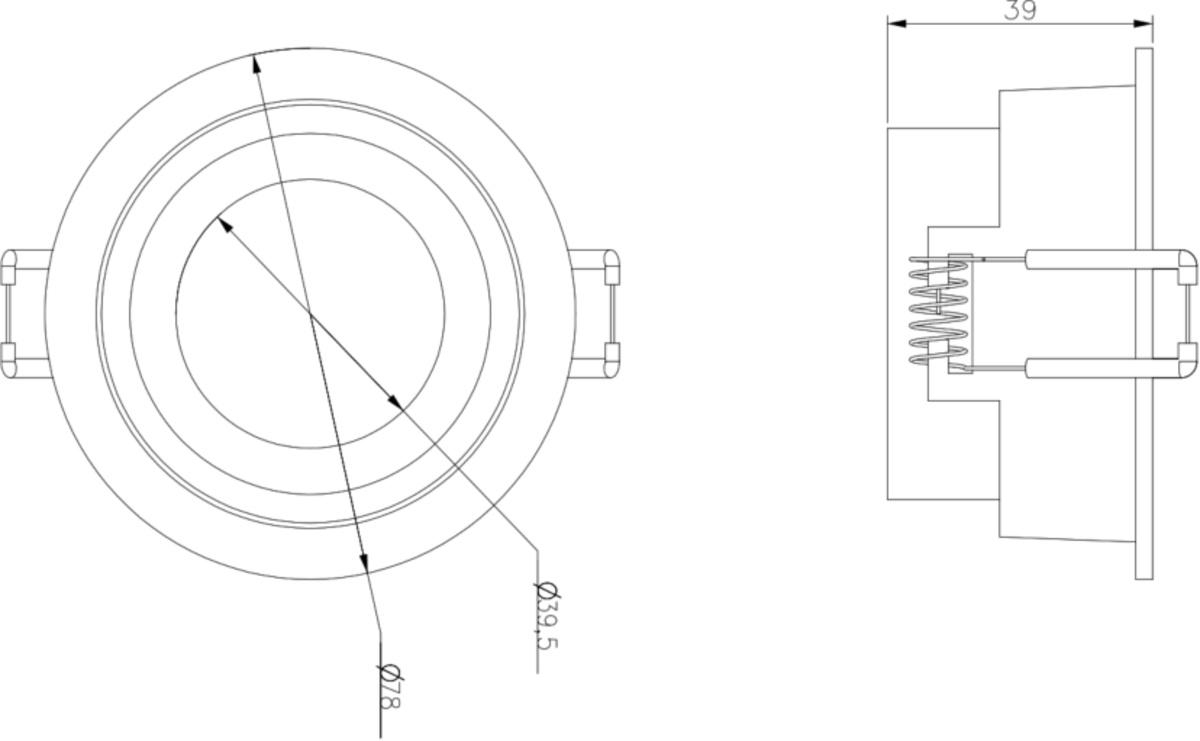

Diameter (mm)	Fixed Round = 78, Tilt Round = 93

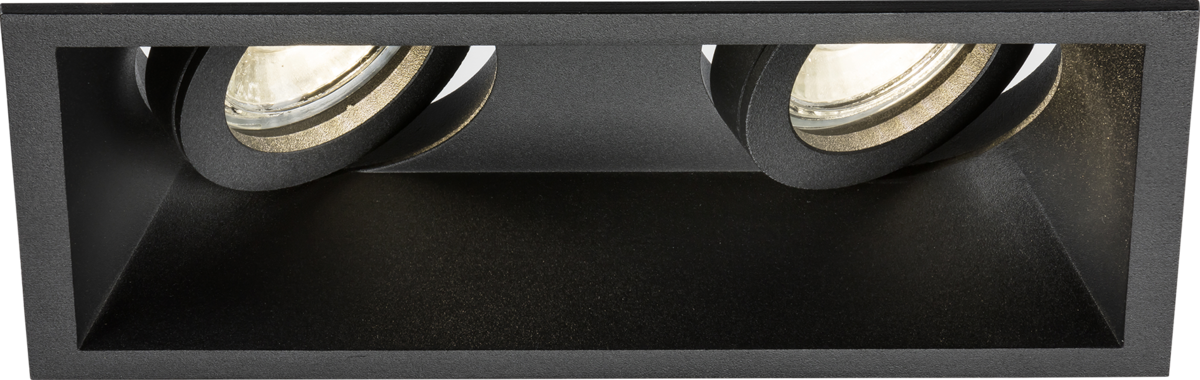

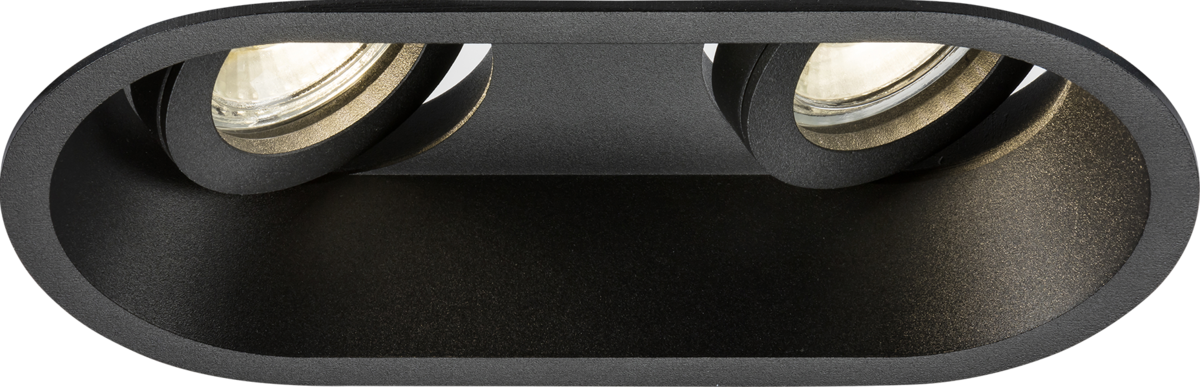

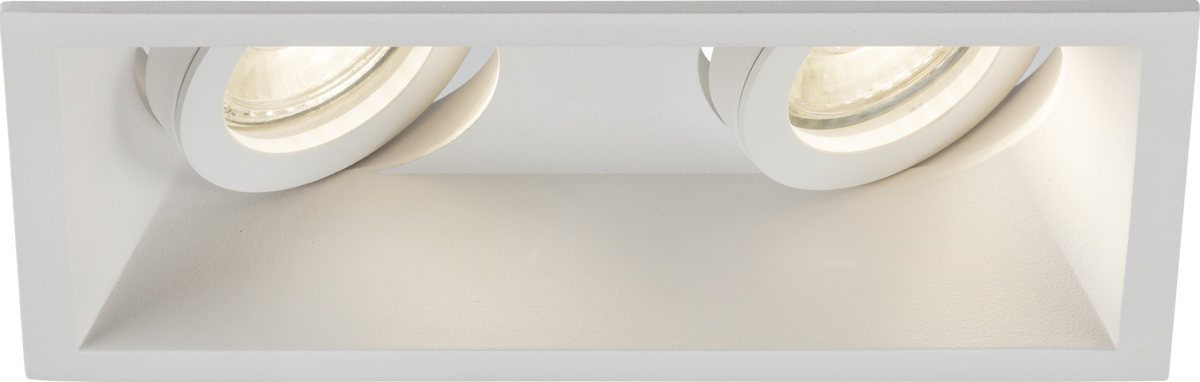

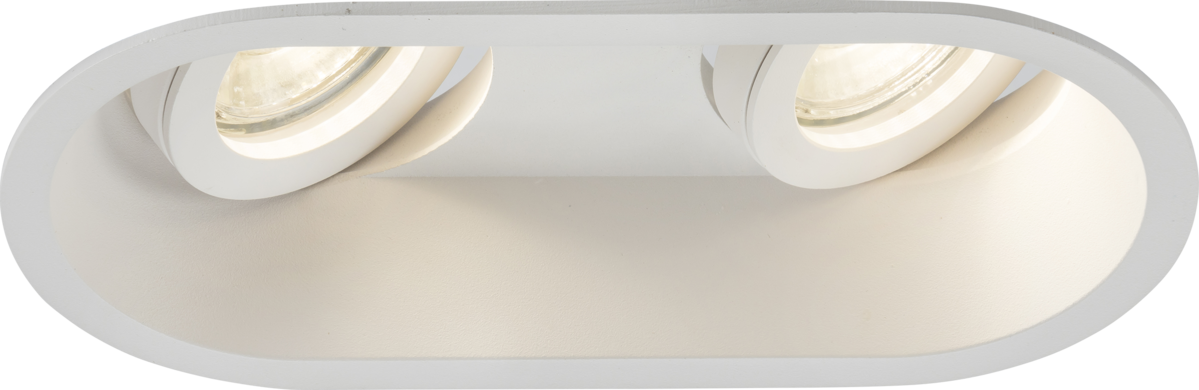

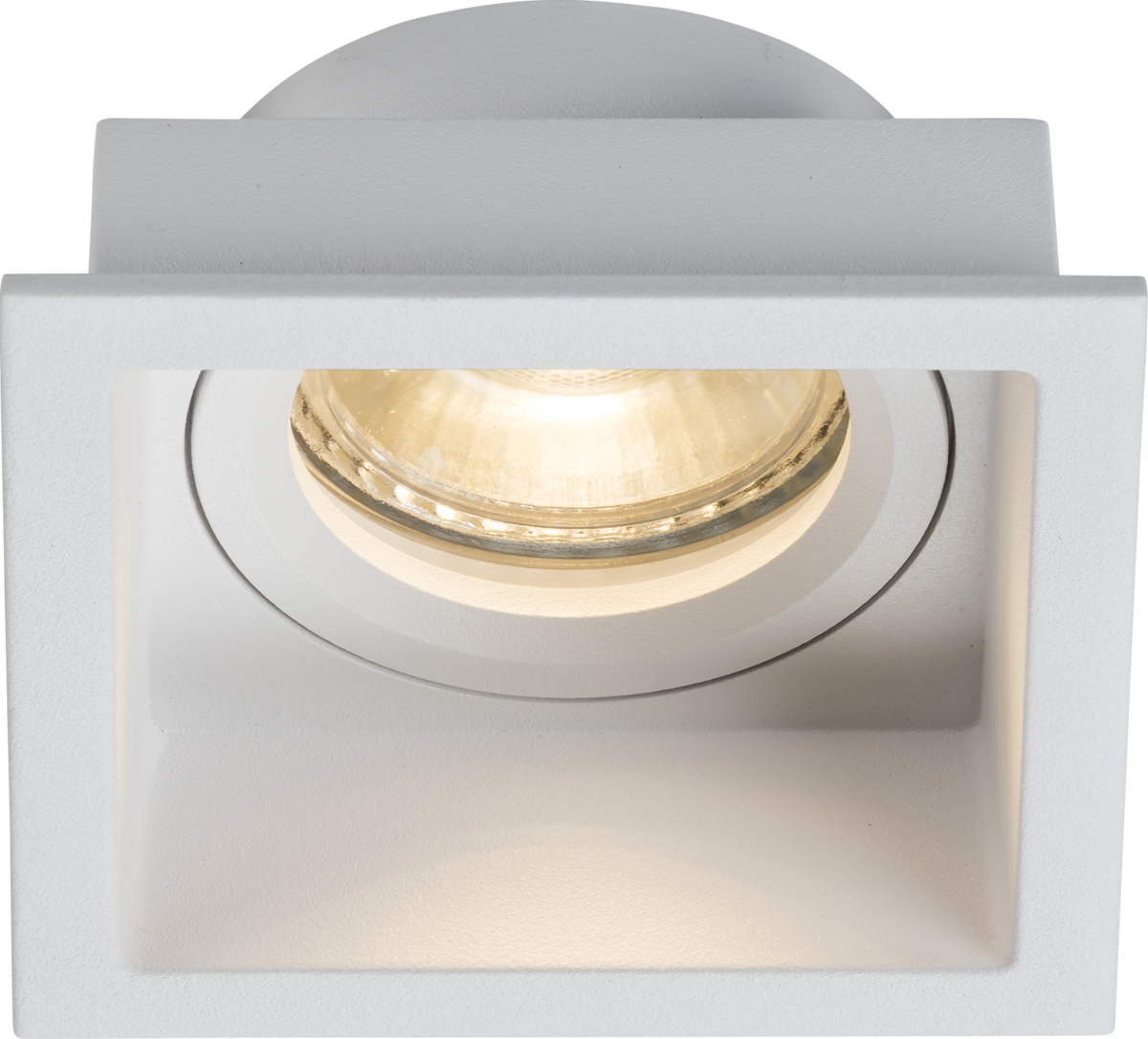

Length (mm)	Fixed Square = 78, Tilt Square = 93, Twin = 185
Width (mm)	Fixed Square = 78, Tilt Square = 93
Projection (mm)	3
Recessed Depth (mm)	39
Minimum Void (mm)	90
Cut-out Diameter (mm)	Fixed = 68, Tilt = 82
Material	Die-cast aluminium
Finish	Black, White
Class	II
IP Rating	IP20
Voltage (V)	230V 50Hz
Lamp Base	GU10
Lamp Included	No
Dimmable	Lamp dependent
Max. Wattage	10
Warranty (Years)	5
Commodity Code	9405500090
