Description

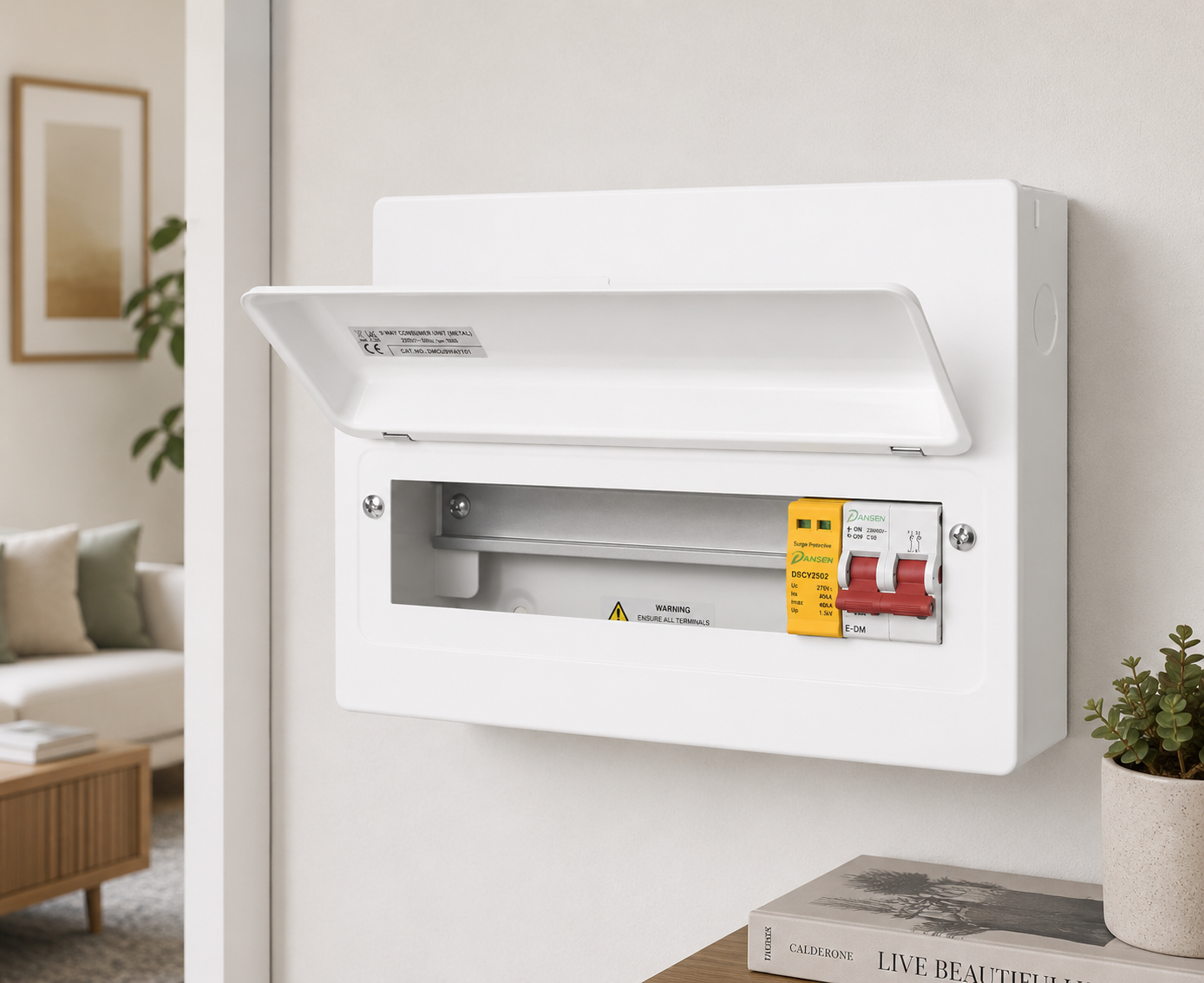

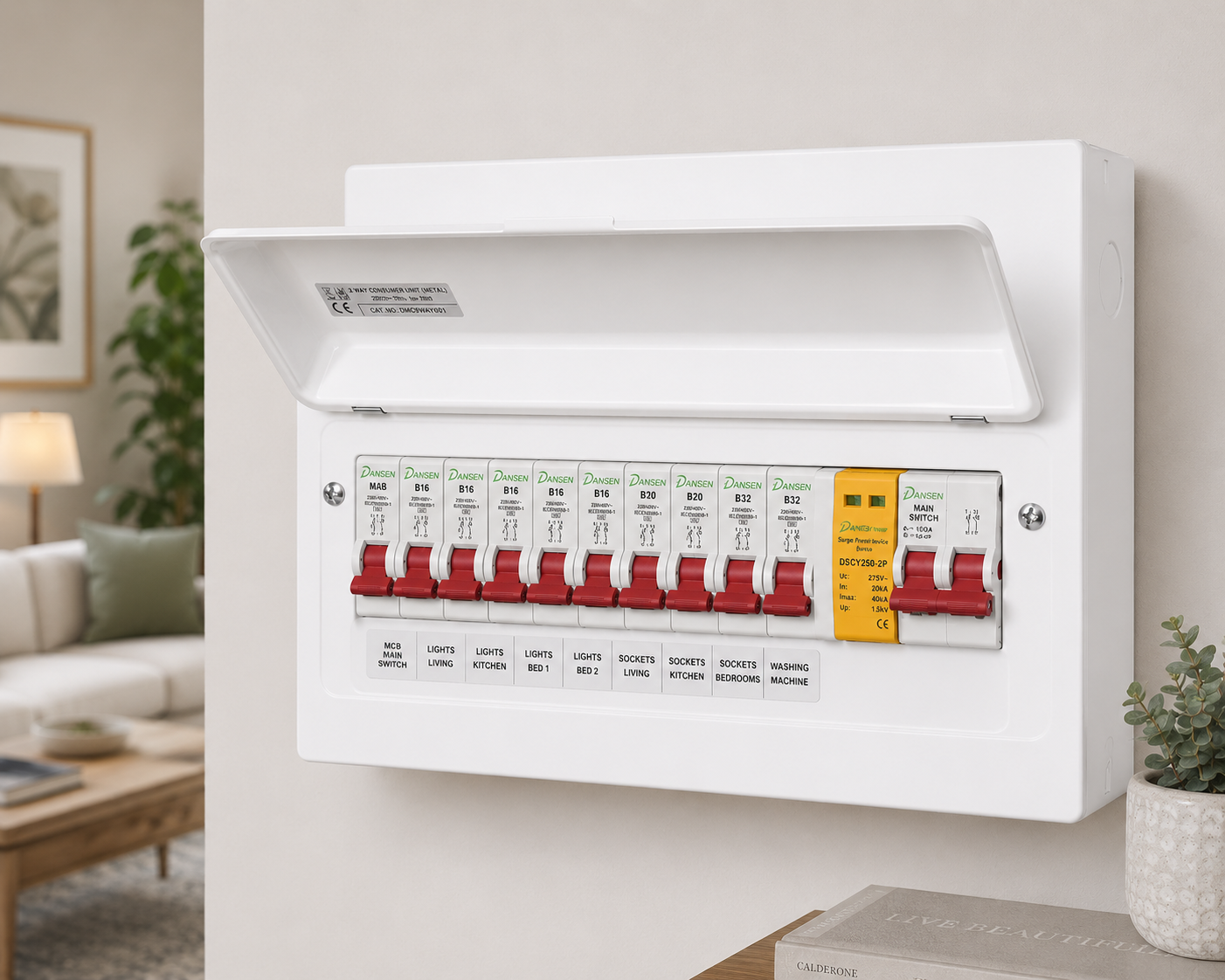

The Danson E-MM124/SPD1 9 Way Metal Consumer Unit is a high-quality single-phase distribution board designed for modern residential and commercial electrical installations. This populated consumer unit is supplied complete with 9 RCBOs, a 1 Module Type 2 Surge Protection Device (SPD) and a reliable 100A Main Switch, providing a complete solution for circuit and surge protection.
Manufactured to BS EN 61439-3, the surface-mounted consumer unit features a durable steel enclosure for enhanced safety, efficient cable management and straightforward installation. The integrated Type 2 SPD helps protect electrical installations and sensitive equipment against transient overvoltage and power surges.
Its compact design, multiple cable knockout positions and included tail clamp make it suitable for electricians, contractors and residential or commercial electrical installations.
Key Features
- 9 Way metal consumer unit

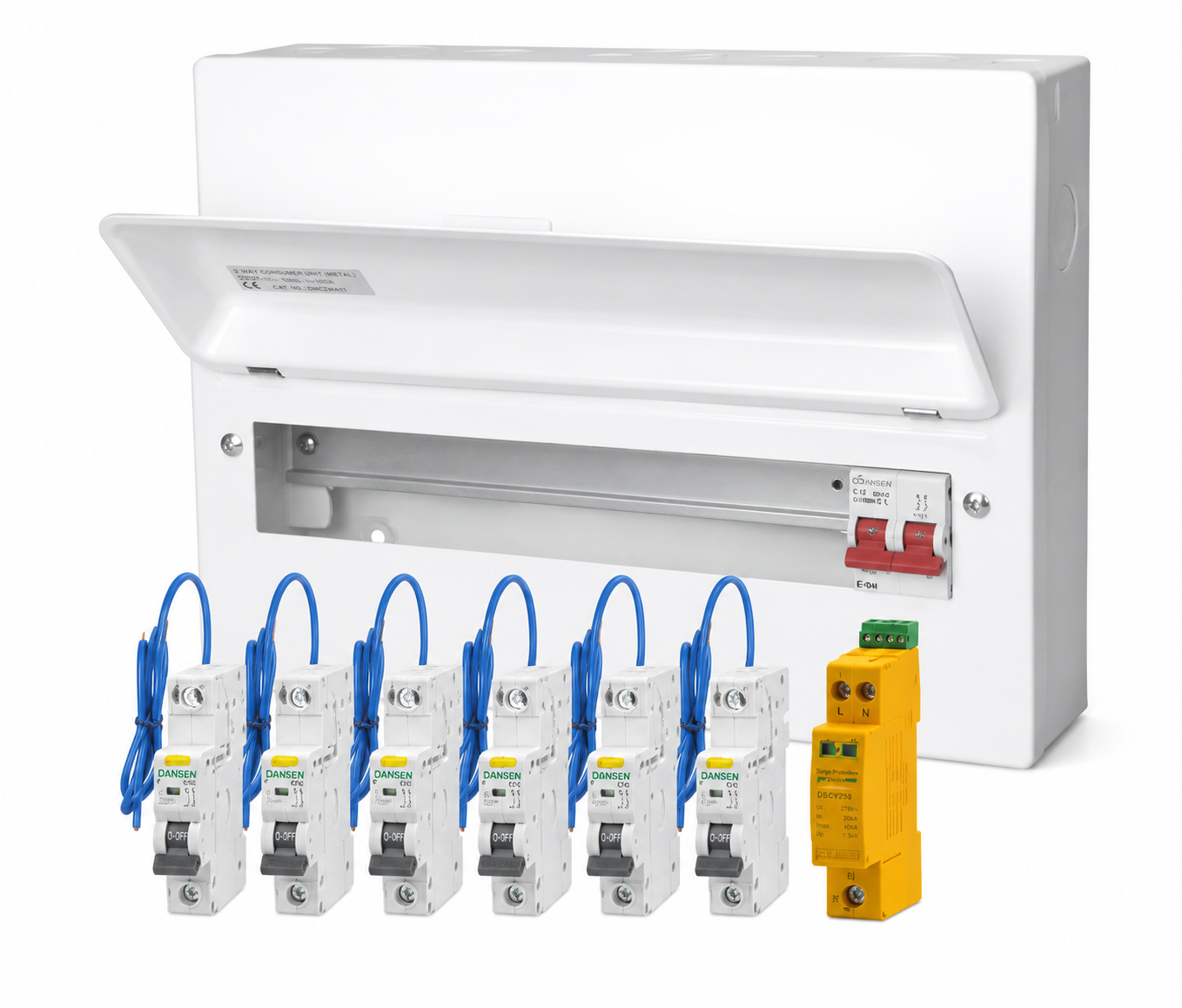

- Supplied populated with 9 RCBOs
- Includes 100A Main Switch, 1 Mod SPD & 9 RCBOs
- Integrated Type 2 SPD protection
- 100A main switch included
- Single-phase distribution board
- Surface-mounted steel enclosure
- Fresh white powder-coated finish
- Includes tail clamp for live & neutral tails
- BS EN 61439-3 compliant
- Multiple knockout cable entries
- Compact and durable design
- Suitable for residential and commercial installations
Datasheet
Specifications
| Brand | Danson |
|---|---|
| SKU | E-MM124/SPD1 |
| Product Type | Metal RCBO Consumer Unit |
| Ways Available | 9 Ways |
| RCBOs Included | 9 RCBOs |
| Main Switch Rating | 100A |
| Number of Phases | Single Phase |
| Voltage | 230V |
| Frequency | 50Hz |
| Current Type | AC |
| SPD | 1 Module Type 2 SPD |
| SPD Rating | 20kA / 40kA |
| Maximum Operating Voltage | 275V |
| Enclosure Material | Steel |
| Finish | Powder Coated |
| Colour | Fresh White (RAL 9016) |
| IP Rating | IP2XC |
| IK Rating | IK07 |
| Mounting Type | Surface Mounted |
| Consumer Unit Standard | BS EN 61439-3 |
| Main Switch Standard | BS EN 60947-3 |
| Dimensions | 273 × 264 × 115.3 mm |
| Weight | 2.91 kg |
| EAN Barcode | 5060690135395 |
