Description
Product Description

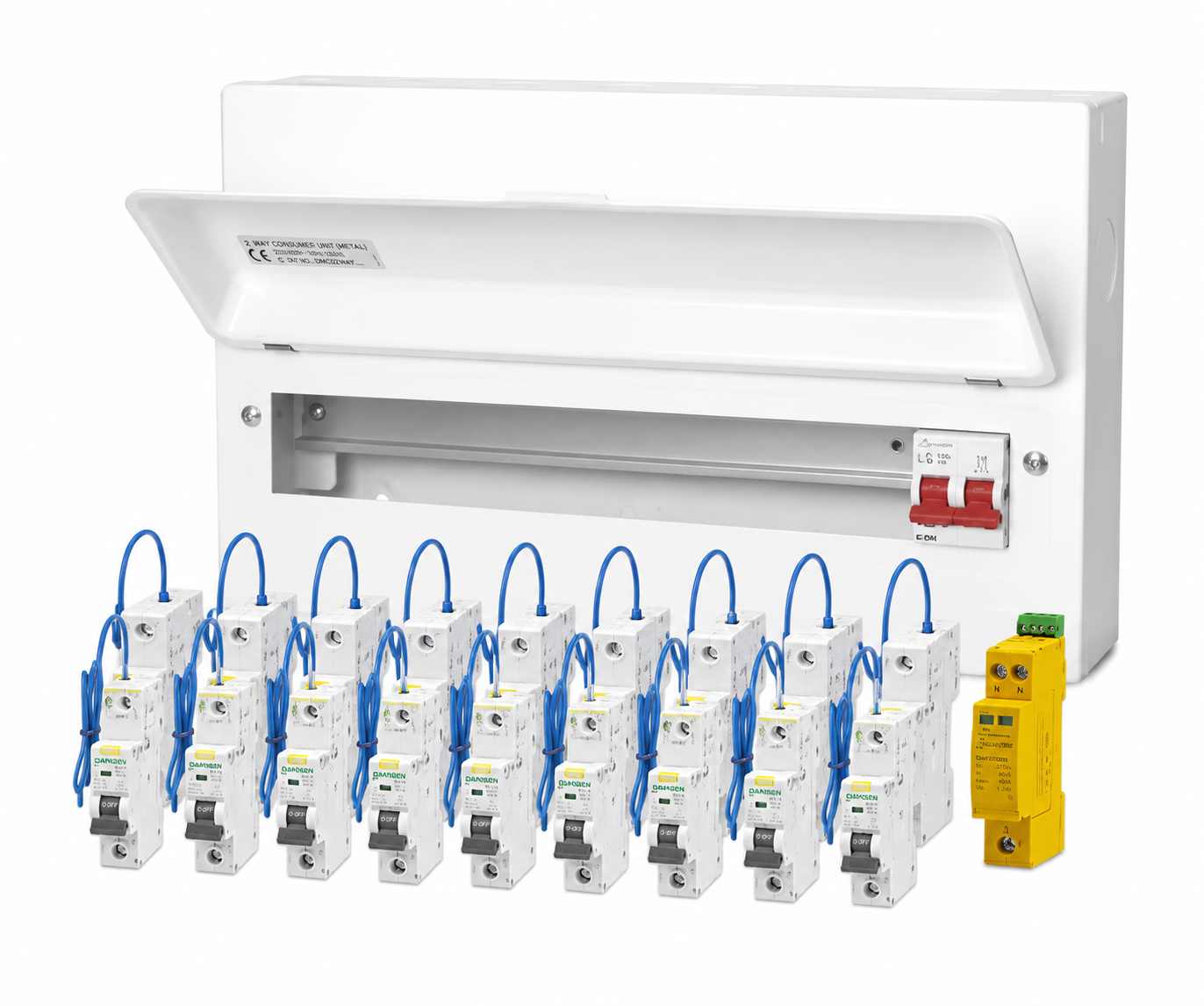

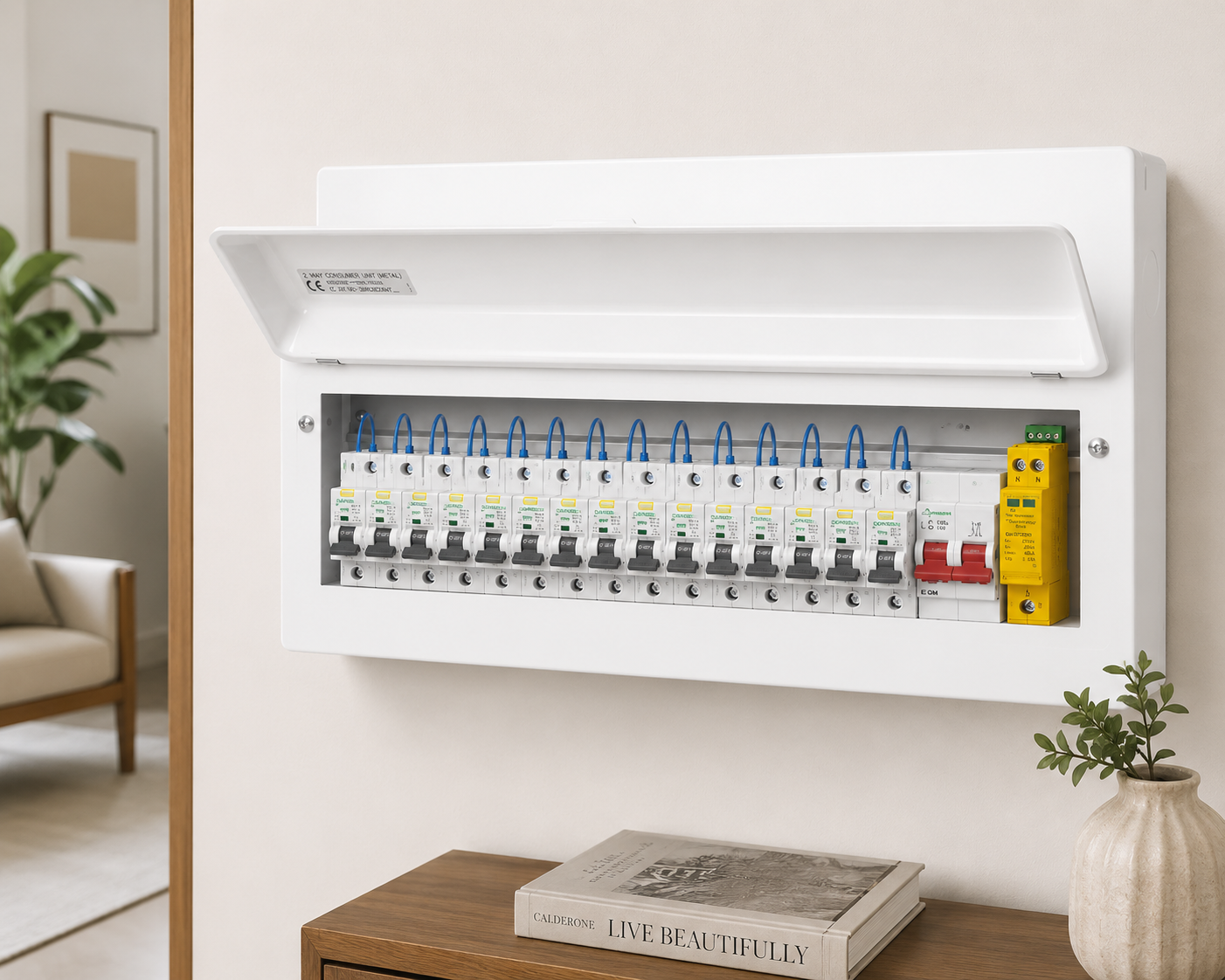

The Danson E-MM184/SPD1 15 Way Metal Consumer Unit is a robust and reliable single-phase distribution board designed for modern residential and commercial electrical installations. Featuring a durable steel enclosure, integrated Type 2 Surge Protection Device (SPD), and a dependable 100A main switch, this consumer unit provides enhanced electrical safety and efficient circuit protection.
Manufactured in accordance with BS EN 61439-3, this surface-mounted consumer unit is ideal for installations requiring high-performance surge protection and reliable power distribution. The integrated T2 SPD protects sensitive electrical equipment from transient overvoltage and power surges, making it suitable for modern properties with valuable electronic devices.
With its spacious 18-module design, multiple cable knockout positions, and included tail clamp, installation is quick, practical, and electrician-friendly.
Key Features
- 15 Way metal consumer unit
- 18 module enclosure
- Integrated Type 2 SPD protection
- 100A main switch included
- Single phase distribution board
- Surface mounted steel enclosure
- Fresh white powder-coated finish
- Includes tail clamp for live & neutral tails
- BS EN 61439-3 compliant
- Multiple cable knockout positions
- Compact and durable design
- Suitable for residential and commercial installations
Datasheet
Specifications
| Brand | Danson |
|---|---|
| SKU | E-MM184/SPD1 |
| Product Type |
Metal Consumer Unit |
| Ways Available | 9 Ways |
| Modules | 18 Module |
| Main Switch Rating | 100A |
| Number of Phases | Single Phase |
| Voltage | 230V |
| Frequency | 50Hz |
| Current Type | AC |
| SPD Type | Type 2 SPD |
| SPD Rating | 20kA / 40kA |
| Maximum Operating Voltage | 275V |
| Enclosure Material | Steel |
| Finish | Powder Coated |
| Colour | Fresh White (RAL 9016) |
| IP Rating | IP2XC |
| IK Rating | IK07 |
| Mounting Type | Surface Mounted |
| Main Switch Standard | BS EN 61439-3 |
| Dimensions | 380 x 264 x 115.3 mm |
| Main Switch Standard | BS EN 60947-3 |
| Weight | 4.14 kg |
| EAN Barcode | 5060690135418 |
