Description
Gently contoured 7mm plate with rounded edges and anti-microbial properties
- 10AX rated

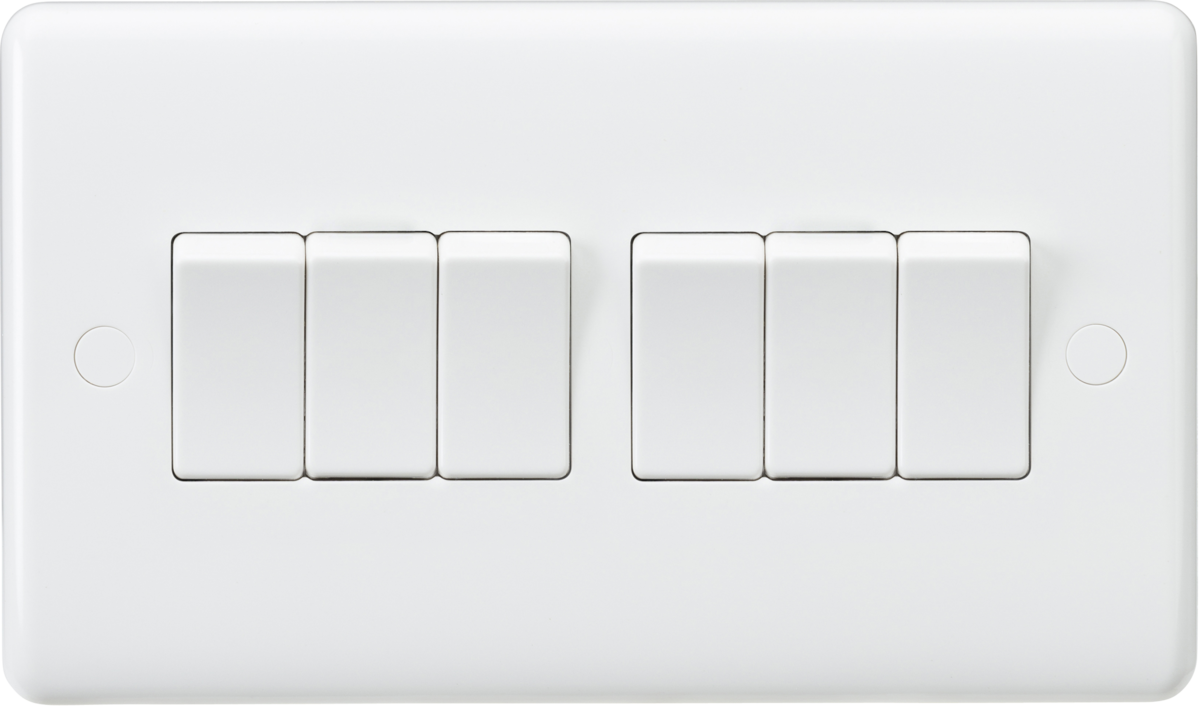

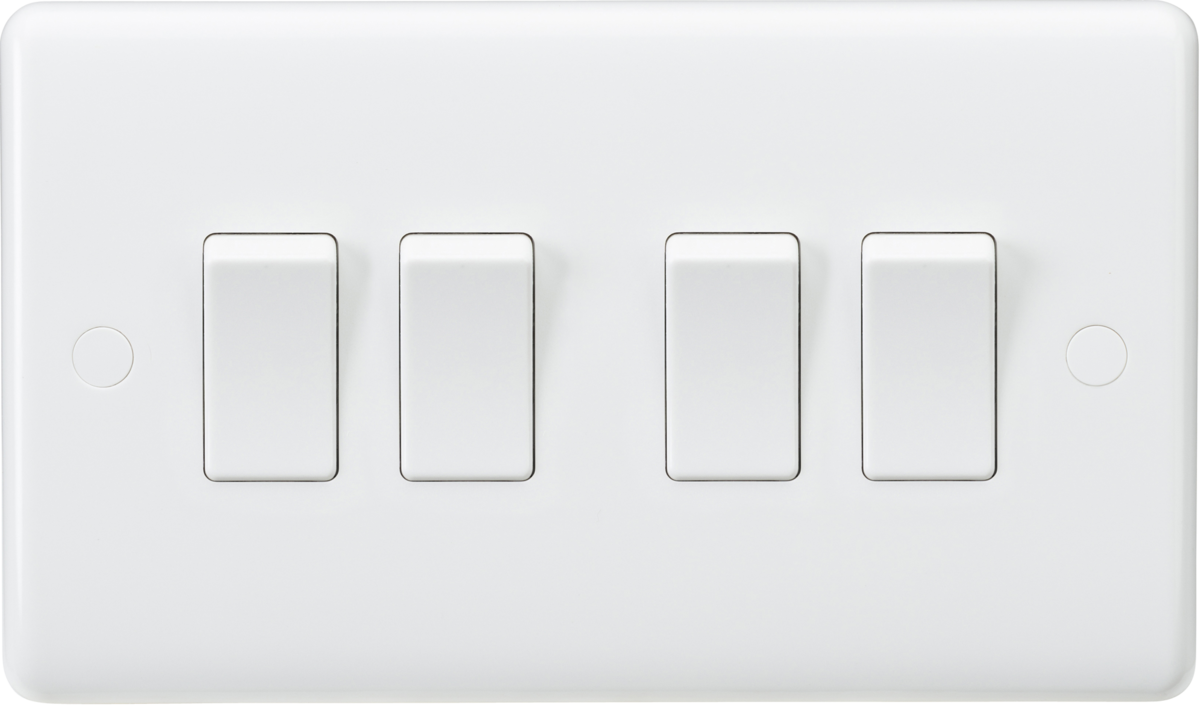

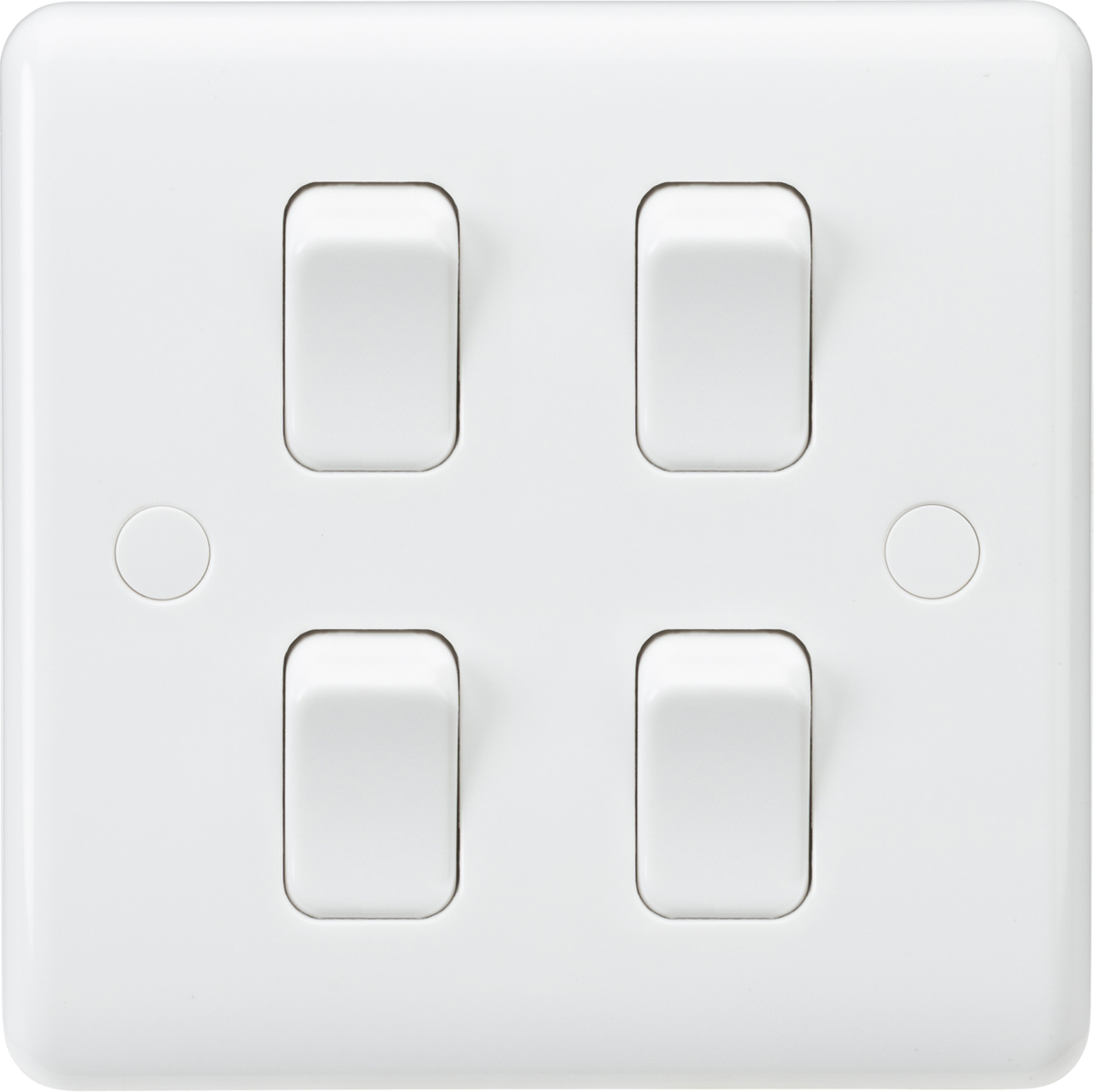

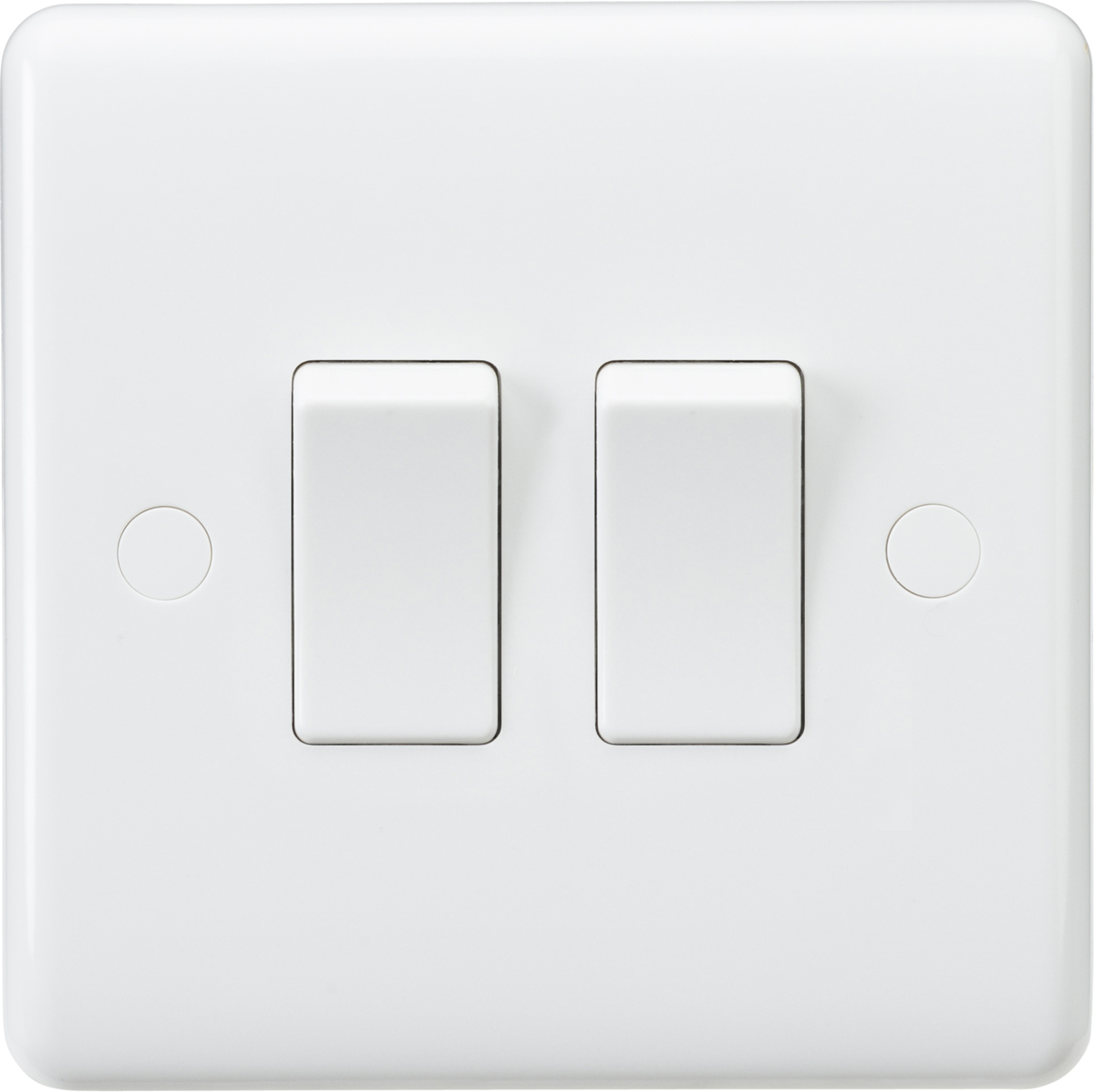

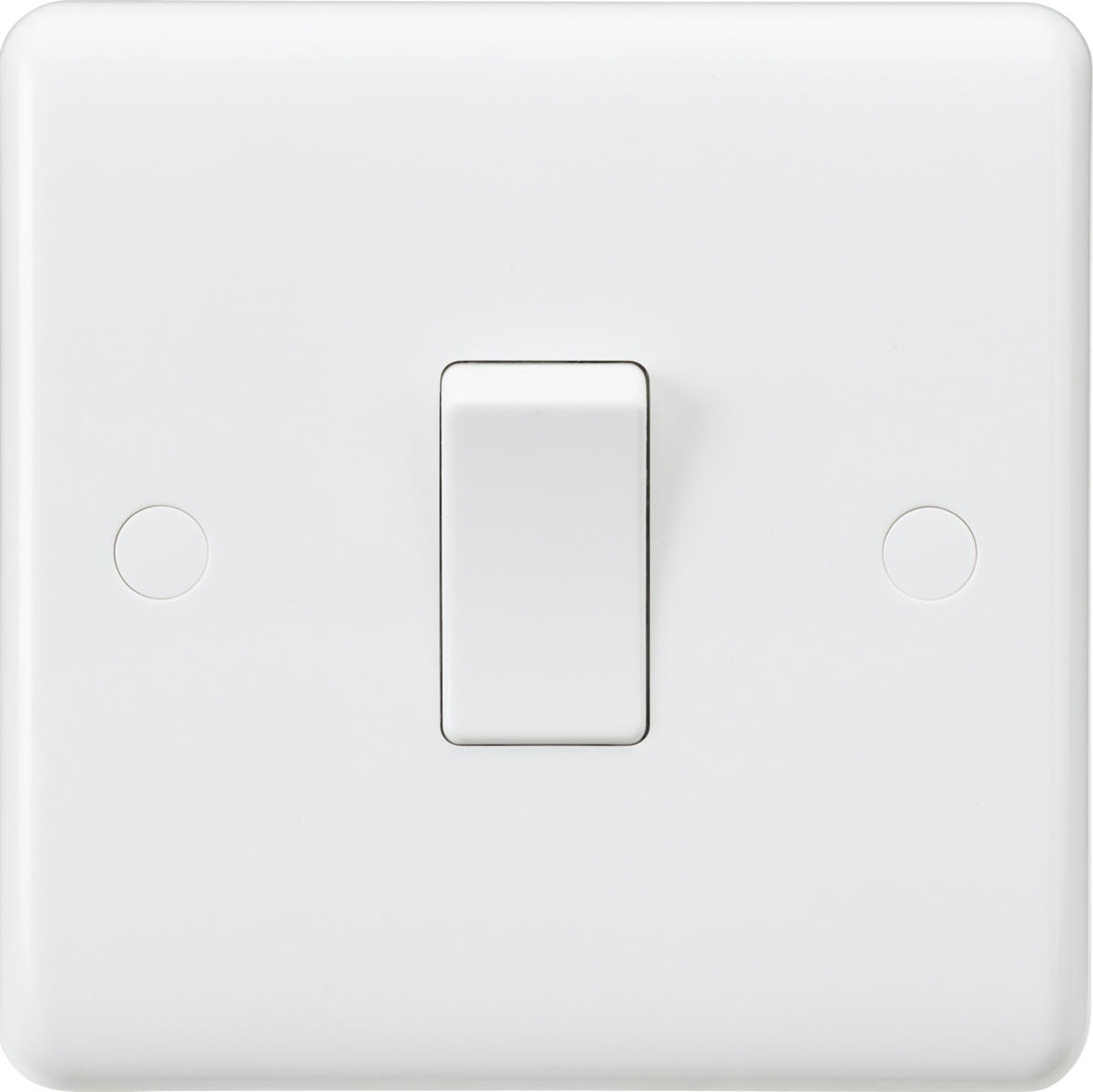

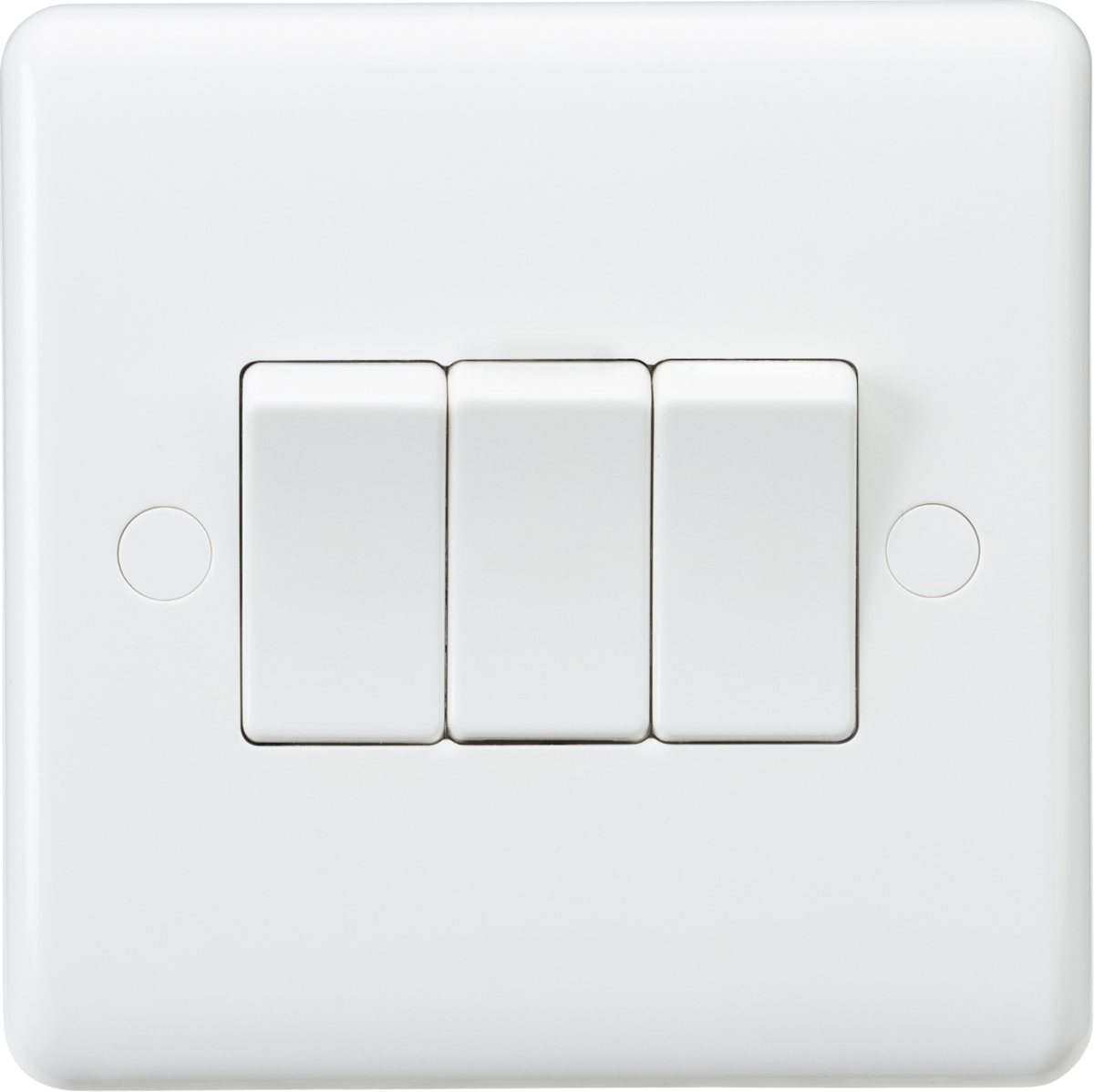

- 1G, 2G, 3G, 4G, 6G
- 1 Way, 2 Way
- Includes screw cap covers
- Certified to EN 60669-1
- 10AX rated
- 1G, 2G, 3G, 4G, 6G
- 1 Way, 2 Way
- Includes screw cap covers
- Certified to EN 60669-1
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | CU1000, CU2000, CU3000, CU4000, CU4100, CU4101, CU4200, CU1200, CU1100 |

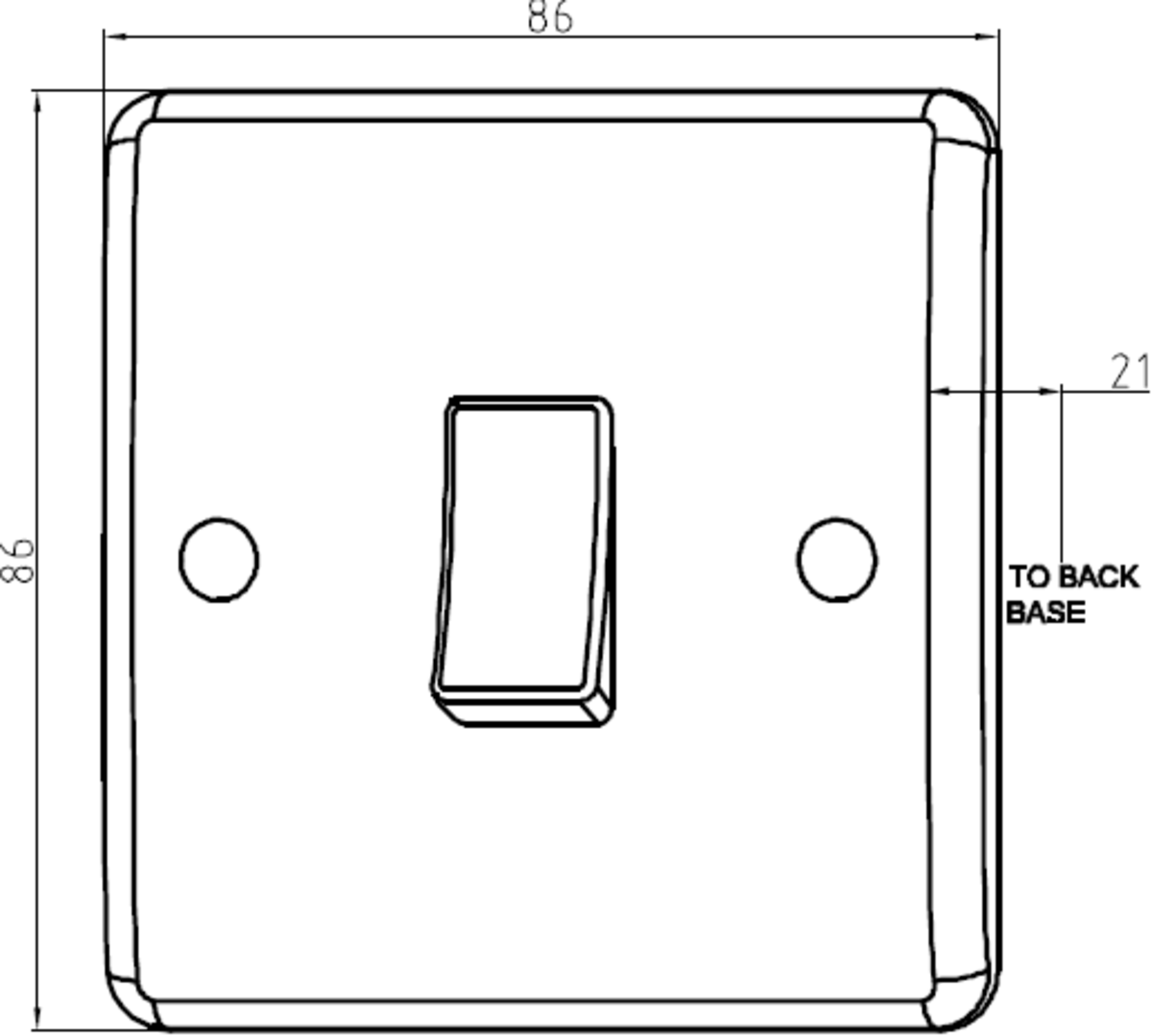

| Height (mm) | 86 |
| Width (mm) | Square = 86, Rectangular = 146 |
| Projection (mm) | 7 |
| Min. Mounting Box Depth (mm) | 25 |
| Material | Thermoset resin |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Warranty (Years) | 15 |
| Commodity Code | 8536 5080 90 |
