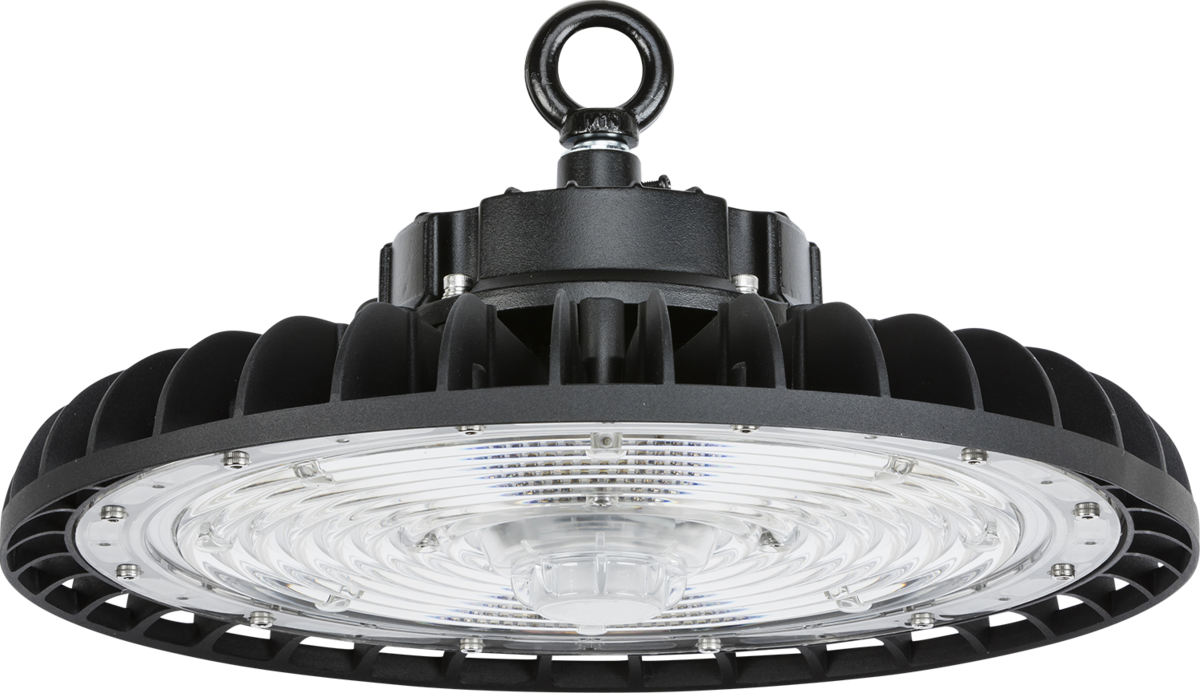

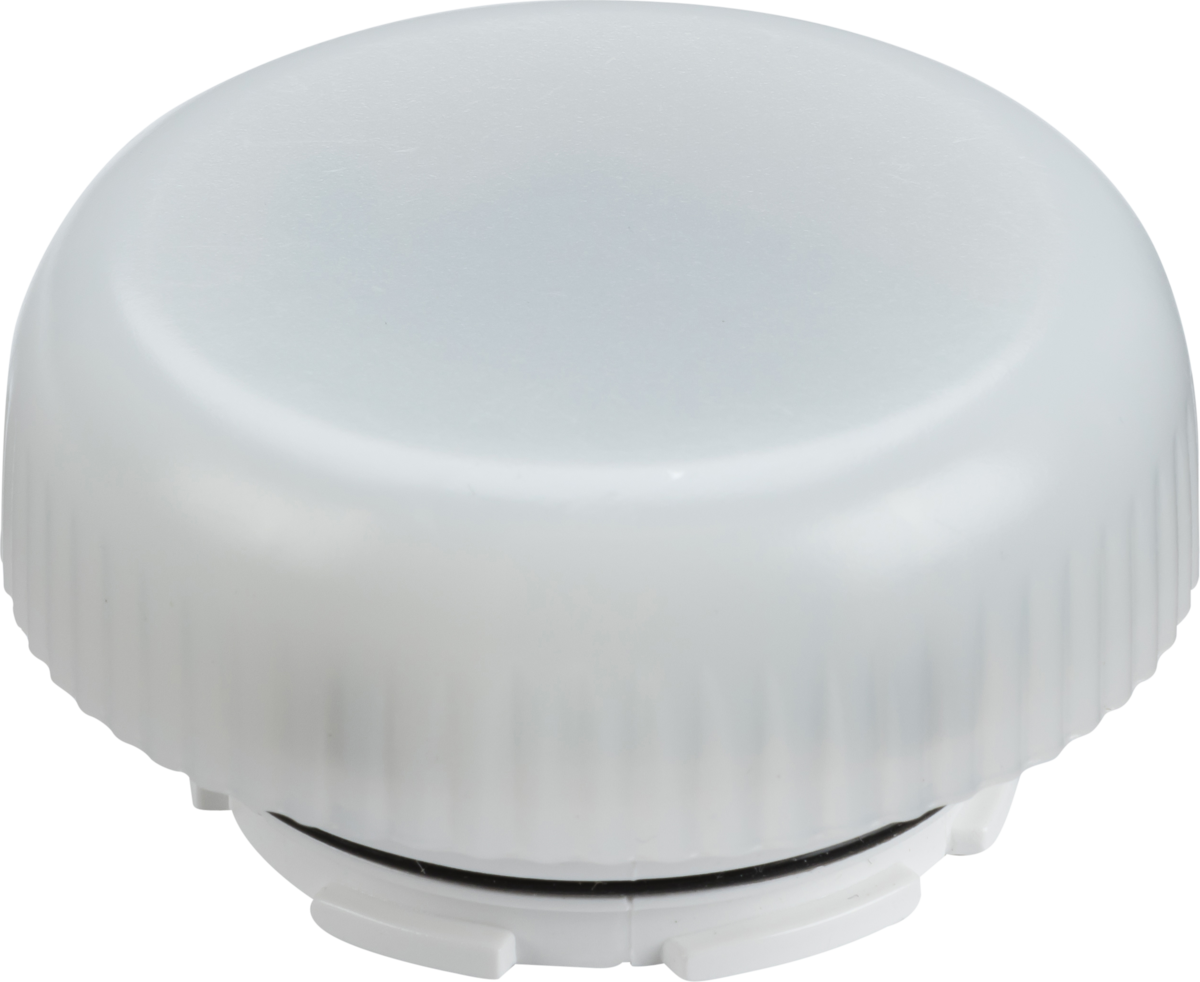

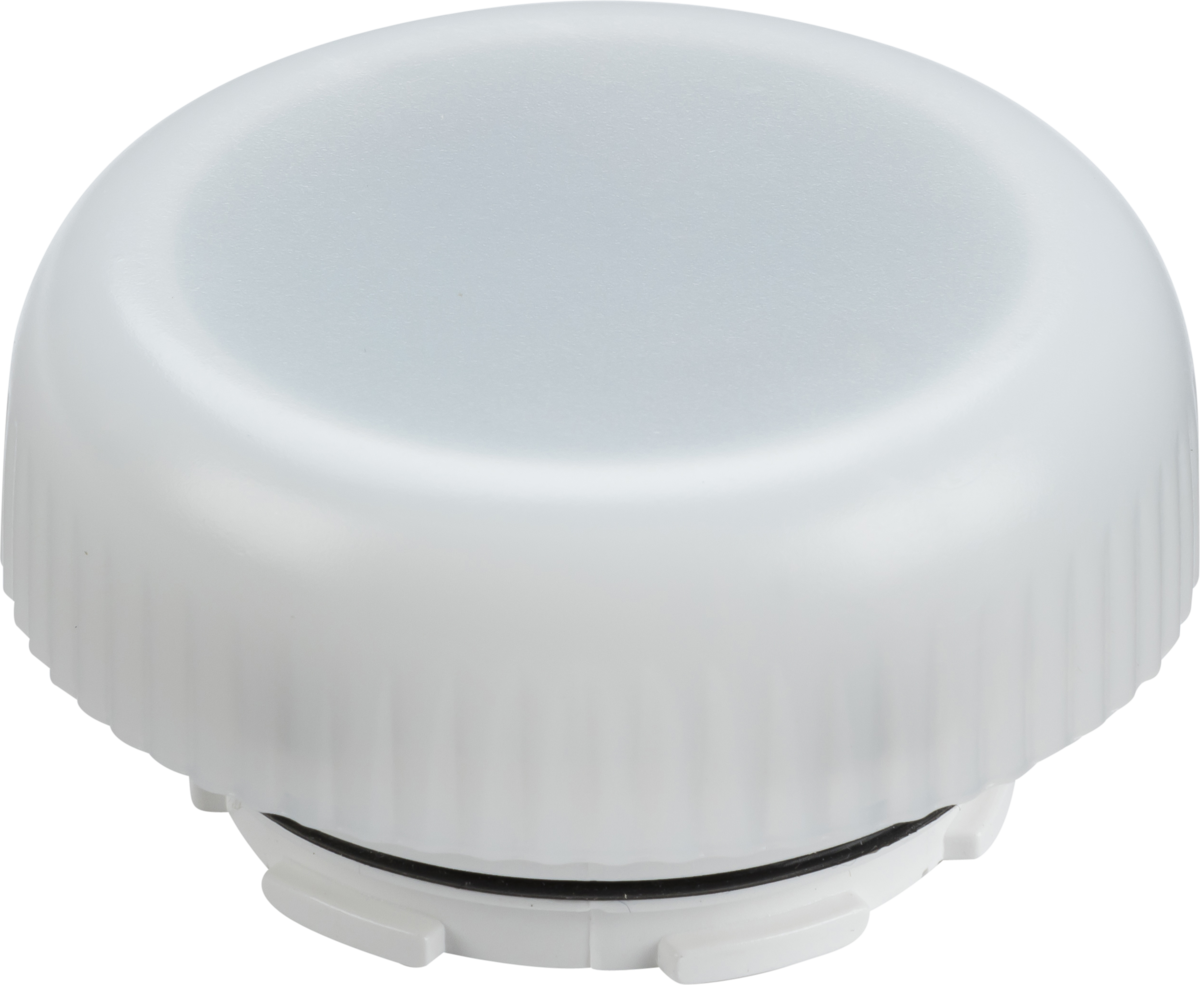

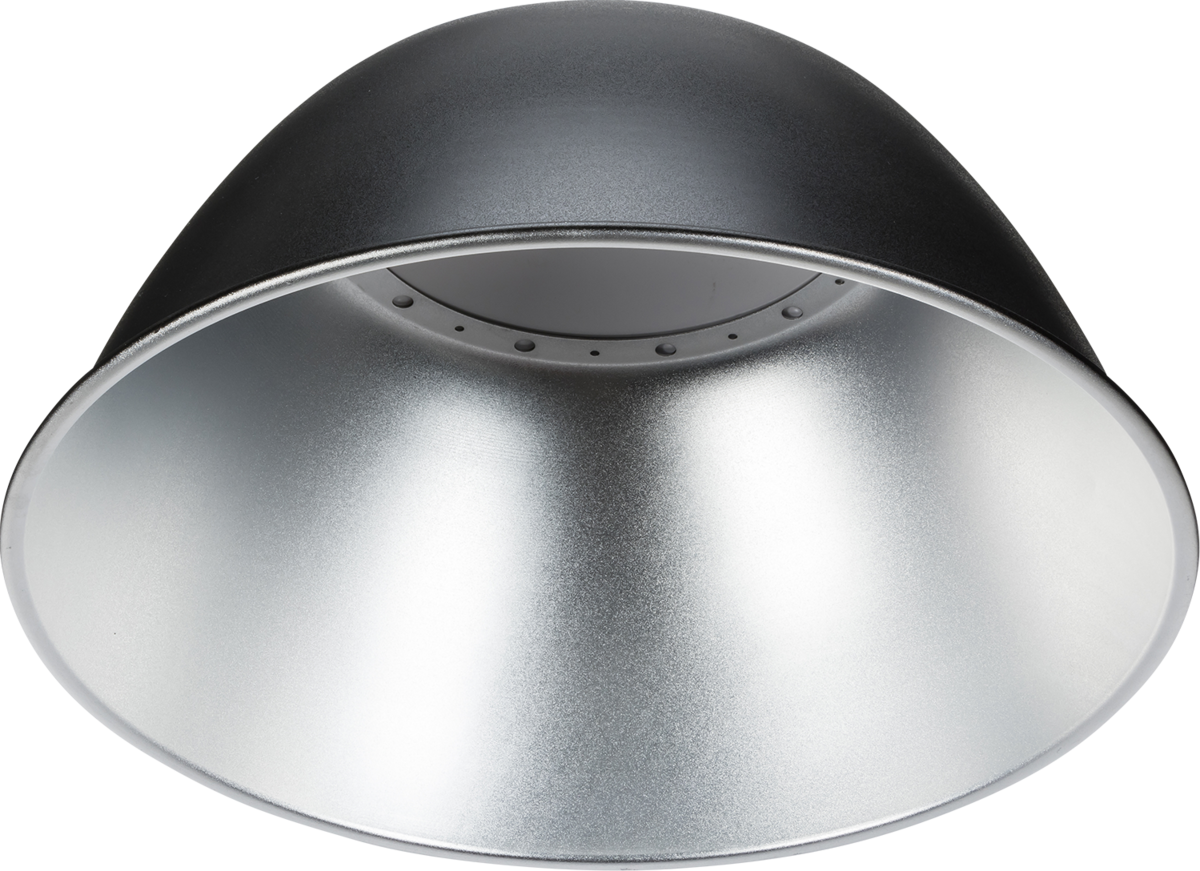

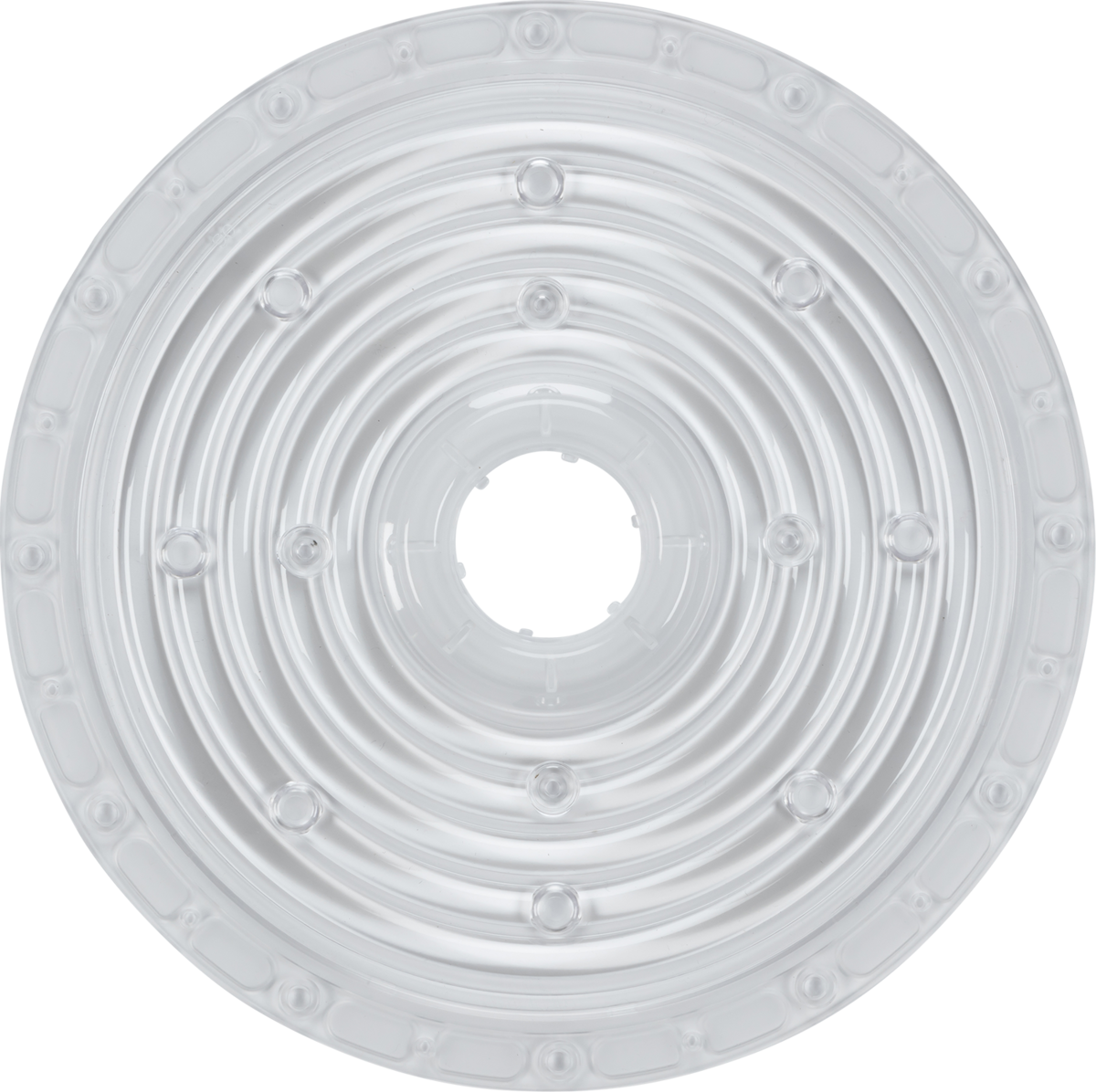

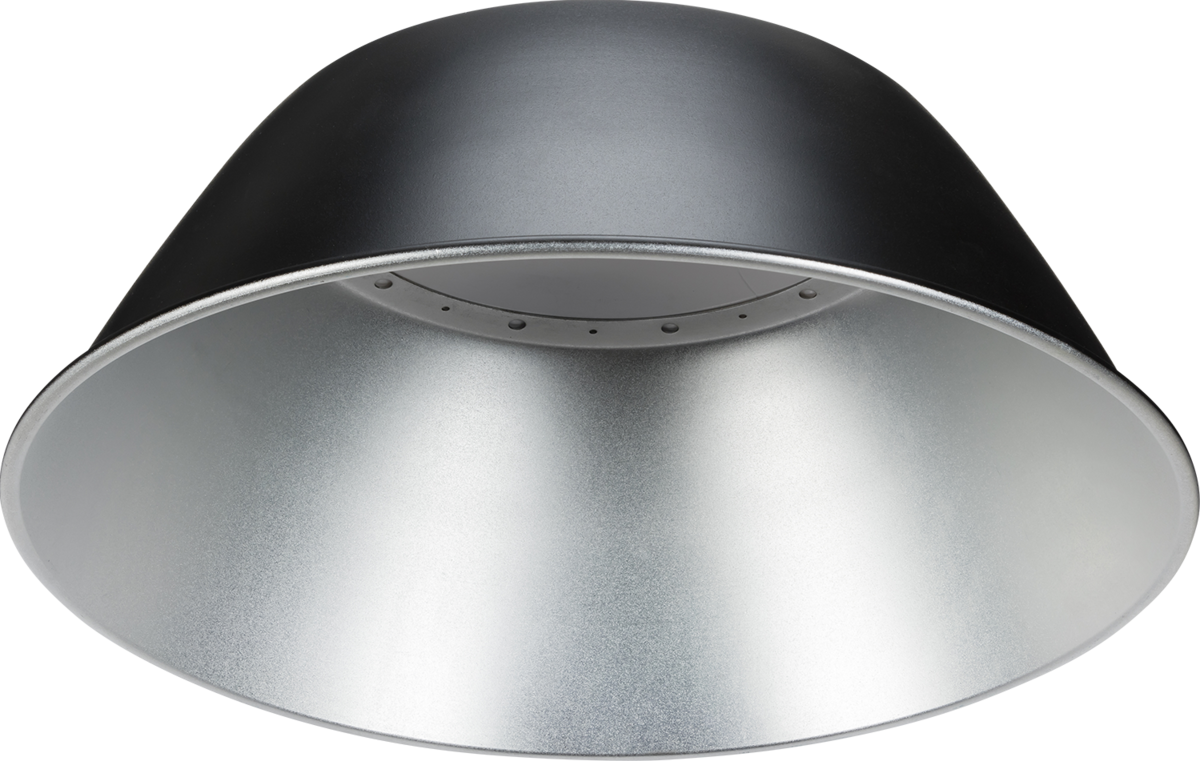

The innovative Axel multi-CCT forms part of the ever-expanding Knightsbridge industrial lighting portfolio. Available in 100W, 150W, and 200W, offering a unique user selectable 3000K/4000K/5000K CCT output. Comes with a 5-year warranty and boasting Knightsbridge advanced sensor and DALI control modules and Lifud driver technology, coupled with cutting-edge Lumileds LEDs as standard. Axel features some of the latest in lighting and control technology, ensuring simple installation, ease of use, and energy efficient operation with 4 simple modes of operation: - Stand-alone - switching on/off (e.g., from a wall switch) - 0-10V control - built-in as standard, dimming via a 0-10V control signal - Microwave sensor - motion detection via means of the modular sensor twist and lock accessory - DALI addressable - centralised control over large areas of lighting via the modular DALI twist and lock accessory Axel also comes as standard with a 120° light distribution with a 60° accessory lens readily available, making the product suitable for varying mounting heights. Where required, a unique aluminium reflector can be used to create a 70° output. This means that for projects where ceiling heights change, or perhaps the distance between shelving units differ, Axel can ensure uniform and consistent lighting. - 100W, 150W, 200W versions - 3000K/4000K/5000K selectable CCT - Lumileds SMD LEDs - Lifud driver - Highly efficient at 145lm/W (200W variant) - IK08 as standard and IK10 achieved when used with lens accessory - Simple twist and lock microwave sensor and DALI addressable modules - Multi-application product approach reduces stocking requirements, driving down the products carbon footprint - Wall mount and suspension options - Please select from drop down menu

Download

Datasheet

Specifications

Variant SKU	AX100CCT
SKU	AX100CCT, MLAX150CCT,  MLAX200CCT,
Diameter (mm)	100W = 265, 150W = 300, 200W = 340
Height (mm)	100W = 163, 150W = 173, 200W = 178
Material	Die-cast aluminium
Finish	Black
Class	I
IP Rating	IP65
Voltage (V)	230V 50Hz
Cable Length (m)	0.3
Diffuser	Prismatic
Lamp Technology	SMD LED
Lamp Included	Yes
Dimmable	DALI*/0-10V only
Rated Life (Hours)	50000
Beam Angle (°)	120
Colour Temperature (K)	3000-4000-5000
Light Colour	CCT
Lumens (lm)	100W = 13220, 150W = 19900, 200W = 27110
Wattage (W)	100, 150, 200
Efficacy	140
CRI	>85
Warranty (Years)	5
Commodity Code	9405423990
