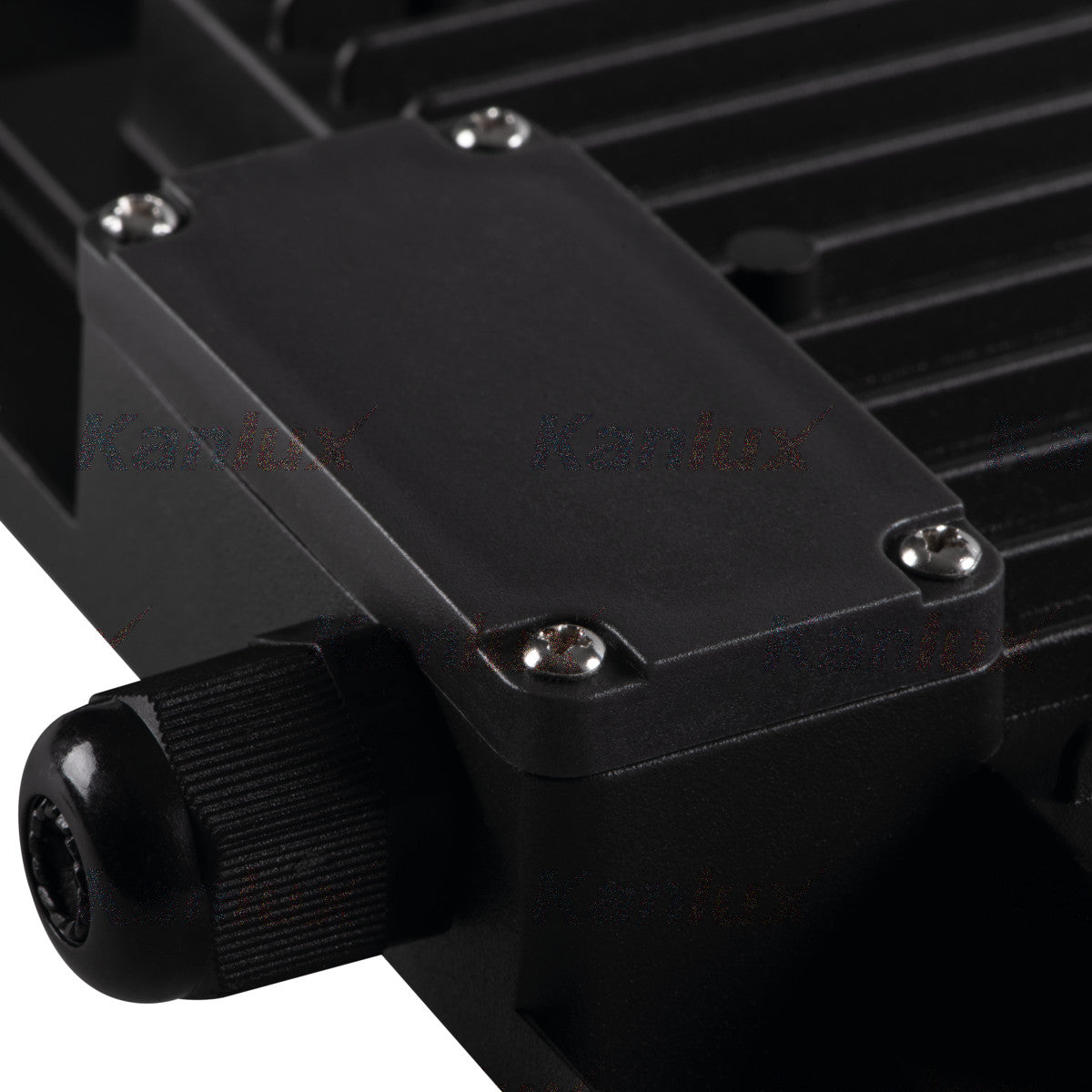

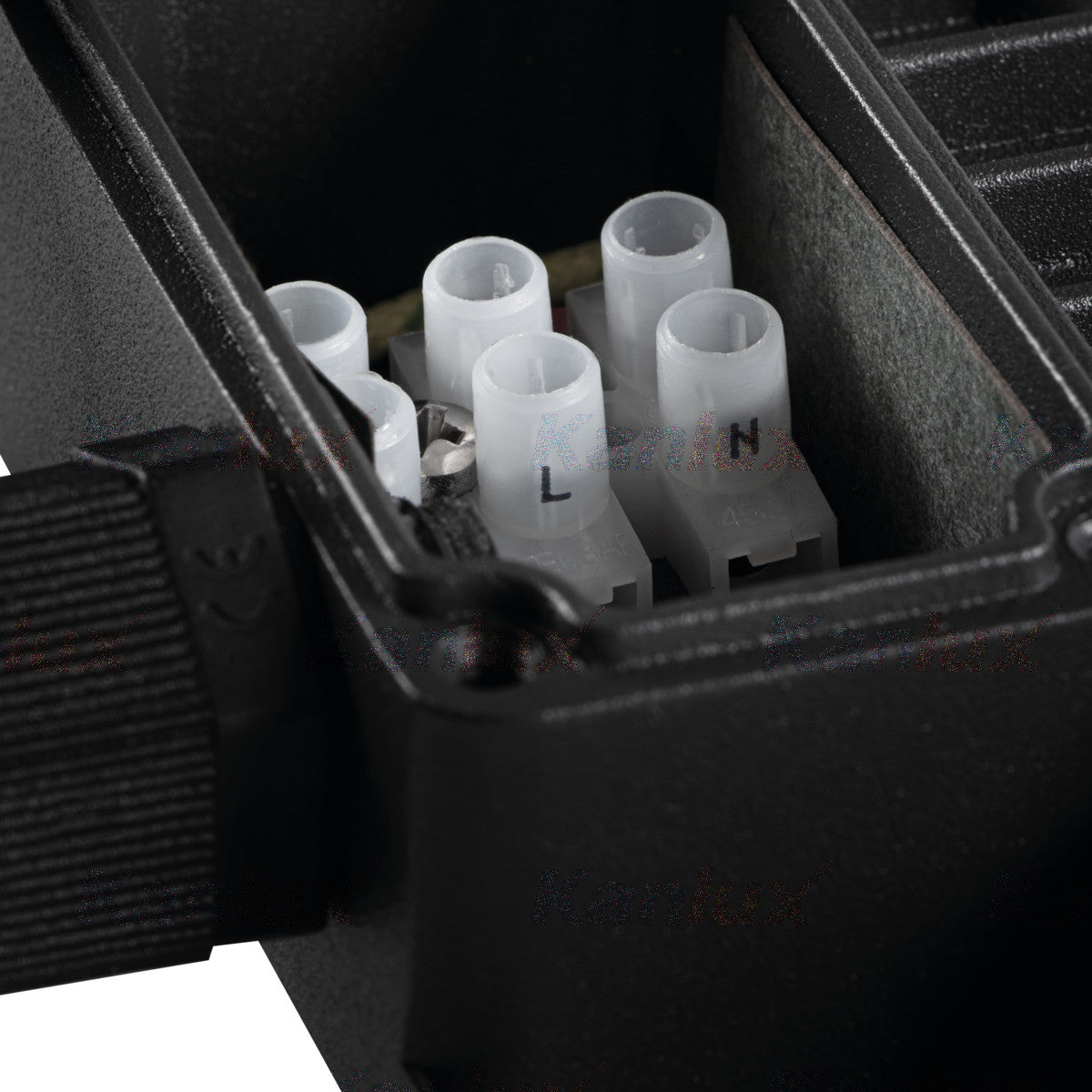

Kanlux ANTEM is a series of LED floodlights. These floodlights are above all easy to connect, and thanks to the integrated junction box you can also avoid unaesthetic cable connections. Kanlux ANTEM LED series provides a wide range of power options, from 10 W to 100 W, as well as versions with and without motion sensors. A milky lampshade with a delicate prism softly disperses light and reduces the glare effect. The version without a motion sensor has a tightness of IP65, while the one with a sensor has a tightness of IP44. The sensor can be adjusted in terms of light duration, light intensity and detection range.

Downloads

Datasheet

Specifications

Brand	Kanlux
SKU	33200, 33201, 33202, 33203, 33204

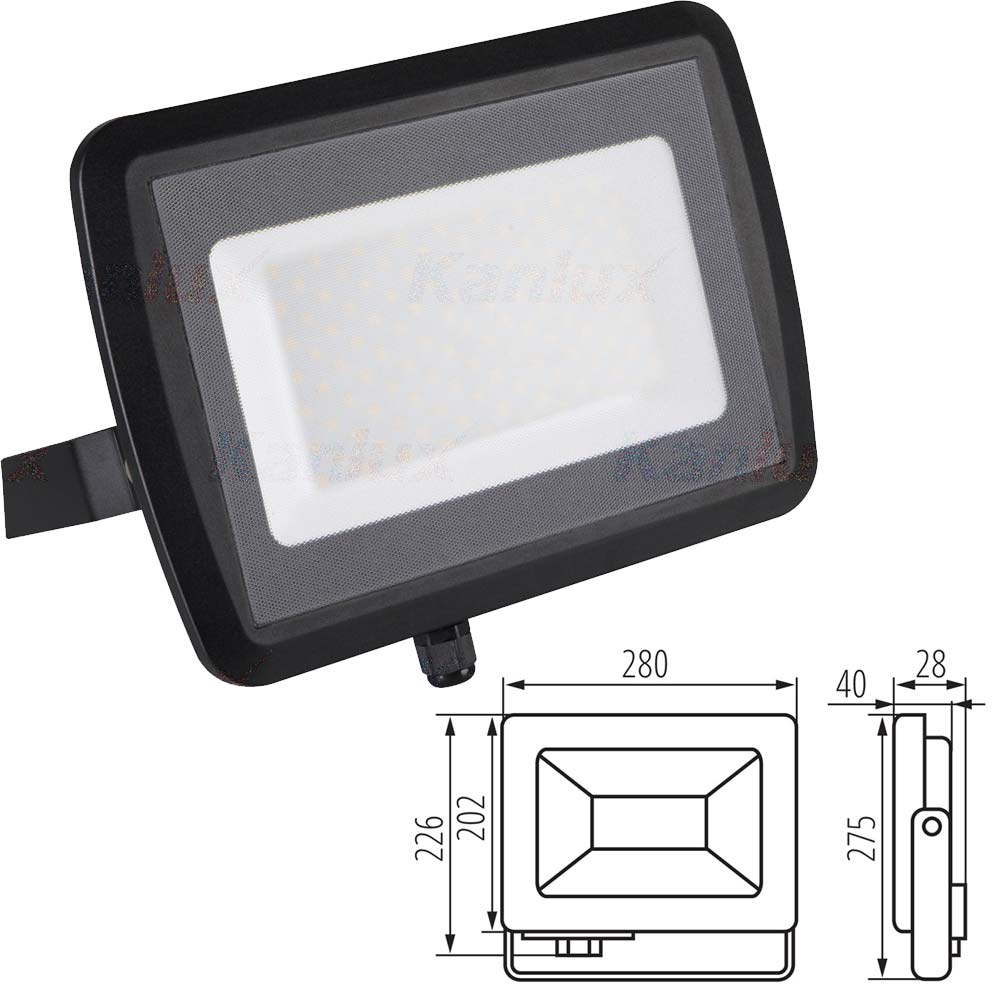

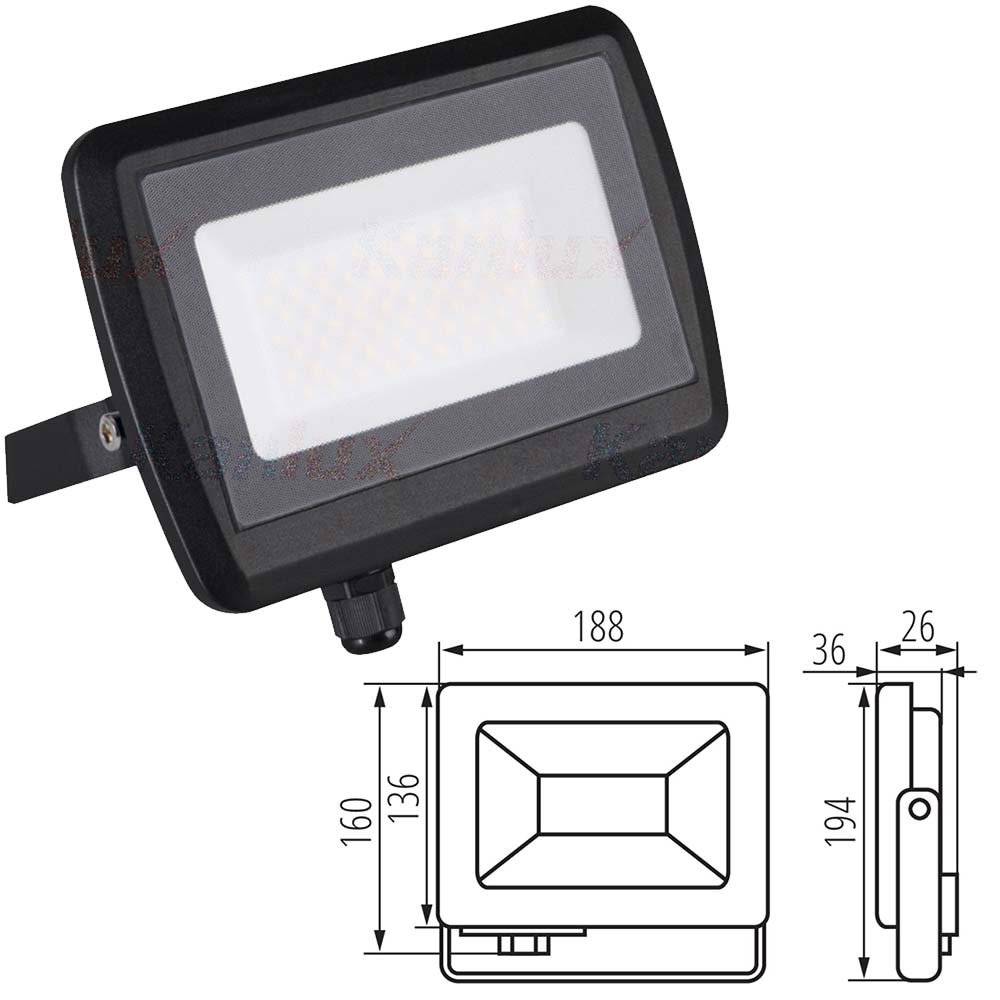

Height (mm)	10W = 108, 20W = 138, 30W = 158, 50W = 160, 100W = 274
Width (mm)	10W = 101, 20W = 124, 30W = 148, 50W = 188, 100W = 280
Depth (mm)	10W = 35, 20W = 34, 30W = 36, 50W = 36, 100W = 40
Material	Aluminum Alloy
Finish	Black
IP Rating	IP65
Voltage (V)	220
Lamp Technology	LED SMD
Dimmable	No
Rated Life (Hours)	15000
Beam Angle (°)	100
Colour Temperature (K)	4000
Light Colour	Neutral White
Lumens (lm)	10W = 800, 20W = 1600, 30W = 2400, 50W = 4000, 100W = 8000
Wattage (W)	10, 20, 30, 50, 100
Efficacy (lm/W)	80
CRI	80
Commodity Code	19837
Place of assembly	To Be Built On The Wall, Ceilign or Ground
Place of application	Outdoors
On/Off Cycles	10000
Integrated LED Light Source	Yes
