Description

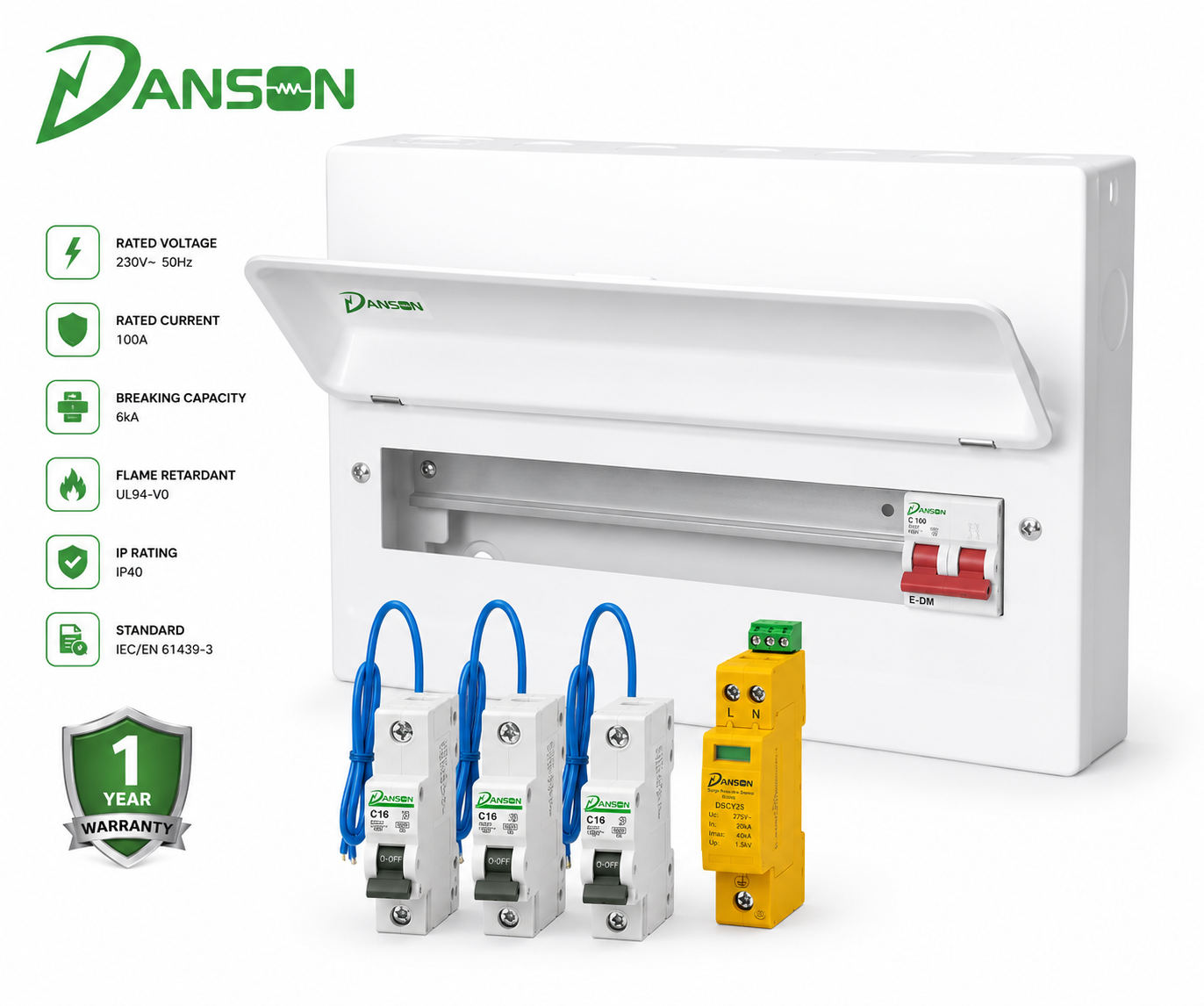

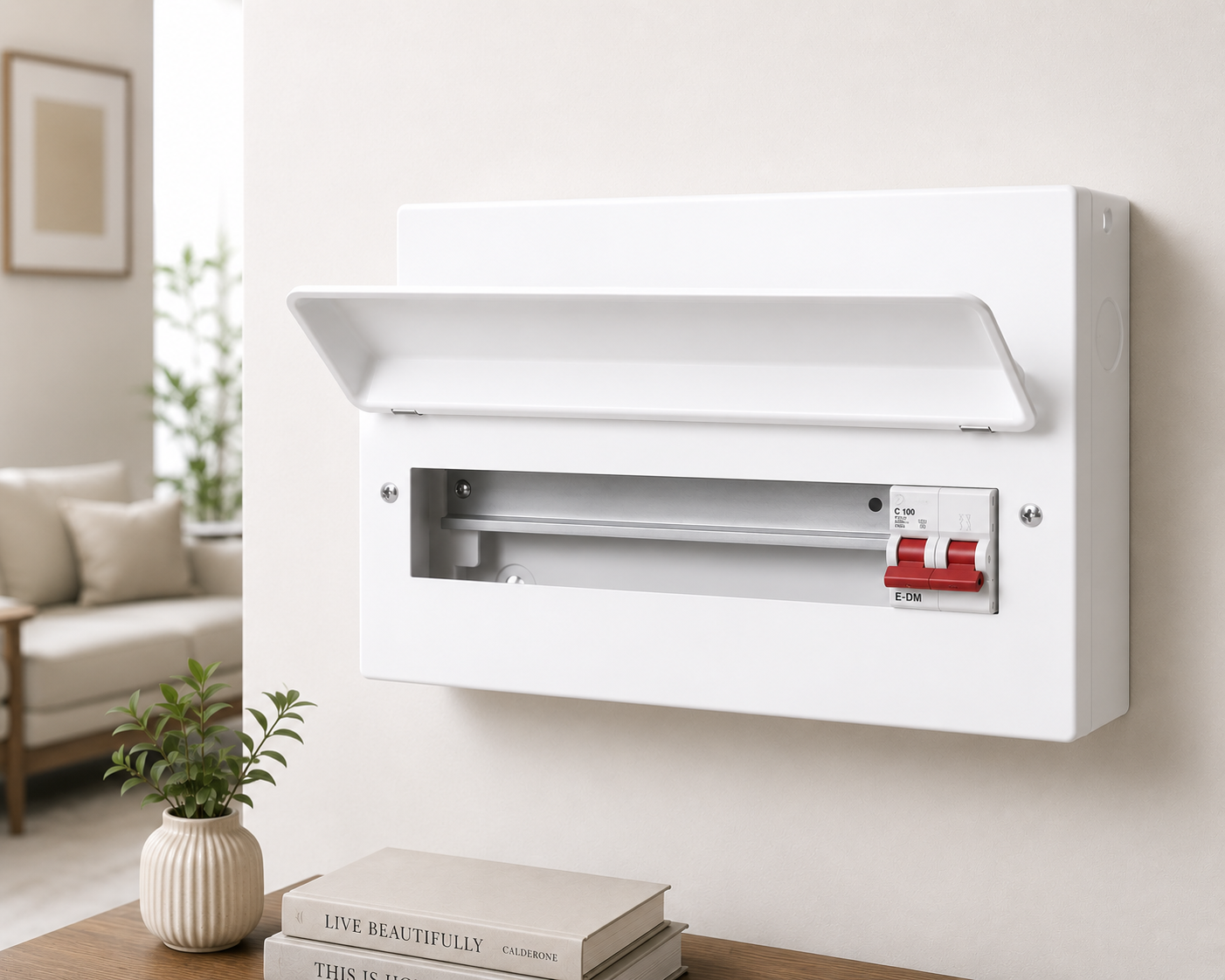

The Danson E-MM084/SPD1 5 Way Metal Consumer Unit is a compact and reliable single-phase distribution board designed for modern residential electrical installations. This populated consumer unit is supplied complete with 5 RCBOs, a 1 Module Type 2 Surge Protection Device (SPD) and a dependable 100A Main Switch, providing a complete solution for circuit and surge protection.
Manufactured to BS EN 61439-3, this surface-mounted consumer unit features a robust steel enclosure for enhanced safety, durability and efficient cable management. The integrated Type 2 SPD helps protect electrical installations and sensitive equipment against transient overvoltage and power surges.
Its compact 8-module enclosure, multiple cable knockout positions and included tail clamp make it ideal for smaller installations, garages, extensions, outbuildings and domestic electrical installations.
Key Features
- 5 Way metal consumer unit
- Supplied populated with 5 RCBOs
- Includes 100A Main Switch, 1 Mod SPD & 5 RCBOs
- 8 module enclosure
- Integrated Type 2 SPD protection
- 100A main switch included
- Single-phase distribution board
- Surface-mounted steel enclosure
- Fresh white powder-coated finish
- Includes tail clamp for live & neutral tails
- BS EN 61439-3 compliant
- Compact and durable design
- Multiple cable knockout positions
- Ideal for domestic and smaller electrical installations
Datasheet
Specifications
| Brand | Danson |
|---|---|
| SKU | E-MM084/SPD1 |
| Product Type | Metal RCBO Consumer Unit |
| Ways Available | 5 Ways |
| RCBOs Included | 5 RCBOs |
| Modules | 8 Module |
| Main Switch Rating | 100A |
| Number of Phases | Single Phase |
| Voltage | 230V |
| Frequency | 50Hz |
| Current Type | AC |
| SPD | 1 Module Type 2 SPD |
| SPD Rating | 20kA / 40kA |
| Maximum Operating Voltage | 275V |
| Enclosure Material | Steel |
| Finish | Powder Coated |
| Colour | Fresh White (RAL 9016) |
| IP Rating | IP2XC |
| IK Rating | IK07 |
| Mounting Type | Surface Mounted |
| Consumer Unit Standard | BS EN 61439-3 |
| EAN Barcode | 5060690135388 |
| Dimensions | 202 × 264 × 115.3 mm |
| Weight | 2.4 kg |
