Description

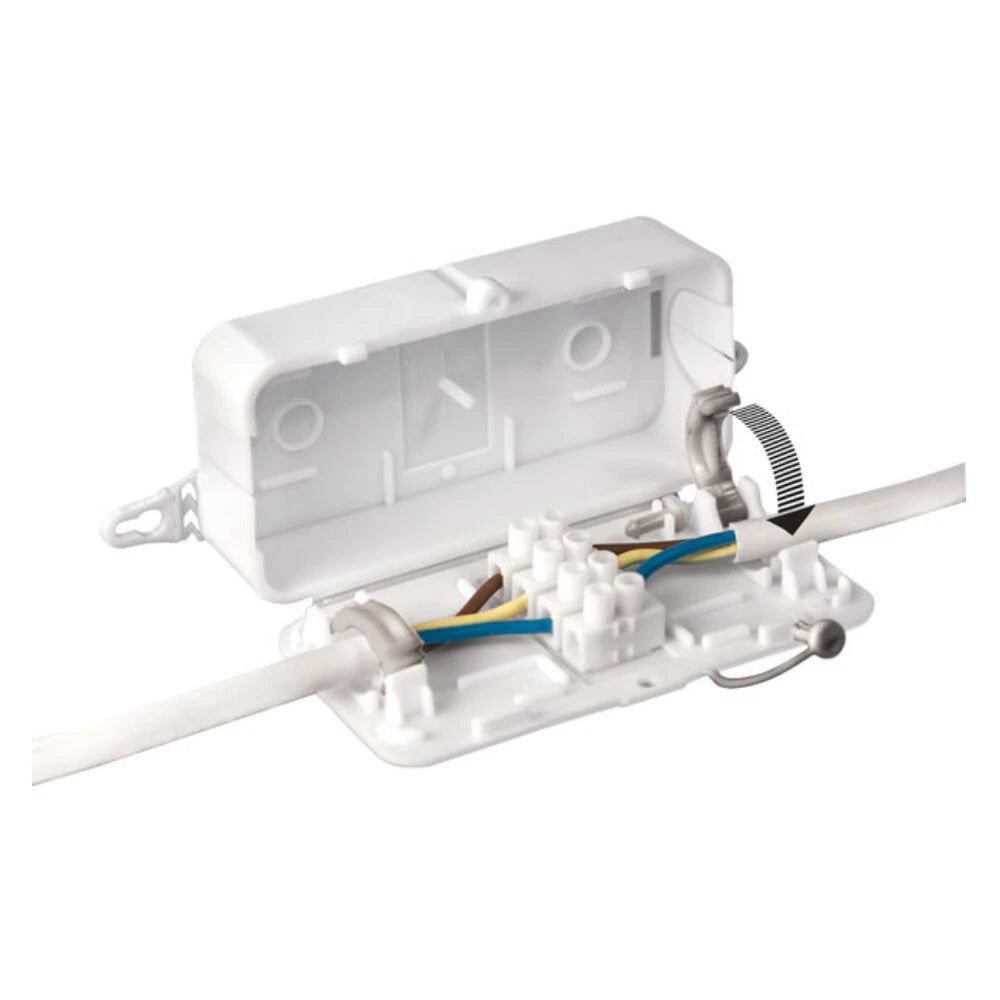

The DEKSB-002 Tool-Less In-Line Junction Box is a compact, high-performance solution for fast and secure electrical connections. Engineered for convenience, this tool-less junction box requires no screws or tools to assemble, significantly saving time during installation. It comes equipped with a 24A 4-pole terminal block, making it ideal for various power distribution and lighting applications.
Constructed from flame-retardant UL94V-0 polypropylene, the box meets key safety standards including EN60670-22 and EN60598-1 (Glow Wire Test 650°C). The design features pre-cut cable entry points, external fixing lugs, and a locking clip, ensuring secure, compliant, and long-lasting installations.
🛠️ Applications:
In-line cable splicing and junctions
LED lighting system installations
Domestic and commercial power distribution
Low-voltage device connections
Quick wiring in retrofit or temporary projects
Junctions in tight or limited-access spaces

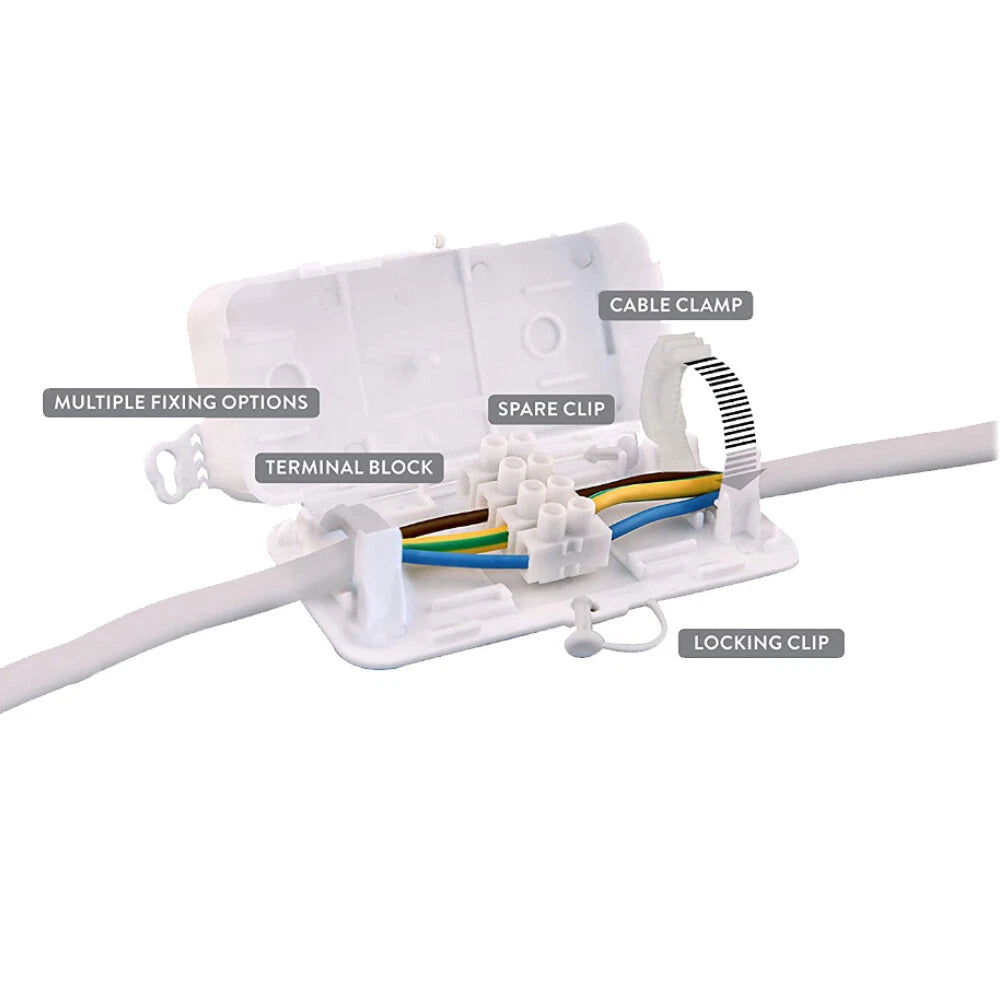

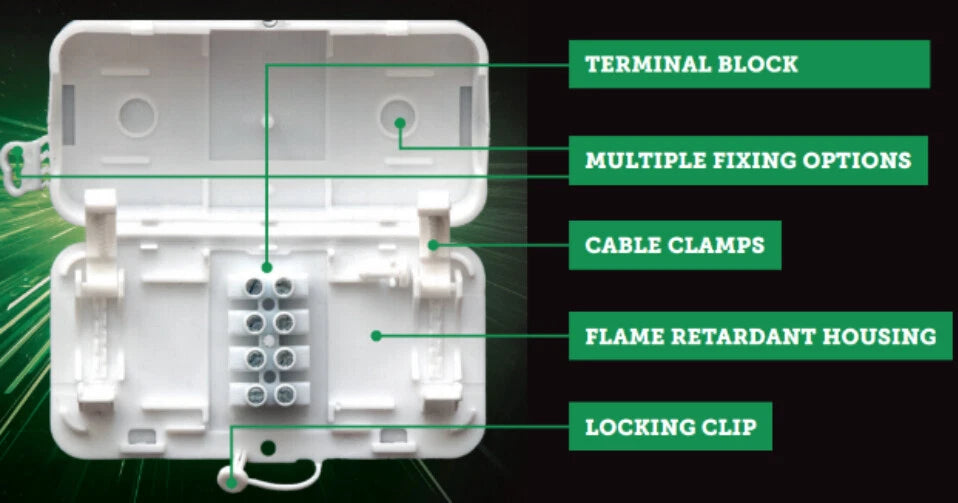

✅ Key Features:
100% Tool-Less Assembly – No screwdriver or special tools required
24A 4-Pole Terminal Block – Secure multi-circuit connections
Flame-Retardant Housing – UL94V-0 polypropylene for added fire safety
Complies with EN Standards – EN60670-22 & EN60598-1 GWT 650°C
Locking Clip Included – Prevents accidental opening
Pre-Cut Cable Entry – Quick lead-in for standard cables
External Fixing Lugs – Easy and secure surface mounting
Compact Design – Ideal for confined or concealed spaces
Specifications
SKU | DEKSB-002/1 |
---|---|
Brand | DEBOX |
Model | DEKSB-002 |
Product Type | In-Line Tool-Less Junction Box |
Color | White |
Number of Poles | 4-Pole |
Terminal Block Rating | 24A |
Body Material | Flame Retardant Polypropylene (UL94V-0) |
Insert Material | Steel |
Max Conductor Size | 4 mm² |
Temperature Rating | -20°C to +85°C |
Complies With | EN60670-22, EN60598-1 (GWT 650°C) |
Cable Entry | Pre-cut lead-in points |
Fixing Type | External mounting lugs & locking clip |

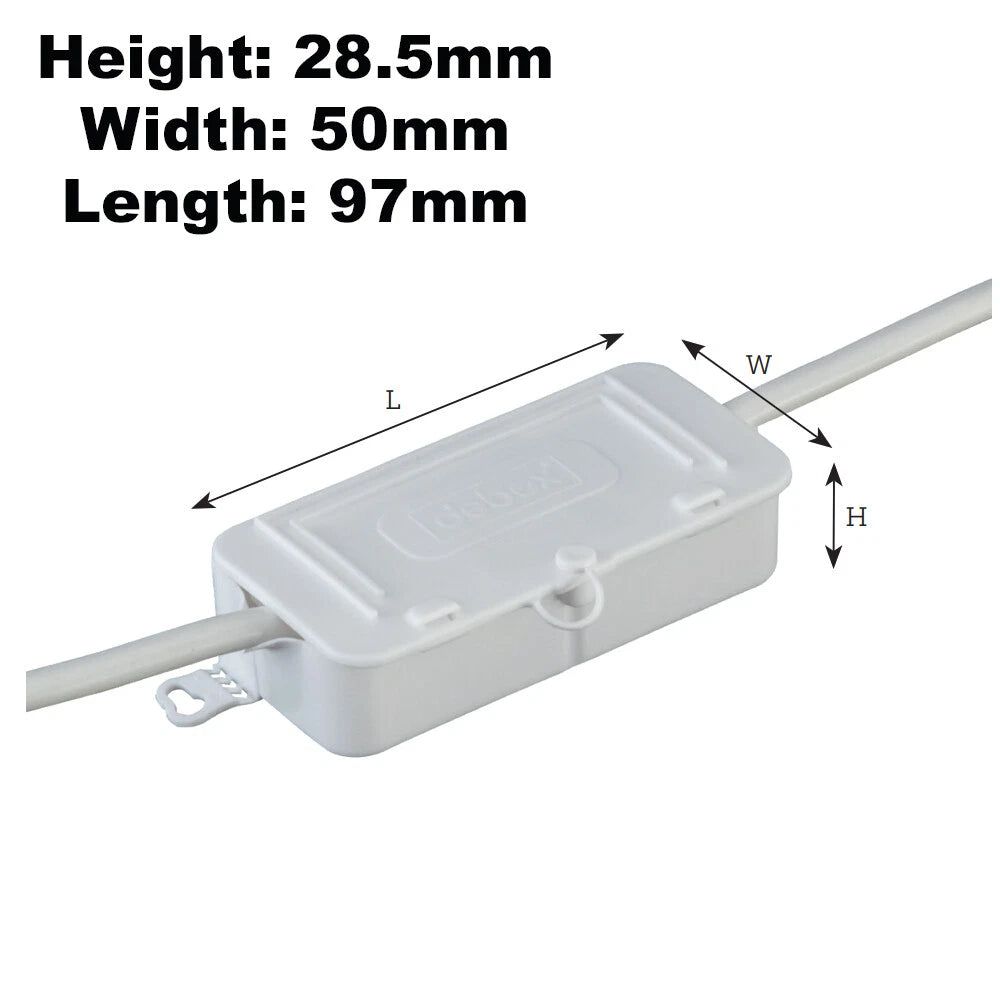

Dimensions | 97mm (L) × 50mm (W) × 28.5mm (H) |
