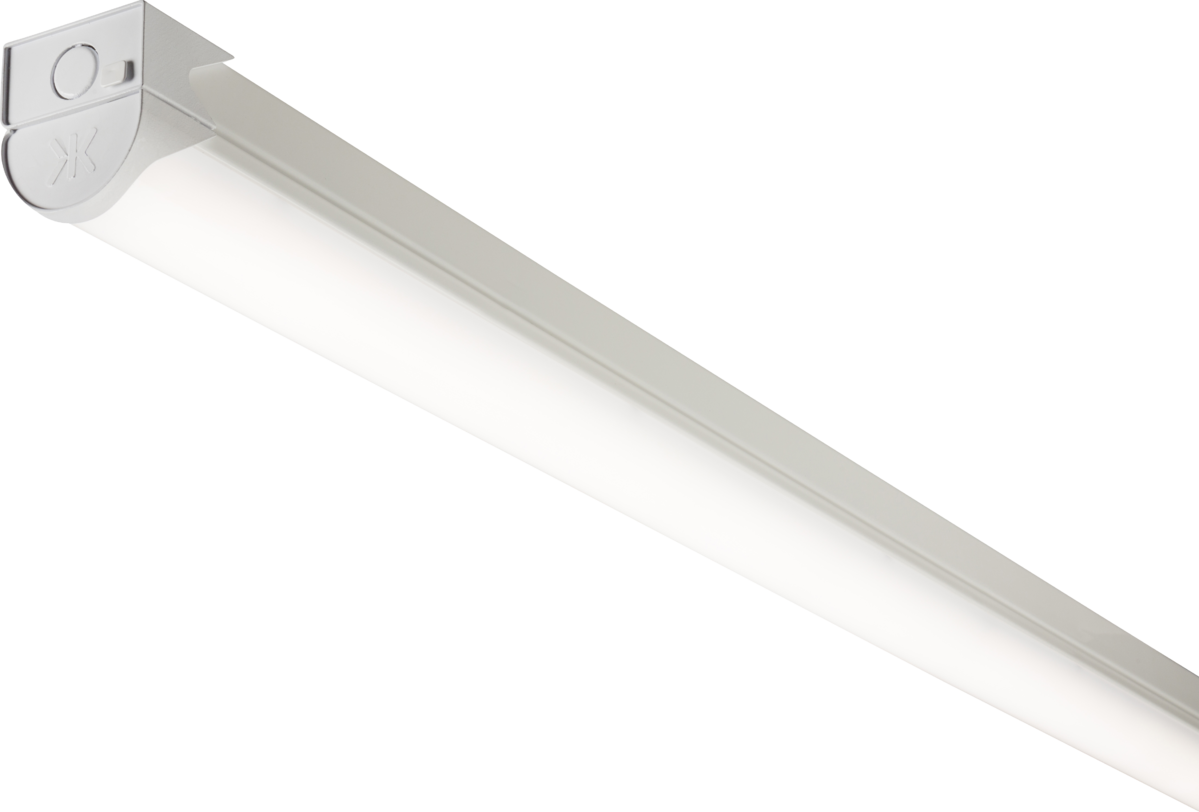

The Convoy range of LED battens offer ultra high efficiency, with the latest CCT changing and LED Chip technology. The retrofit fixings points makes ideal replacements for conventional fluorescent fixtures whilst offering extremely long life and low maintenance. This range offers smooth distribution of light and push fit terminals with innovative hinged diffuser for no hassle installation. Alternative option available in emergency. - High efficiency 133lm/W - Suitable for multitude of applications - CCT adjustable - 3000K, 4000K, 6000K - Emergency and High Lumen models also available - Please select from drop down menu

Download

Datasheet

Specifications

Variant SKU	BATCA4
SKU	BATCA4, BATCA5, BATCA6
Length (mm)	4ft = 1170, 5ft = 1470, 6ft = 1734
Height (mm)	61
Width (mm)	71
Material	Pressed steel
Material 2	polycarbonate
Finish	White
Class	I
IP Rating	IP20
Voltage (V)	230V 50Hz
Diffuser	Opal
Lamp Technology	SMD LED
Lamp Included	Yes
Dimmable	No
Rated Life (Hours)	50000
Beam Angle (°)	140
Colour Temperature (K)	3000/4000/6000
Light Colour	CCT
Lumens (lm)	4ft = 3200, 5ft = 5140, 5ft HL = 8650, 6ft = 5950, 6ft HL = 9360
Lumens (Light Source only)	3255
Lumens (Em. mode)	230
Wattage (W)	4ft = 22, 5ft = 35, 5ft HL = 60, 6ft = 40, 6ft HL = 67
Efficacy	133.9
CRI	85
Warranty (Years)	5
Commodity Code	9405423990
