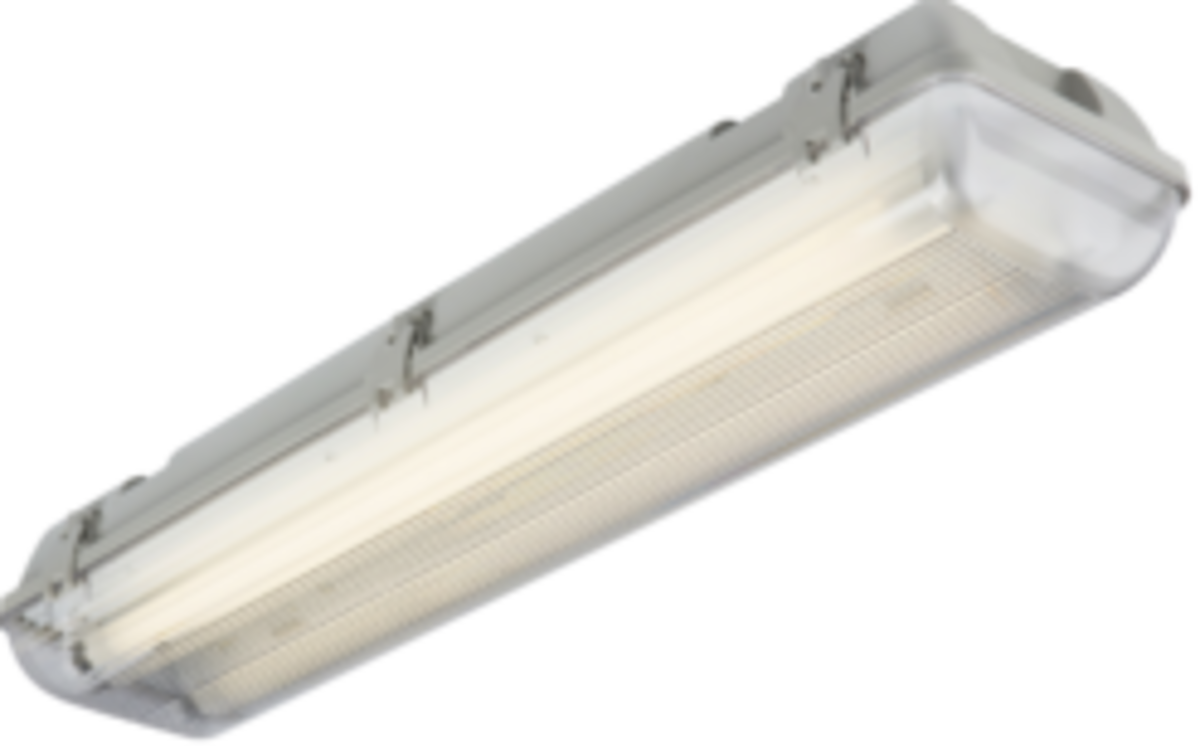

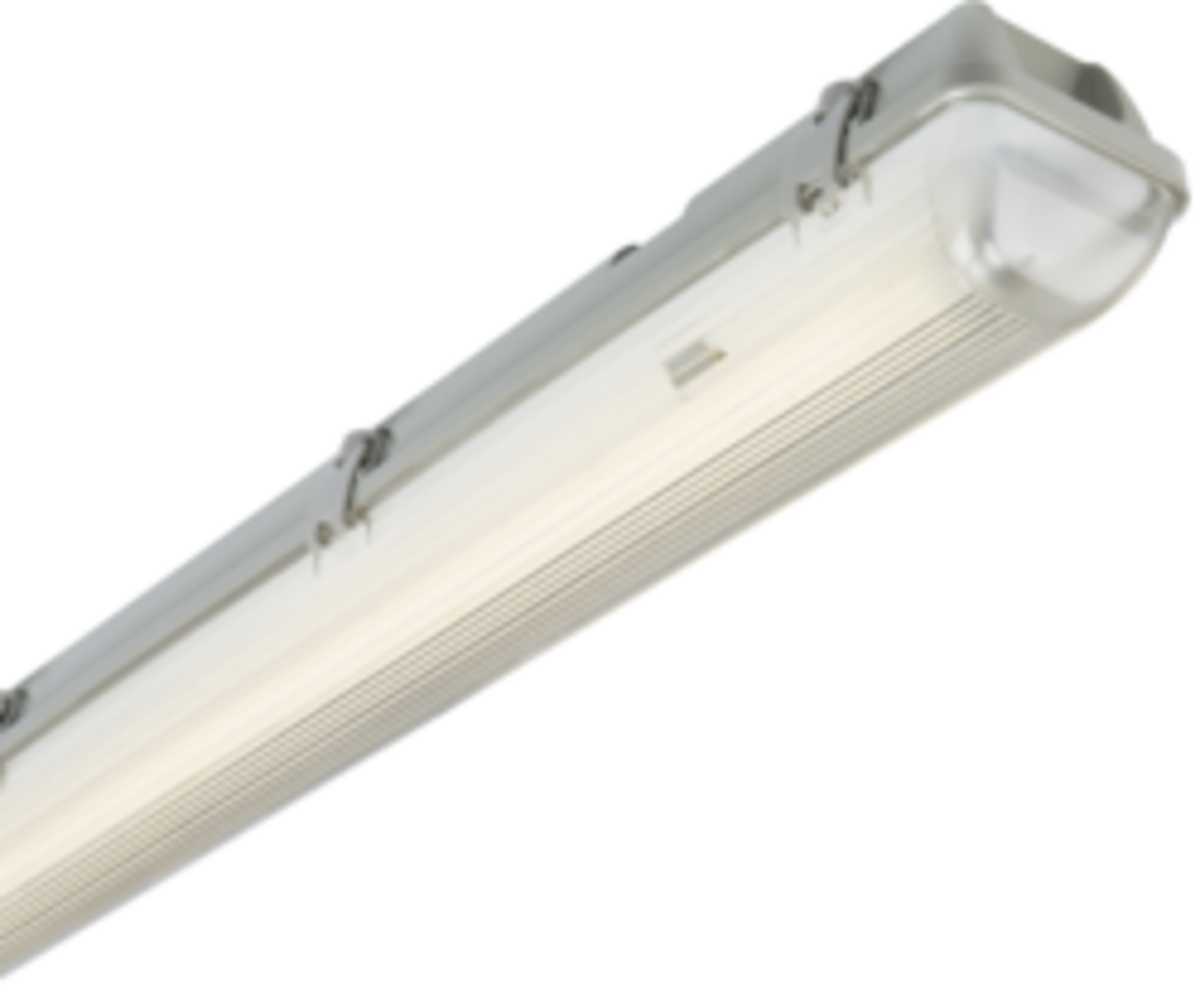

230V IP65 Single/Twin Non Corrosive LED T8 batten fitting. LED ready without a ballast or driver. Tough impact resistant polycarbonate body and diffuser ideal for industrial and commercial applications. Supplied pre-wired for use with dedicated T8 LED self ballasted tubes LED tube not included. Available in 2ft, 4ft, 5ft, 6ft and in Single and Twin Models.

Download

Datasheet

Specifications

Variant SKU	NCLB12
SKU	NCLB12, NCLB14, NCLB15, NCLB16, NCLB22, NCLB24, NCLB25, NCLB26
Length (mm)	2ft = 653, 4ft = 1263, 5ft = 1563, 6ft = 1828
Width (mm)	Single = 94, Twin = 129
Projection (mm)	90
Material	Polycarbonate
Finish	Grey
Class	I
IP Rating	IP65
Voltage (V)	230V 50Hz
Diffuser	Prismatic
Lamp Technology	LED
Lamp Base	T8
Lamp Included	No
Dimmable	Lamp dependent
Warranty (Years)	3
Commodity Code	9405500090
