Description
The ESR RCDSI16544 is a durable and safety-enhanced 16A 5-pin industrial interlocked socket equipped for 3-phase 380–415V AC systems. Built with a mechanical interlock, rotary switch, and a 6-module DIN rail for RCD/MCB installation, this socket ensures reliable and safe power distribution — especially in commercial, light industrial, and workshop environments.
✅ Key Features
Rated Current: 16A – suitable for light to medium-duty industrial loads
Voltage: 380–415V AC – supports balanced 3-phase systems
Pin Configuration: 3P+N+E (5-pin: 3 phase, neutral, earth)
Clock Position: 6H – correct alignment for 415V industrial plugs
IP44 Protection – guards against dust and water splashes
Switched Interlock Design – prevents power-on without plug insertion
Integrated 6-Module DIN Rail – allows installation of RCDs or MCBs (not included)
Robust Build – UV-stabilized, high-impact thermoplastic housing
Surface Mountable – easy to install on panels, boards, or walls
🛠️ Applications
Industrial Workshops & Machinery
Commercial Distribution Boards
Site Power Installations
Temporary Event Setups
Generator Hookups
Agricultural Facilities

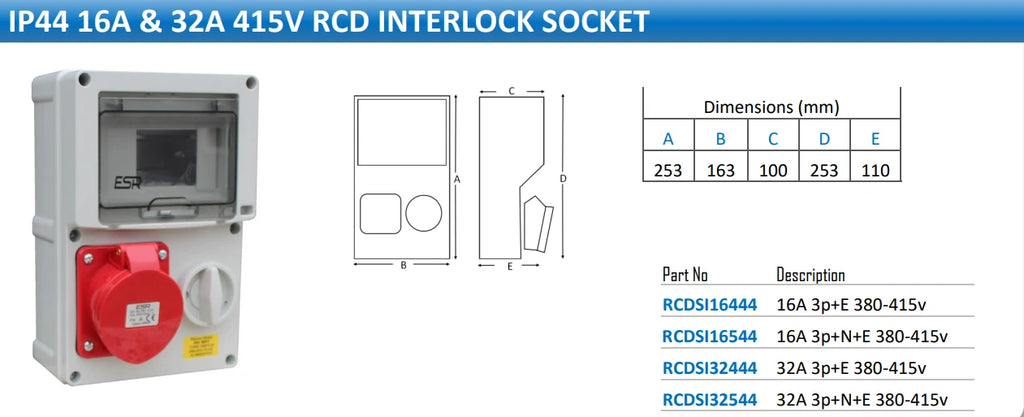

Specifications
| SKU | RCDSI16544 |
|---|---|
| Model | RCDSI16544 |
| Current Rating | 16 Amps |
| Voltage Rating | 380–415V AC (3-Phase) |
| Pins | 3P+N+E (5-Pin) |
| Clock Position | 6H |
| Ingress Protection | IP44 (Splash-Proof & Dust-Resistant) |
| Switch Type | Rotary Isolator with Interlock |
| DIN Rail Space | 6 Modules (RCD/MCB not included) |
| Material | UV-Stabilized Thermoplastic |
| Operating Temp | -25°C to +55°C |
| Standards Compliance | IEC 60309, CE Approved |
| Mounting Style | Surface |
| Length | 46.7 cm |
| Width | 16.25 cm |
| Depth | 20.3 cm |
