Description
Product Description

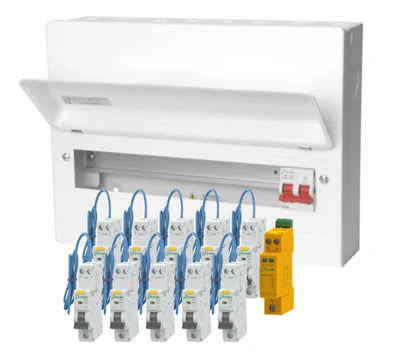

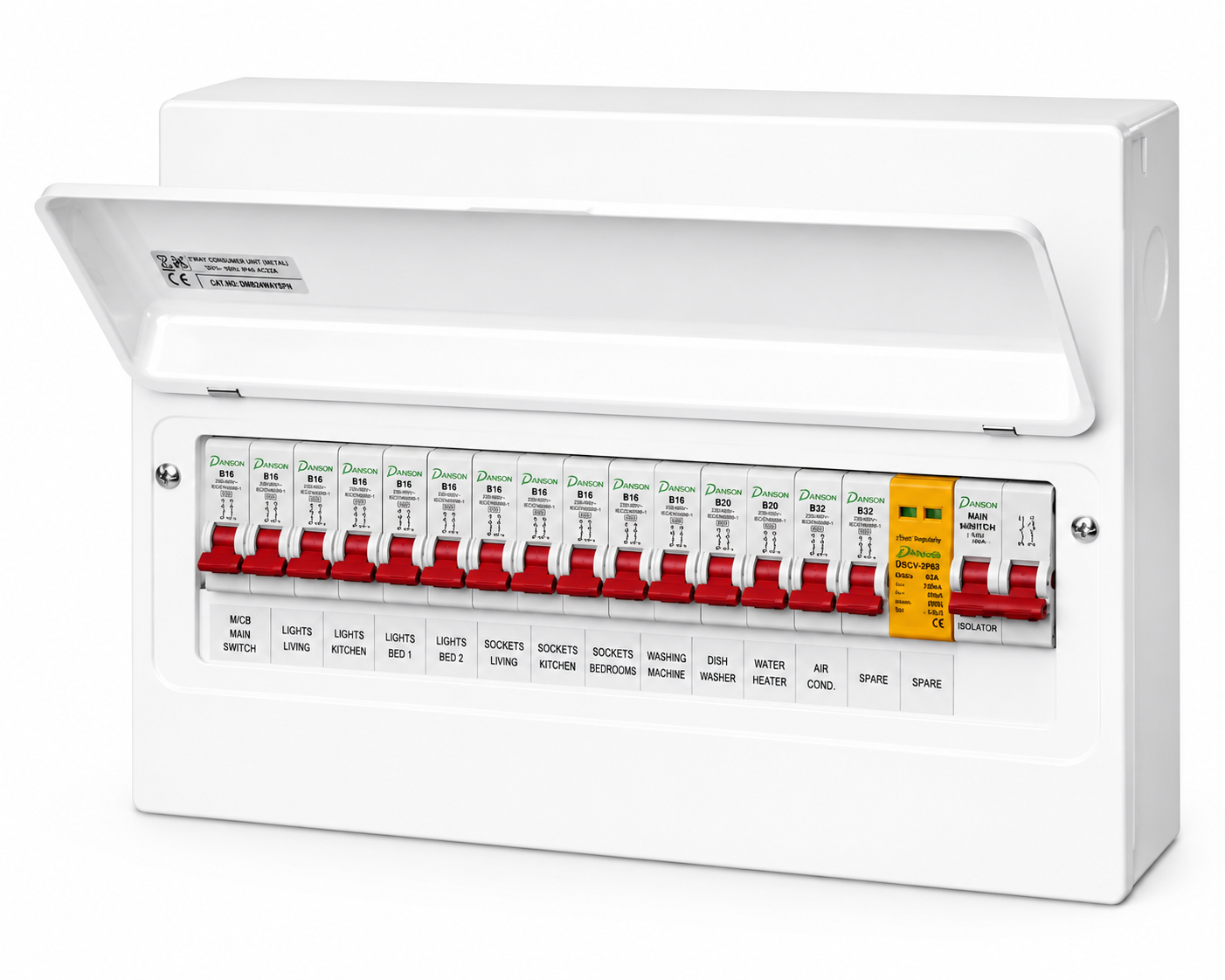

The Danson E-MM164/SPD1 13 Way Metal Consumer Unit is a robust single-phase distribution board designed for modern residential and light commercial electrical installations. This populated consumer unit is supplied complete with 13 RCBOs, a 1 Module Type 2 Surge Protection Device (SPD) and a reliable 100A Main Switch, providing a complete solution for circuit and surge protection.
Manufactured to BS EN 61439-3, this surface-mounted consumer unit features a durable steel enclosure for enhanced safety, durability and efficient cable management. The integrated Type 2 SPD helps protect electrical installations and sensitive equipment against transient overvoltage and power surges.
Its spacious 16-module enclosure, multiple cable knockout positions and included tail clamp make installation practical and electrician-friendly.
Key Features
- 13 Way metal consumer unit
- Supplied populated with 13 RCBOs
- Includes 100A Main Switch, 1 Mod SPD & 13 RCBOs
- 16 module enclosure
- Integrated Type 2 SPD (20kA / 40kA)
- 100A main switch included
- Single-phase distribution board
- Surface-mounted steel enclosure
- Fresh white powder-coated finish
- Includes tail clamp for live & neutral tails
- BS EN 61439-3 compliant
- Multiple cable knockout positions
- Durable steel construction
- Suitable for residential and light commercial installations
Datasheet
Specifications
| Brand | Danson |
|---|---|
| SKU | E-MM164/SPD1 |
| Product Type | Metal RCBO Consumer Unit |
| Ways Available | 13 Ways |
| RCBOs Included | 13 RCBOs |
| Modules | 16 Module |
| Main Switch Rating | 100A |
| Number of Phases | Single Phase |
| Voltage | 230V |
| Frequency | 50Hz |
| Current Type | AC |
| SPD | 1 Module Type 2 SPD |
| SPD Rating | 20kA / 40kA |
| Maximum Operating Voltage | 275V |
| Enclosure Material | Steel |
| Finish | Powder Coated |
| Colour | Fresh White (RAL 9016) |
| IP Rating | IP2XC |
| IK Rating | IK07 |
| Mounting Type | Surface Mounted |
| EAN Barcode | 5060690135401 |
| Main Switch Standard | Consumer Unit Standard |
| Dimensions | 345 × 264 × 115.3 mm |
| Weight | 3.57 kg |
