Description

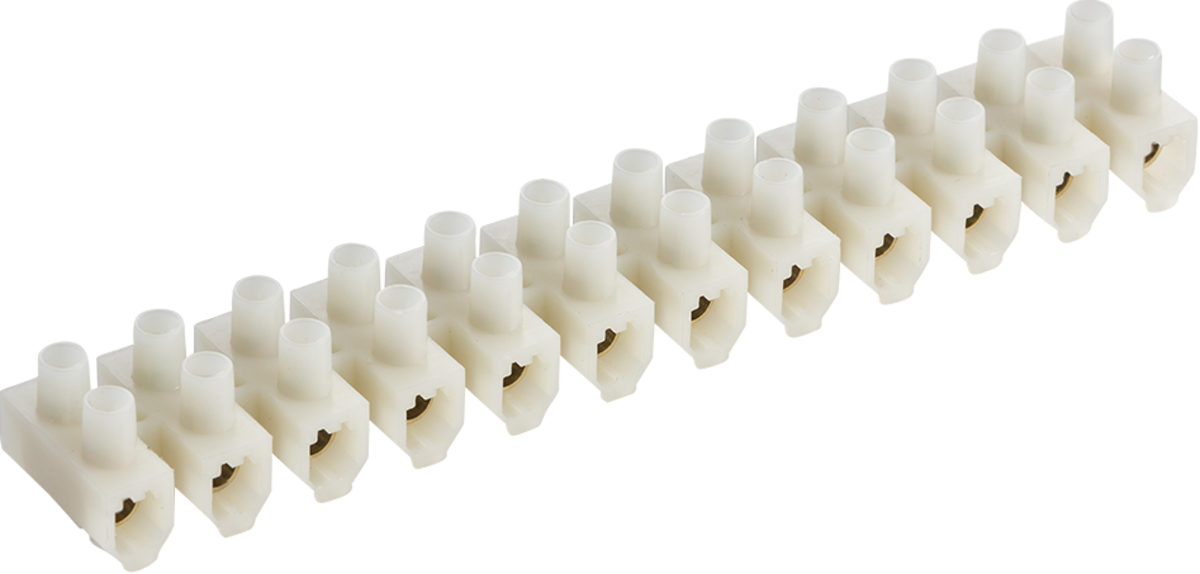

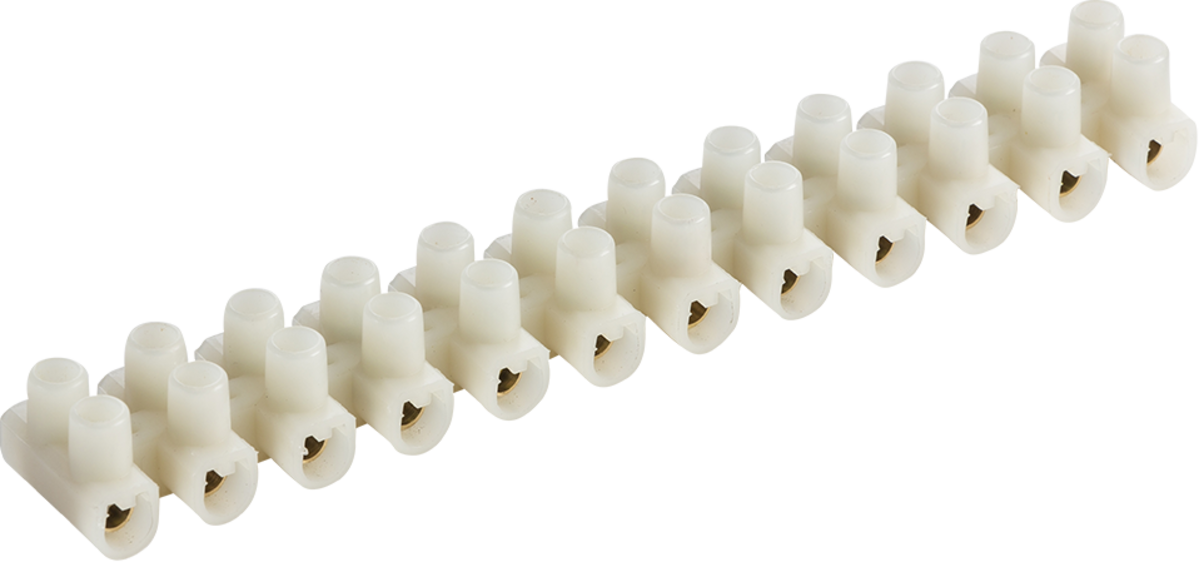

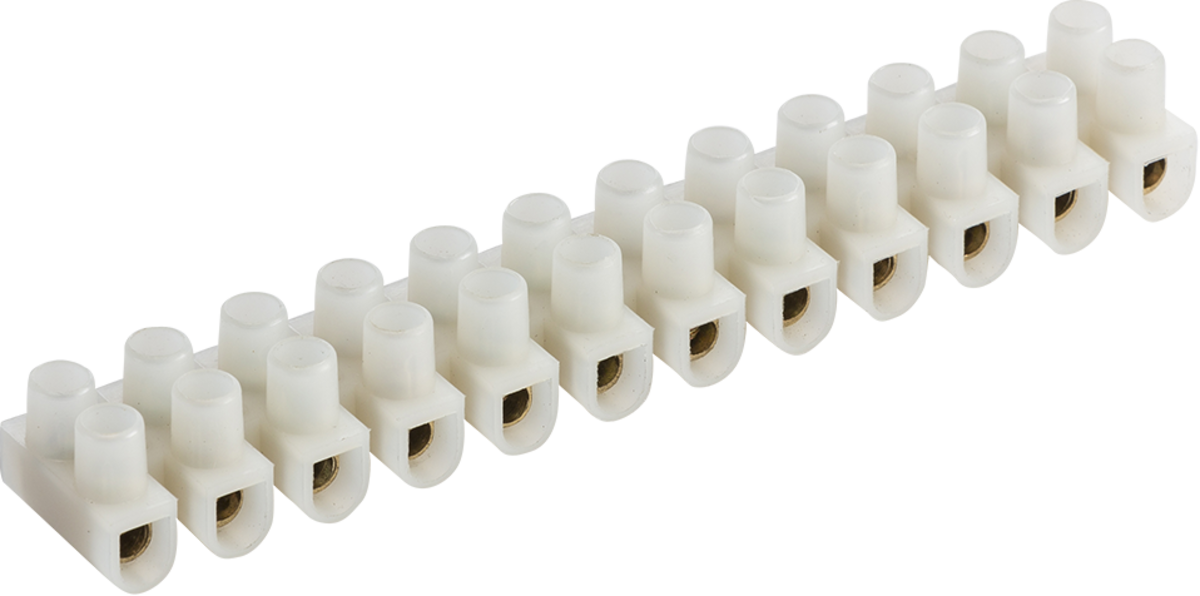

Terminal strips for connecting electrical cables.
- 380V
- 12-way
- 4mm² wire capacity.
- Made of PA66 material (UL94-V2 self extinguishing)
- Operating temperature: -30°C to +110°C
- Supplied bulk in shrink sealed Knightsbridge packaging
- 380V
- 12-way
- 4mm² wire capacity.
- Made of PA66 material (UL94-V2 self extinguishing)
- Operating temperature: -30°C to +110°C
- Supplied bulk in shrink sealed Knightsbridge packaging
Download

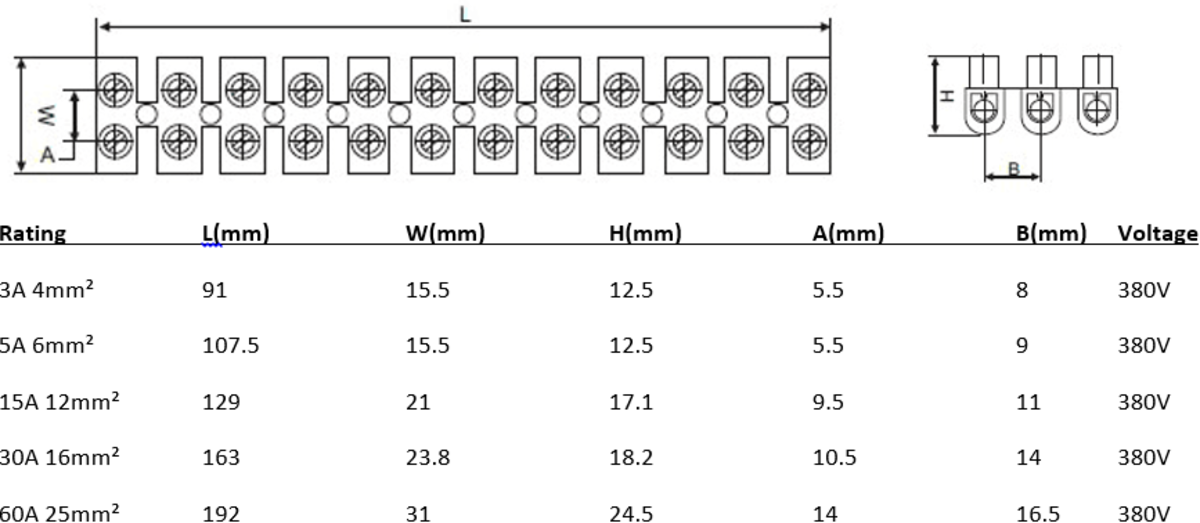

DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | SC3PA, SC5PA, SC15PA, SC30PA, SC60PA |
| Length (mm) | 3A = 91, 5A = 107, 15A = 129, 30A = 163, 60A = 192 |
| Height (mm) | 3-5A = 12.5, 15A = 17, 30A = 18, 60A = 24 |
| Width (mm) | 3-5A = 15, 15A = 21, 30A = 23.8, 60A = 31 |
| Material | PA66 (UL94-V2 self-extinguishing) |
| Finish | Natural |
| IP Rating | IP20 |
| Warranty (Years) | 1 |
| Commodity Code | 8535 9000 89 |
