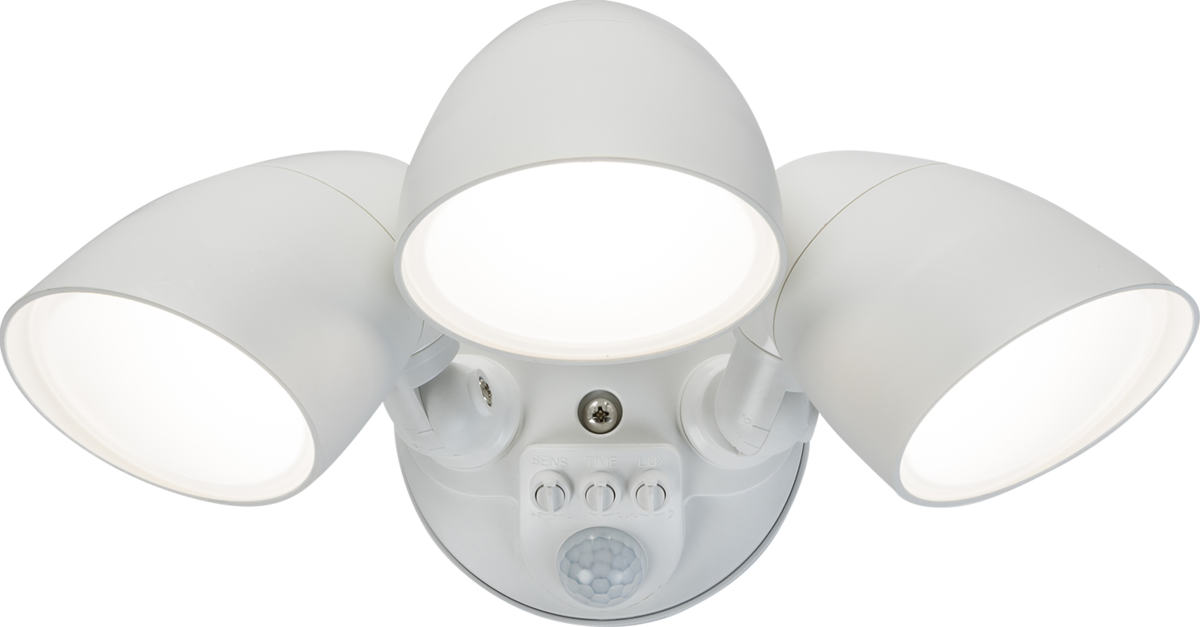

Combining the latest in security floodlight technology, featuring user definable light (3000K, 4000K, 5500K) by switch. Built-in PIR with combined lux sensor providing accurate presence detection with manual override option , forcing the light into an always on state
- IP65 construction for permanent outdoor installation
- 5-year warranty
- Wide operating voltage range 100-277Vac
-2 and 3 head options available (20W & 30W)
- High quality SMD2835 LEDs
- Selectable 3000K, 4000K, 5500K
- Manual override
- Adjustable sensitivity, time and lux dials
- Choice of black or white finish
- Simple mounting bracket enable fast fix solution
- 90° PIR detection range
- 8 metre detection distance
- 70° beam angle (from each head)
- 360° lamp bracket rotation, 180° lamp head rotation, 270° lamp head tilt

Download

Datasheet

Specifications

Brand	Knightsbridge
SKU	SL20CCTB, SL20CCTW, SL30CCTB, SL30CCTW
Width (mm)	Twin = 243, Triple = 222
Projection (mm)	Twin = 173, Triple = 190
Tilt (°)	270
Rotation (°)	360
Material	Polycarbonate
Finish	Black, White
Class	II
IP Rating	IP65
Voltage (V)	110/230V
Diffuser	Opal
Lamp Technology	SMD LED
Lamp Included	Yes
Dimmable	No
Rated Life (Hours)	54000
Beam Angle (°)	75
Colour Temperature (K)	3000/4000/5500
Light Colour	CCT
Lumens (lm)	Twin = 1810, Triple = 2700
Wattage (W)	20
Efficacy	95.3
CRI	85
Warranty (Years)	5
Commodity Code	9405421000
