Description
Gently contoured 7mm plate with rounded edges and anti-microbial properties, includes screw cap covers.
- 13A rated
- Top access to captive terminals to speed up installation.
- Twin earths.
- Min. Mounting box depth: 25mm
- Certified to BS 1363-2:2016+A1:2018
- ASTA approved License No. 1412
- Packed in Individual Knightsbridge rip top polybag with euro slot

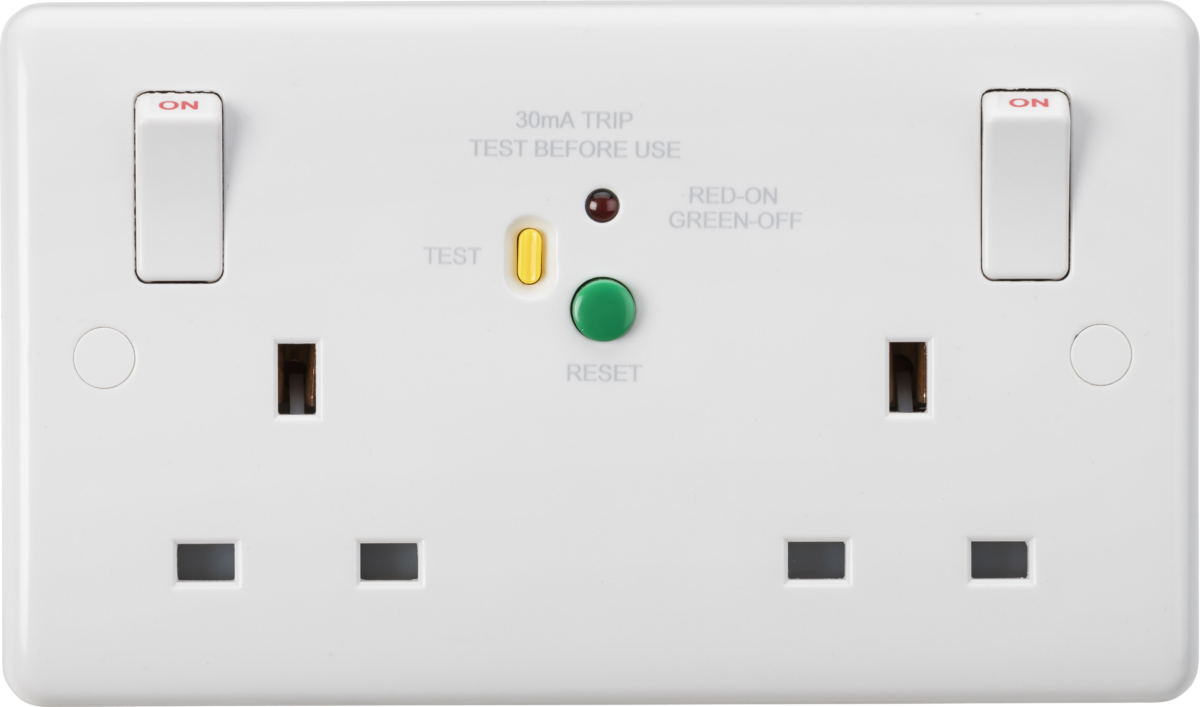

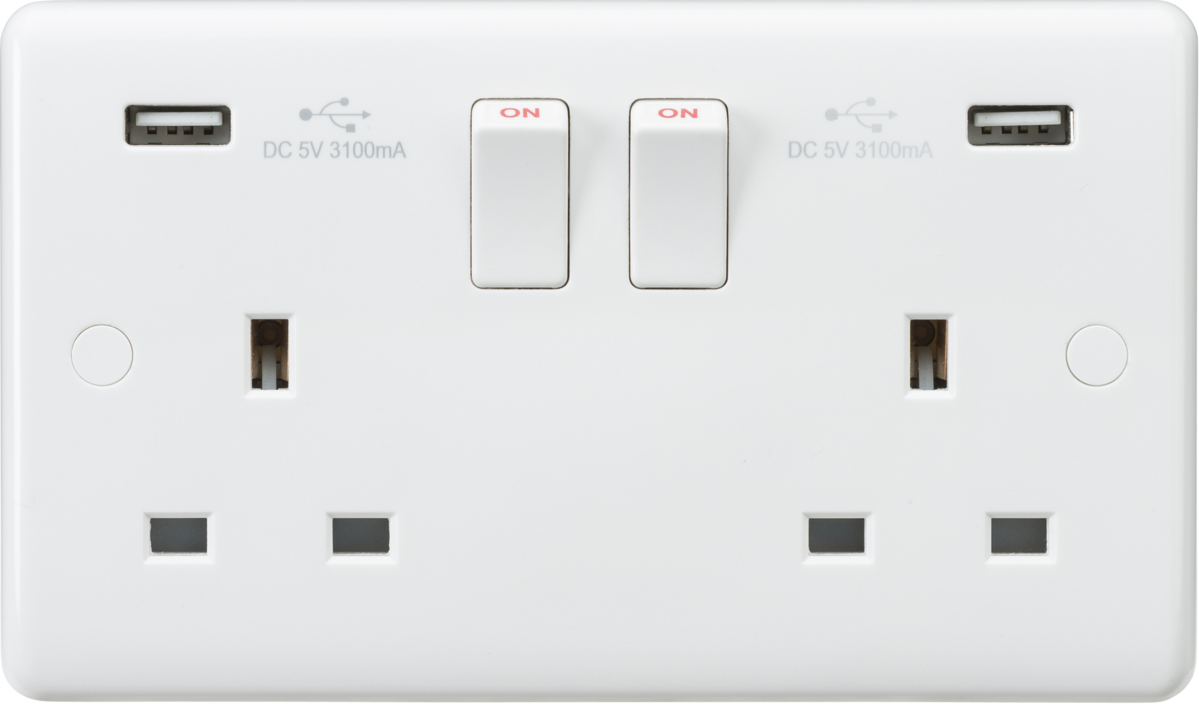

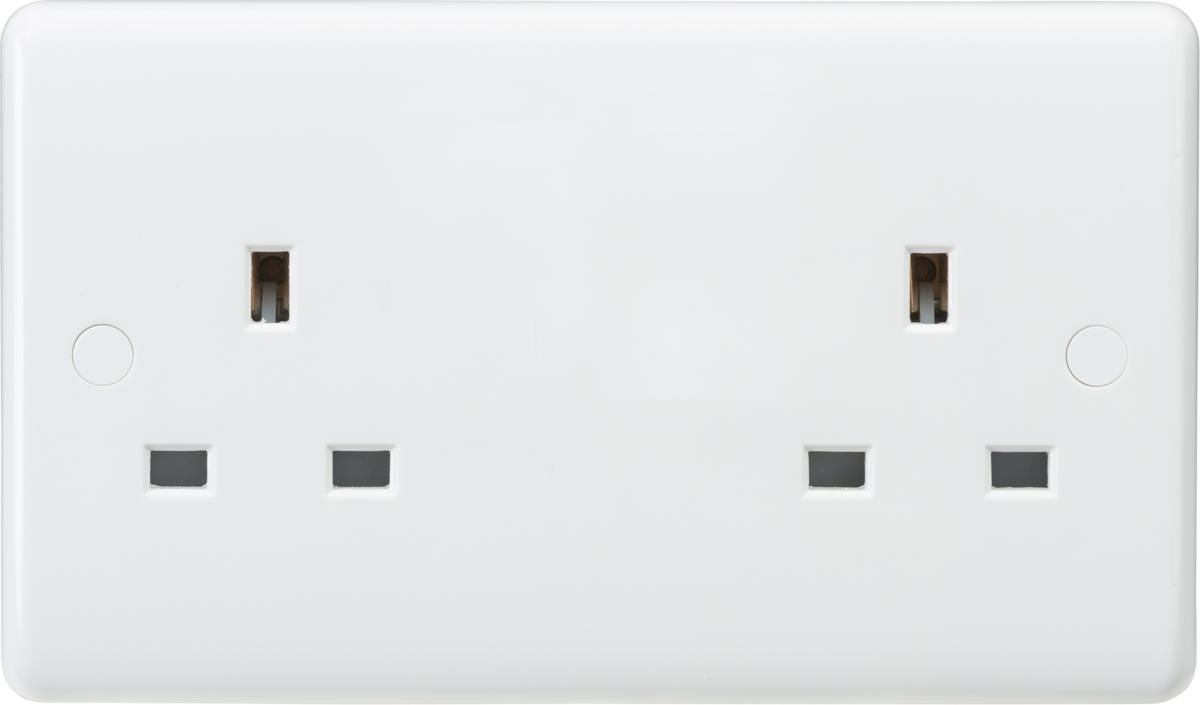

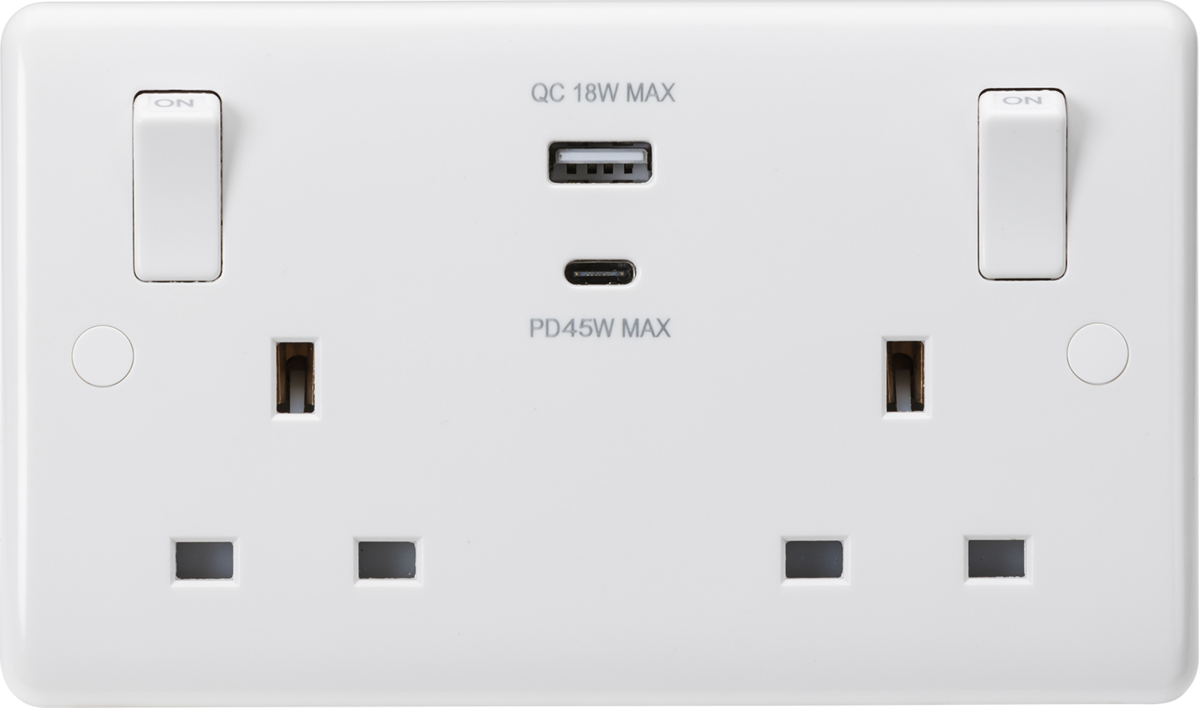

- Also available in Switched, Unswitched, SP, DP, RCD and USB Charging Sockets. Please select from drop down menu
- 13A rated
- Top access to captive terminals to speed up installation.
- Twin earths.
- Min. Mounting box depth: 25mm
- Certified to BS 1363-2:2016+A1:2018
- ASTA approved License No. 1412
- Packed in Individual Knightsbridge rip top polybag with euro slot
- Also available in Switched, Unswitched, SP, DP, RCD and USB Charging Sockets. Please select from drop down menu
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | CU9000, CU9000S, CU9000U, CU9003, CU9904, CU9RCD |

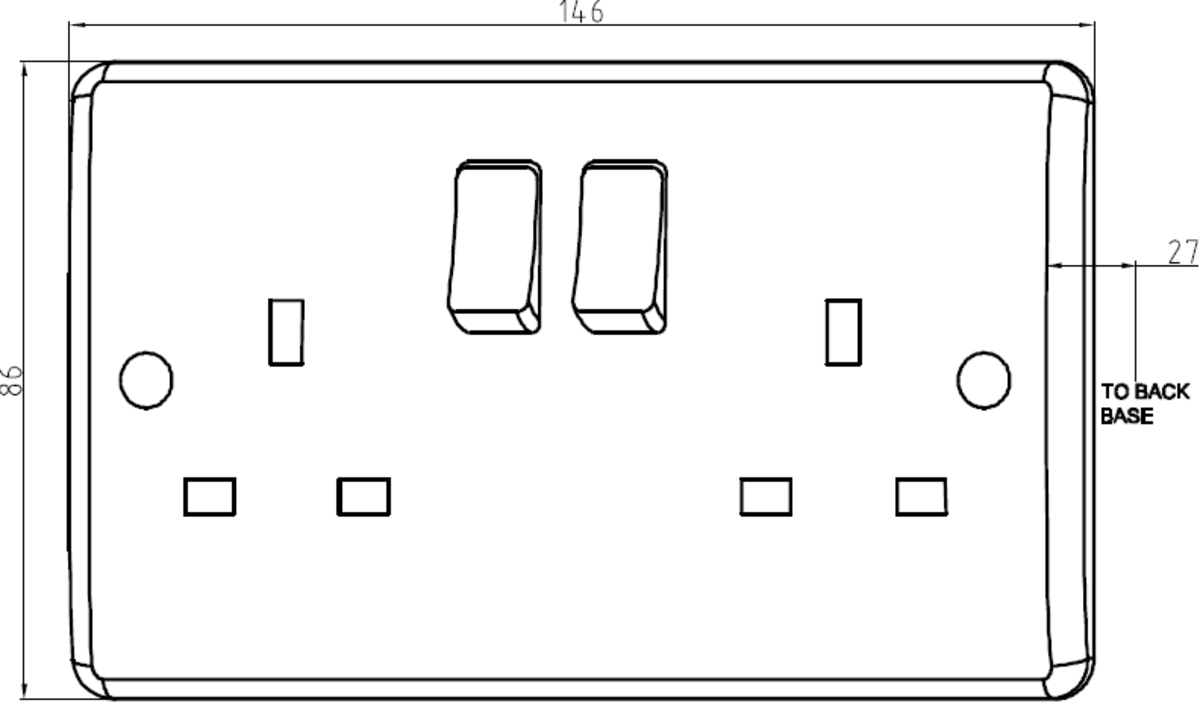

| Height (mm) | 86 |
| Width (mm) | 146 |
| Projection (mm) | 7 |
| Min. Mounting Box Depth (mm) | 25 |
| Material | Thermoset resin |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Earth Terminal | Yes |
| Terminal | Captive |
| RCD functionality | 30mA Type-A latching |
| Warranty (Years) | 15 |
| Commodity Code | 8536 6990 85 |
