Description

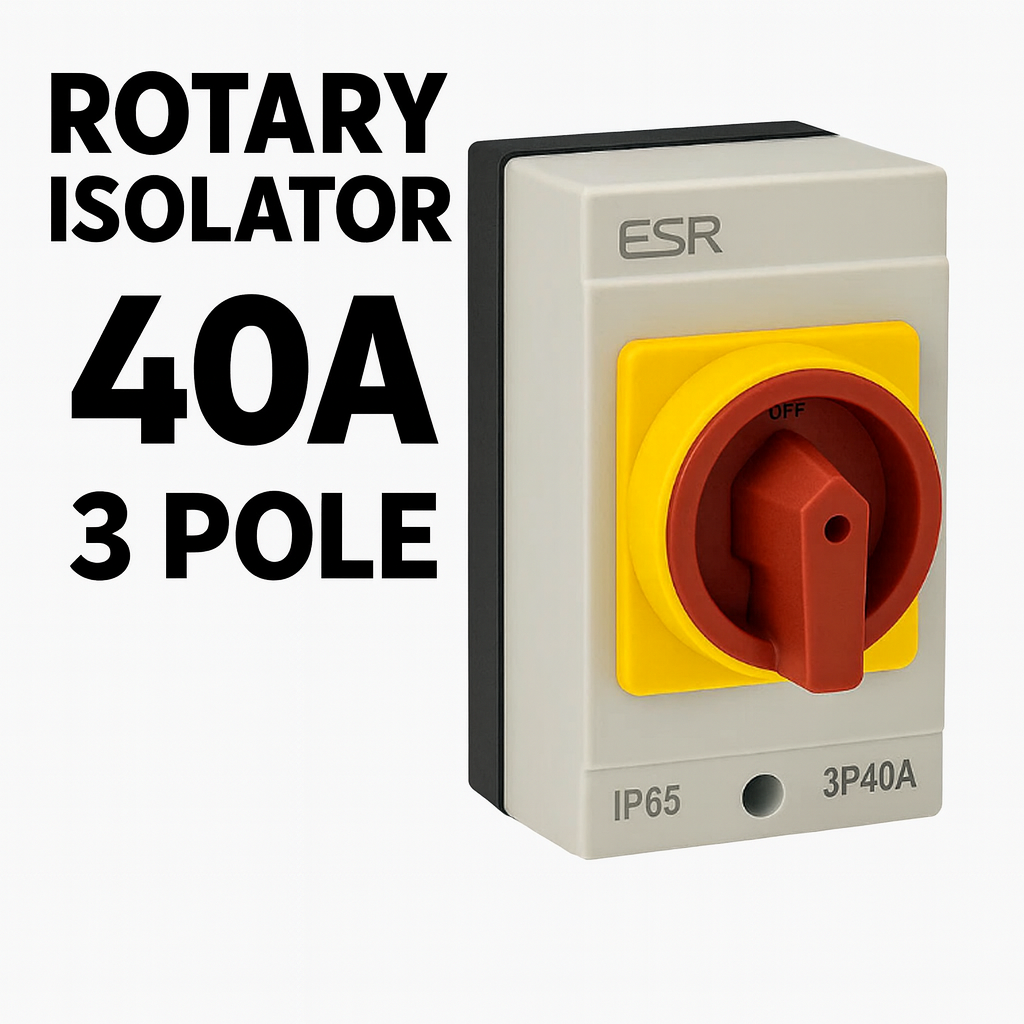

Upgrade your outdoor electrical control systems with this high-quality ESR 40A 3 Pole Rotary Isolator. Designed for durability and safety, this weatherproof isolator is perfect for industrial, commercial, and residential applications. With an IP65 rating, lockable design, and solid build, it's a reliable solution for isolating power safely.
✅ Key Features:
40A Current Rating – Suitable for demanding applications
3 Pole Configuration – For secure phase disconnection
IP65 Weatherproof Rating – Safe for outdoor use
Solid Neutral – Ensures safe and complete disconnection
Interlocked Cover – Can only be removed when in OFF position
Lockable Rotary Switch – Prevents accidental or unauthorised switching
Tough Thermoplastic Construction – Built to last in harsh environments
Quick Installation – DIN rail switch can be removed for first fix
Cable Knockouts – Pre-marked 20mm entries for clean cabling
BS 60947-3 Compliant – Certified quality and safety
🛠️ Applications:
Air Conditioning Units
Industrial Equipment
Commercial Premises
Agricultural Installations
Renewable Energy Systems
General Outdoor Power Isolation
Specifications
| SKU | E403P |
|---|---|
| Brand | ESR |
| Product Type | Rotary Isolator Switch |
| Current Rating | 40A |
| Number of Poles | 3 Pole |
| Weatherproof Rating | IP65 |
| Standard Compliance | BS EN 60947-3 |
| Material | Durable Thermoplastic |

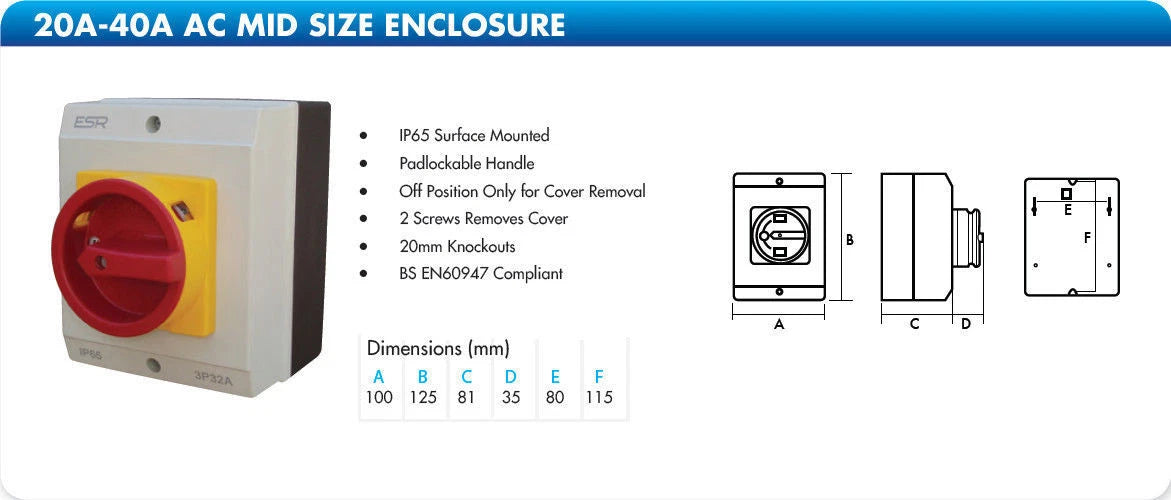

| Enclosure Dimensions | 100mm x 125mm |
| Mounting | Surface Mounted |
| Lockable | Yes |
| Interlocked Cover | Yes (Removable only in OFF state) |
| Application | Outdoor/Indoor Power Isolation |
| Height | 12.5 cm |
| Width | 10.0 cm |
| Depth | 8.1 cm |
