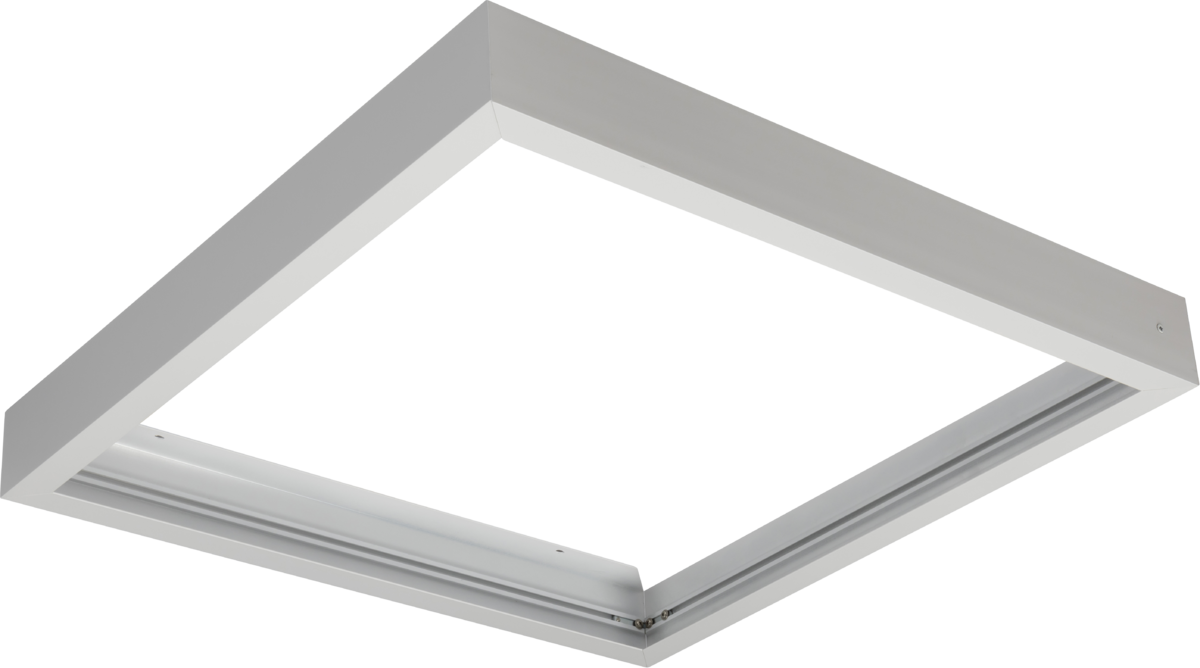

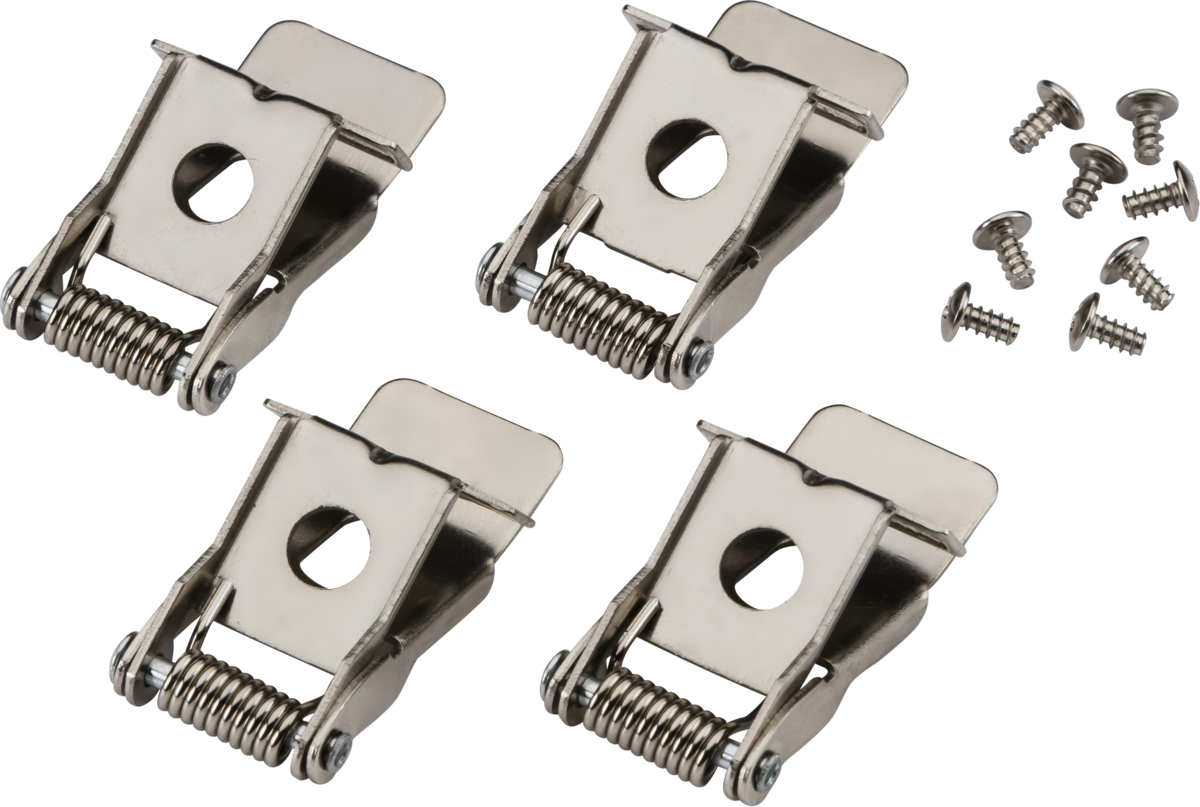

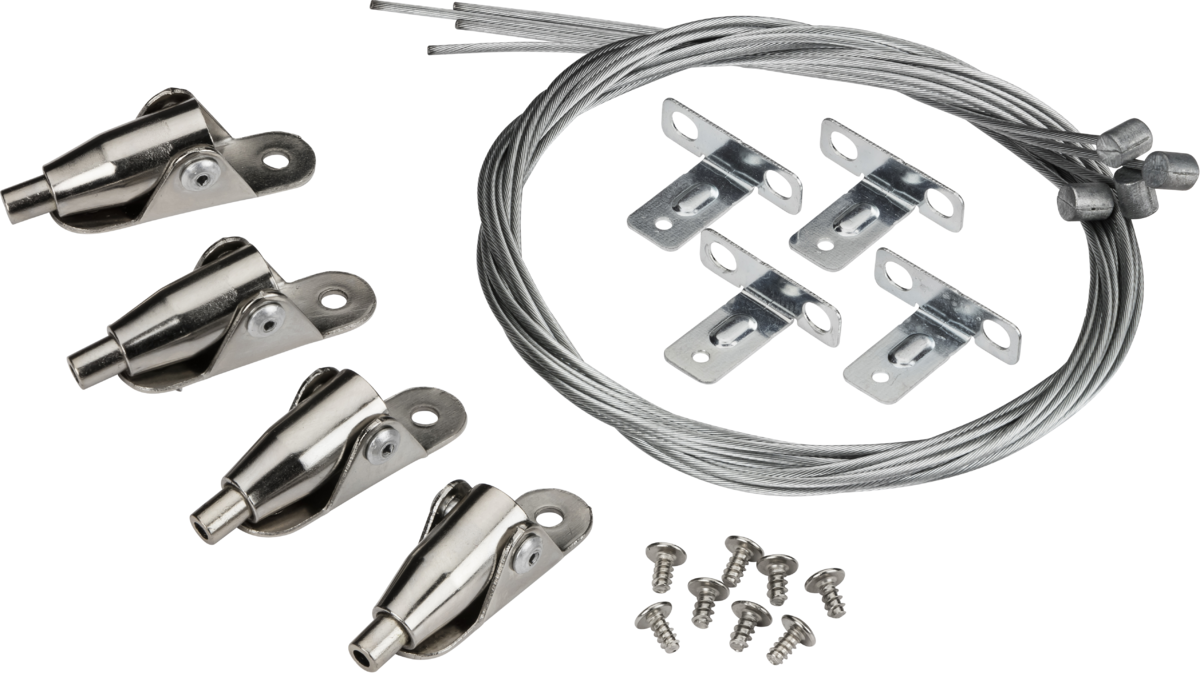

Backlit recessed LED panel, High efficiency, offering up to 125lm/w. Additional accessories available, including; Dimmable plug and play driver, surface mount kit, suspension kit and recessed clips. - Compatible with standard 600x600mm 15mm and 25mm grids - Diffuser TP(a) rated - UGR <19 - High lumen efficiency - Supplied with non-dimmable driver as standard - Low flicker - Dimmable driver option available - (Not included - Available in drop down menu) - Recessed Clips available - - (Not included - Available in drop down menu) - Surface Mount option available - (Not included - Available in drop down menu) - Suspension Kit Option available - (Not included - Available in drop down menu) 4000K, Cool white, 3840lm

Download

Datasheet

Specifications

Variant SKU	LPAN30
SKU	LPAN30, LPAND, LPANKIT, LPANRC, LPANS
Length (mm)	595
Width (mm)	595
Depth (mm)	32
Material	Aluminium
Material 2	polycarbonate
Finish	White
Class	II
IP Rating	IP40
Voltage (V)	230V 50Hz
Diffuser	Opal
Lamp Technology	SMD LED
Lamp Included	Yes
Dimmable	Driver dependent
Rated Life (Hours)	50000
Beam Angle (°)	90
Colour Temperature (K)	4000
Light Colour	Cool White
Lumens (lm)	3840
Lumens (Light Source only)	4610
Wattage (W)	30
Efficacy	172.48
CRI	80
Warranty (Years)	3
Commodity Code	9405423990
